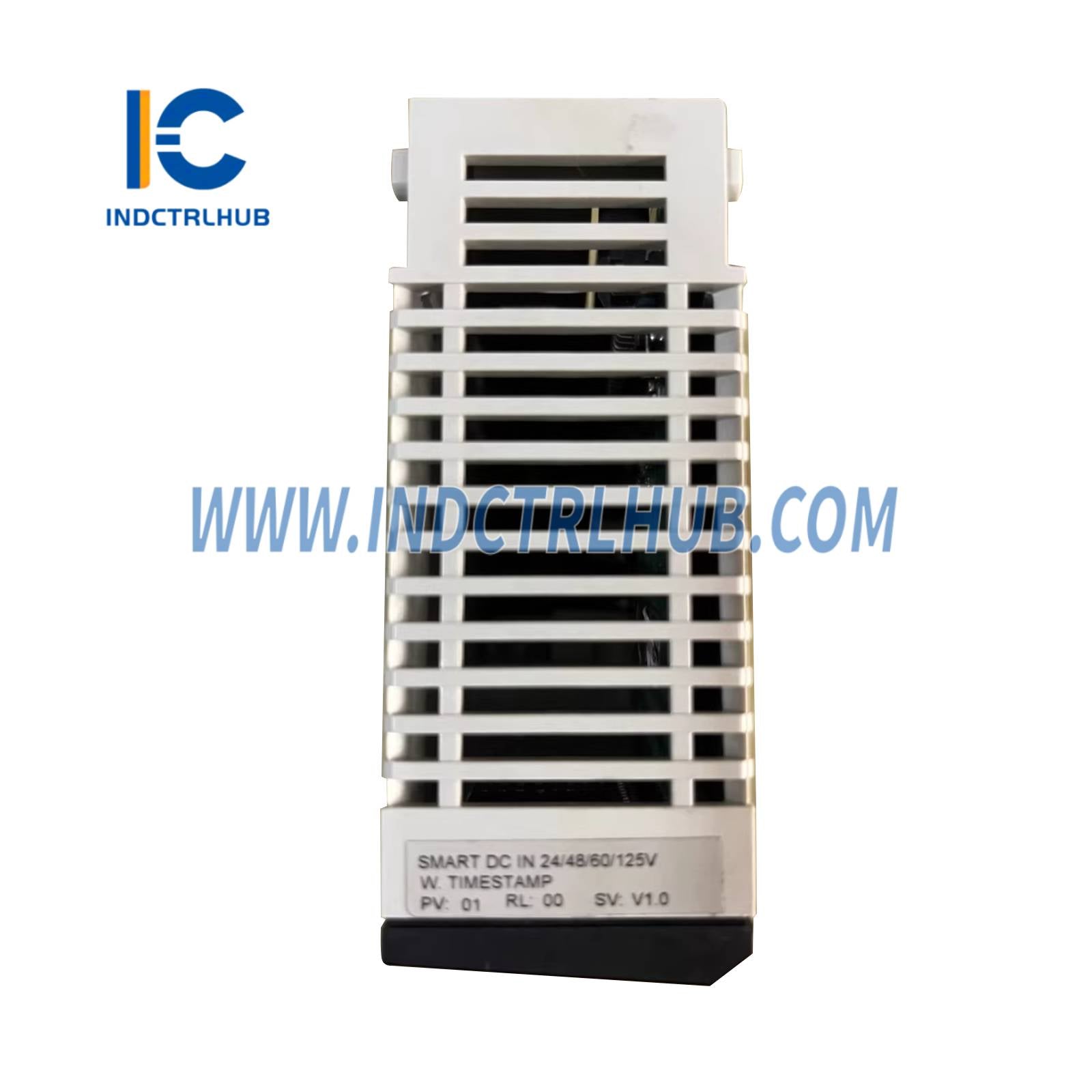

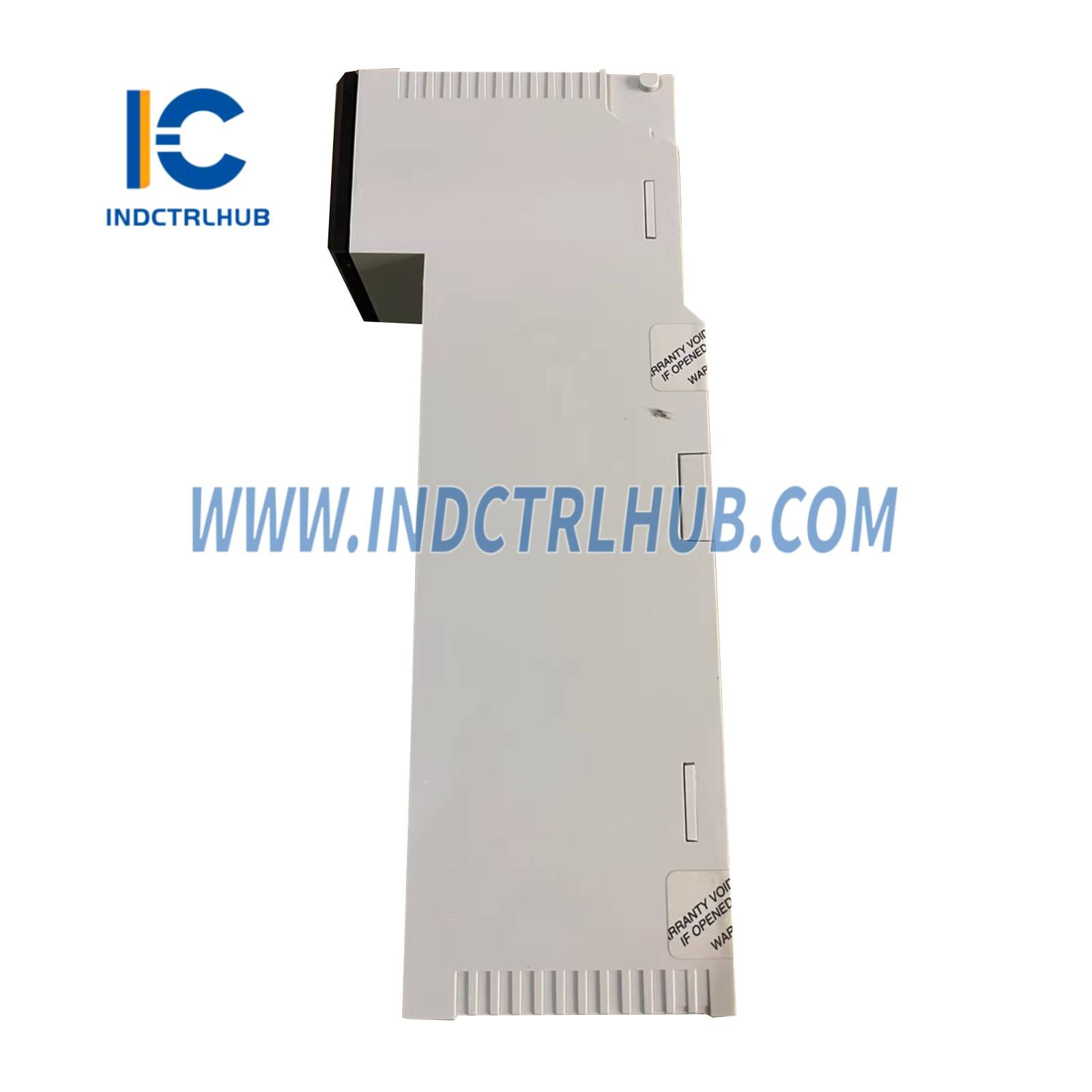

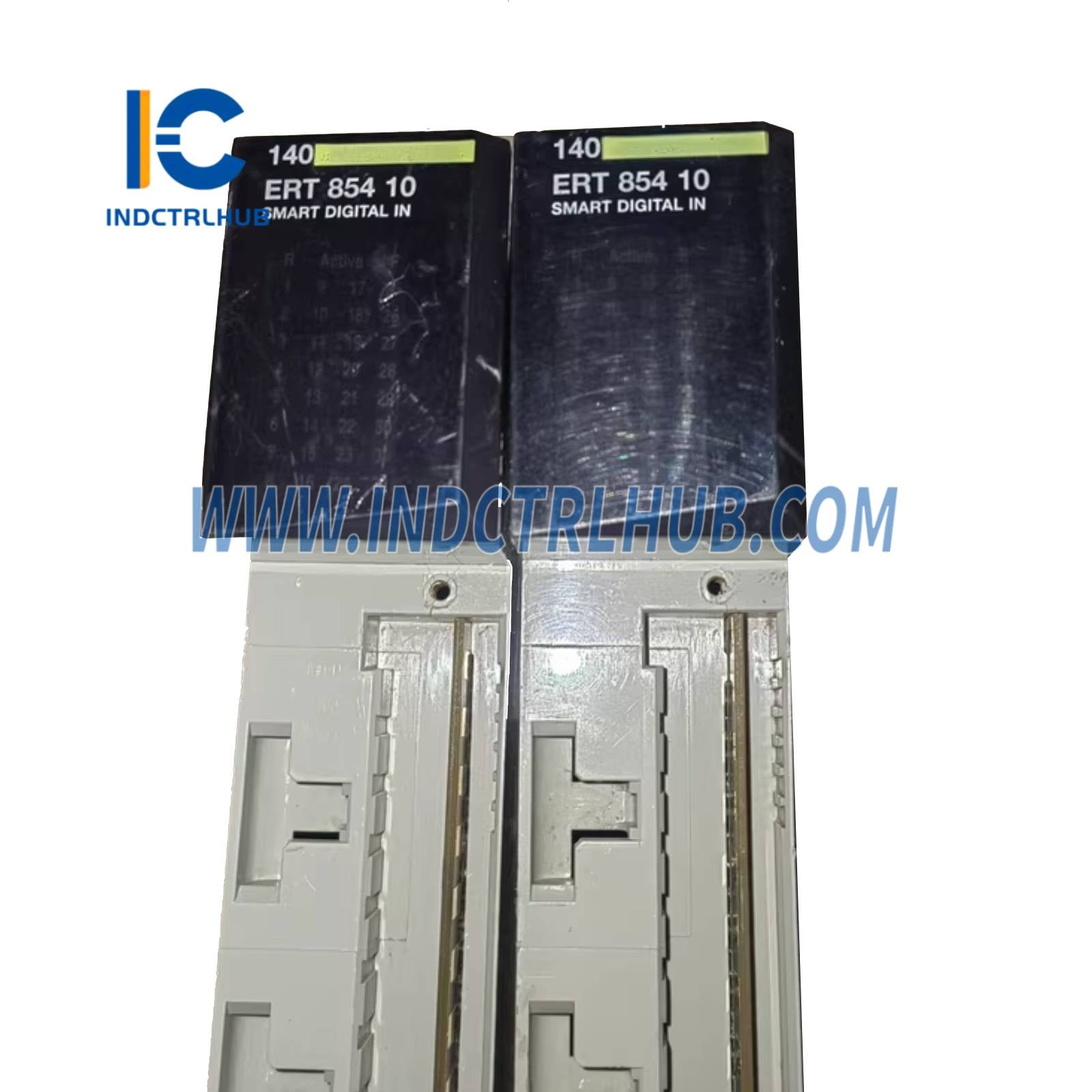

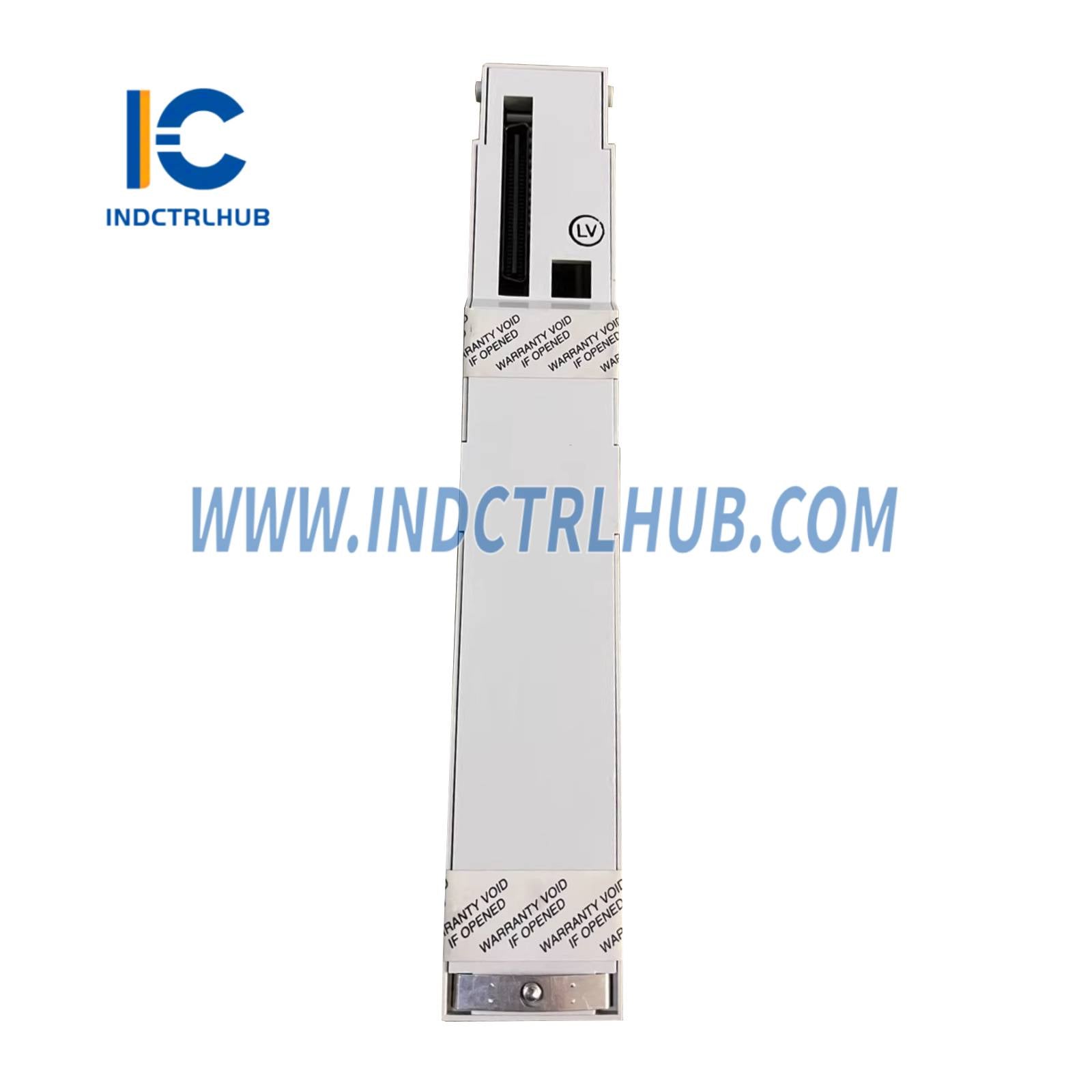

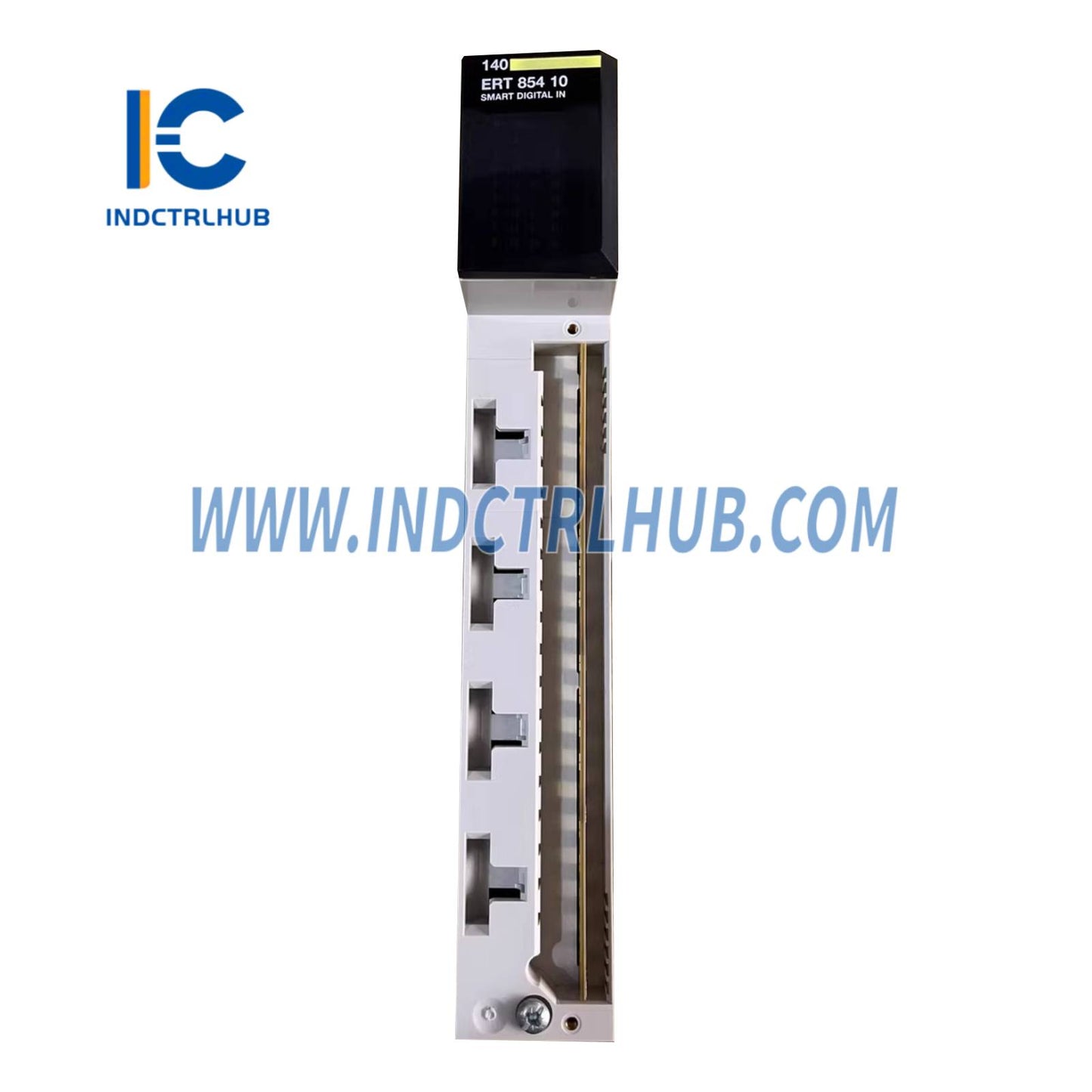

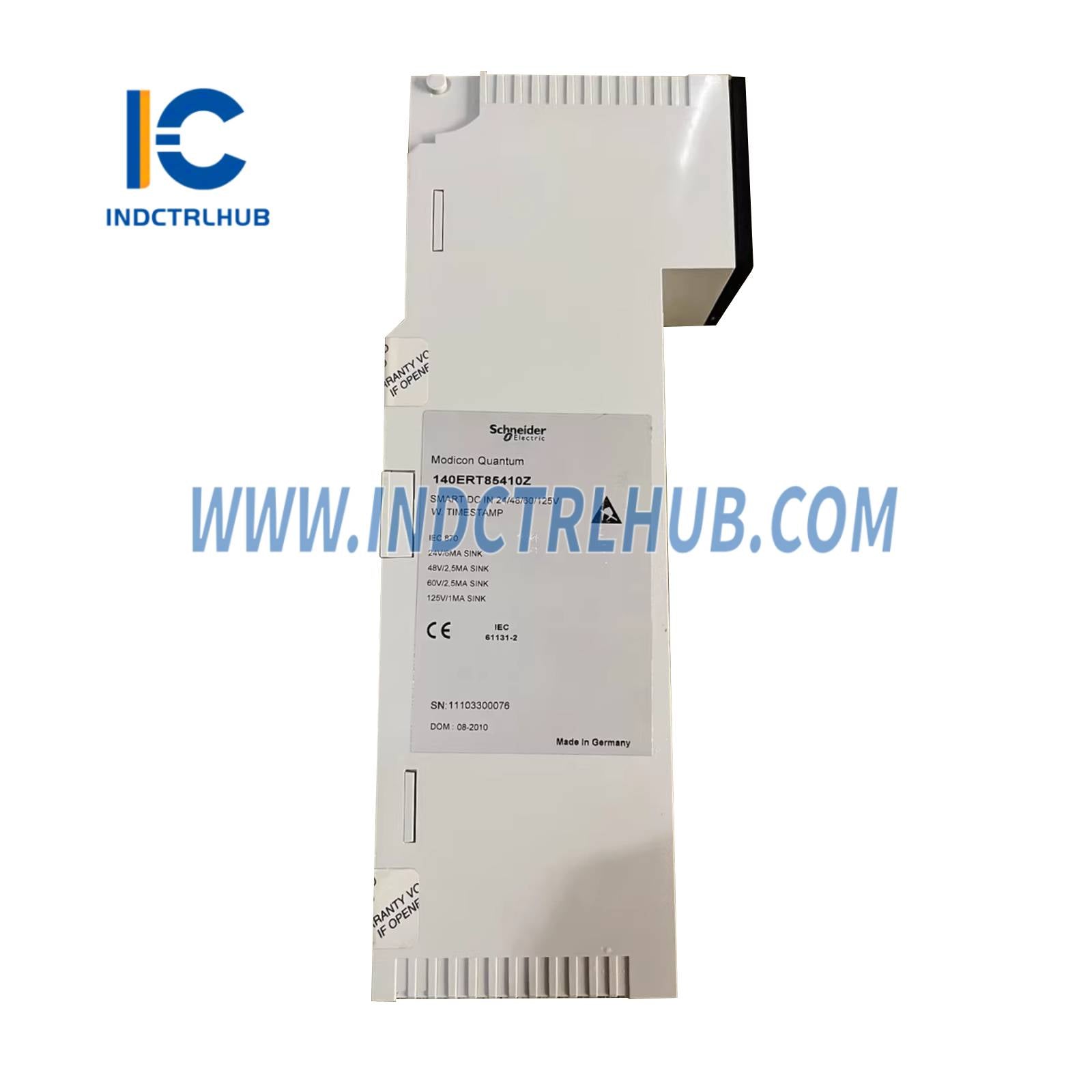

Schneider 140ERT85410 Multifunction input module Modicon Quantum

Manufacturer

Schneider Electric

Model/Part Number

140ERT85410

Description

Multifunction input module Modicon Quantum – 32 Inputs – DCF77

Range of Product

Modicon Quantum automation platform

Product Type

Multifunction input module

Number of Terminals

40 terminals

Number of Discrete Inputs

1 input @ 24 V for clock signal, 32 inputs @ 24–125 V for process input

Function of Module

- Status logging/counting (500 Hz)  - Status monitoring  - Time/date stamped event logging

Time Synchronisation Protocol

DCF77

Input Groups

2 groups of 16 inputs

Switching Voltage (Process Inputs)

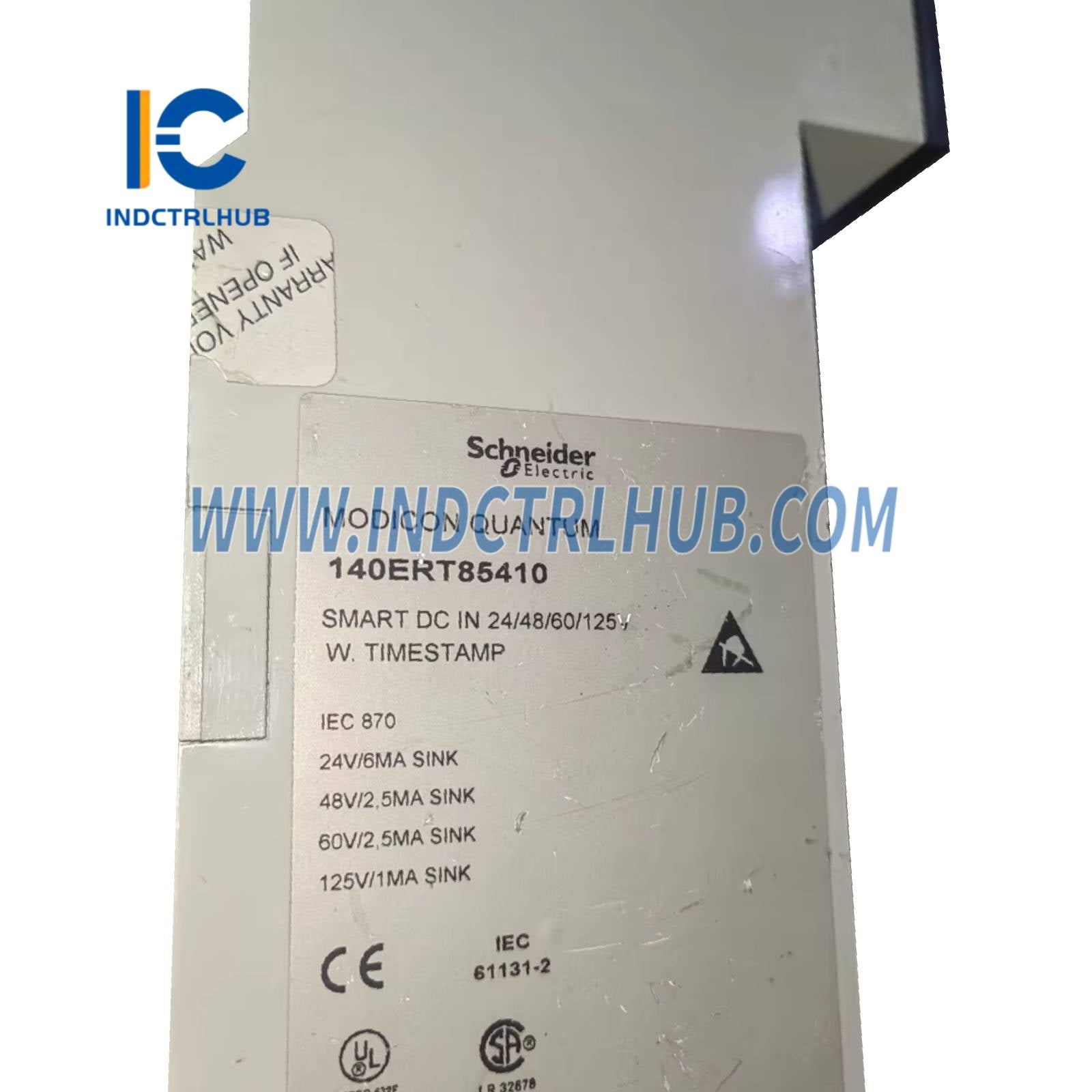

24 V @ 6 mA, 48 V @ 2.5 mA, 60 V @ 2.5 mA, 125 V @ 1 mA

Input Current (Clock Signal)

5 mA

Acquisition Time (Clock Signal)

1 ms

Input Anti-Bounce Filtering

Configurable (0–255 ms)

Input State

Configurable inversion

Insulation (Clock/Input Channels)

By optocoupler

Electrical Connection (Cabling)

Shielded cable <600 m, unshielded <400 m

Electrical Connection (Terminals)

Screw terminal block

Product Compatibility

Concept, Unity Pro

Local Signaling

- 1 green LED (bus communication)  - 1 green LED (self-test OK)  - 1 red LED (fault)  - 32 LEDs (input status)

Maximum Power Consumption

7.5 W (process input)

Current Consumption

- 0.07 mA @ 24 V DC (140XCP90000)  - 3 mA @ 24–125 V DC per group  - 300 mA @ 5 V DC (bus)

Module Format

Standard

Net Weight

0.45 kg

Operating Temperature

0…60 °C

Storage Temperature

-40…85 °C

Relative Humidity

95 % without condensation

Operating Altitude

≤ 5000 m

Electrostatic Discharge Resistance

4 kV (contact), 8 kV (air), IEC 801-2

Electromagnetic Field Resistance

10 V/m (80…2000 MHz), IEC 801-3

Protective Treatment

TC

Standards

UL 508, HazLoc

Certifications

CSA Class 1 Div 2, UL, LR, C-Tick, GOST, Merchant Navy

Package Type

PCE

Units per Package

1

Package Dimensions (H × W × L)

5 cm × 16.5 cm × 31.5 cm

Package Weight

485 g
