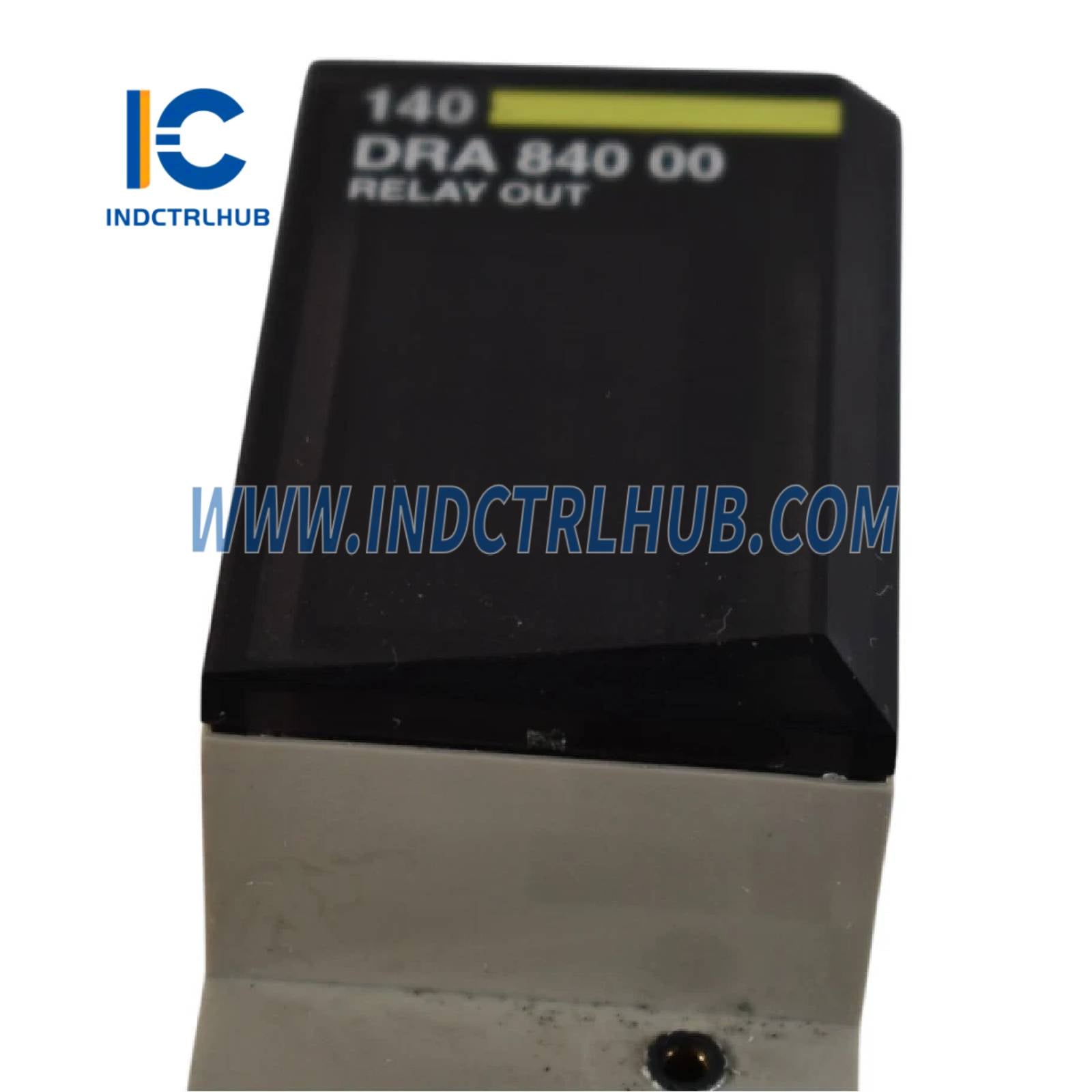

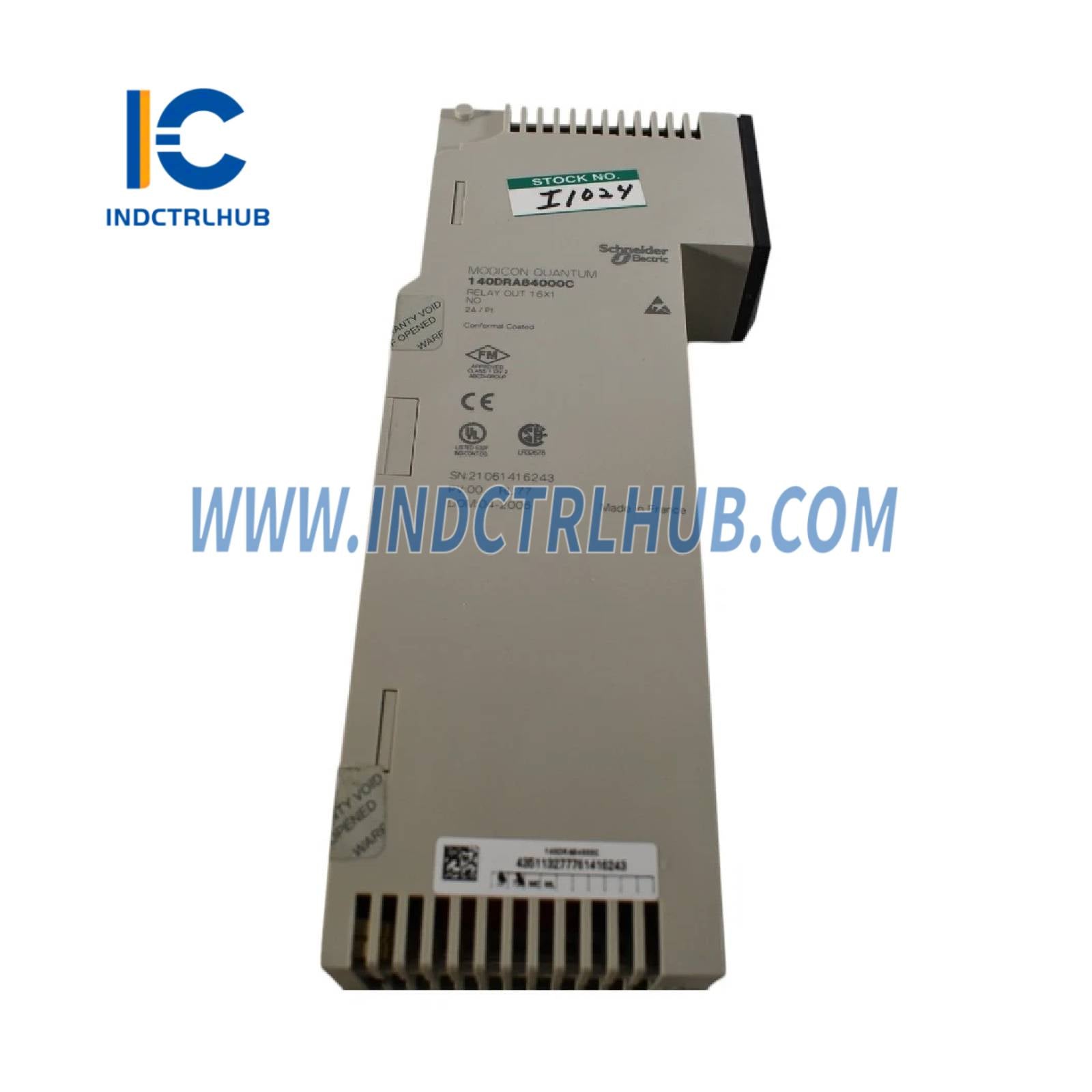

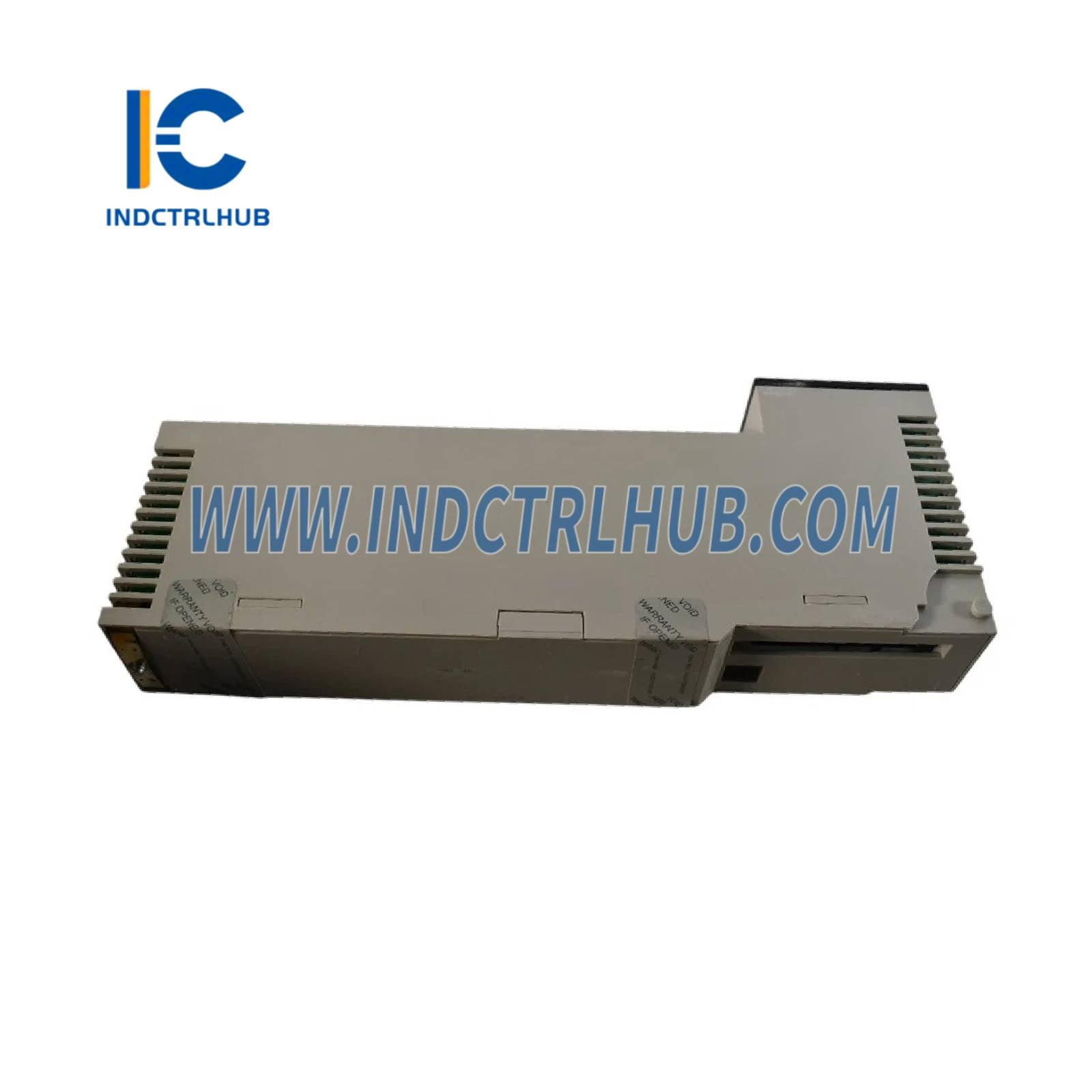

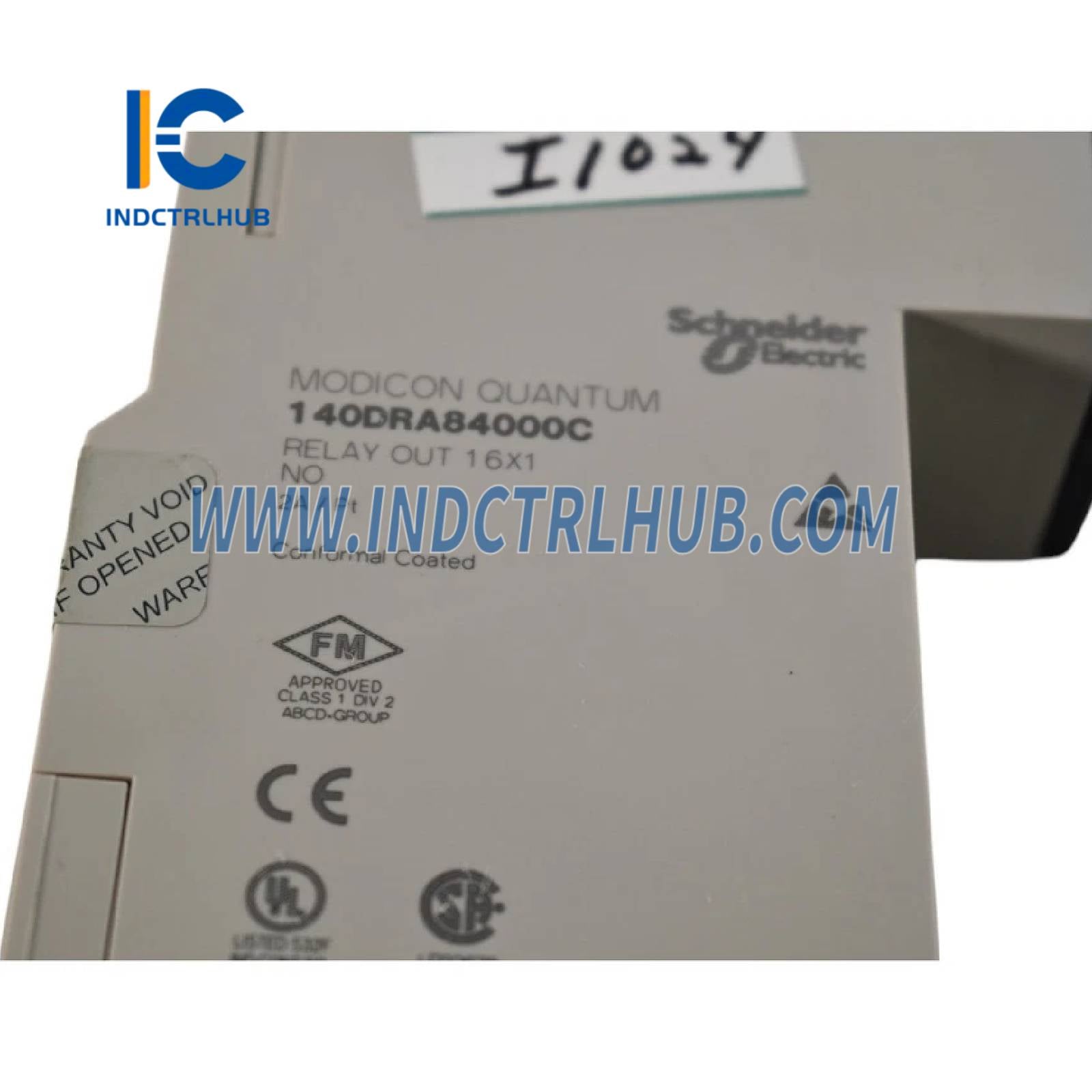

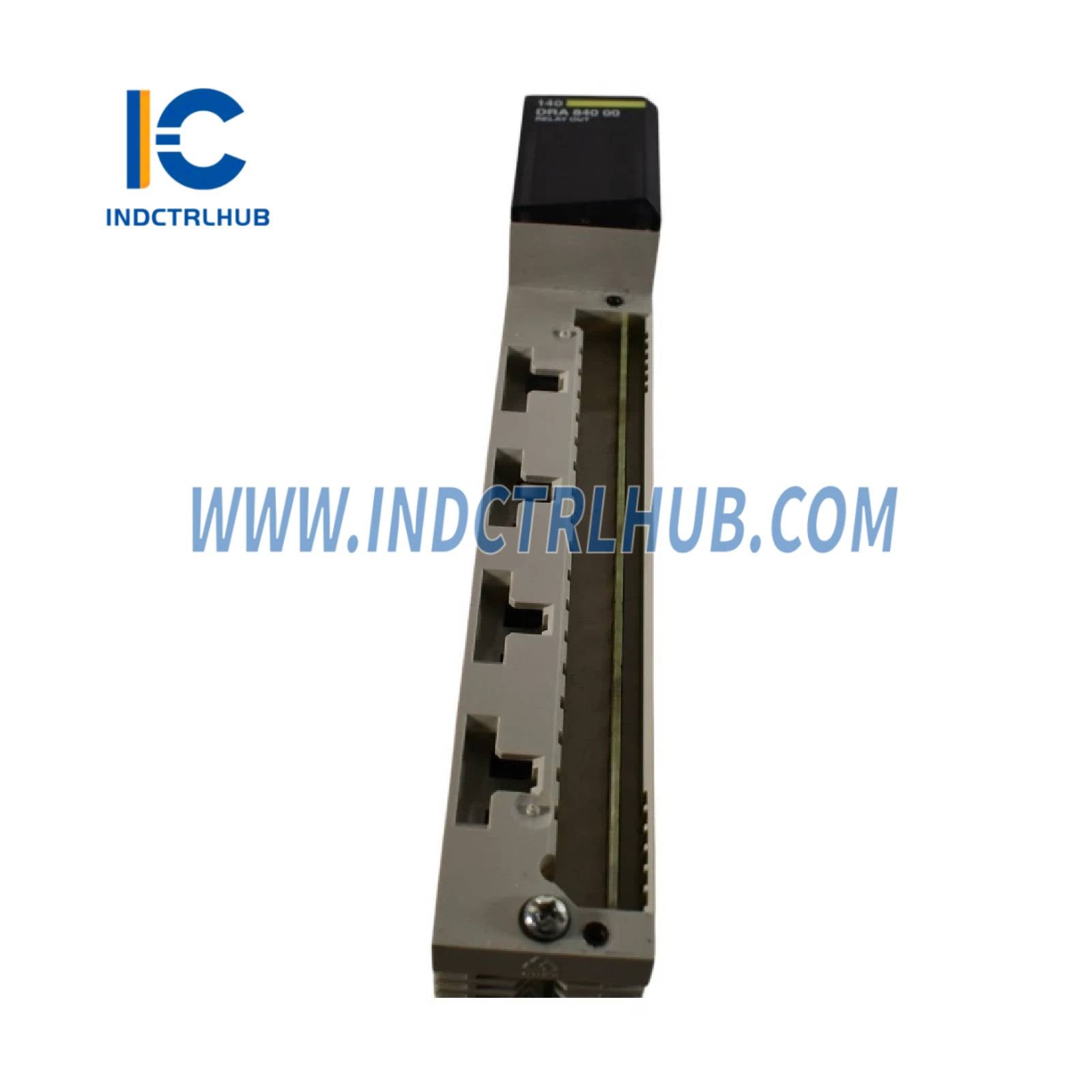

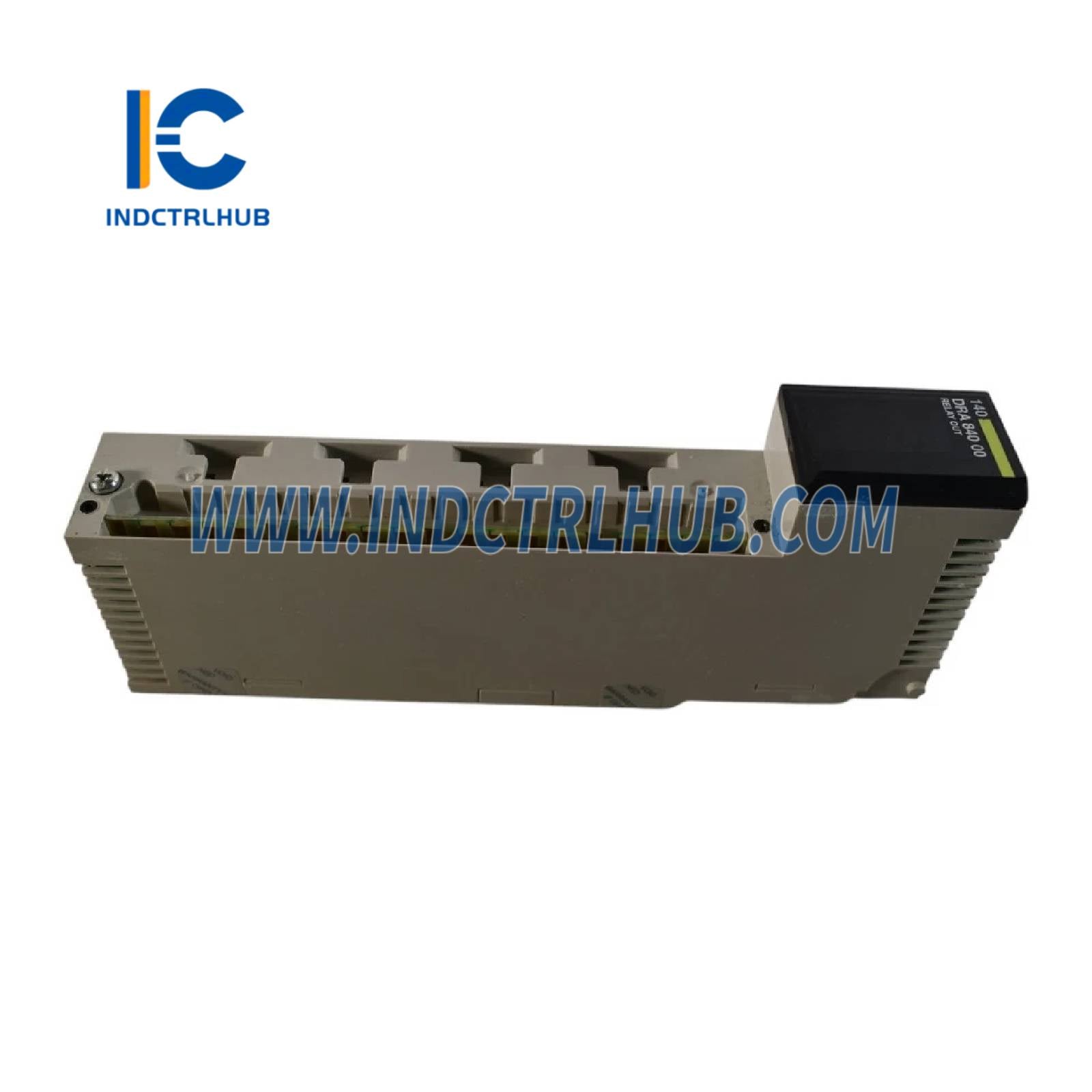

Schneider 140DRA84000 Discrete output module Modicon Quantum

Manufacturer

Schneider Electric

Model/Part Number

140DRA84000

Description

Discrete output module Modicon Quantum – 16 outputs

Range of Product

Modicon Quantum automation platform

Product Type

Relay discrete output module

Discrete Output Number

16

Contact Type and Composition

1 NO (Normally Open)

Contact Form

Form A

Discrete Output Voltage

20–250 V AC, 30–150 V DC, 5–30 V DC

Addressing Requirement

1 output word

Minimum Load

50 mA at 20–250 V AC and 5–30 V DC

Max Load Current

2 A (250/30 V AC/DC resistive @ 60 °C), 1 A for motor/tungsten, 300 mA DC

Surge Current

10 A for 10 ms (capacitive)

Switching Capacity (VA)

500 VA (resistive)

Response Time

≤ 10 ms (0 → 1), ≤ 20 ms (1 → 0)

Mechanical Durability

10,000,000 cycles

Electrical Durability

Up to 200,000 cycles (based on load type)

Overvoltage Protection

Internal varistor, 275 V

Isolation (Channel ↔ Channel / Bus)

1780 Vrms AC or 2500 V DC for 1 minute

Power Dissipation

5.5 W + (0.5 W × number of active points)

Bus Current Requirement

1100 mA

Module Format

Standard

Local Signalling

1 green LED (bus active), 1 red LED (fault), 16 green LEDs (status)

Marking

CE

Operating Temperature

0…60 °C

Storage Temperature

-40…85 °C

Relative Humidity

95 % without condensation

Operating Altitude

≤ 5000 m

Electrostatic Discharge Resistance

4 kV (contact), 8 kV (air), IEC 801-2

Electromagnetic Field Resistance

10 V/m (80…2000 MHz), IEC 801-3

Standards

UL 508, CSA C22.2 No 142

Certifications

FM Class 1 Div 2, C-Tick, GOST, ABS

Net Weight

0.41 kg

Package Type

PCE

Units per Package

1

Package Dimensions (H x W x L)

16.3 cm × 4.5 cm × 31.2 cm

Package Weight

545 g
