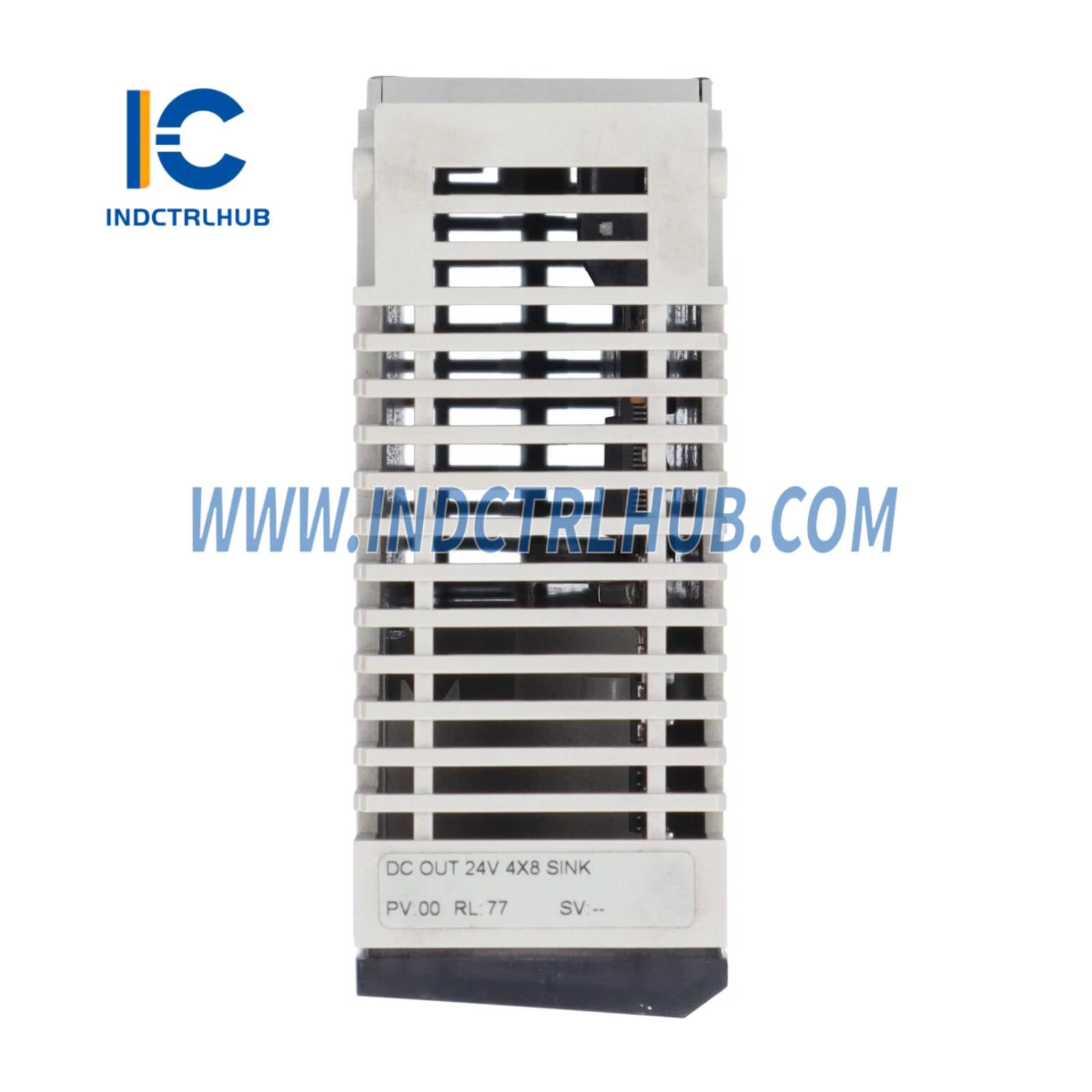

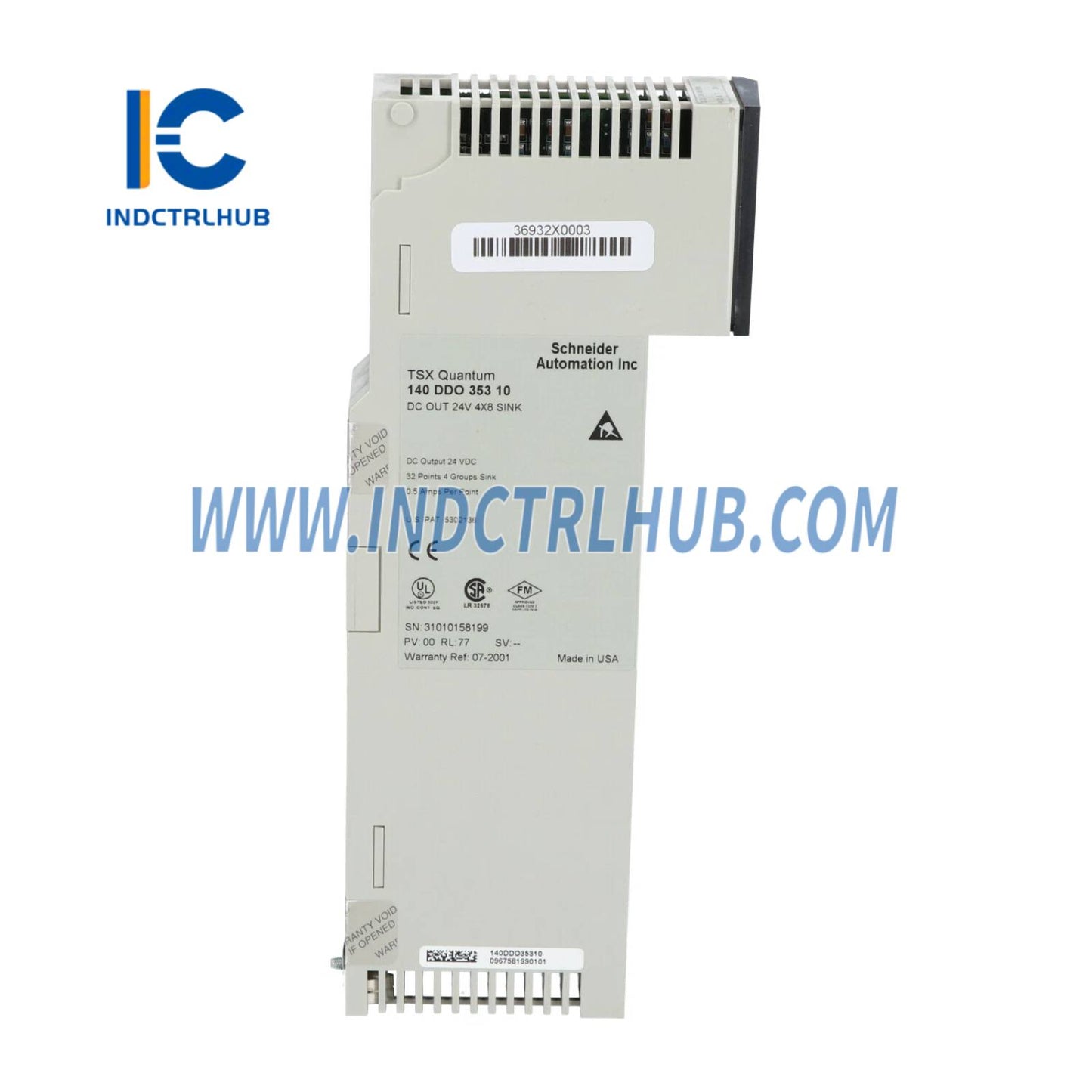

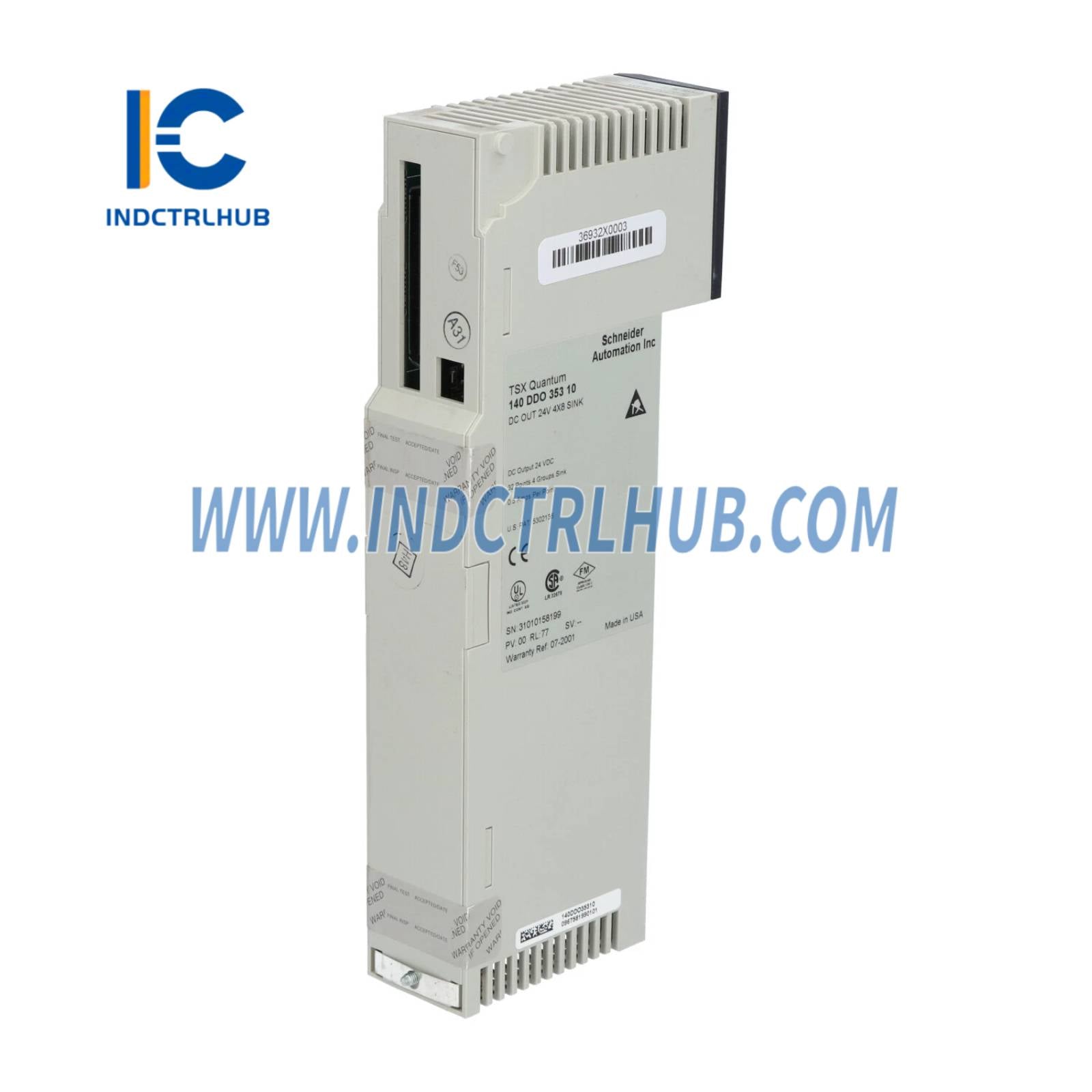

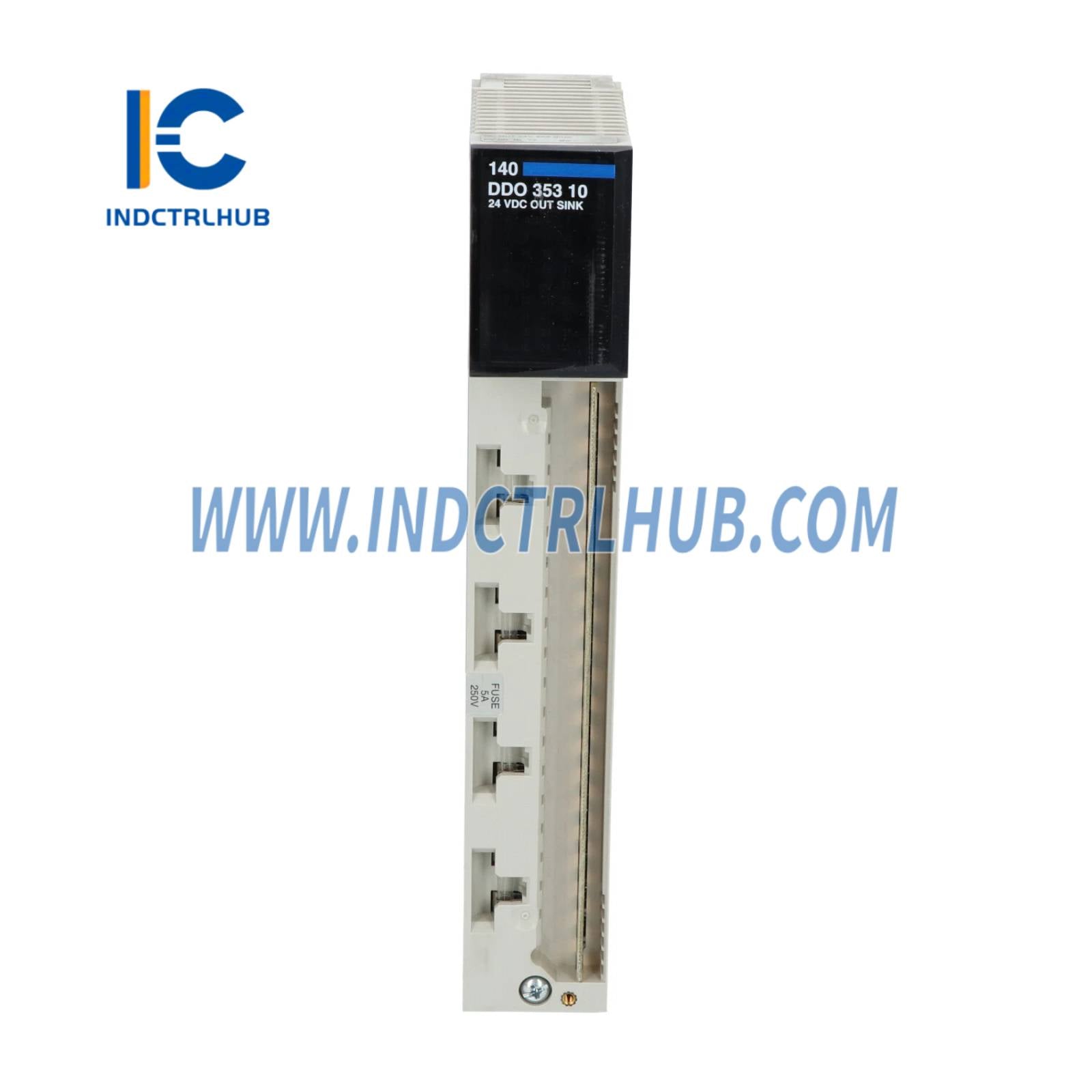

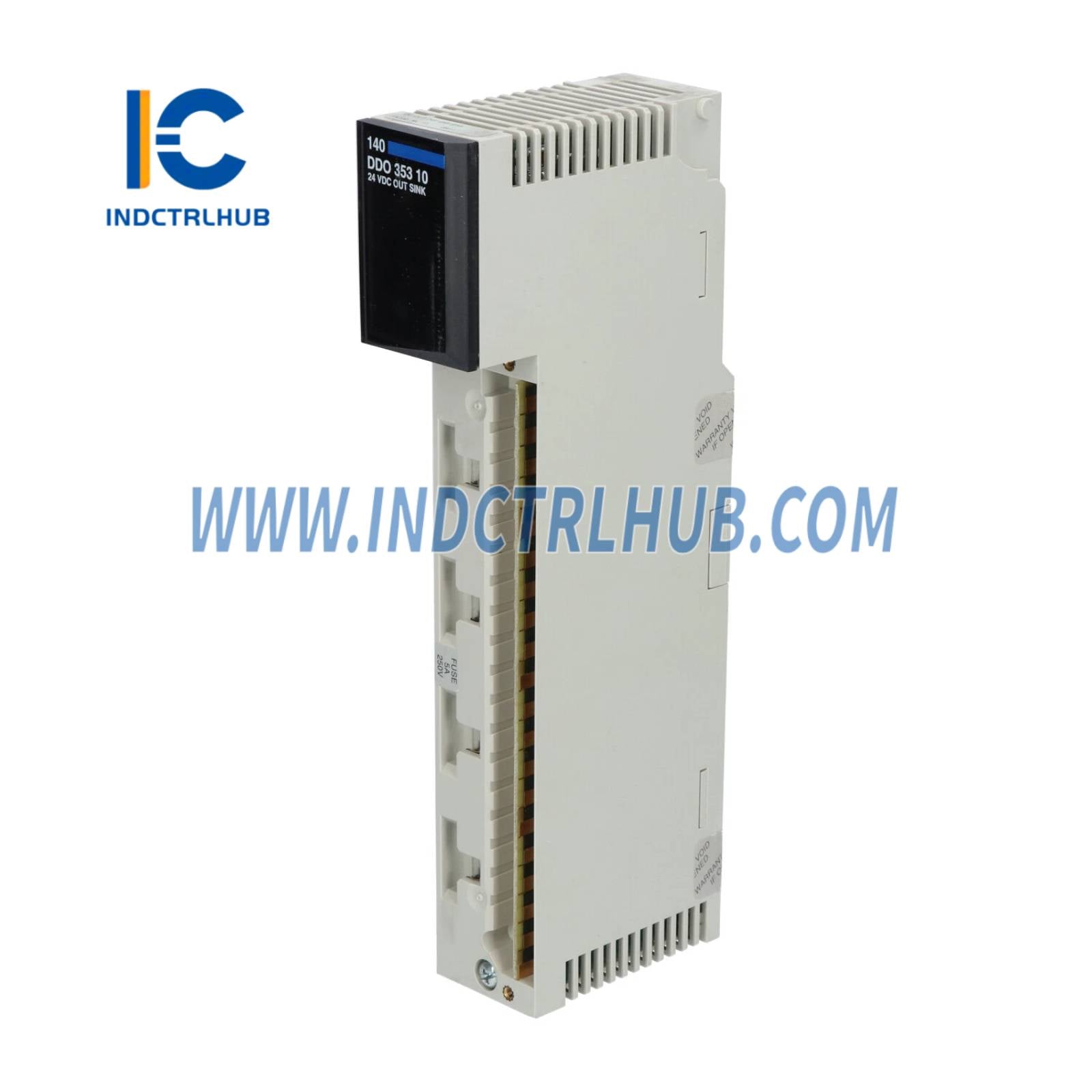

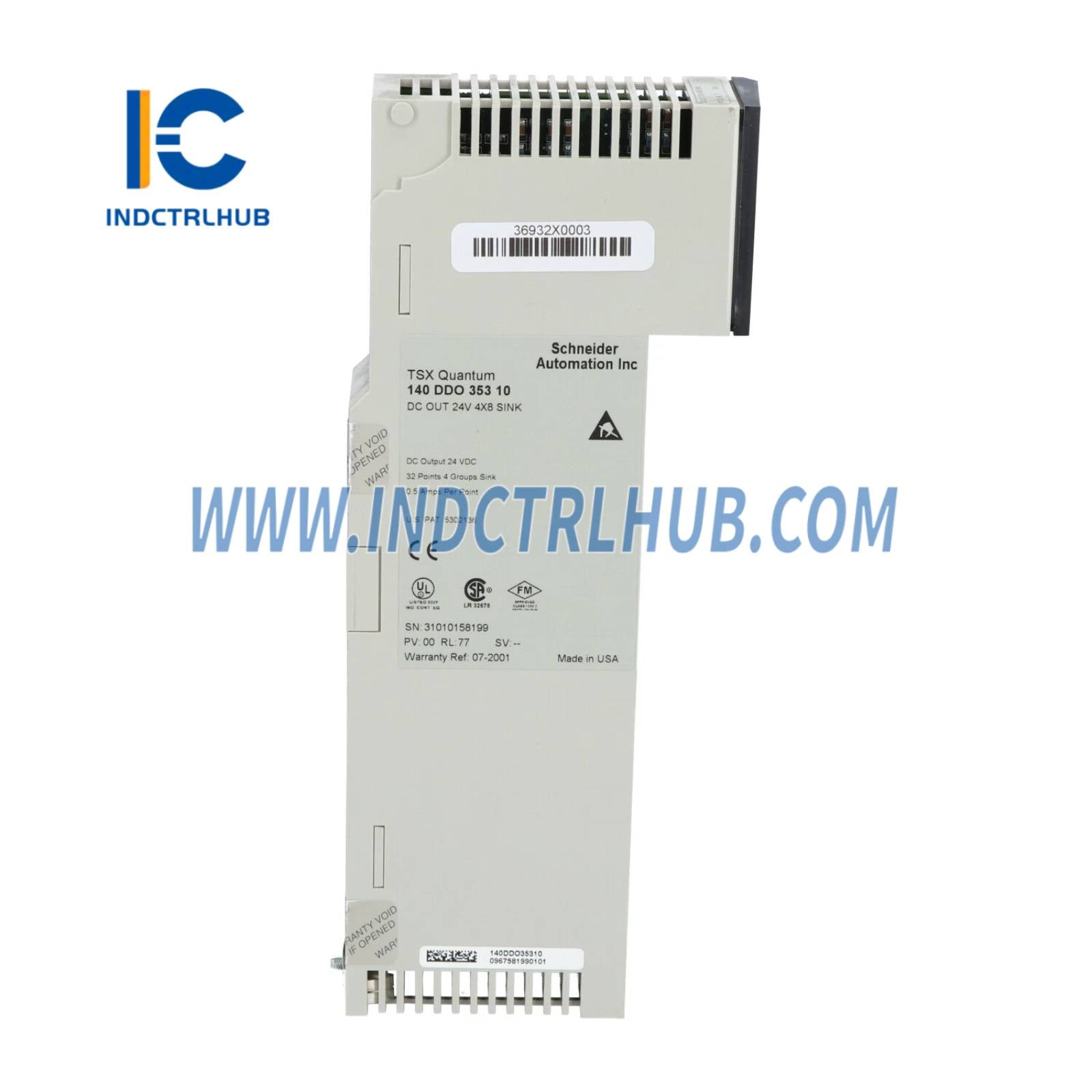

Schneider 140DDO35310 Discrete output module Modicon Quantum

Manufacturer

Schneider Electric

Model/Part Number

140DDO35310

Description

Discrete output module Modicon Quantum - 32 outputs - negative logic

Range of Product

Modicon Quantum automation platform

Product Type

DC discrete output module

Discrete Output Number

32

Group of Channels

4 groups of 8

Discrete Output Logic

Negative logic (sink)

Output Voltage

24 V DC

Output Voltage Limits

19.2…30 V

Absolute Max Output Voltage

50 V for 1 s (decaying pulse)

Voltage Drop (Max)

< 0.4 V at 0.5 A

Max Load Current

0.5 A per point, 4 A per group, 16 A per module

Surge Current

5 A for 1 ms

Response Time (resistive)

≤ 1 ms (state 0 → 1 and 1 → 0)

Max Leakage Current

0.4 mA at 30 V

Load Inductance Limit

L = 0.5 / [(I²) × (f)]

Max Tungsten Load

12 W at 24 V

Associated Fuse Rating

3 A each point, 5 A per group

Protection Type

Internal output protection via 5 A fuse per group

Fault Indication

Loss of field power, blown fuse

Power Dissipation

2.0 W + (0.4 V × total load current)

Isolation (Channels ↔ Bus)

1780 Vrms for 1 minute

Isolation (Group ↔ Group)

500 Vrms for 1 minute

Bus Current Requirement

330 mA

Module Format

Standard

Local Signalling

1 green LED (bus active), 1 red LED (fault), 32 green LEDs (status)

Marking

CE

Operating Temperature

0…60 °C

Storage Temperature

-40…85 °C

Relative Humidity

95 % without condensation

Operating Altitude

≤ 5000 m

Electrostatic Discharge Resistance

4 kV (contact), 8 kV (air), IEC 801-2

Electromagnetic Field Resistance

10 V/m (80…2000 MHz), IEC 801-3

Standards

UL 508, CSA C22.2 No 142

Certifications

FM Class 1 Div 2, RINA, GOST, C-Tick, RMRS

Net Weight

0.45 kg

Package Type

PCE

Units per Package

1

Package Dimensions (H x W x L)

16.3 cm x 4.5 cm x 31.2 cm

Package Weight

486.0 g
