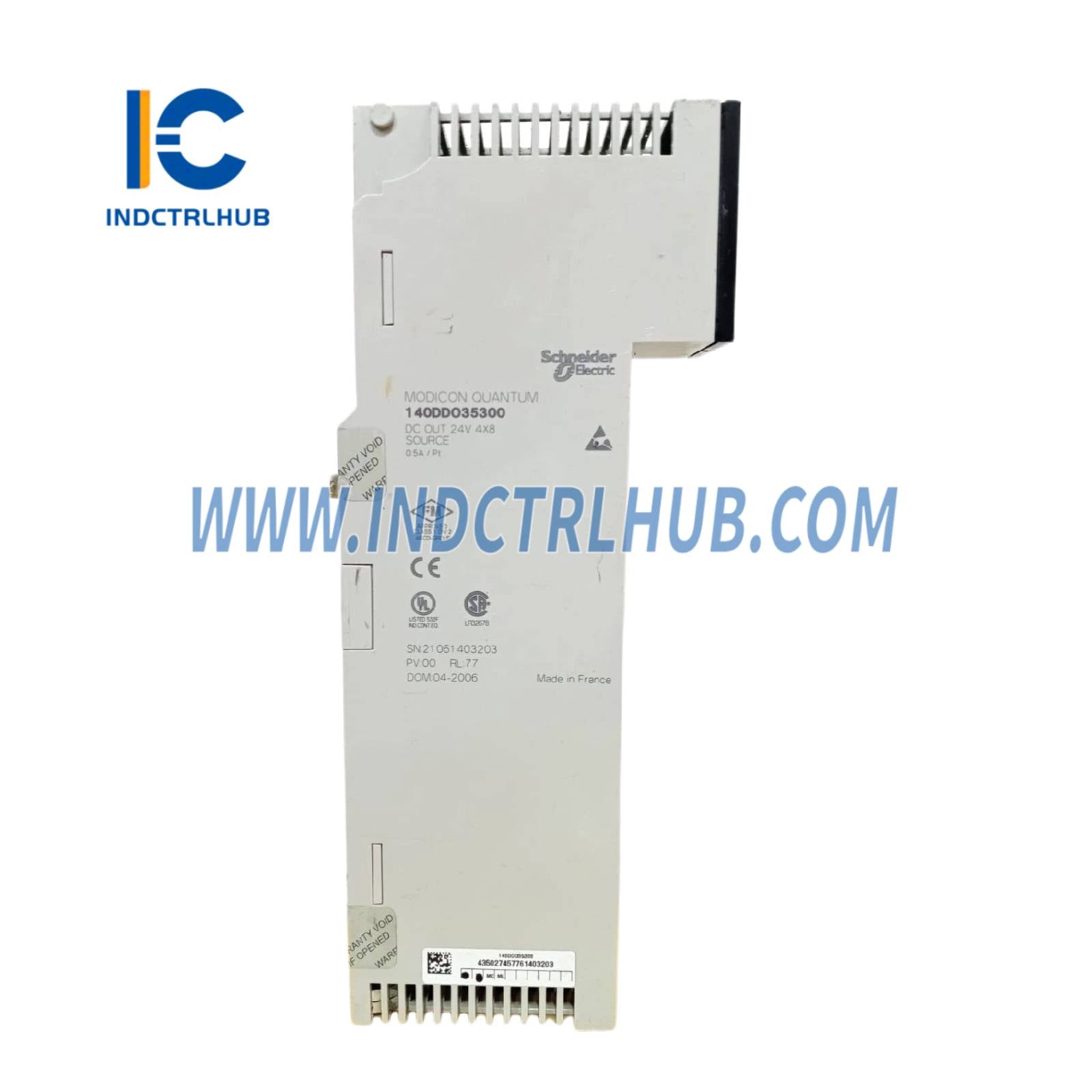

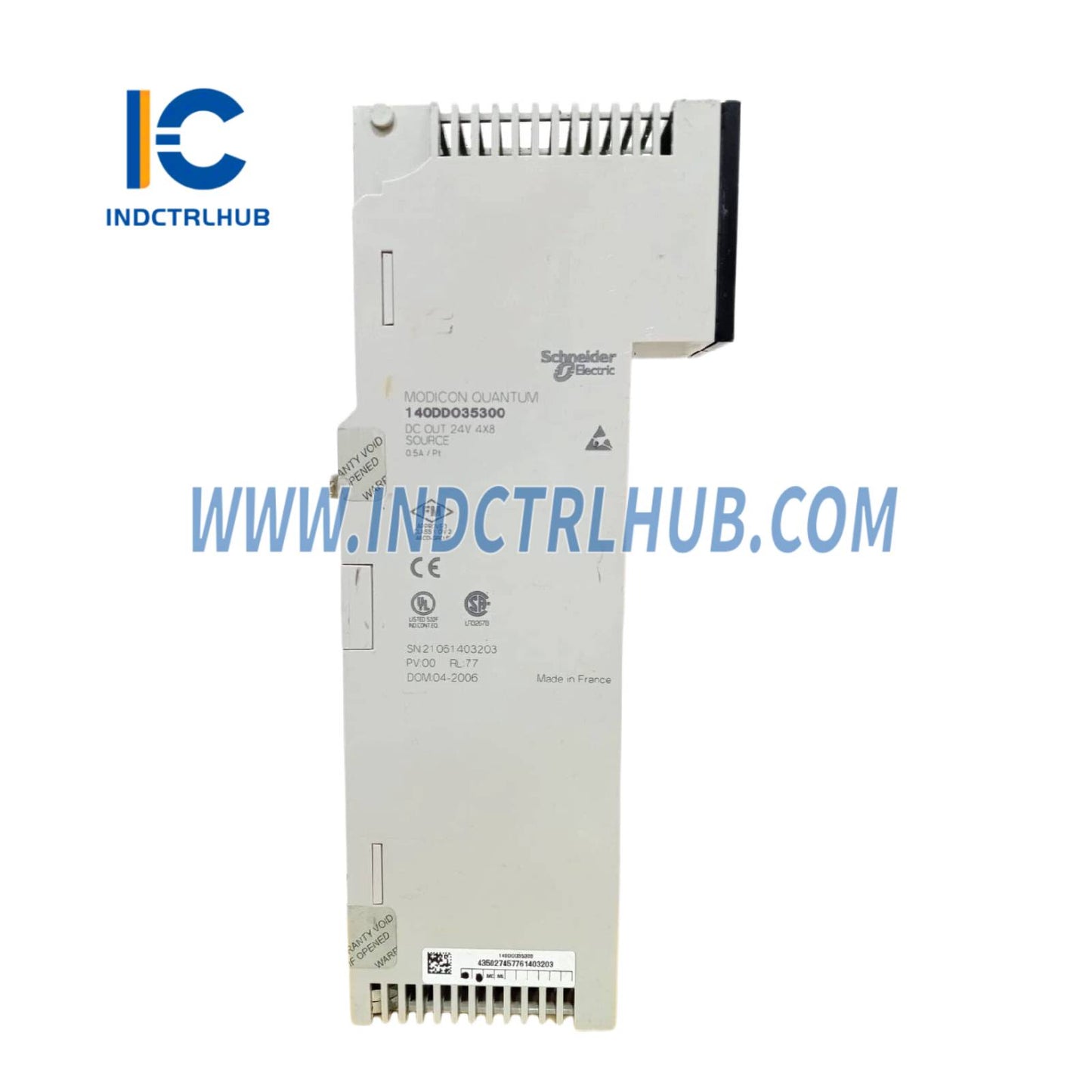

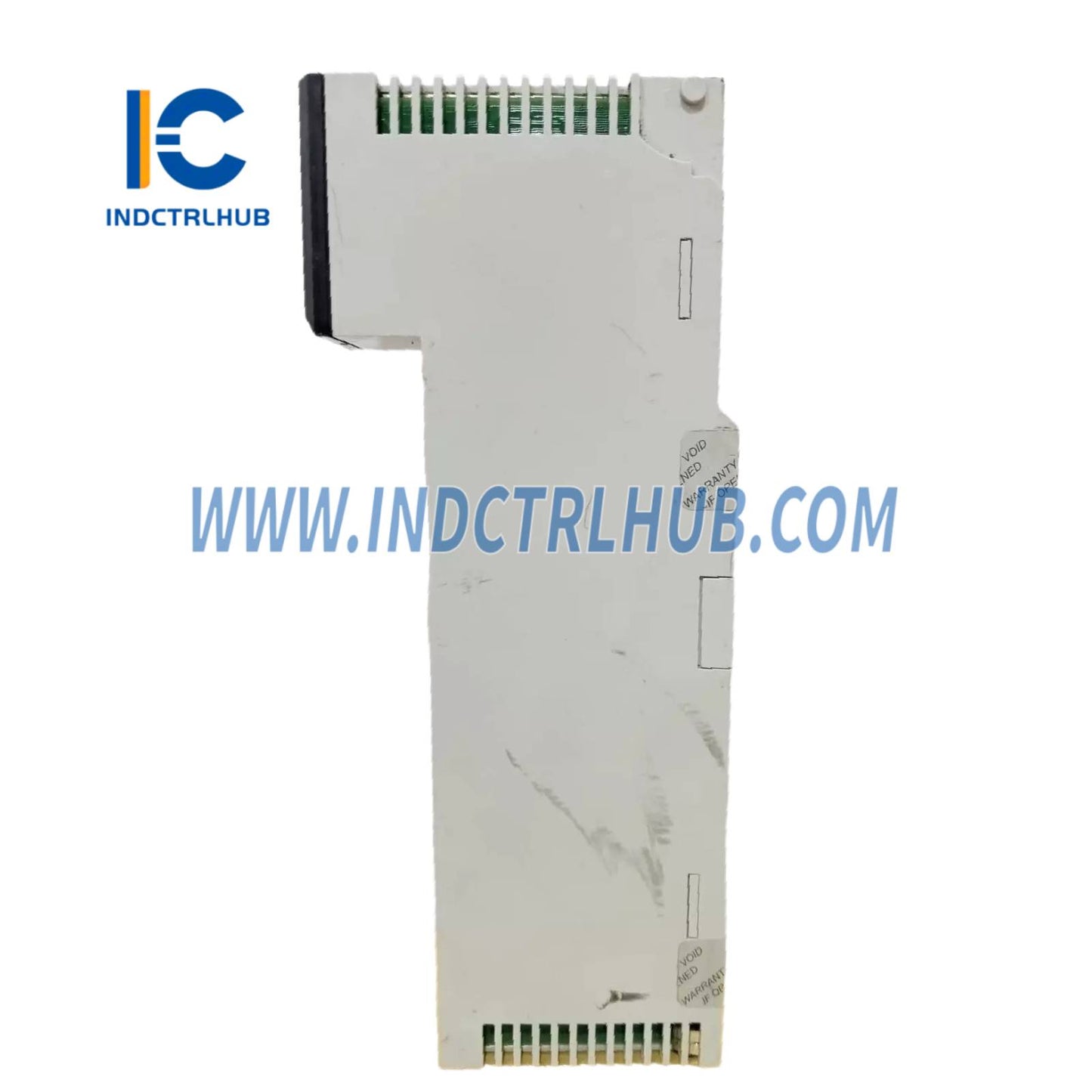

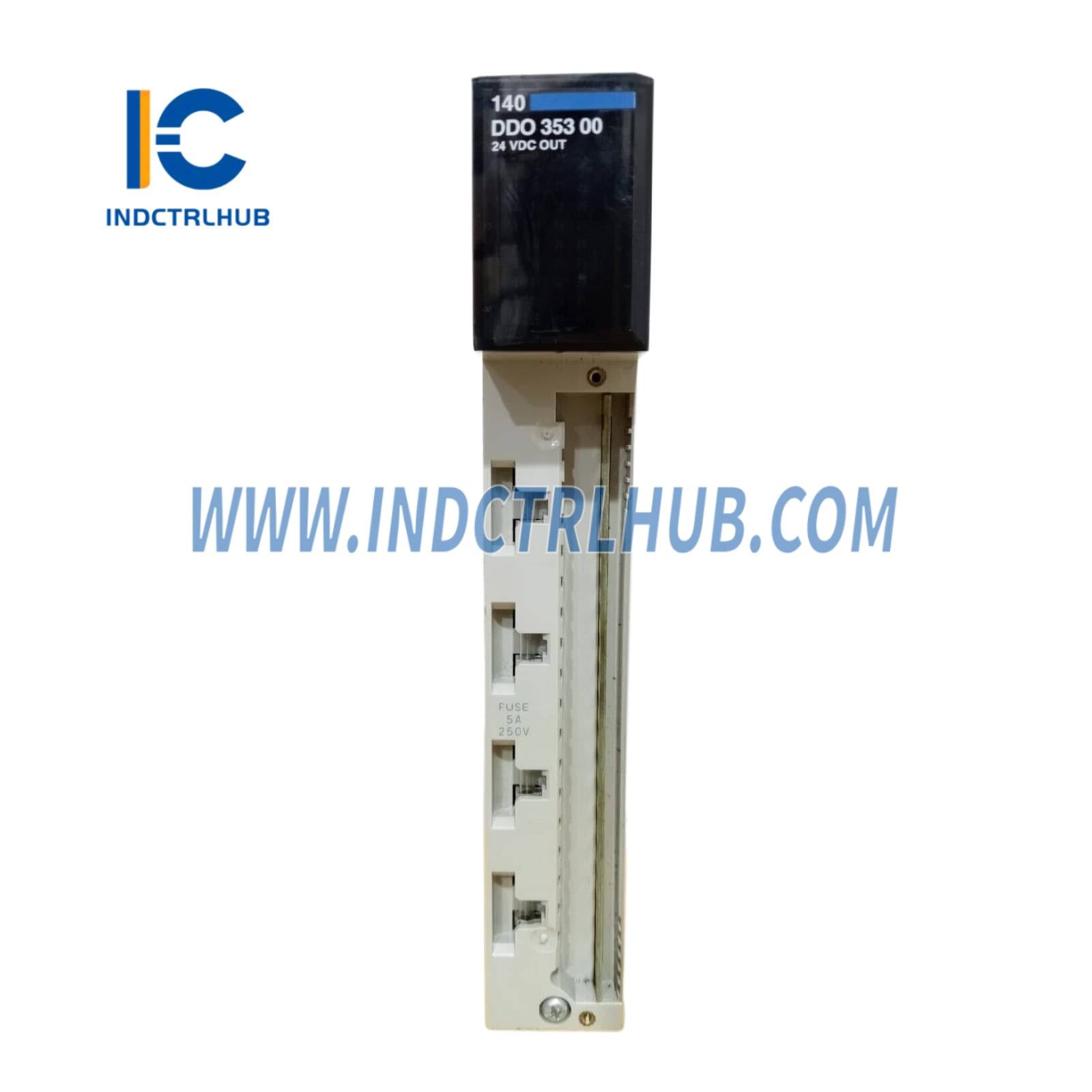

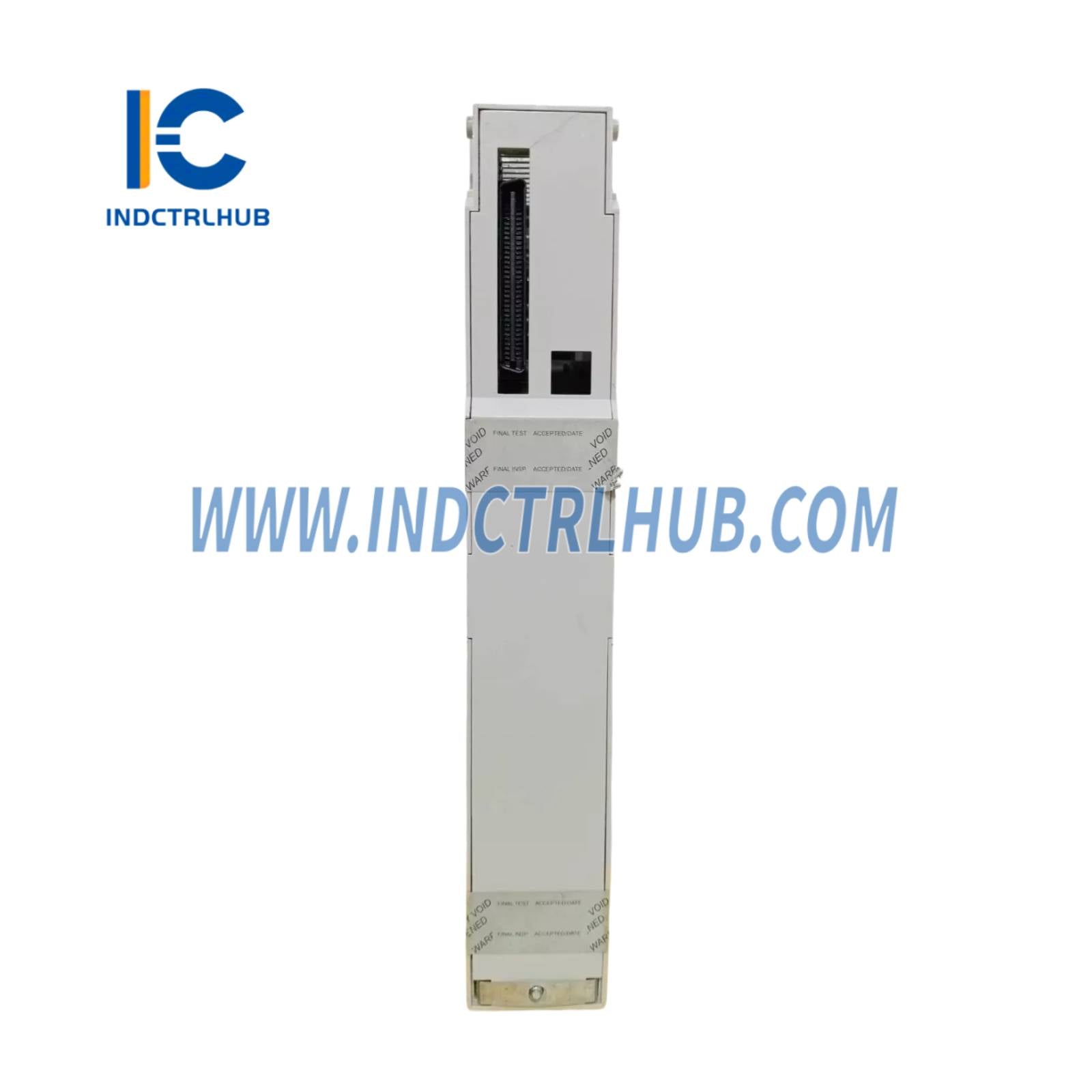

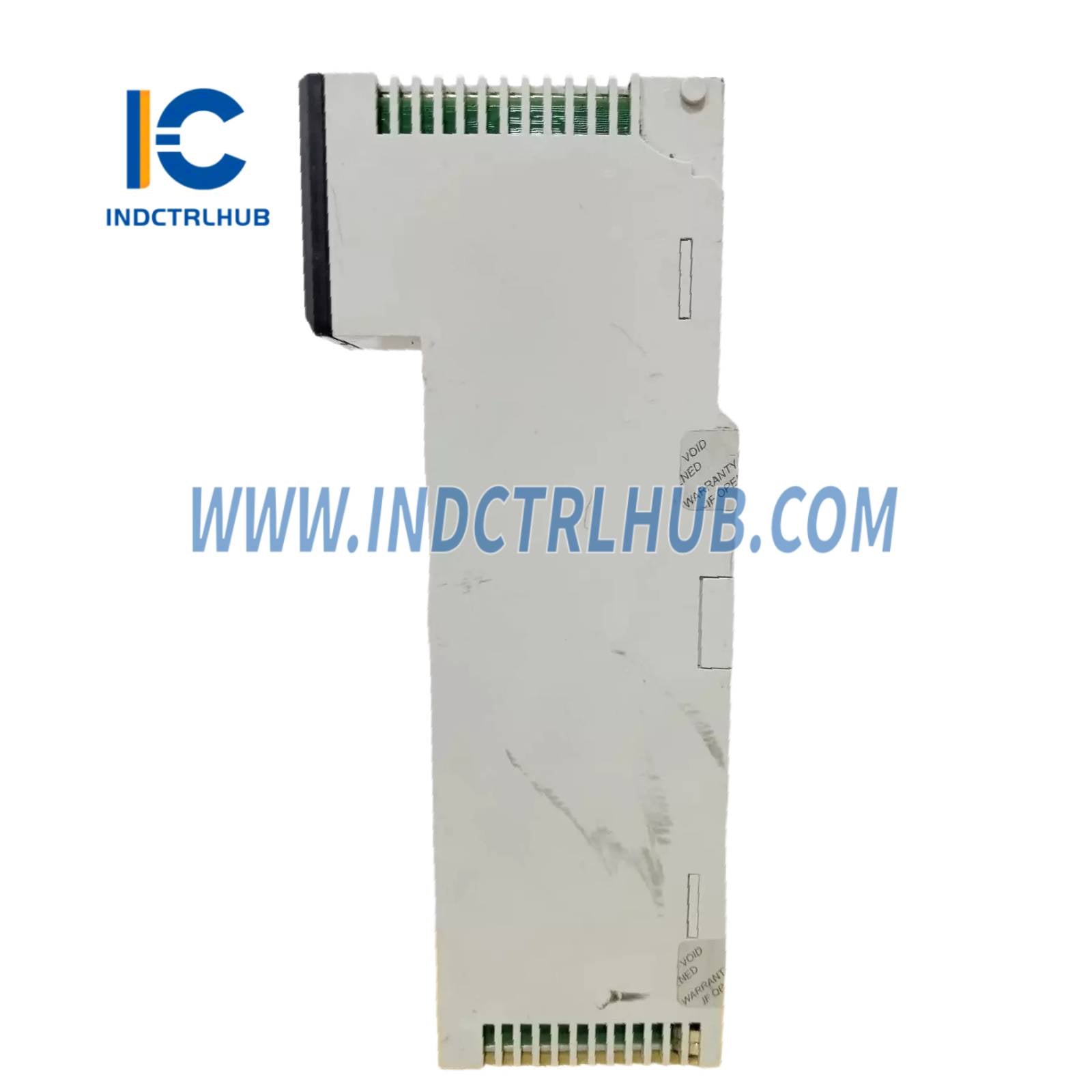

Schneider 140DDO35300C Discrete output module Modicon Quantum

Manufacturer

Schneider Electric

Model/Part Number

140DDO35300C

Description

Discrete output module Modicon Quantum - 32 O solid state

Range of Product

Modicon Quantum automation platform

Product Type

DC discrete output module

Discrete Output Number

32

Groups of Channels

4 groups of 8

Logic Type

Positive logic (source)

Discrete Output Voltage

24 V DC

Output Voltage Limits

19.2…30 V

Absolute Max Output Voltage

56 V for 1.3 s decaying pulse

Max Voltage Drop

< 0.4 V at 0.5 A

Max Load Current

16 A per module; 4 A per group

Surge Current

5 A for 0.5 ms

Leakage Current Max

0.4 mA at 30 V

Load Inductance

L(H) = 0.5 / [(I²) × f(Hz)] at 50 Hz

Response Time

≤ 1 ms (state 0↔1)

Associated Fuse Rating

3 A per point; 5 A per group

Protection

Internal fuse 5 A per group

Addressing Requirement

2 output words

Isolation (Channel to Bus)

1780 Vrms DC for 1 min

Isolation (Group to Group)

500 Vrms DC for 1 min

Power Dissipation

1.75 W + (0.4 V × total module load current)

Bus Current Requirement

330 mA

Fault Indications

Blown fuse, loss of field power

Local Signaling LEDs

1 green (bus active)  1 red (fault)  32 green (output status)

Module Format

Standard

Net Weight

0.45 kg

Protective Treatment

Conformal coating (Humiseal 1A33)

Operating Temperature

0…60 °C

Storage Temperature

-40…85 °C

Relative Humidity

95% (non-condensing)

Operating Altitude

≤ 5000 m

Electrostatic Discharge

4 kV (contact), 8 kV (air)

EM Field Resistance

10 V/m (80–2000 MHz)

Certifications

GL, RINA, BV, GOST, DNV, FM Class 1 Div 2, C-Tick, RMRS, ABS

Standards

CSA C22.2 No 142, UL 508

Package Type

PCE

Units per Package

1

Height

16.3 cm

Width

4.5 cm

Length

31.2 cm

Weight

465.0 g
