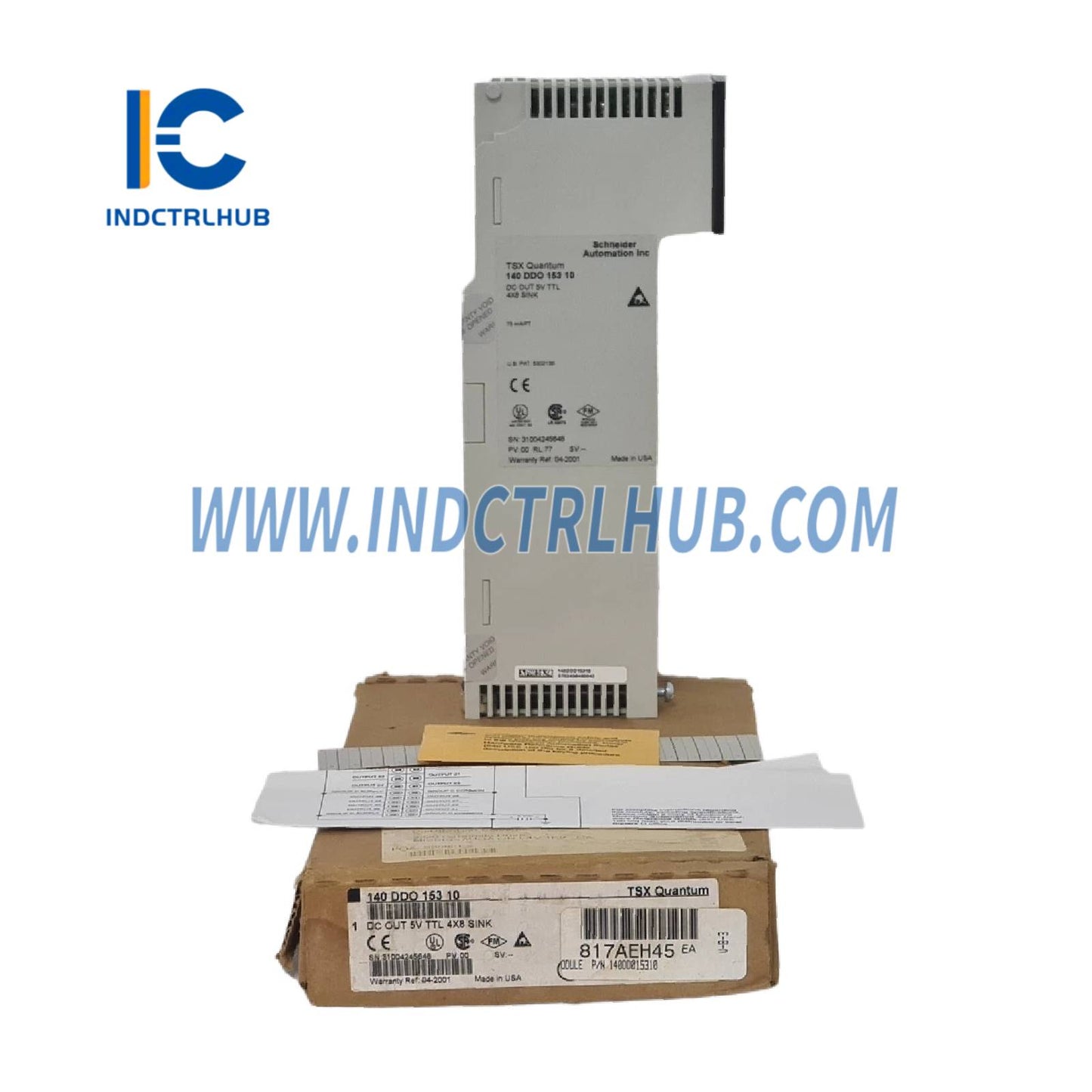

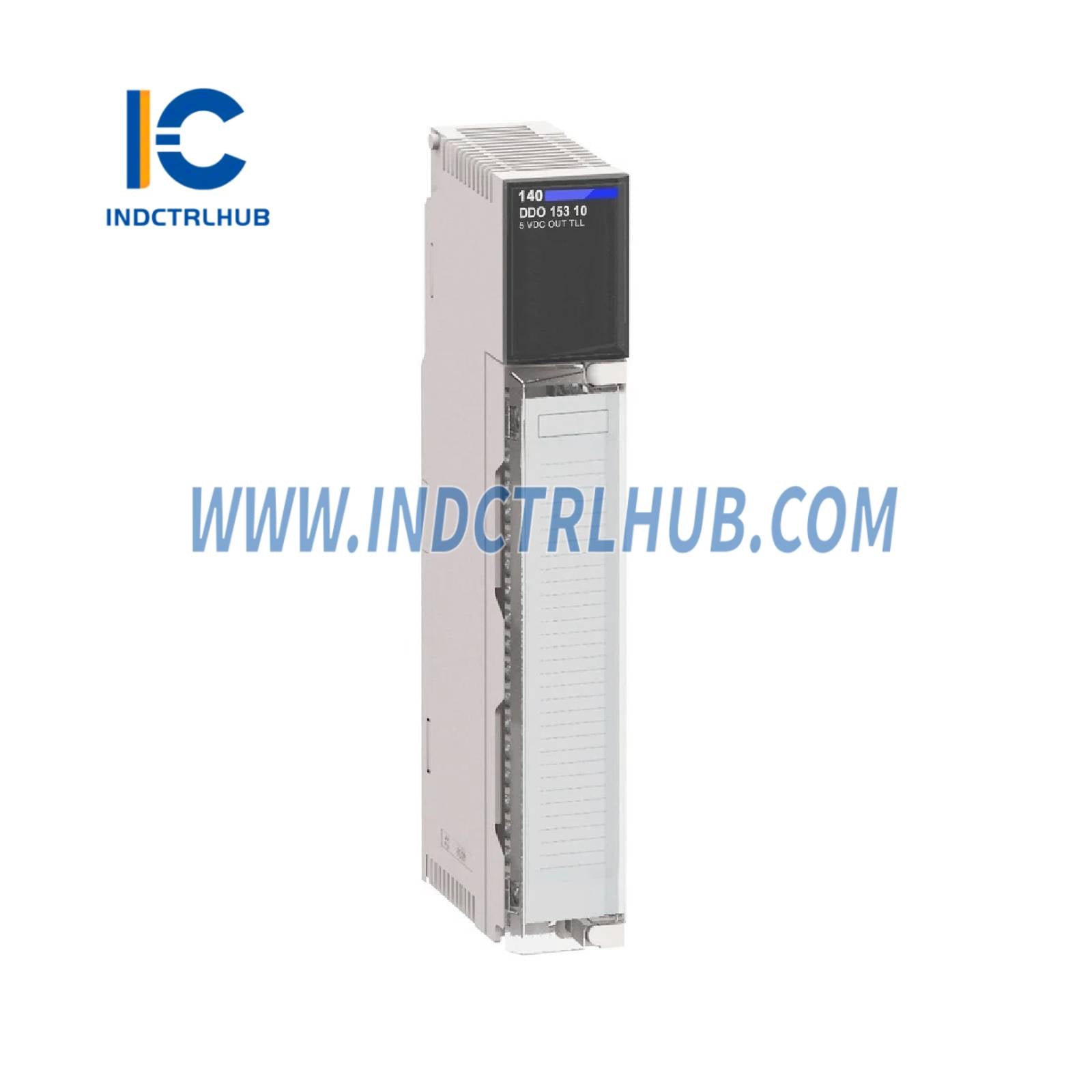

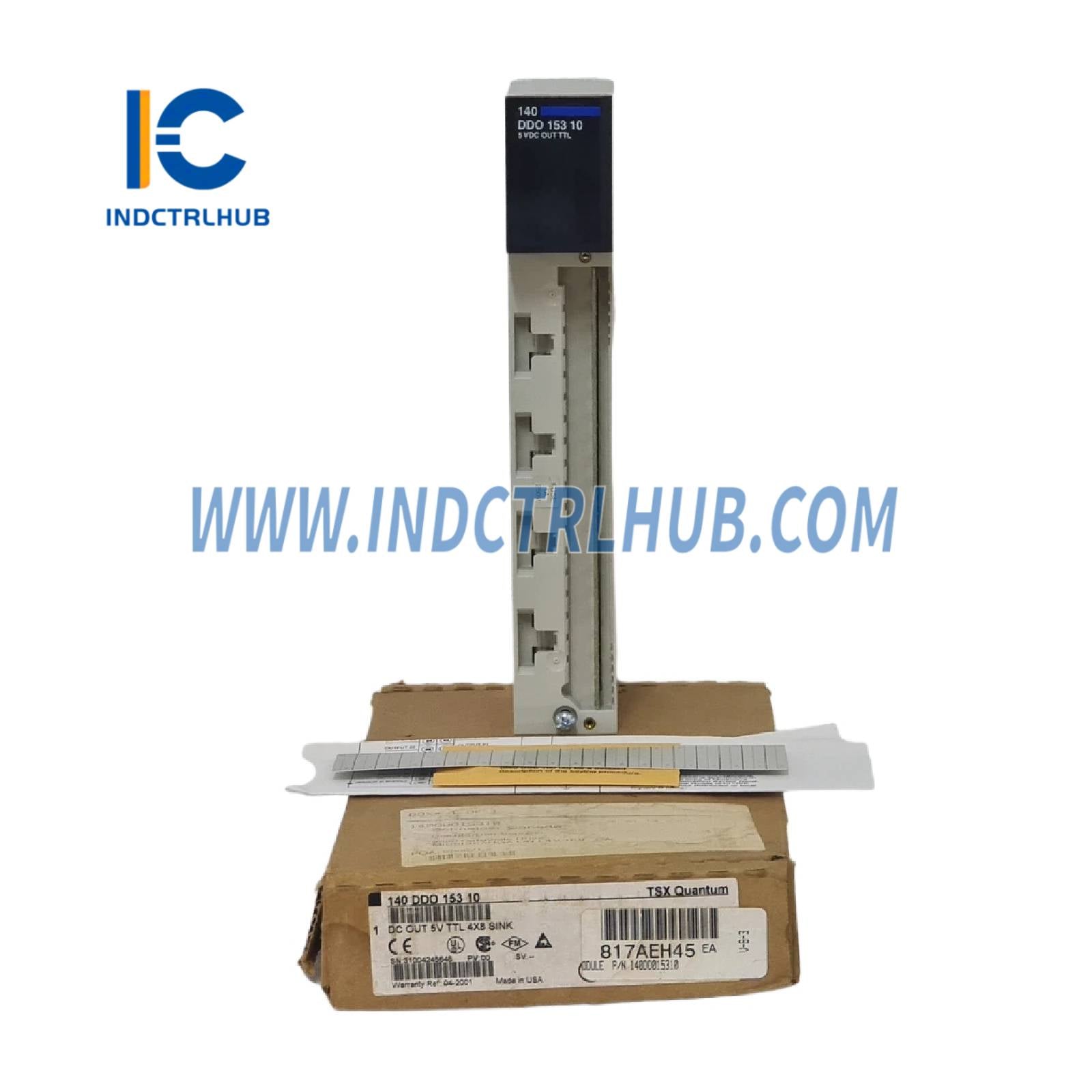

Schneider 140DDO15310 Discrete output module Modicon Quantum

Manufacturer

Schneider Electric

Model/Part Number

140DDO15310

Description

Discrete output module Modicon Quantum - 32 outputs

Range of Product

Modicon Quantum automation platform

Product Type

TTL discrete output module

Discrete Output Number

32

Group of Channels

4 groups of 8 channels

Discrete Output Type

Positive (sink), TTL

Output Voltage

5 V DC

Voltage State 1 Guaranteed

≤ 0.2 V

Rated Supply Voltage [Us]

4…5.5 V DC

Absolute Max Output Voltage

15 V for 0.0013 s (decaying voltage pulse DC)

Internal Pull-up Resistor

440 Ohm

Max Load Current

≤ 75 mA per point, ≤ 600 mA per group, ≤ 2.4 A per module

Surge Current

750 A for 0.5 ms between each point

Response Time (resistive)

≤ 250 µs (state 0 → 1 and 1 → 0)

Protection Type

Transient voltage suppression, internal fuse

Fault Indication

Loss of field power, blown fuse

Power Dissipation

4 W

Max Supply Current

0.4 A

Current Consumption

2800 mA at 5 V DC

Bus Current Requirement

350 mA

Isolation Between Groups

500 Vrms for 1 minute

Local Signalling

1 LED (green) for bus comm., 1 LED (red) for fault, 32 green status LEDs

Module Format

Standard

Marking

CE

Operating Temperature

0…60 °C (32…140 °F)

Storage Temperature

-40…85 °C (-40…185 °F)

Relative Humidity

95 % without condensation

Operating Altitude

≤ 5000 m (16404.2 ft)

Electrostatic Discharge Resistance

4 kV (contact), 8 kV (air) per IEC 801-2

Electromagnetic Field Resistance

9.1 V/m (10 V/m) from 80 to 2000 MHz, IEC 801-3

Standards

UL 508, CSA C22.2 No 142

Certifications

RMRS, GOST, C-tick, FM Class 1 Div 2

Net Weight

0.45 kg (0.99 lb)

Package 1 Type

PCE

Package 1 Dimensions (H x W x L)

16.3 cm x 4.5 cm x 31.2 cm

Package 1 Weight

441 g (15.6 oz)

GTIN

3595861133020

Country of Origin

France

Returnability

No
