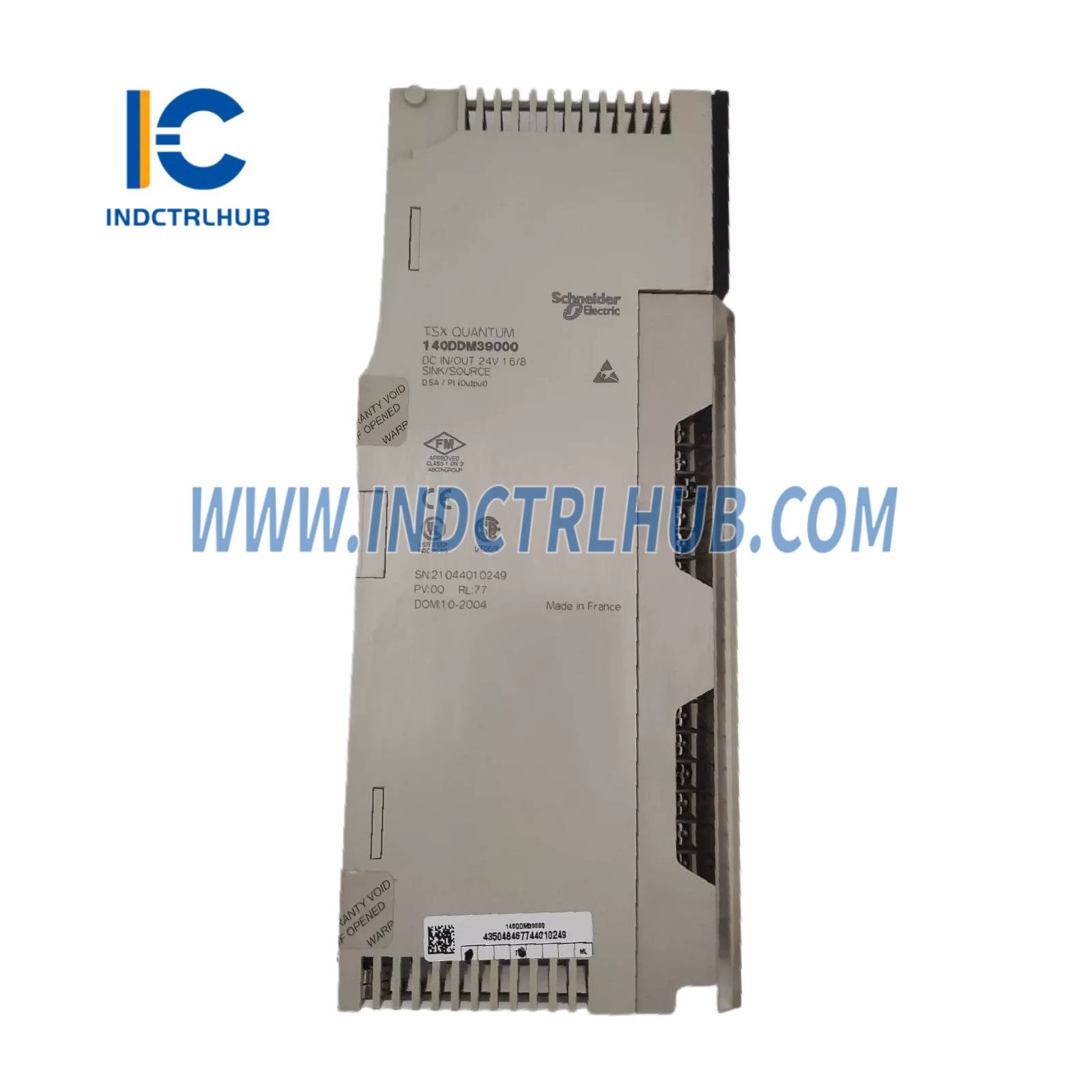

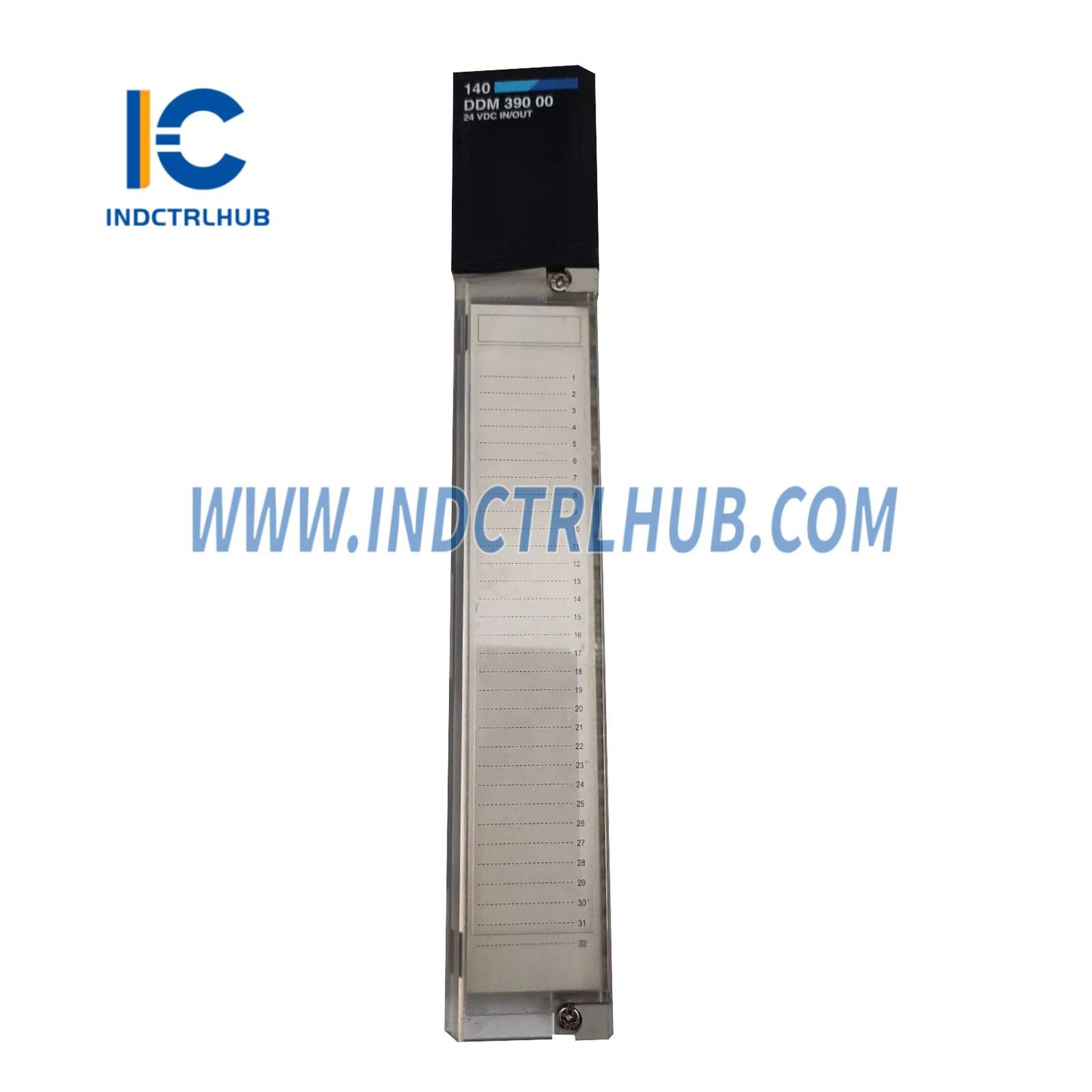

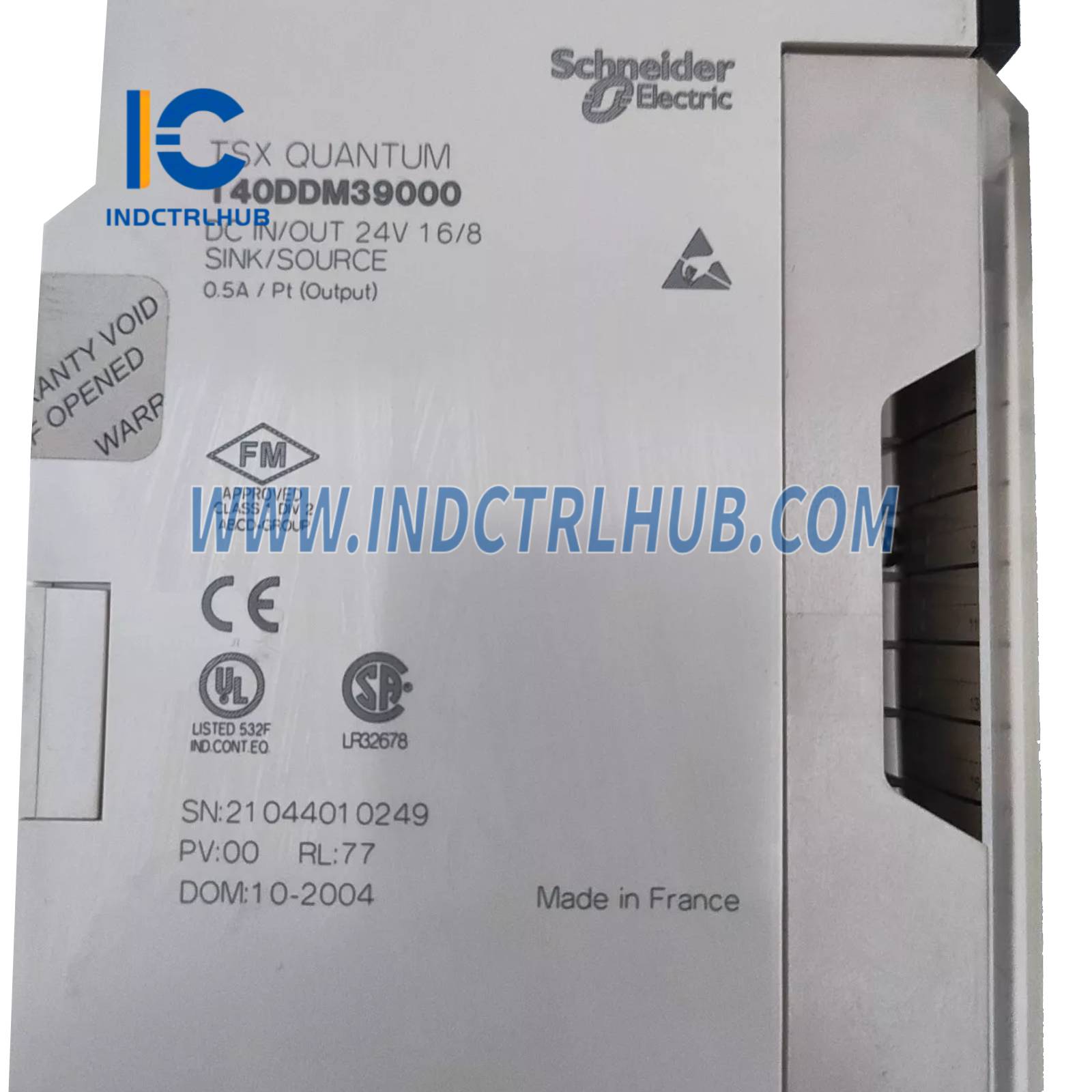

Schneider 140DDM39000 Discrete I/O module Modicon Quantum

Manufacturer

Schneider Electric

Model/Part Number

140DDM39000

Description

Discrete I/O module Modicon Quantum - 16 I - 24 V DC - 8 O solid state

Product Type

Mixed Discrete I/O Module

Product Range

Modicon Quantum automation platform

Number of I/O

24 (16 inputs, 8 outputs)

Discrete Inputs

16 (2 groups of 8)

Input Logic

Sink

Input Voltage

24 V DC

Input Voltage Limits

30 V

Input Thresholds

State 0: -3 to 5 VState 1: 15 to 30 V

Input Current Thresholds

State 0: ≤ 0.5 mAState 1: ≥ 2 mA

Input Impedance

2500 Ohm

Addressing Requirement

1 input word + 0.5 output word

Network Frequency Limits

47–63 Hz

Discrete Outputs

8 (2 groups of 4)

Output Type

Solid state

Output Logic

Sink

Output Voltage

24 V DC

Output Voltage Limits

19.2–30 V DC typical56 V DC (1.3 ms max)

Max Load Current

0.5 A per point2 A per group4 A per module

Max Voltage Drop

< 0.4 V @ 0.5 A

Max Output (Absolute)

5 A for 500 µs per point

Max Load Inductance

500 mH @ 4 Hz

Max Load Capacitance

50 µF

Leakage Current

0.4 mA @ 30 V DC

Output Response Time

≤ 1 ms (state changes)

Protection

TVS on outputs, resistor limited inputs, 5 A fuse/group

Isolation (group-to-bus)

1780 Vrms for 1 min

Isolation (group-to-group)

500 Vrms for 1 min

Fault Indication

Blown fuse, loss of field power

Power Dissipation

1.75 W + (0.36 × inputs ON) + (1.1 × total output I)

Bus Current Requirement

330 mA

Local Signaling

Green LED: Bus activeRed LED: FaultGreen/Red LEDs: Input/Output status

Marking

CE

Net Weight

0.3 kg

Operating Temperature

0…60 °C

Storage Temperature

-40…85 °C

Relative Humidity

95 % (non-condensing)

Operating Altitude

≤ 5000 m

Electrostatic Discharge (ESD)

4 kV contact, 8 kV air (IEC 801-2)

EM Field Resistance

10 V/m (80–1000 MHz) (IEC 801-3)

Certifications

CE, cUL

Package 1

1

31.2 × 4.5 × 16.3

426.0 g

Package 2 (S03)

7

40.0 × 30.0 × 30.0

3.039 kg
