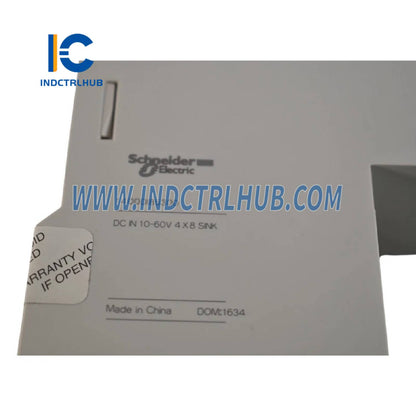

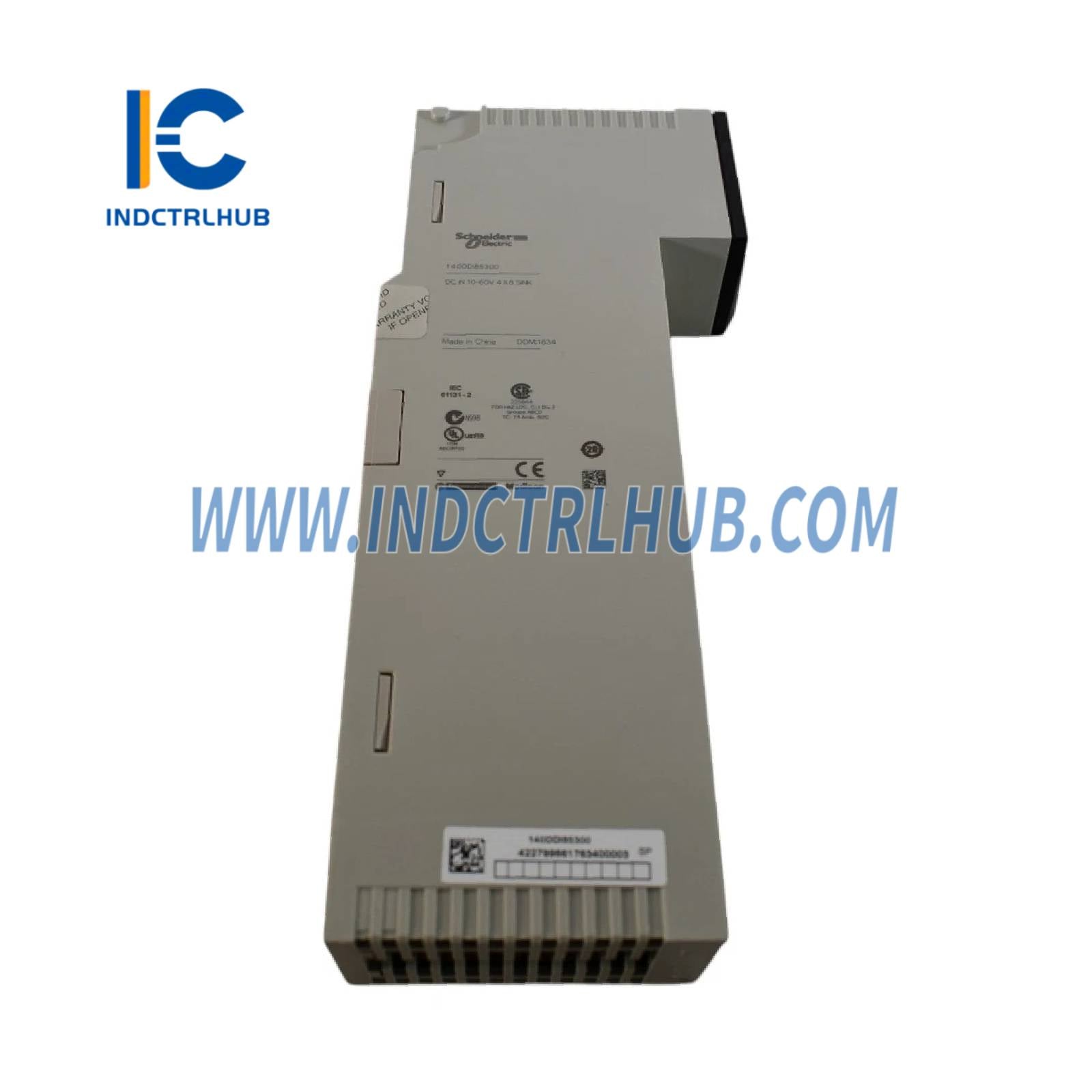

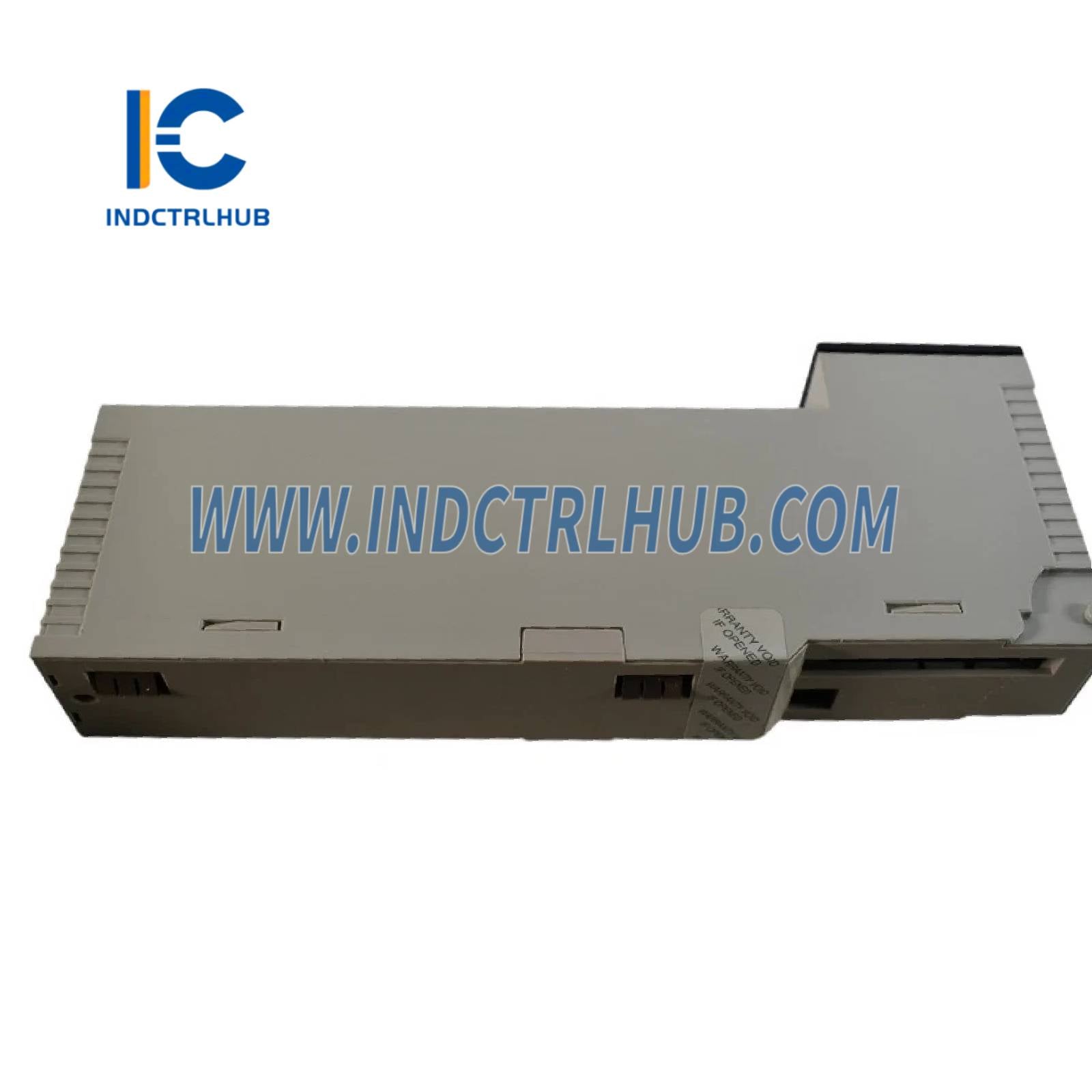

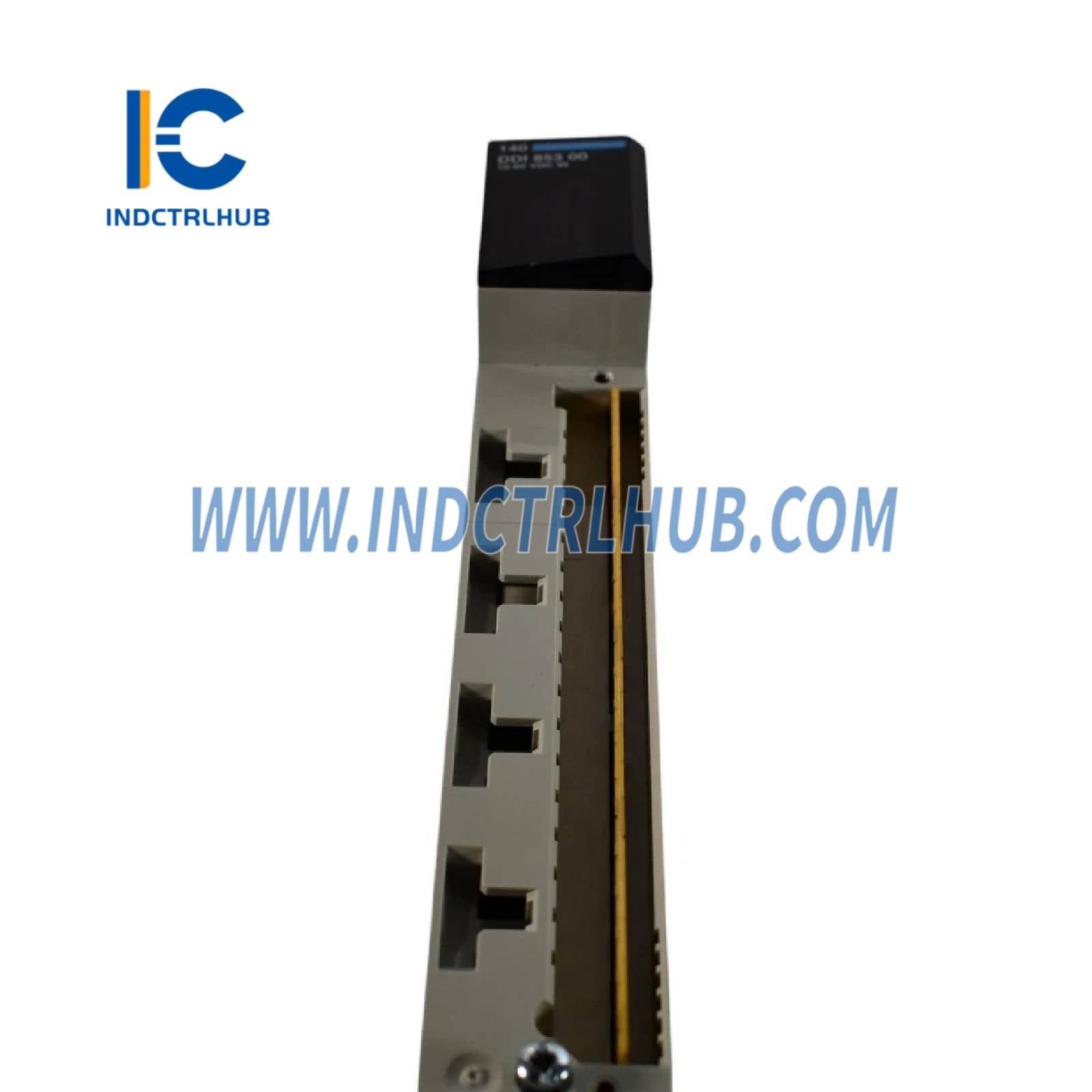

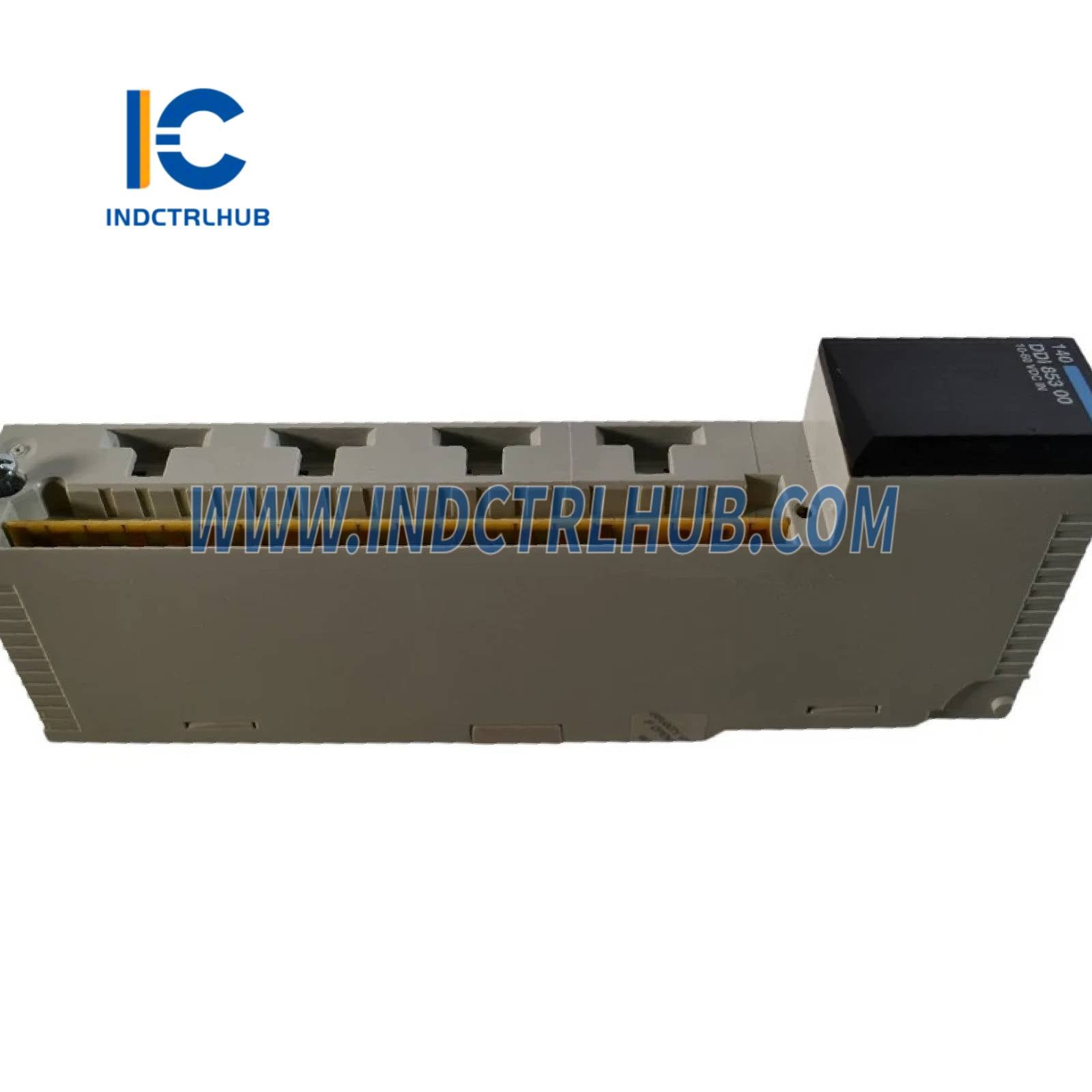

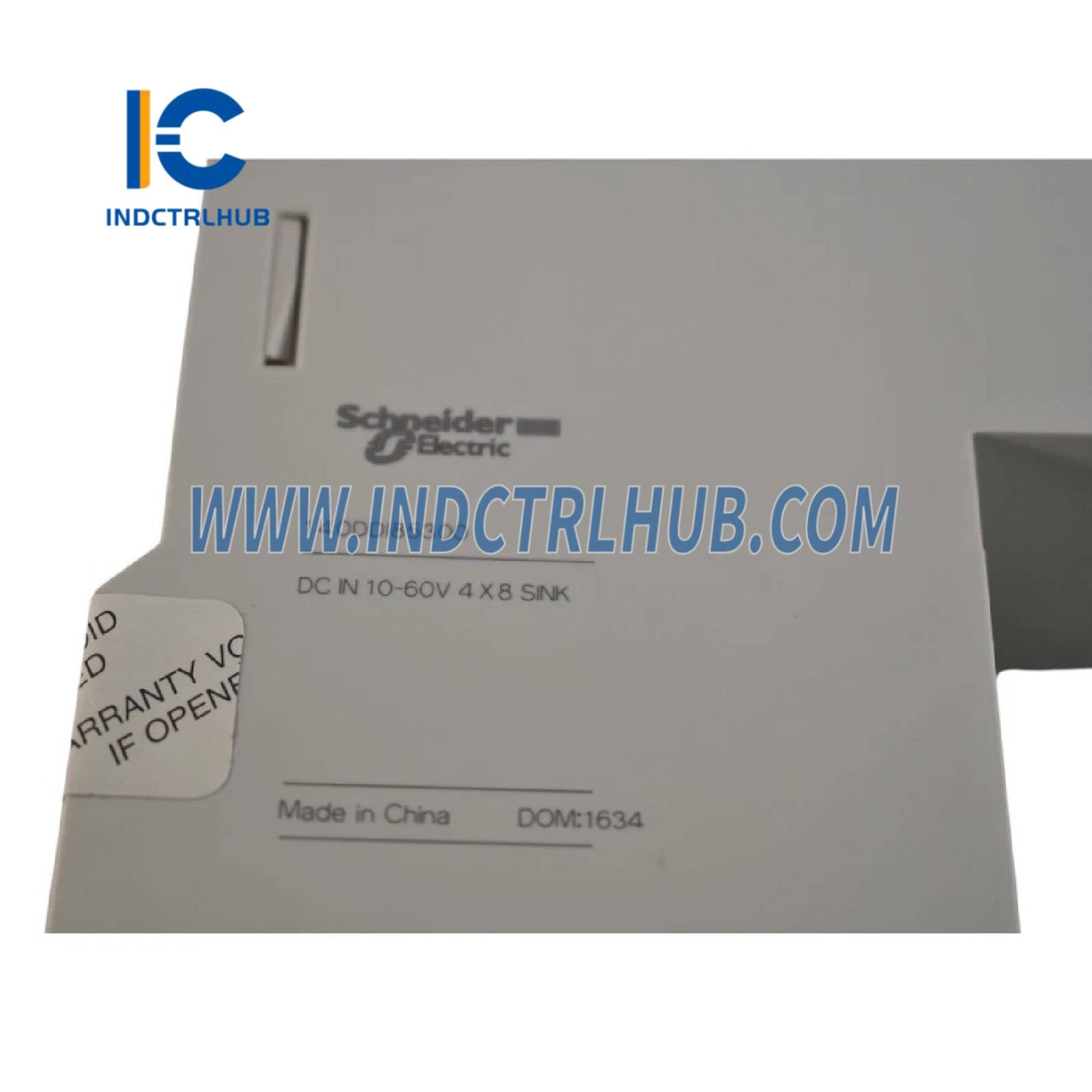

Schneider 140DDI85300 Discrete input module Modicon Quantum
Schneider 140DDI85300 Discrete input module Modicon Quantum
Manufacturer: Schneider
Product No.: 140DDI85300
Condition:1000 in stock
Product Type: Discrete input module Modicon Quantum
Product Origin: USA
Payment: T/T, Western Union
Weight: 428g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
General Information
|
Field |
Details |
|---|---|
|
Manufacturer |
Schneider Electric |
|
Model/Part Number |
140DDI85300 |
|
Description |
Discrete input module Modicon Quantum - 32 I - 10..60 V DC |
|
Range of Product |
Modicon Quantum automation platform |
|
Product Type |
DC discrete input module |
_
_
Specifications
_
Input Characteristics
|
Parameter |
Value |
|---|---|
|
Discrete Input Number |
32 |
|
Groups of Channels |
4 |
|
Input Logic Type |
Positive (sink) |
|
Input Voltage Range |
10_60 V DC |
|
Typical Input Voltage/Current |
12 V (5_10 mA), 24 V (6_30 mA), 48 V (2_15 mA), 60 V (1_5 mA) |
|
Guaranteed State 1 Voltage |
9_12 V (12 V ±5%)11_24 V (24 V -15_-20%)34_48 V (48 V -15_-20%)45_60 V (60 V -15_-20%) |
|
Guaranteed State 0 Voltage |
0_1.8 V (12 V ±5%)0_5 V (24 V -15_-20%)0_10 V (48 V -15_-20%)0_12.5 V (60 V -15_-20%) |
|
Absolute Max Input Voltage |
75 V |
|
Addressing Requirement |
2 input words |
|
Response Time |
4 ms (state 0_1 and 1_0) |
|
Switching Frequency |
_ 100 Hz |
_
_
Electrical and Isolation
|
Parameter |
Value |
|---|---|
|
Power Dissipation |
1 W + (0.25 _ number of inputs ON) |
|
Bus Current Requirement |
300 mA |
|
Isolation (Group to Bus) |
2500 Vrms for 1 minute |
|
Isolation (Group to Group) |
700 Vrms for 1 minute |
_
_
Diagnostics & Indications
|
Feature |
Description |
|---|---|
|
Local Signaling LEDs |

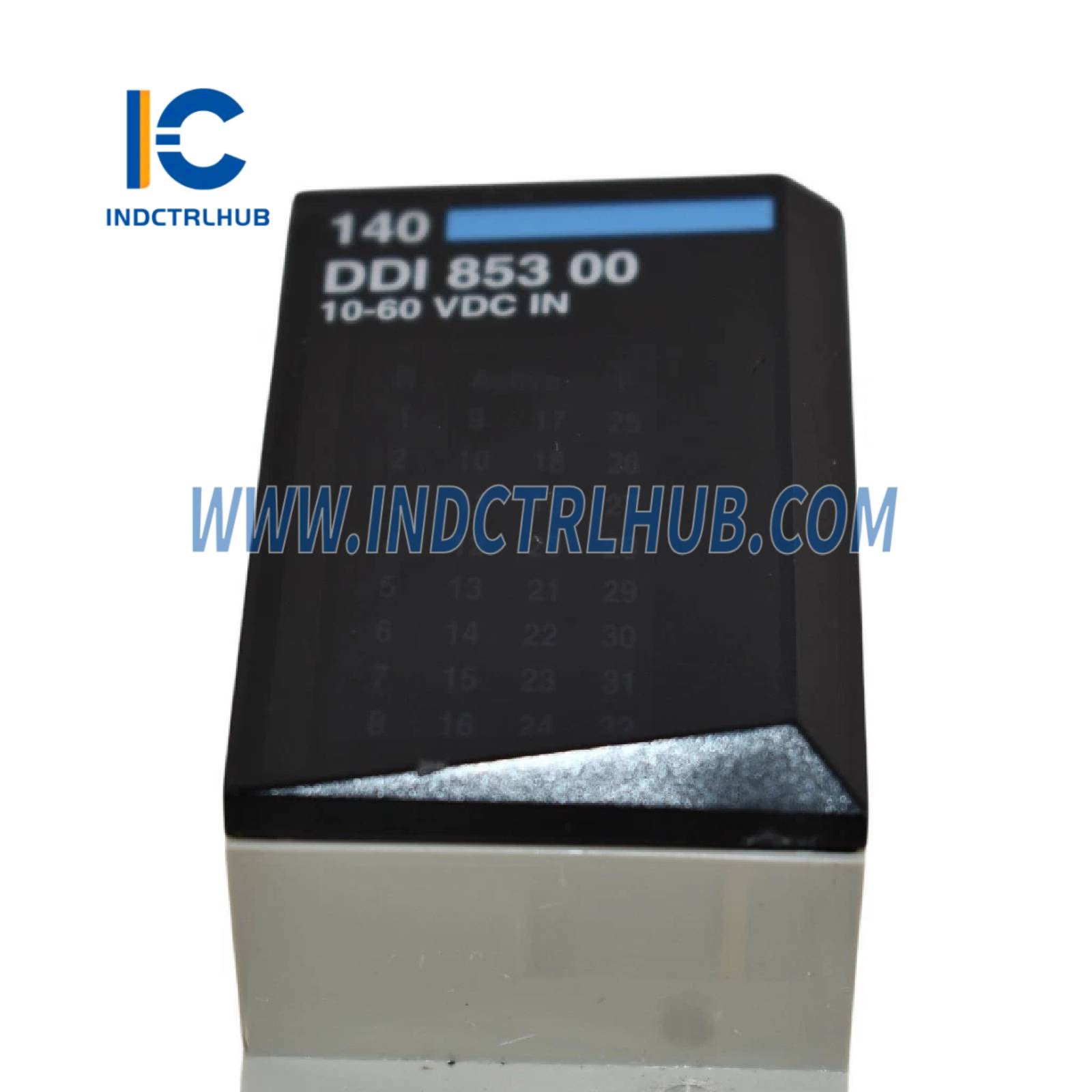

1 green (bus active)__32 green (input status) |
_
_
Physical Specifications
|
Parameter |
Value |
|---|---|
|
Module Format |
Standard |
|
Net Weight |
0.295 kg |
_
_
Environmental Specifications
|
Parameter |
Value |
|---|---|
|
Operating Temperature |
0_60 °C |
|
Storage Temperature |
-40_85 °C |
|
Relative Humidity |
95% (non-condensing) |
|
Operating Altitude |
_ 5000 m |
|
Electrostatic Discharge |
4 kV (contact), 8 kV (air) per IEC 801-2 |
|
EM Field Resistance |
10 V/m (80_2000 MHz) per IEC 801-3 |
_
_
Certifications & Standards
|
Type |
Details |
|---|---|
|
Certifications |
RCM, Merchant Navy, UL, EAC, CSA, CE, Hazardous Location Class 1 Div 2 |
|
Standards |
EN/IEC 61131-2, CSA C22.2 No 142, UL 508 |
_
_
Packaging Information
|
Parameter |
Package 1 |
|---|---|
|
Package Type |
PCE |
|
Units per Package |
1 |
|
Height |
16.3 cm |
|
Width |
4.5 cm |
|
Length |
31.2 cm |
|
Weight |
428.0 g |
_
