Product Description
General Information
|
Field |
Details |
|---|---|
|
Manufacturer |
Schneider Electric |
|
Model/Part Number |
140DDI36400 |
|
Description |

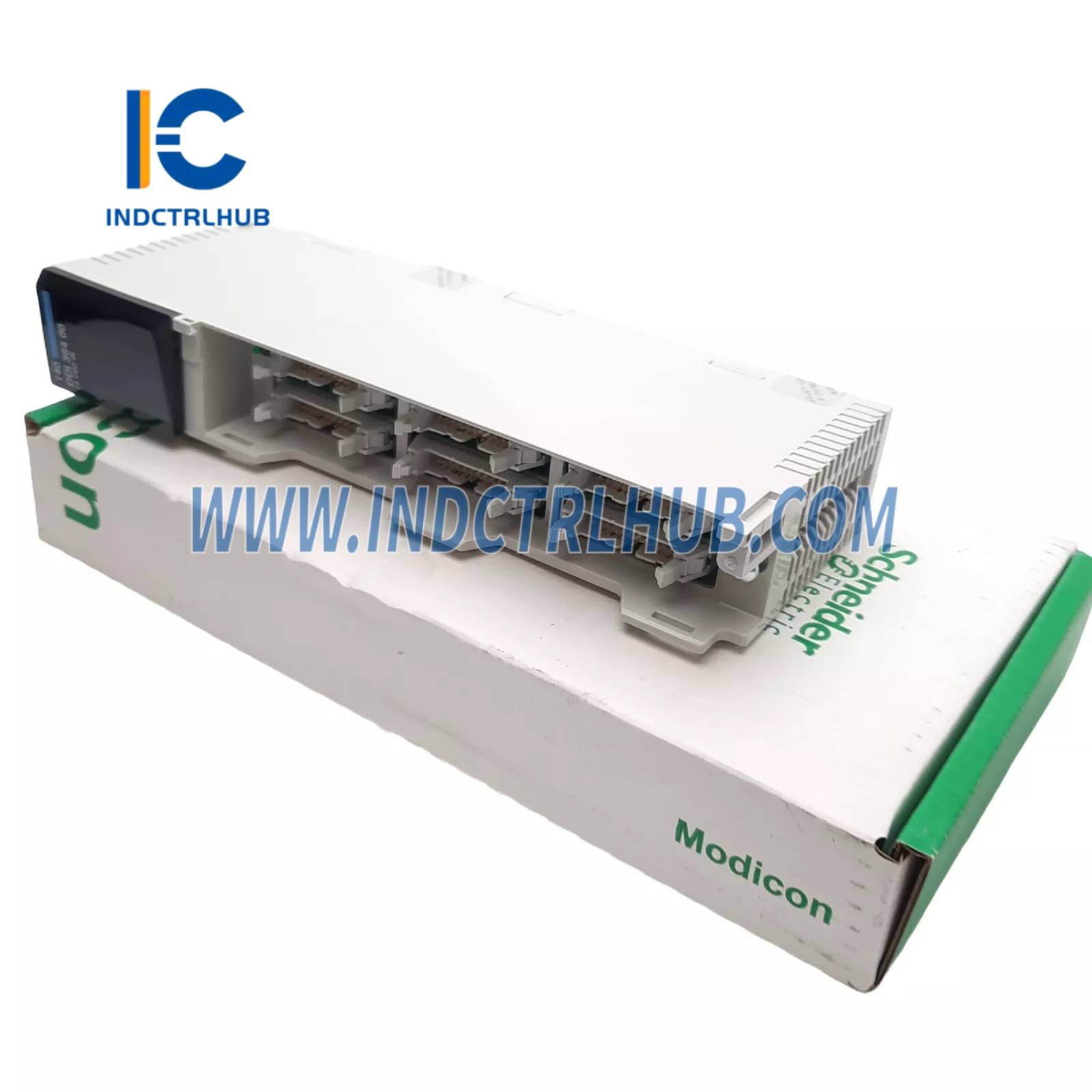

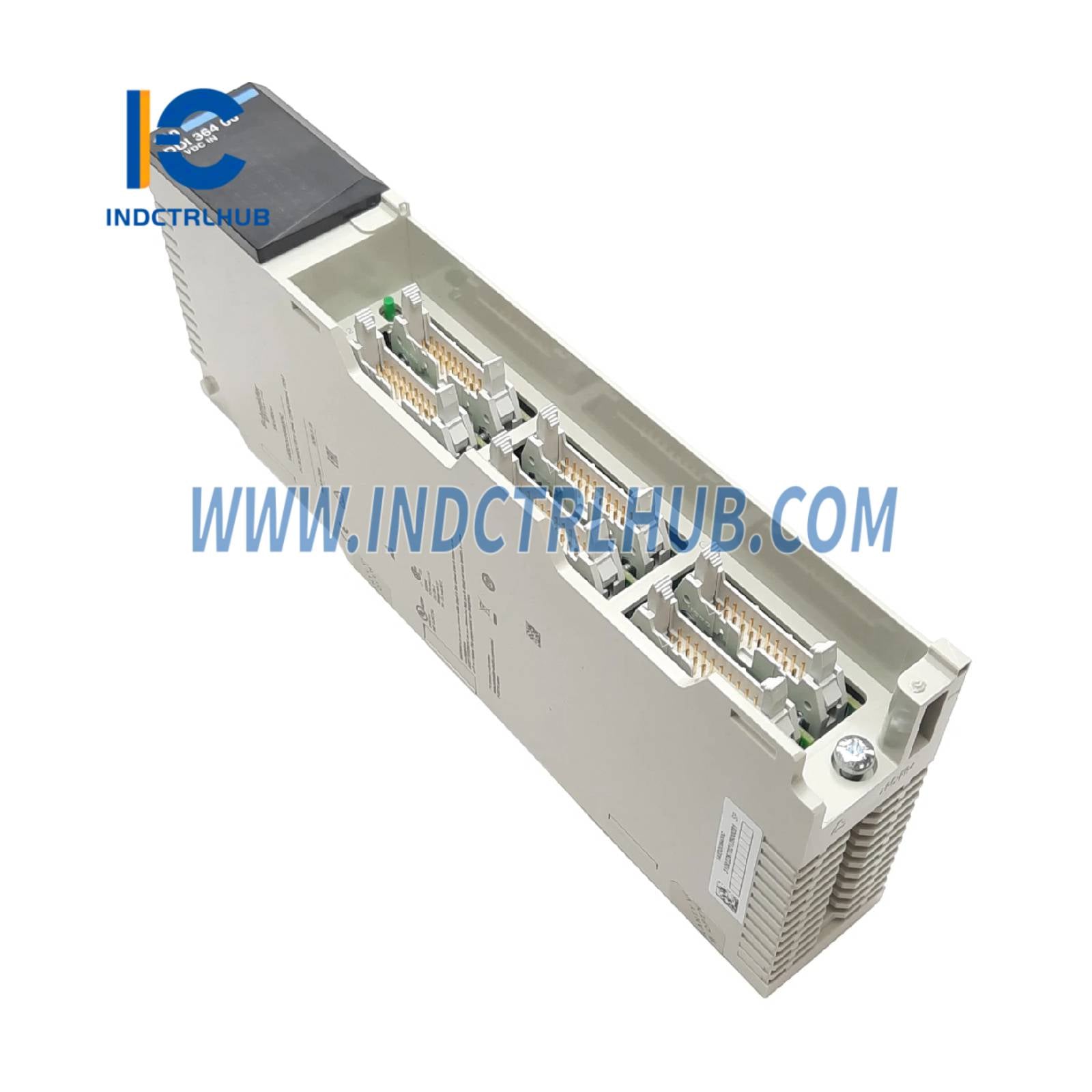

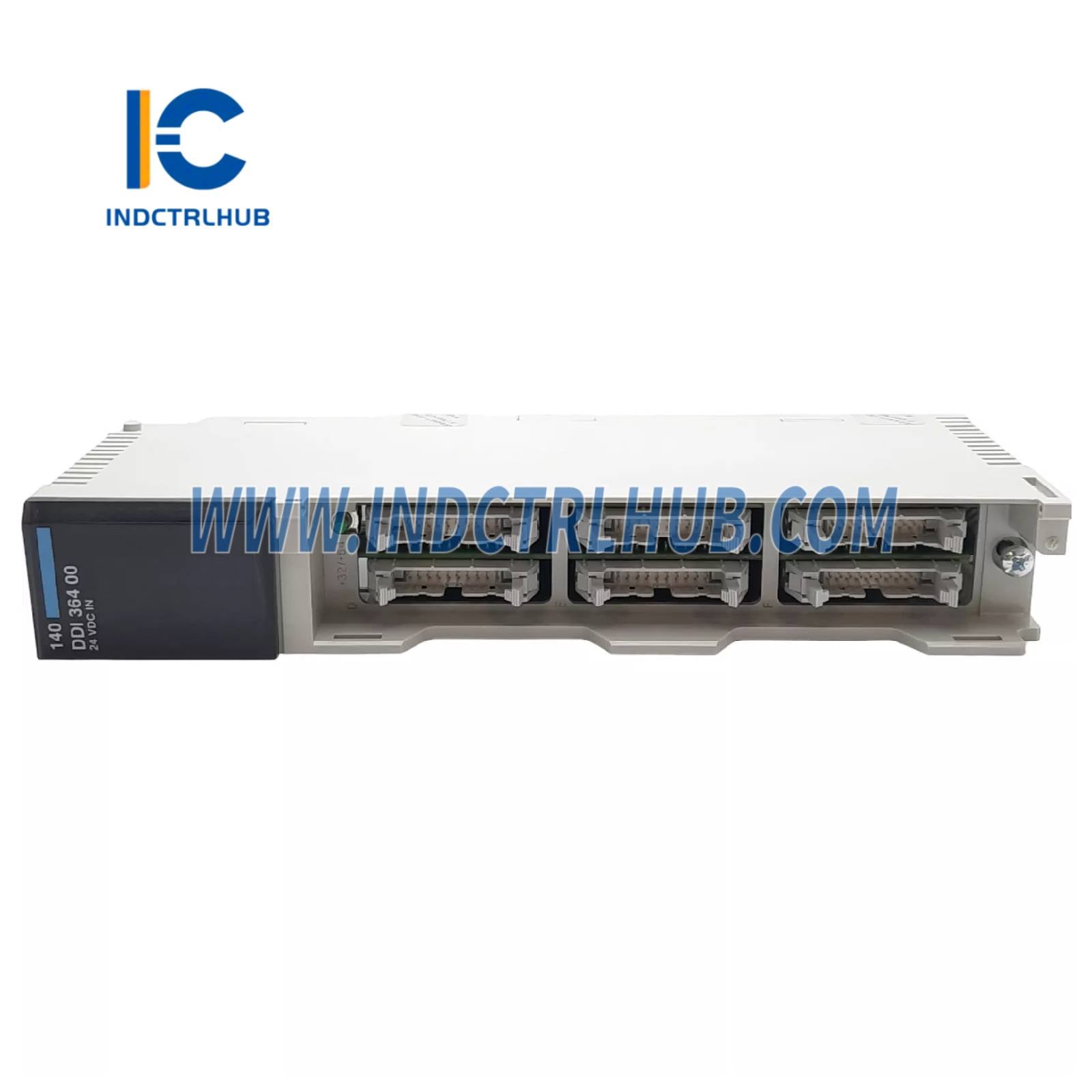

Discrete input module Modicon Quantum - 96 I - 24 V DC |
|
Range of Product |
Modicon Quantum automation platform |
|
Product Type |
Low voltage DC discrete input module |
Specifications
Input Characteristics
|
Parameter |
Value |
|---|---|
|
Discrete Input Number |
96 |
|
Groups of Channels |
6 |
|
Input Logic Type |
Positive (sink) |
|
Input Voltage |
24 V DC |
|
Input Voltage Limits |
19.2…30 V |
|
Guaranteed State 1 Voltage |
15…30 V DC |
|
Guaranteed State 0 Voltage |
5 V DC |
|
Guaranteed State 1 Current |
≥ 2.5 mA |
|
Guaranteed State 0 Current |
≥ 0.7 mA |
|
Absolute Max Input Voltage |
30 V continuous; 50 V for decaying pulse |
|
Input Impedance |
6700 Ohms |
|
Response Time |
≤ 2 ms (state 0↔1), ≤ 3 ms (state 1↔0) |
|
Addressing Requirement |
6 input words |
|
Protection |
Resistor-limited input protection |
Electrical and Isolation
|
Parameter |
Value |
|---|---|
|
Power Dissipation |
1.35 W + (0.13 × number of inputs ON) |
|
Bus Current Requirement |
270 mA |
|
Isolation (Group to Group) |
500 Vrms for 1 min |
Diagnostics & Indications
|
Feature |
Description |
|---|---|
|
Local Signaling LEDs |
1 green (bus active) 1 red (fault) 96 green (input status) |
Physical Specifications
|
Parameter |
Value |
|---|---|
|
Module Format |
Standard |
|
Net Weight |
0.3 kg |
Environmental Specifications
|
Parameter |
Value |
|---|---|
|
Operating Temperature |
0…60 °C |
|
Storage Temperature |
-40…85 °C |
|
Relative Humidity |
95% (non-condensing) |
|
Operating Altitude |
≤ 5000 m |
|
Electrostatic Discharge |
4 kV (contact), 8 kV (air) per IEC 801-2 |
|
EM Field Resistance |
10 V/m (80–2000 MHz) per IEC 801-3 |

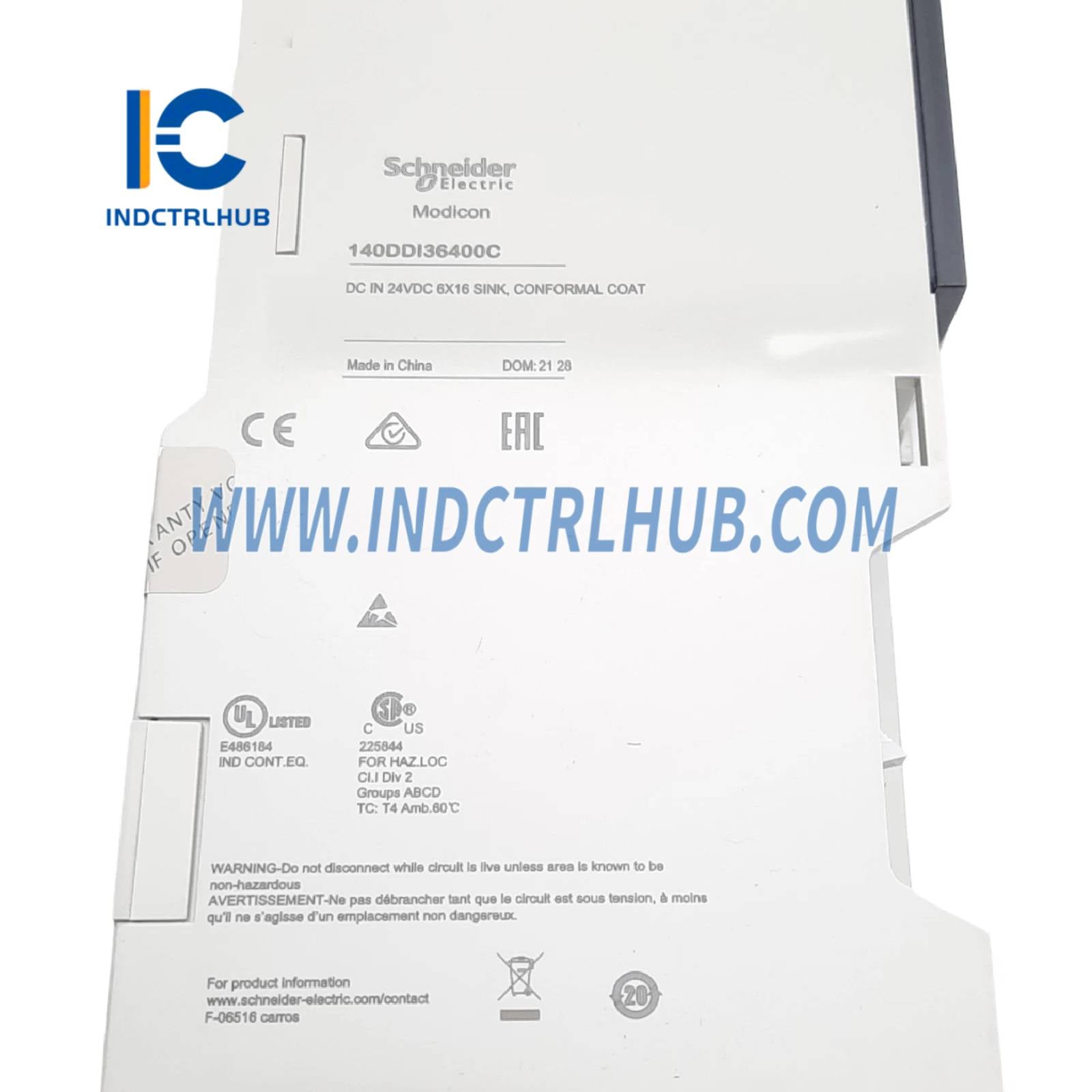

Certifications & Standards
|
Type |
Details |
|---|---|
|
Certifications |
FM Class 1 Division 2, C-Tick |
|
Standards |
CSA C22.2 No 142, UL 508 |

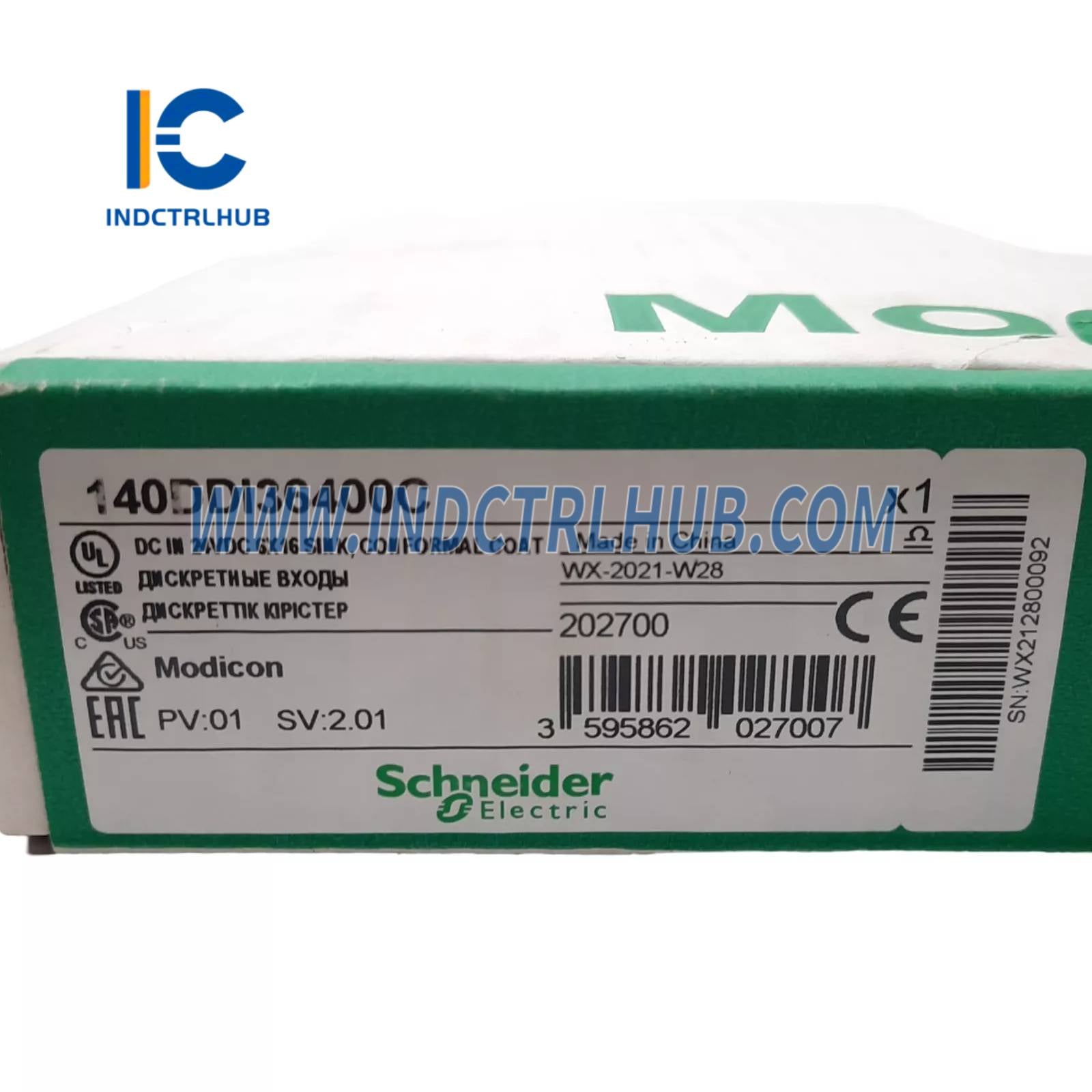

Packaging Information
|
Parameter |
Package 1 |
|---|---|
|
Package Type |
PCE |
|
Units per Package |
1 |
|
Height |
16.3 cm |
|
Width |
4.5 cm |
|
Length |
31.2 cm |
|
Weight |
520.0 g |
