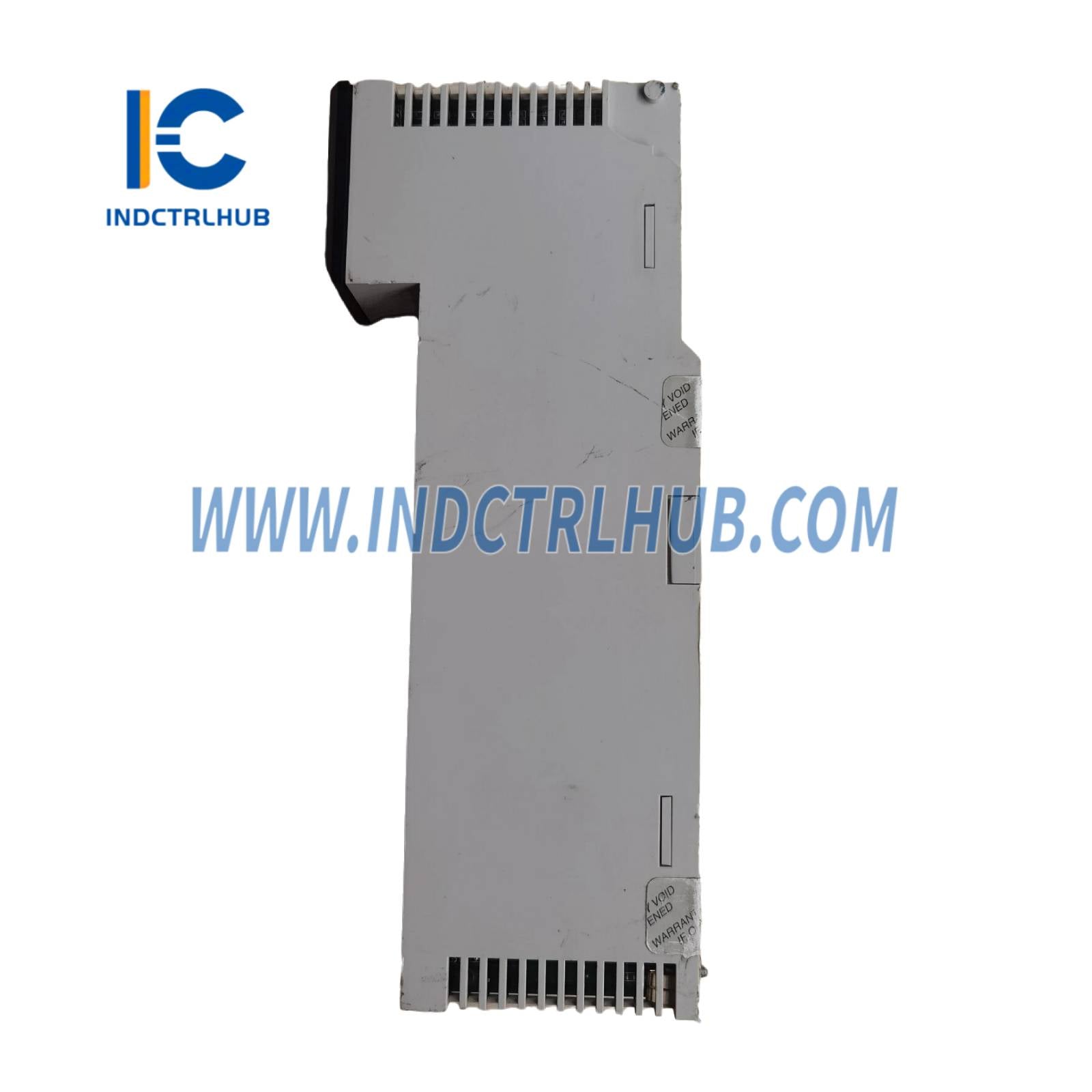

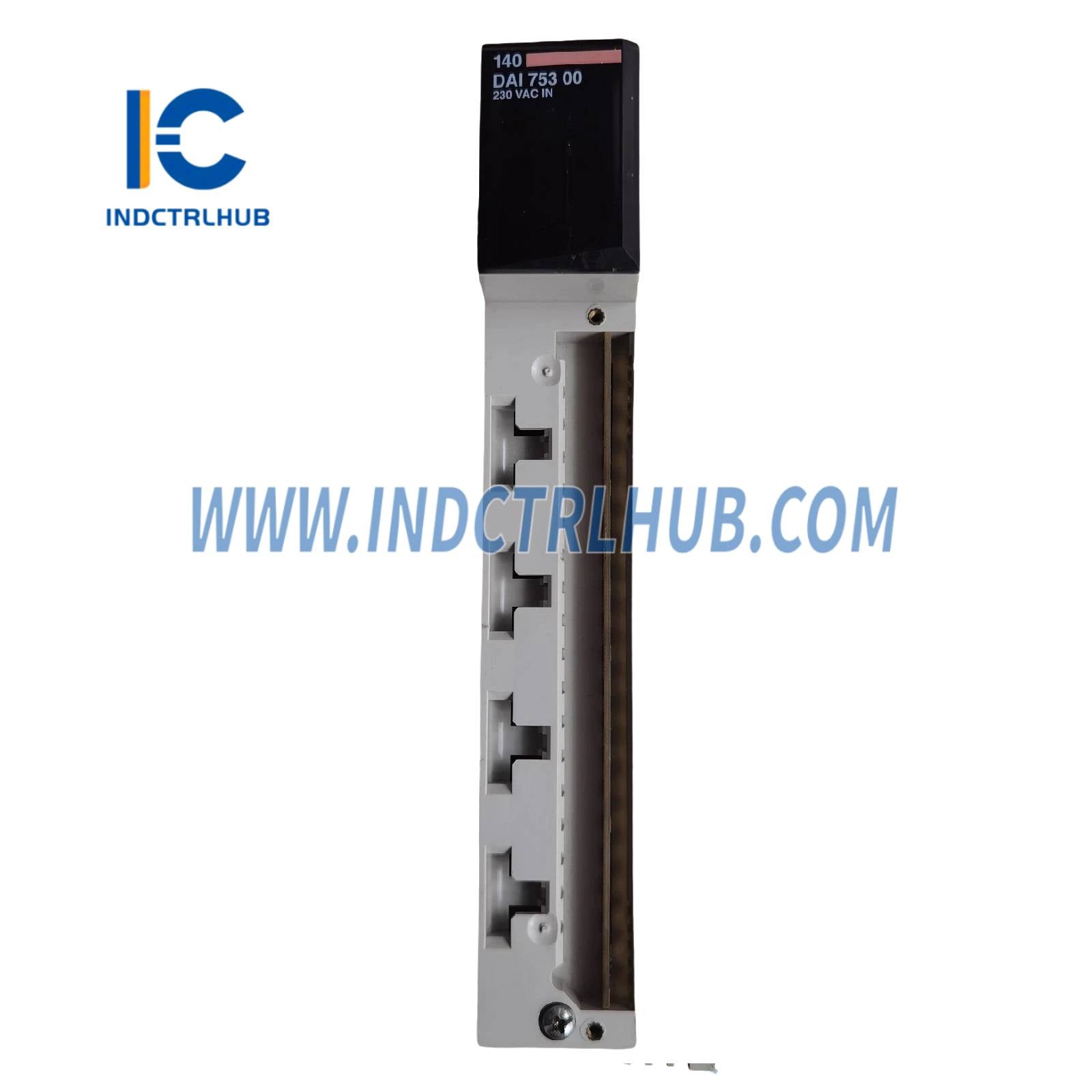

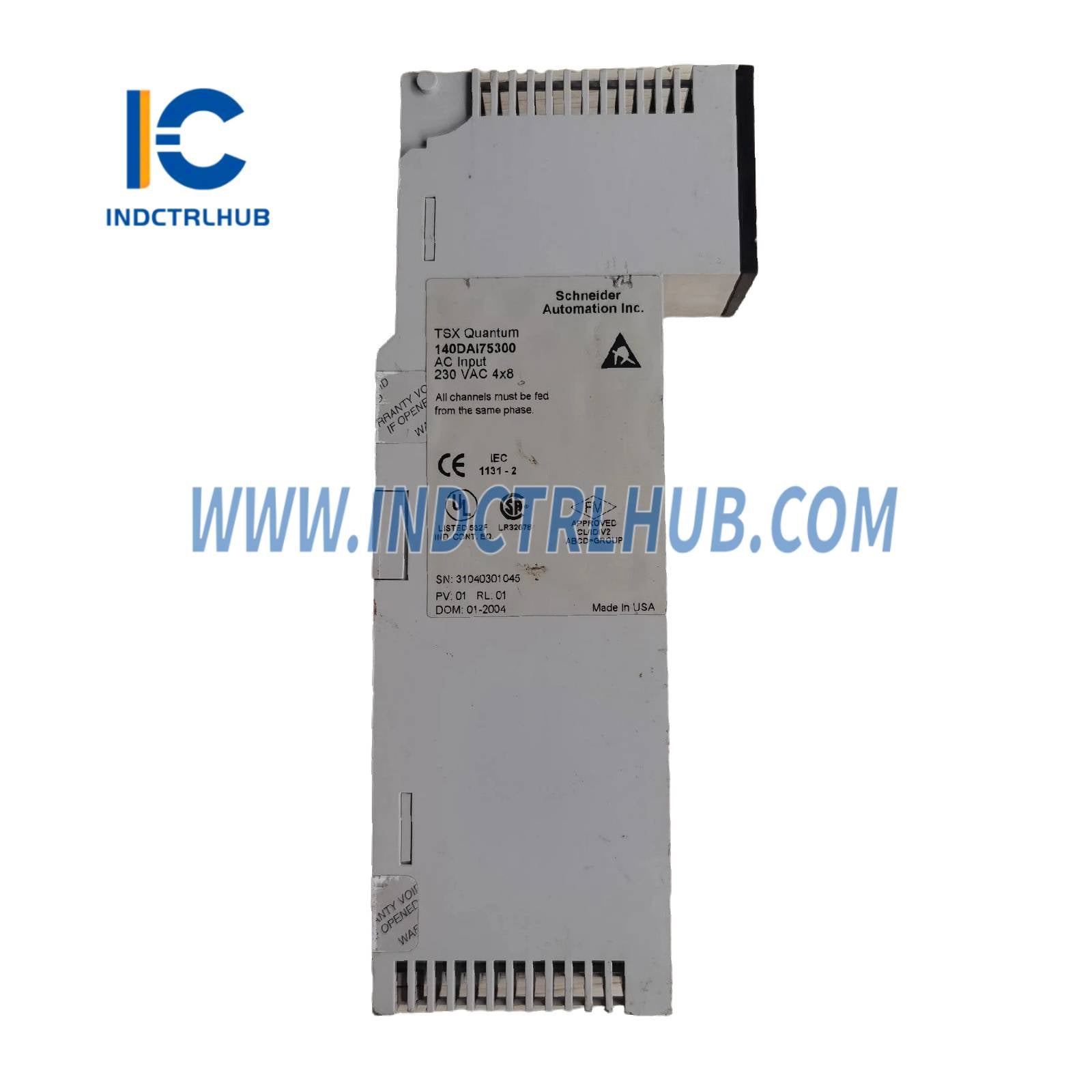

Schneider 140DAI75300 Discrete input module Modicon Quantum

Manufacturer

Schneider Electric

Model/Part Number

140DAI75300

Description

Discrete input module Modicon Quantum - 32 I - 230 V AC

Range of Product

Modicon Quantum automation platform

Product Type

VAC discrete input module

Compatible Software

Unity Pro, Concept, ProWORX 32

Discrete Inputs

32

Group of Channels

4

Addressing Requirement

2 input words

Input Voltage

230 V AC

Input Current

11.5 mA (57–63 Hz), 9.7 mA (47–53 Hz)

Voltage State 1 Guaranteed

165–264 V AC (57–63 Hz), 175–264 V AC (47–53 Hz)

Voltage State 0 Guaranteed

0–40 V AC (both frequency ranges)

Input Impedance

26500 Ω capacitive (57–63 Hz), 31800 Ω capacitive (47–53 Hz)

Network Frequency Limits

47–63 Hz

Max Leakage Current

2.6 mA

Absolute Max Input

264 V (continuous), 312 V (10 s), 400 V (1 cycle)

Response Time

Off-On: 4.9…0.75 ms × line cycleOn-Off: 7.3…12.3 ms

Isolation Between Groups

1780 Vrms for 1 minute

Isolation Group to Bus

1780 Vrms for 1 minute

Bus Current Requirement

250 mA

Power Dissipation

5 W

Local Signaling

1 green LED (active), 1 red LED (fault), 32 green LEDs (input status)

Module Format

Standard

Marking

CE

Standards

CSA C22.2 No 142, UL 508

Certifications

FM Class 1 Division 2, cUL

Electrostatic Discharge

4 kV contact, 8 kV air (IEC 801-2)

Electromagnetic Fields

10 V/m (80–2000 MHz) (IEC 801-3)

Operating Temperature

32–140 °F (0–60 °C)

Storage Temperature

-40–185 °F (-40–85 °C)

Relative Humidity

95% without condensation

Operating Altitude

≤ 16404.2 ft (5000 m)

Category

US1PC2118155

Discount Schedule

PC21

GTIN

3595860001528

Returnability

No

Country of Origin

US

Package 1

PCE

1

1.85 in × 6.50 in × 12.40 in

18.131 oz (514 g)

Package 2 (for 7 units)

S03

7

11.81 in × 11.81 in × 15.75 in

8.885 lb (4.03 kg)
