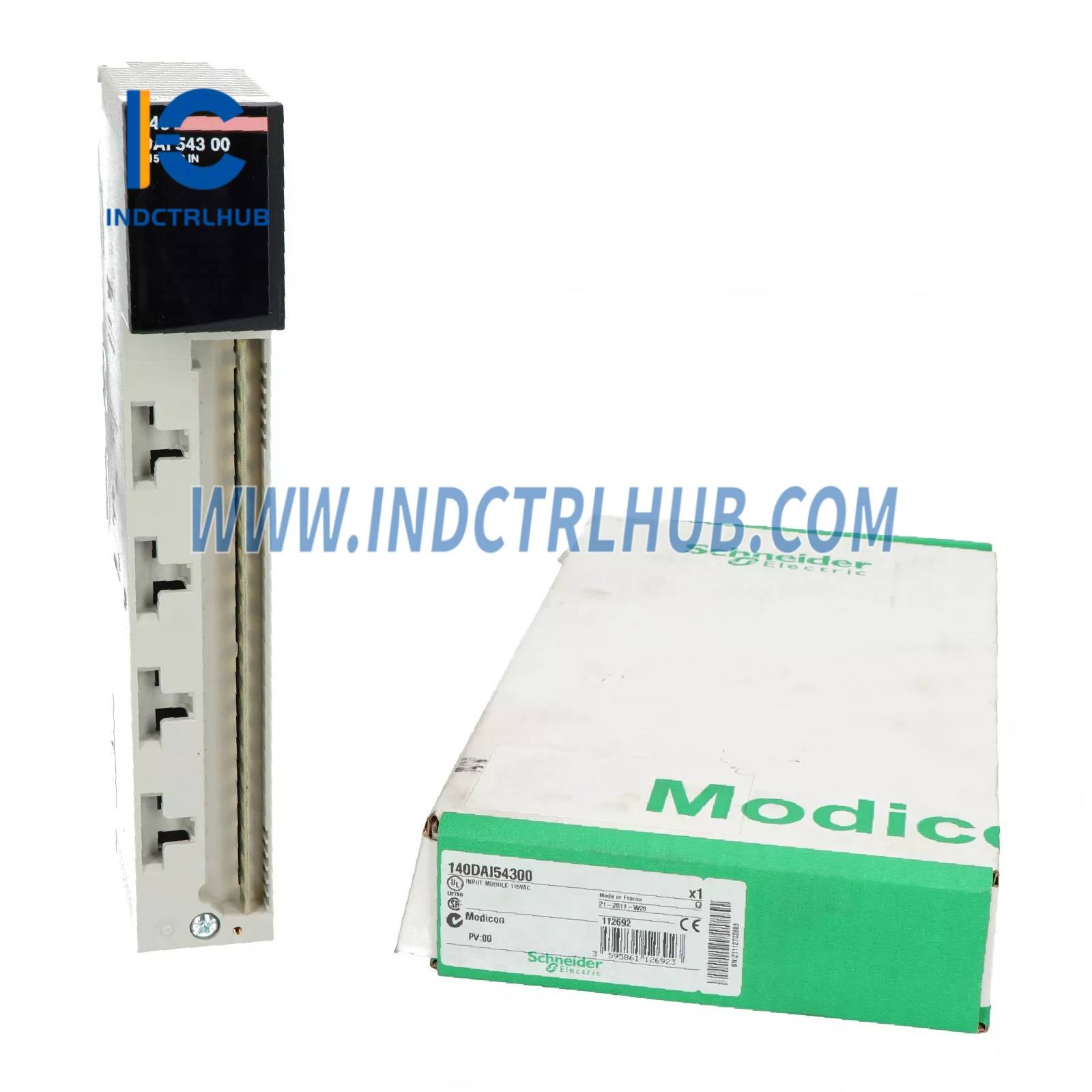

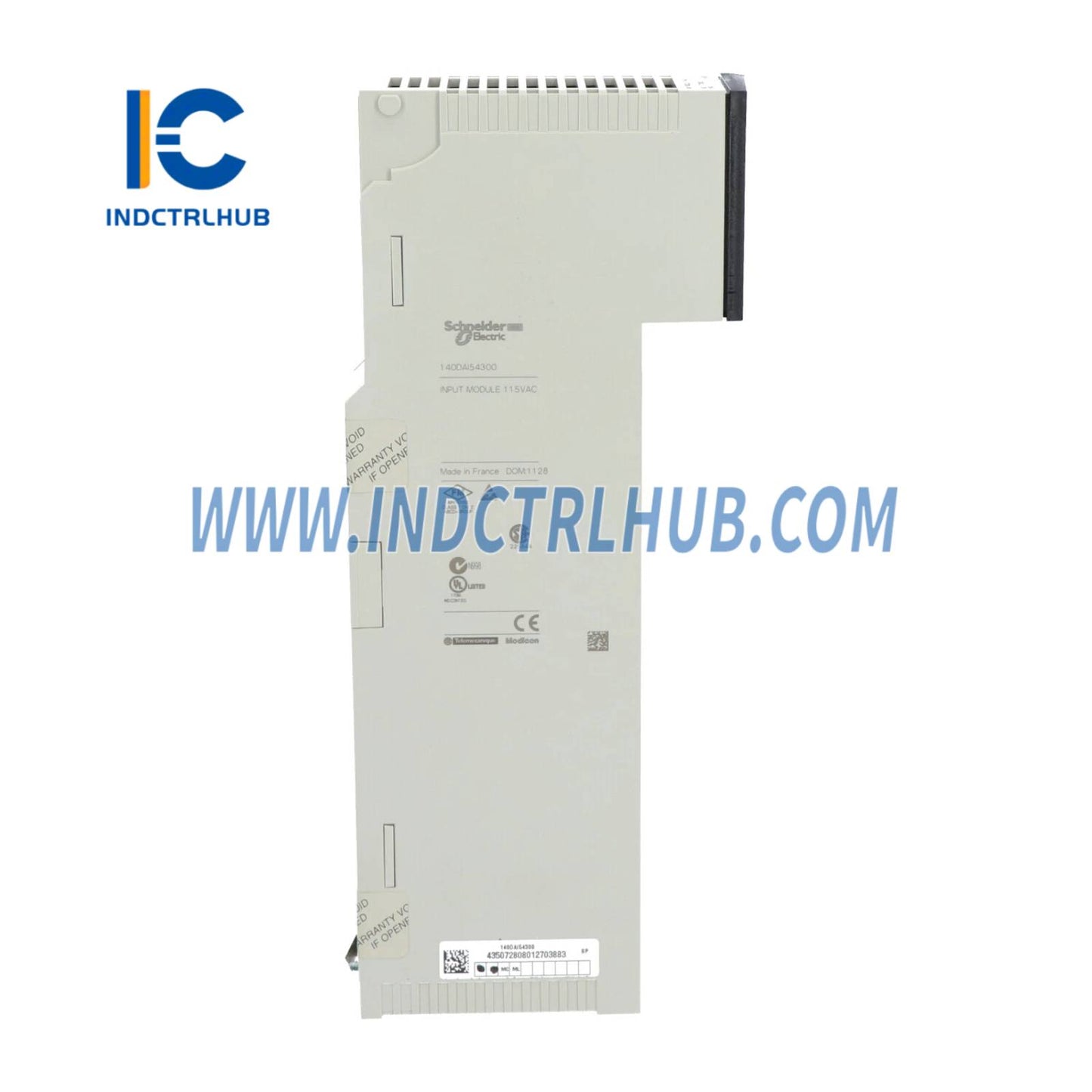

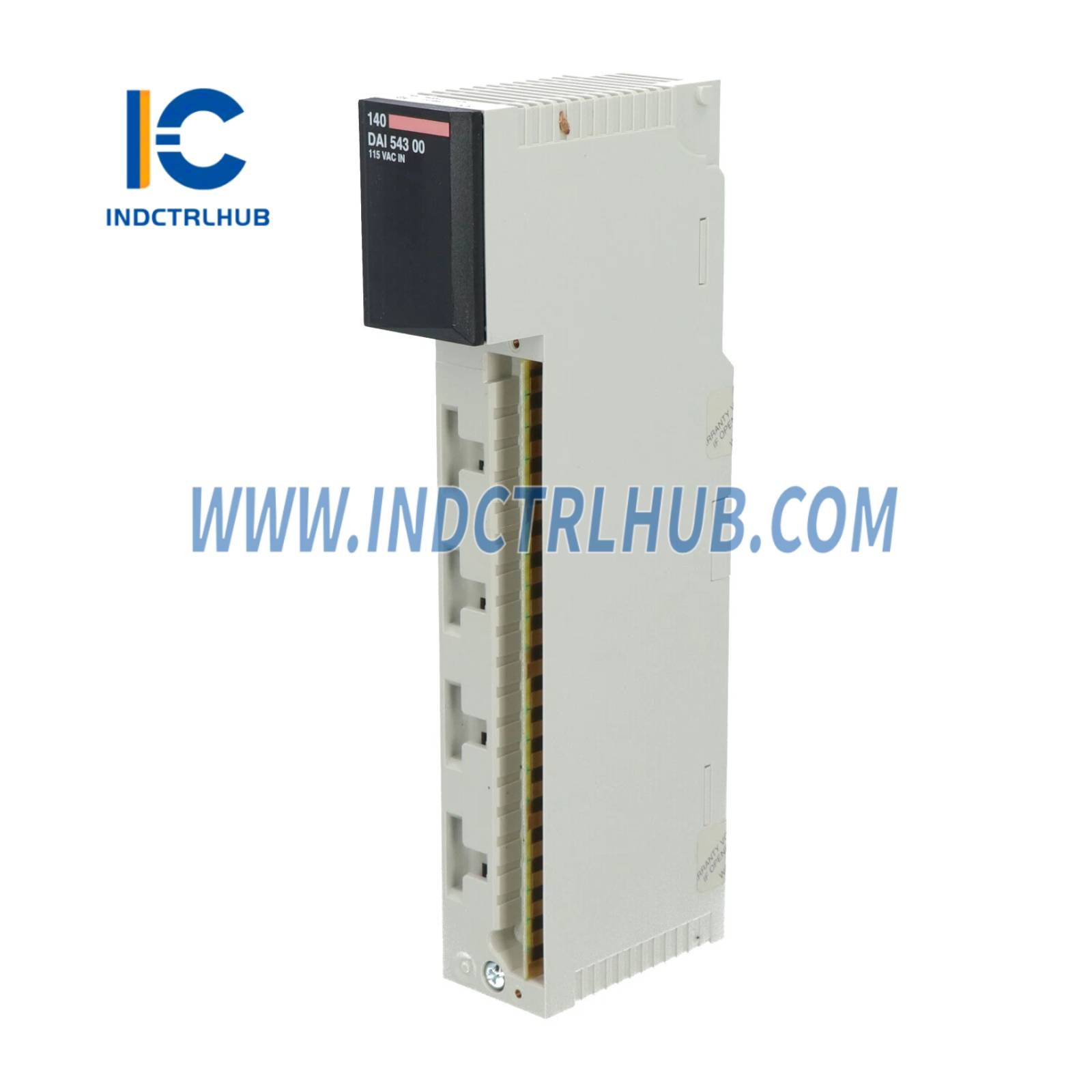

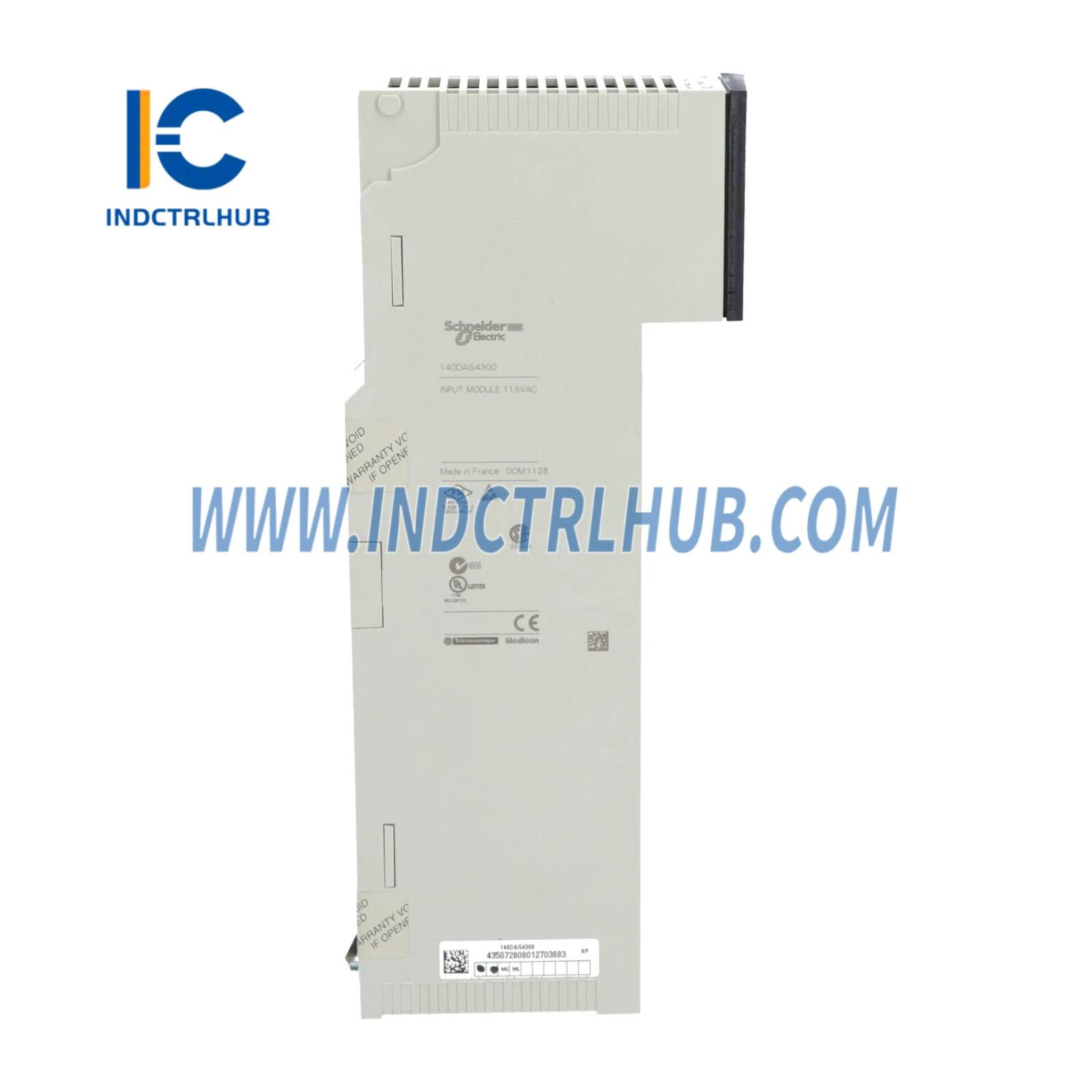

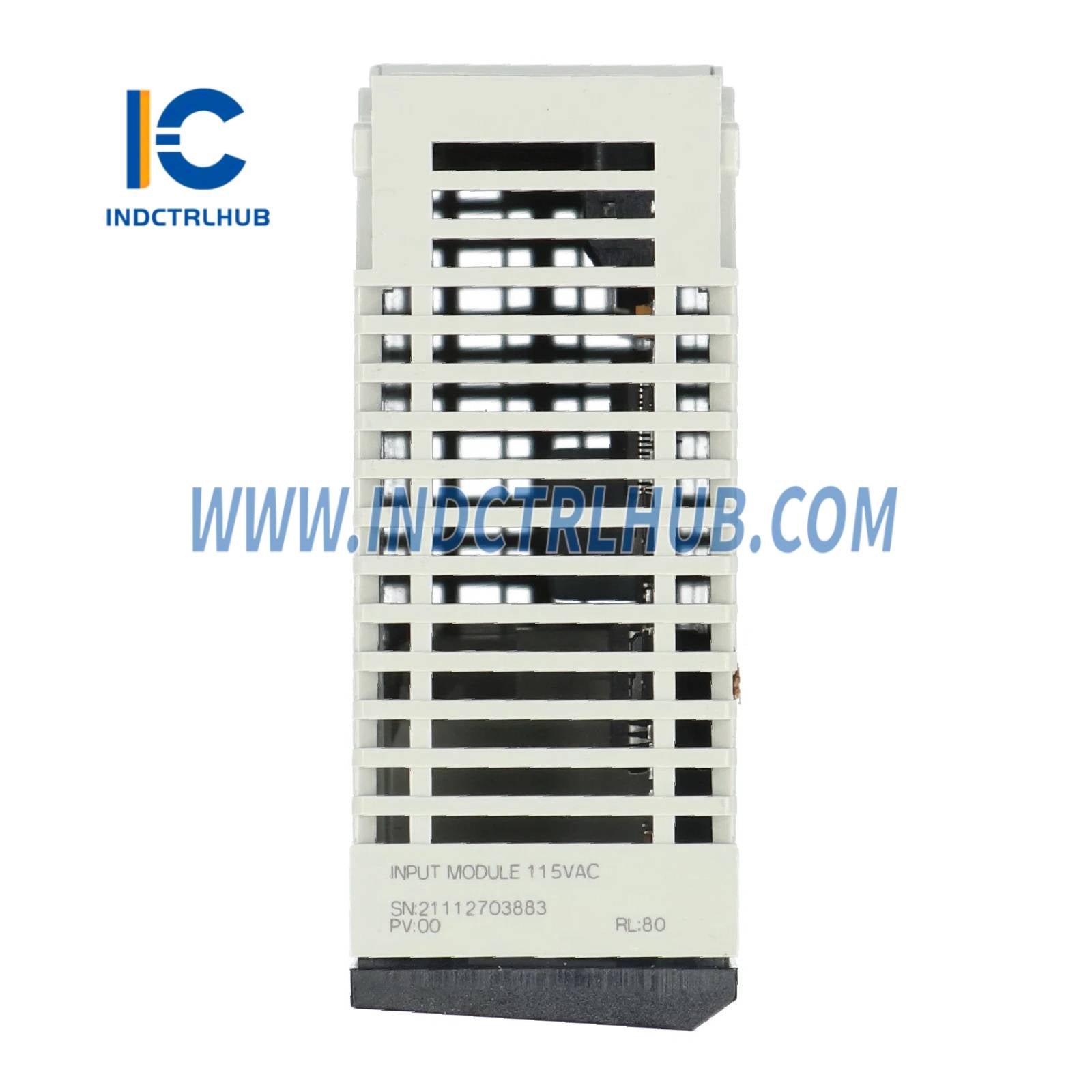

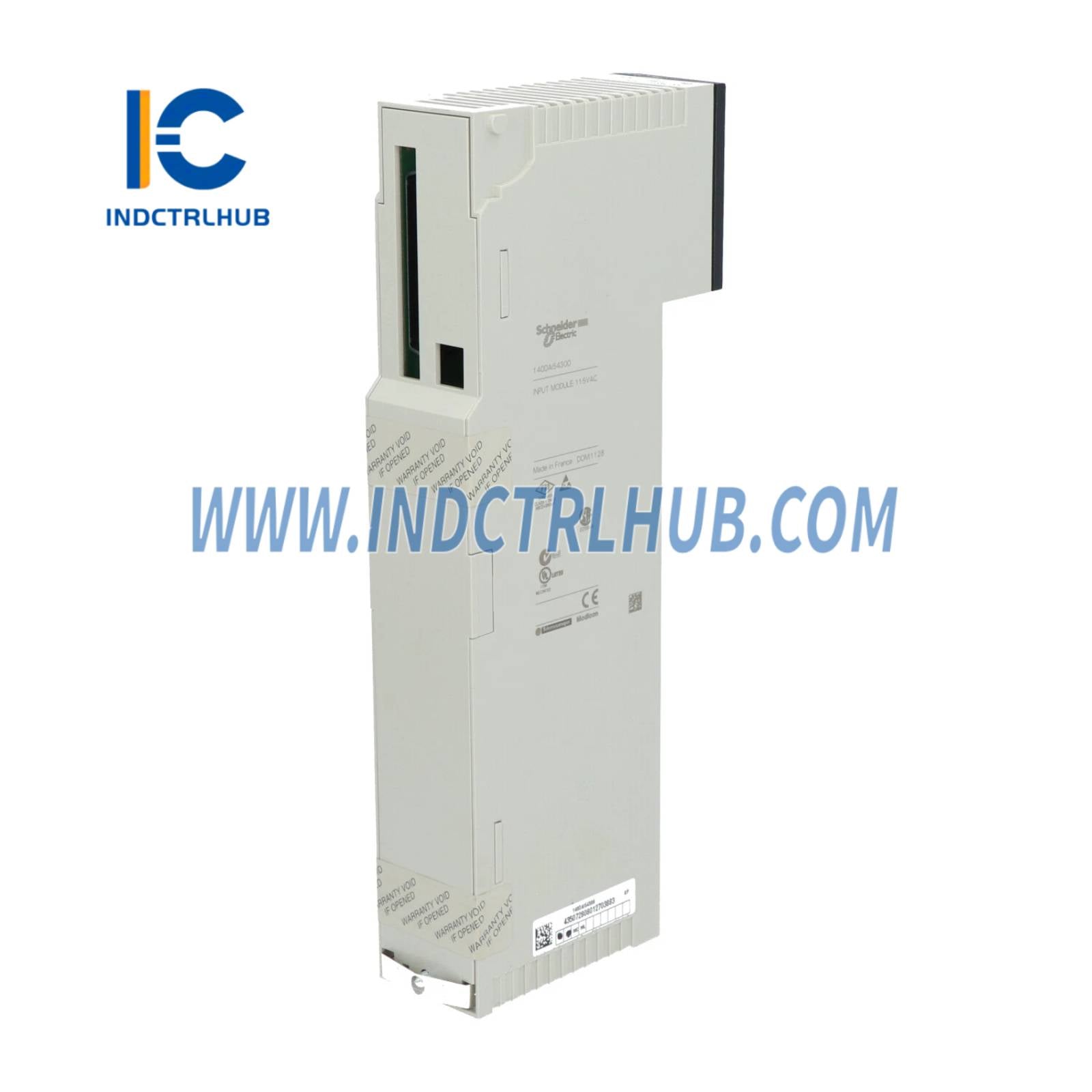

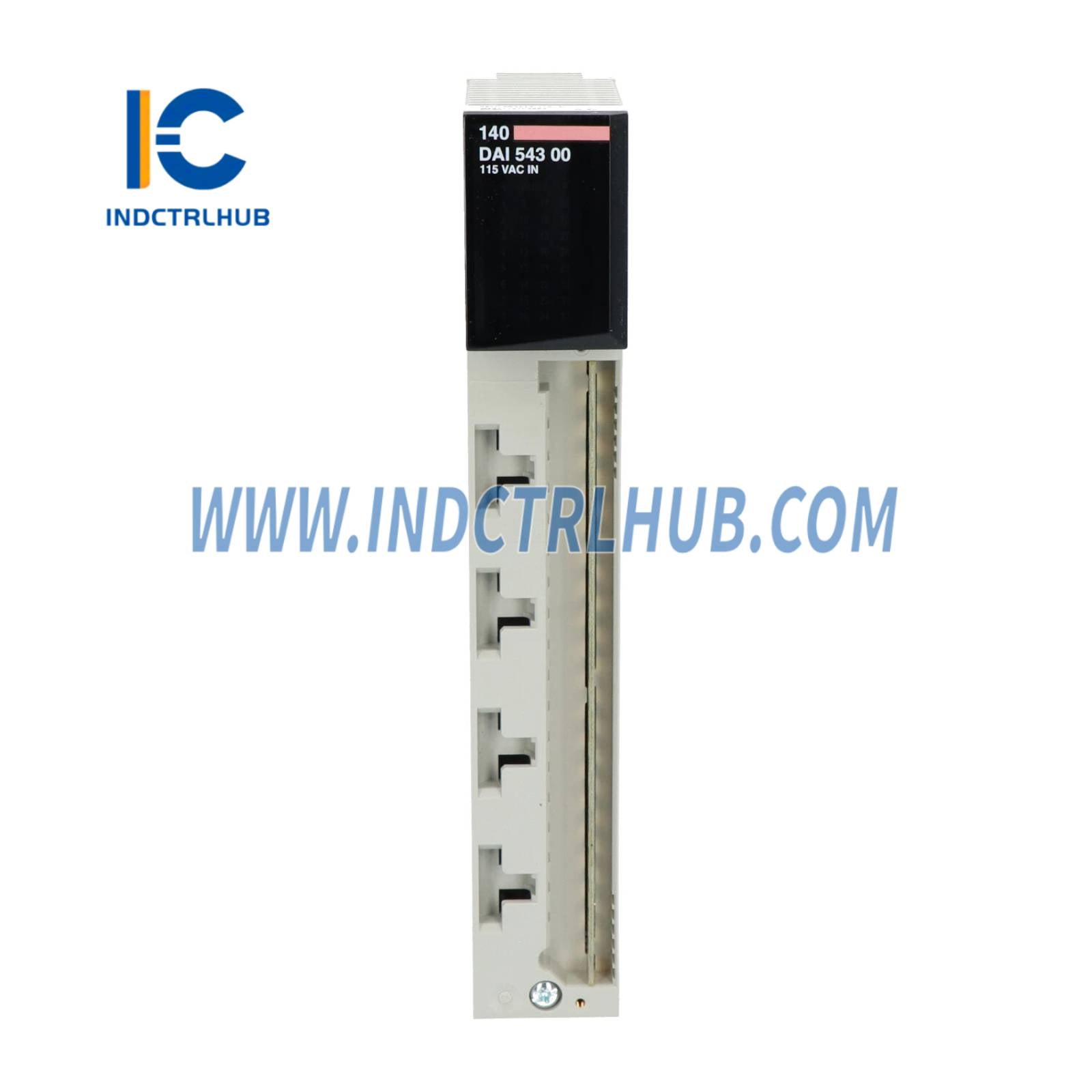

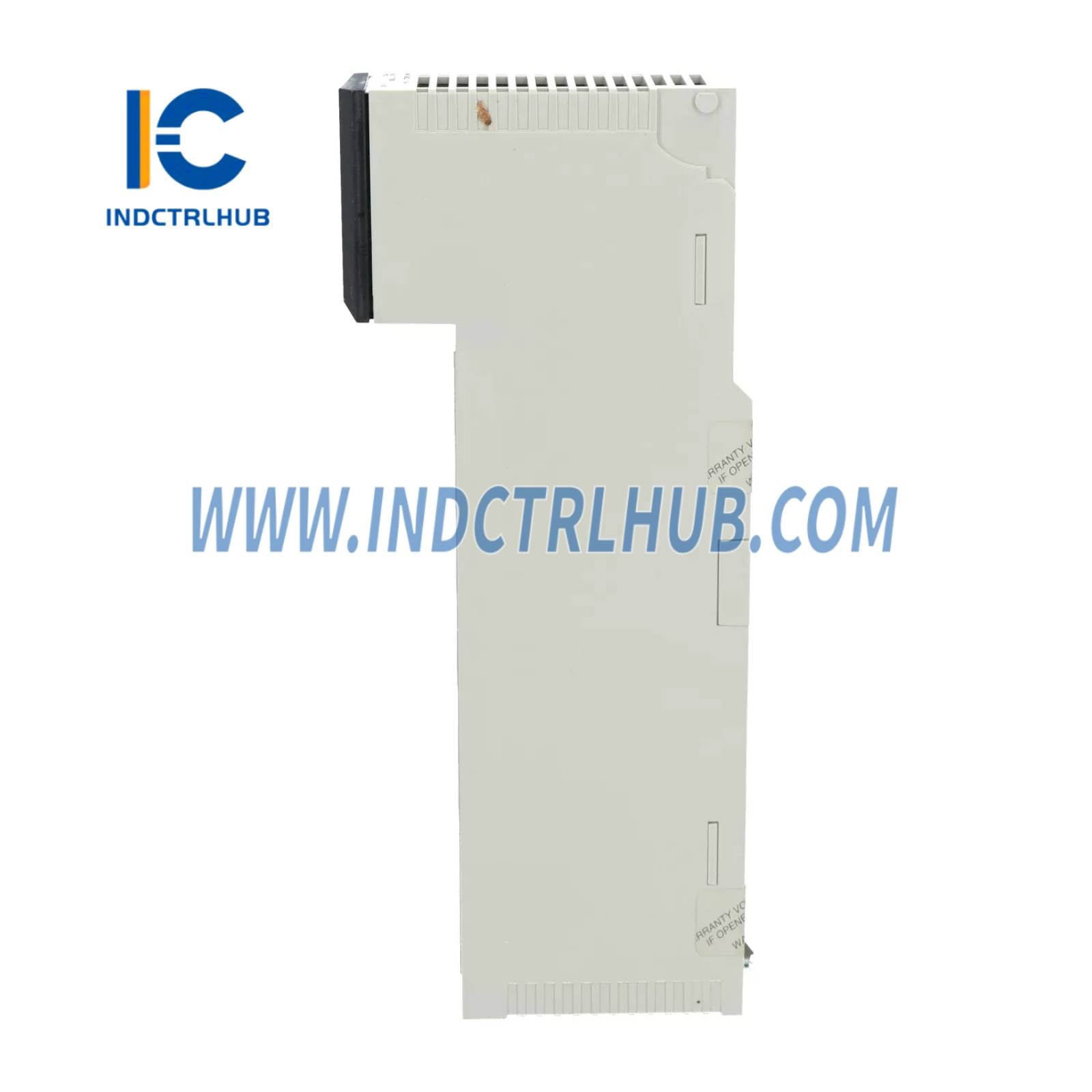

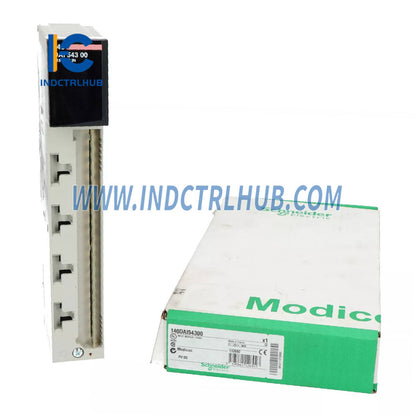

Schneider 140DAI54300 Discrete input module Modicon Quantum
Schneider 140DAI54300 Discrete input module Modicon Quantum
Manufacturer: Schneider
Product No.: 140DAI54300
Condition:1000 in stock
Product Type: Discrete input module Modicon Quantum
Product Origin: USA
Payment: T/T, Western Union
Weight: 436g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
_
General Information
|
Field |
Details |
|---|---|
|
Manufacturer |
Schneider Electric |
|
Model/Part Number |
140DAI54300 |
|
Description |
Discrete input module Modicon Quantum - 16 I - 115 V AC - 2 channel groups |
|
Range of Product |
Modicon Quantum automation platform |
|
Product Type |
VAC discrete input module |
|
Supported Software |
Unity Pro, Concept, ProWORX 32 |
_
_
Specifications
_
Functional Specifications
|
Parameter |
Value |
|---|---|
|
Number of Inputs |
16 |
|
Group of Channels |
2 groups |
|
Addressing Requirement |
1 input word |
|
Input Voltage |
115 V AC |
|
Input Current |
11.1 mA @ 57_63 Hz13.2 mA @ 47_53 Hz |
|
Voltage State 1 (Guaranteed) |
79_132 V AC @ 57_63 Hz85_132 V AC @ 47_53 Hz |
|
Voltage State 0 (Guaranteed) |
0_20 V AC |
|
Input Impedance |
12000 Ohm capacitive @ 57_63 Hz14400 Ohm @ 47_53 Hz |
|
Network Frequency Limits |
47_63 Hz |
|
Max Leakage Current |
2.1 mA |
|
Absolute Max Input |
132 V continuous156 V for 10 s200 V for 1 cycle |
|
Response Time (Off-On) |
4.9_0.75 ms _ line cycle |
|
Response Time (On-Off) |
7.3_12.3 ms |
_
Isolation & Protection
|
Parameter |
Value |
|---|---|
|
Isolation Between Groups |
1780 Vrms for 1 minute |
|
Isolation Between Group and Bus |
1780 Vrms for 1 minute |
|
Bus Current Requirement |
180 mA |
|
Power Dissipation (Max) |
5.5 W |
_
Indicators
|
Indicator Type |
Description |
|---|---|
|
Bus Communication Status |
1 LED (green) |
|
External Fault Detected |
1 LED (red) |
|
Input Status |
16 LEDs (green) |
_
_
Environmental Specifications
|
Parameter |
Value |
|---|---|
|
Standards |
UL 508, CSA C22.2 No 142 |
|
Certifications |
FM Class 1 Division 2, cUL |
|
Electrostatic Discharge |
4 kV contact, 8 kV air (IEC 801-2) |
|
Electromagnetic Field |
9.1 V/m (80_2000 MHz) IEC 801-3 |
|
Operating Temperature |
32_140 °F (0_60 °C) |
|
Storage Temperature |
-40_185 °F (-40_85 °C) |
|
Relative Humidity |
95%, non-condensing |
|
Operating Altitude |
_ 16404.2 ft (5000 m) |
_
_
Physical & Shipping Information
|
Parameter |
Value |
|---|---|
|
Module Format |
Standard |
|
Net Weight |
0.7 lb (0.3 kg) |
|
Package Dimensions (H_W_L) |
6.42 _ 1.77 _ 12.28 in |
|
Package Weight |
15.4 oz (436.0 g) |
|
GTIN |
3595861126923 |
|
Country of Origin |
United States (US) |
|
Returnability |
Yes |
|
Discount Schedule |
PC21 |
|
Shipping Category |
US1PC2118155 |
_
Product Description
_
General Information
|
Field |
Details |
|---|---|
|
Manufacturer |
Schneider Electric |
|
Model/Part Number |
140DAI54300 |
|
Description |
Discrete input module Modicon Quantum - 16 I - 115 V AC - 2 channel groups |
|
Range of Product |
Modicon Quantum automation platform |
|
Product Type |
VAC discrete input module |
|
Supported Software |
Unity Pro, Concept, ProWORX 32 |
_
_
Specifications
_
Functional Specifications
|
Parameter |
Value |
|---|---|
|
Number of Inputs |
16 |
|
Group of Channels |
2 groups |
|
Addressing Requirement |
1 input word |
|
Input Voltage |
115 V AC |
|
Input Current |
11.1 mA @ 57_63 Hz13.2 mA @ 47_53 Hz |
|
Voltage State 1 (Guaranteed) |
79_132 V AC @ 57_63 Hz85_132 V AC @ 47_53 Hz |
|
Voltage State 0 (Guaranteed) |
0_20 V AC |
|
Input Impedance |
12000 Ohm capacitive @ 57_63 Hz14400 Ohm @ 47_53 Hz |
|
Network Frequency Limits |
47_63 Hz |
|
Max Leakage Current |
2.1 mA |
|
Absolute Max Input |
132 V continuous156 V for 10 s200 V for 1 cycle |
|
Response Time (Off-On) |
4.9_0.75 ms _ line cycle |
|
Response Time (On-Off) |
7.3_12.3 ms |
_
Isolation & Protection
|
Parameter |
Value |
|---|---|
|
Isolation Between Groups |
1780 Vrms for 1 minute |
|
Isolation Between Group and Bus |
1780 Vrms for 1 minute |
|
Bus Current Requirement |
180 mA |
|
Power Dissipation (Max) |
5.5 W |
_
Indicators
|
Indicator Type |
Description |
|---|---|
|
Bus Communication Status |
1 LED (green) |
|
External Fault Detected |
1 LED (red) |
|
Input Status |
16 LEDs (green) |
_
_
Environmental Specifications
|
Parameter |
Value |
|---|---|
|
Standards |
UL 508, CSA C22.2 No 142 |
|
Certifications |
FM Class 1 Division 2, cUL |
|
Electrostatic Discharge |
4 kV contact, 8 kV air (IEC 801-2) |
|
Electromagnetic Field |
9.1 V/m (80_2000 MHz) IEC 801-3 |
|
Operating Temperature |
32_140 °F (0_60 °C) |
|
Storage Temperature |
-40_185 °F (-40_85 °C) |
|
Relative Humidity |
95%, non-condensing |
|
Operating Altitude |
_ 16404.2 ft (5000 m) |
_
_
Physical & Shipping Information
|
Parameter |
Value |
|---|---|
|
Module Format |
Standard |
|
Net Weight |
0.7 lb (0.3 kg) |
|
Package Dimensions (H_W_L) |
6.42 _ 1.77 _ 12.28 in |
|
Package Weight |
15.4 oz (436.0 g) |
|
GTIN |
3595861126923 |
|
Country of Origin |
United States (US) |
|
Returnability |
Yes |
|
Discount Schedule |
PC21 |
|
Shipping Category |
US1PC2118155 |
_
