Product Description
General Information
|
Manufacturer |
Schneider Electric |
|---|---|
|
Model/Part Number |
140DAI54000 |
|
Description |

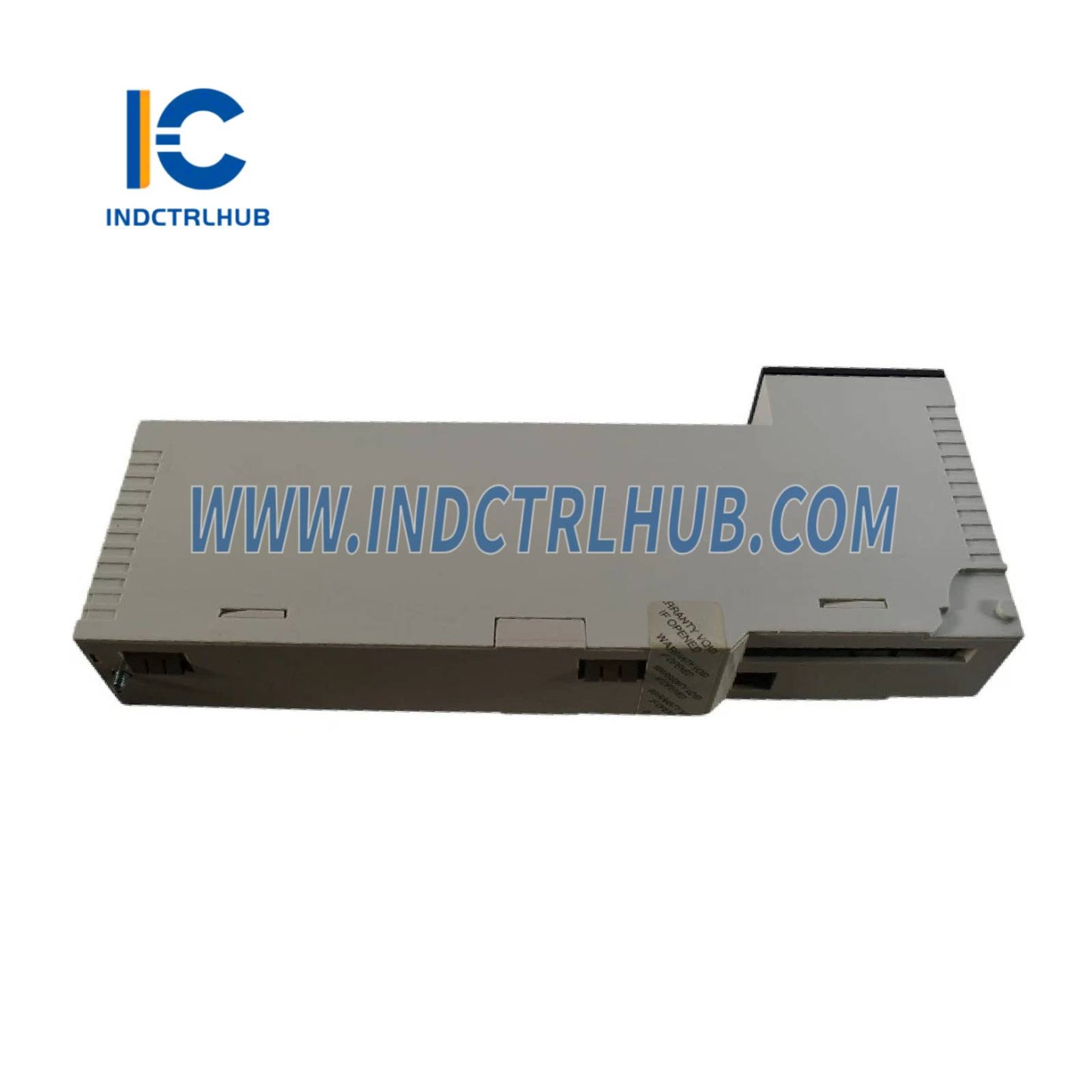

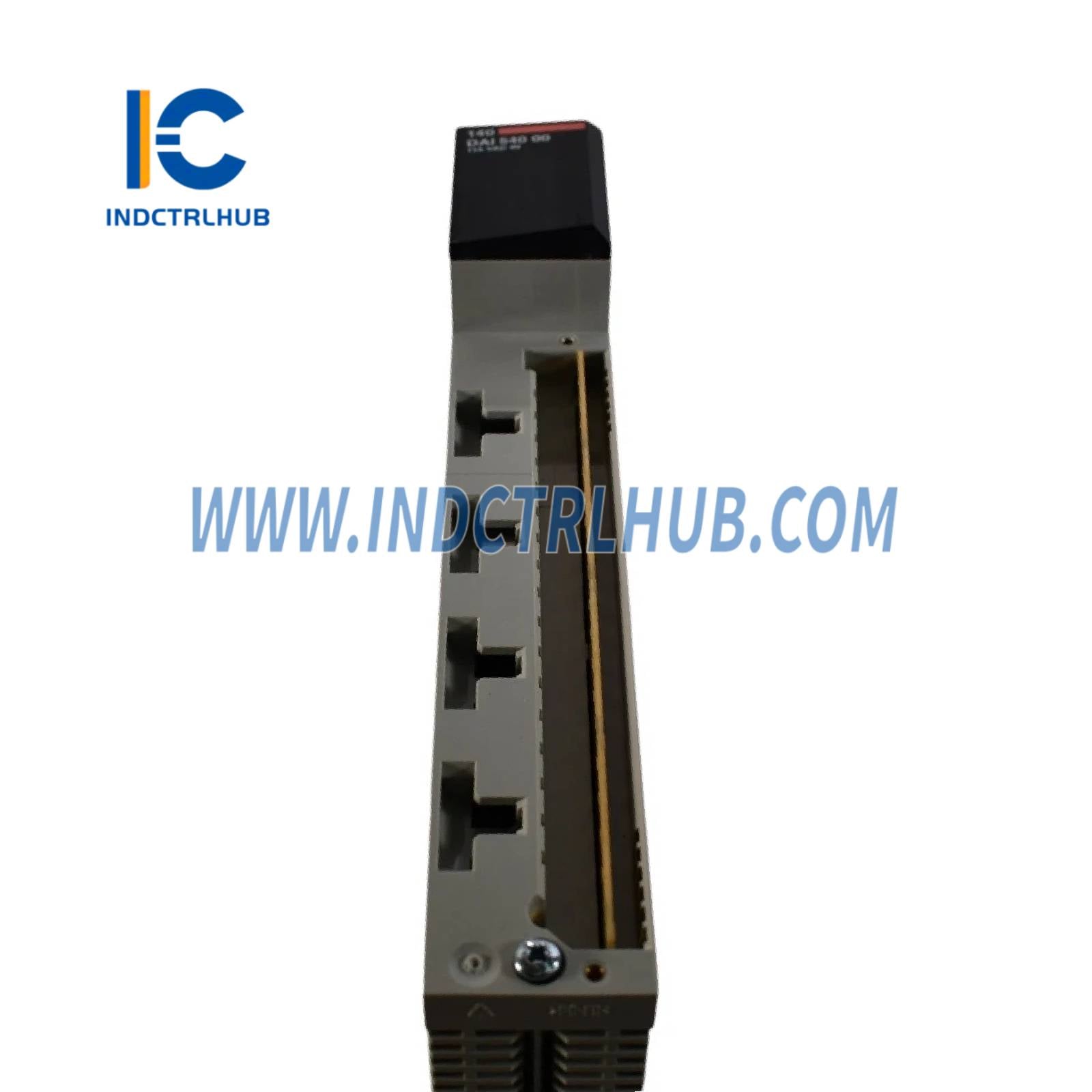

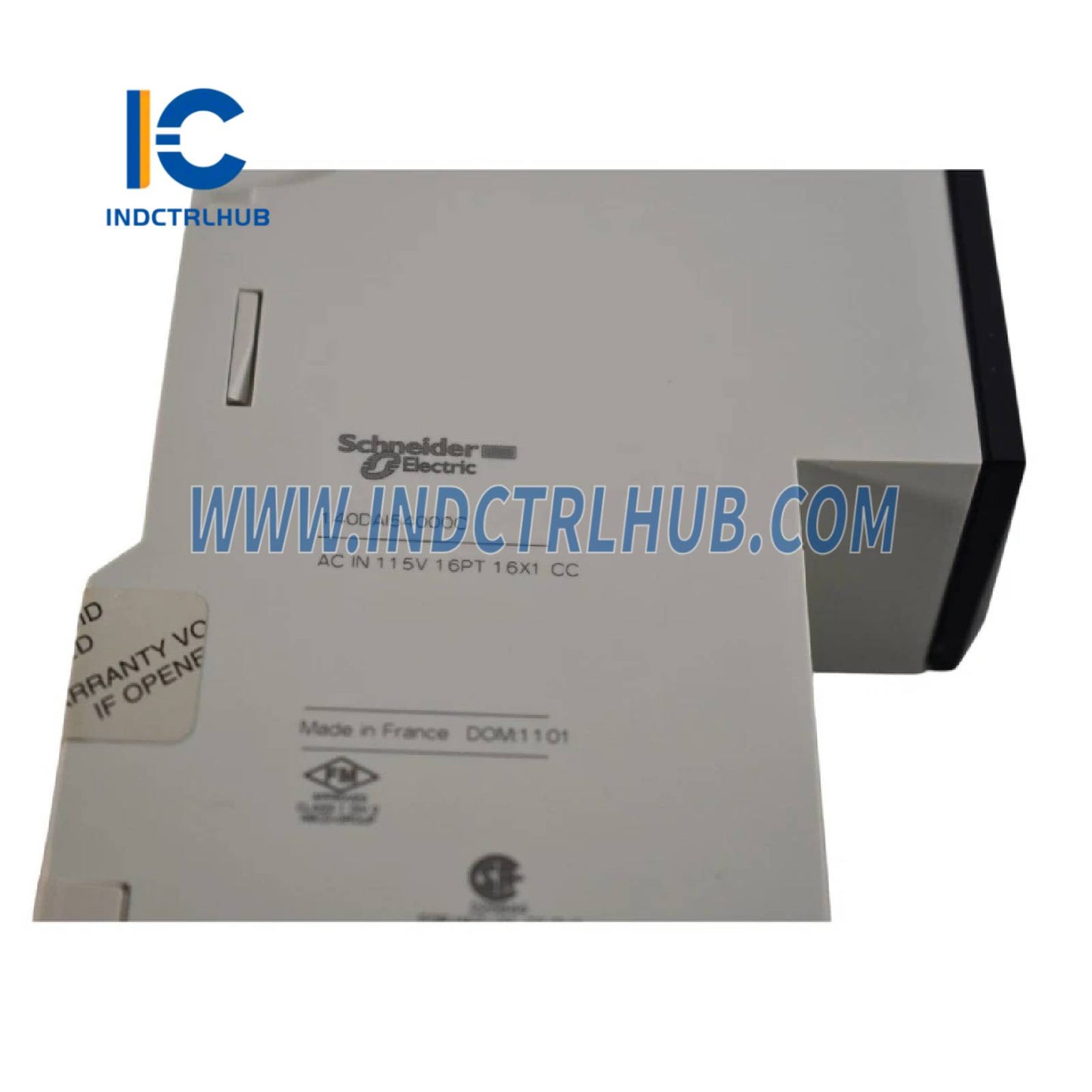

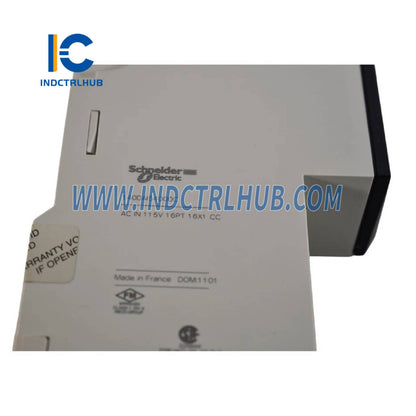

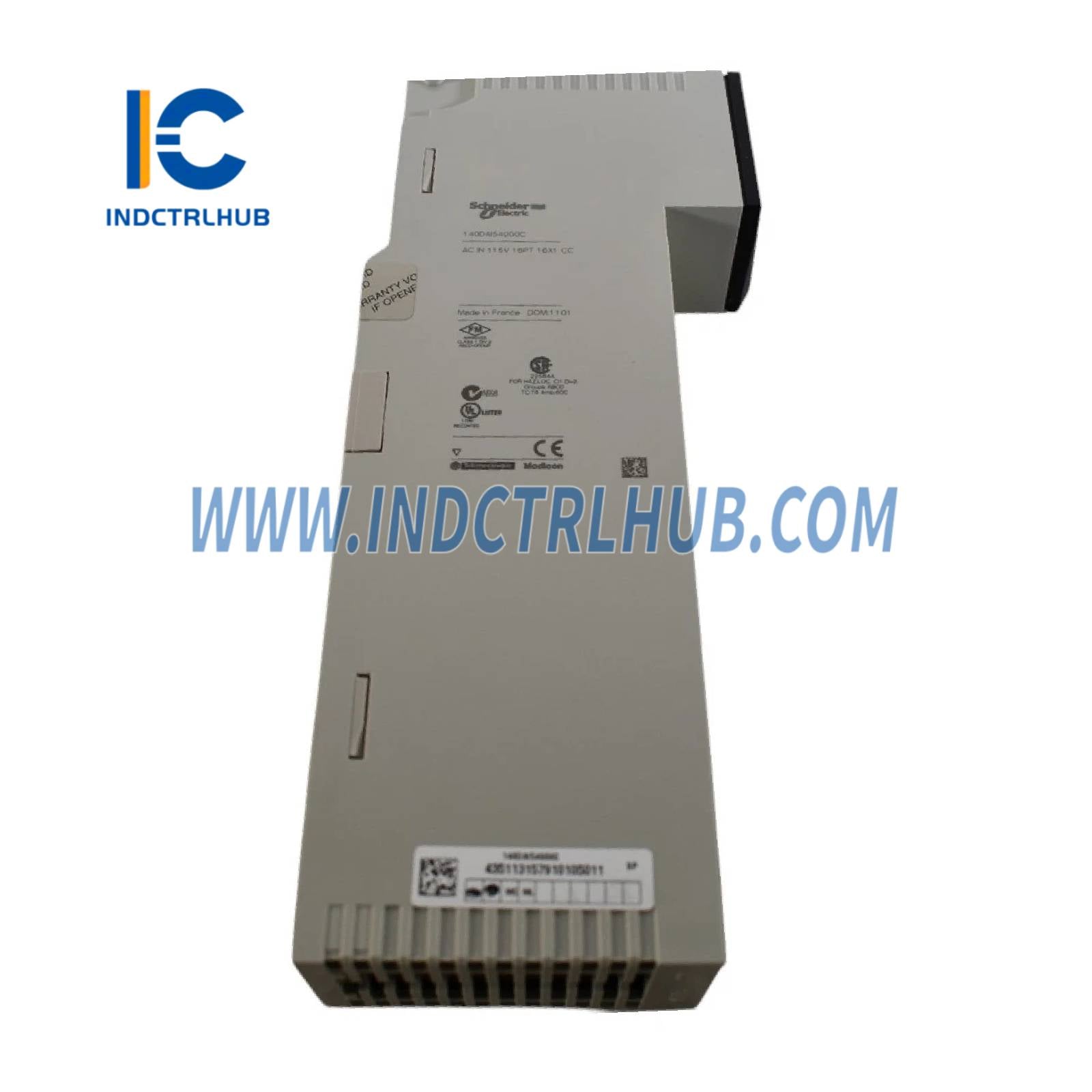

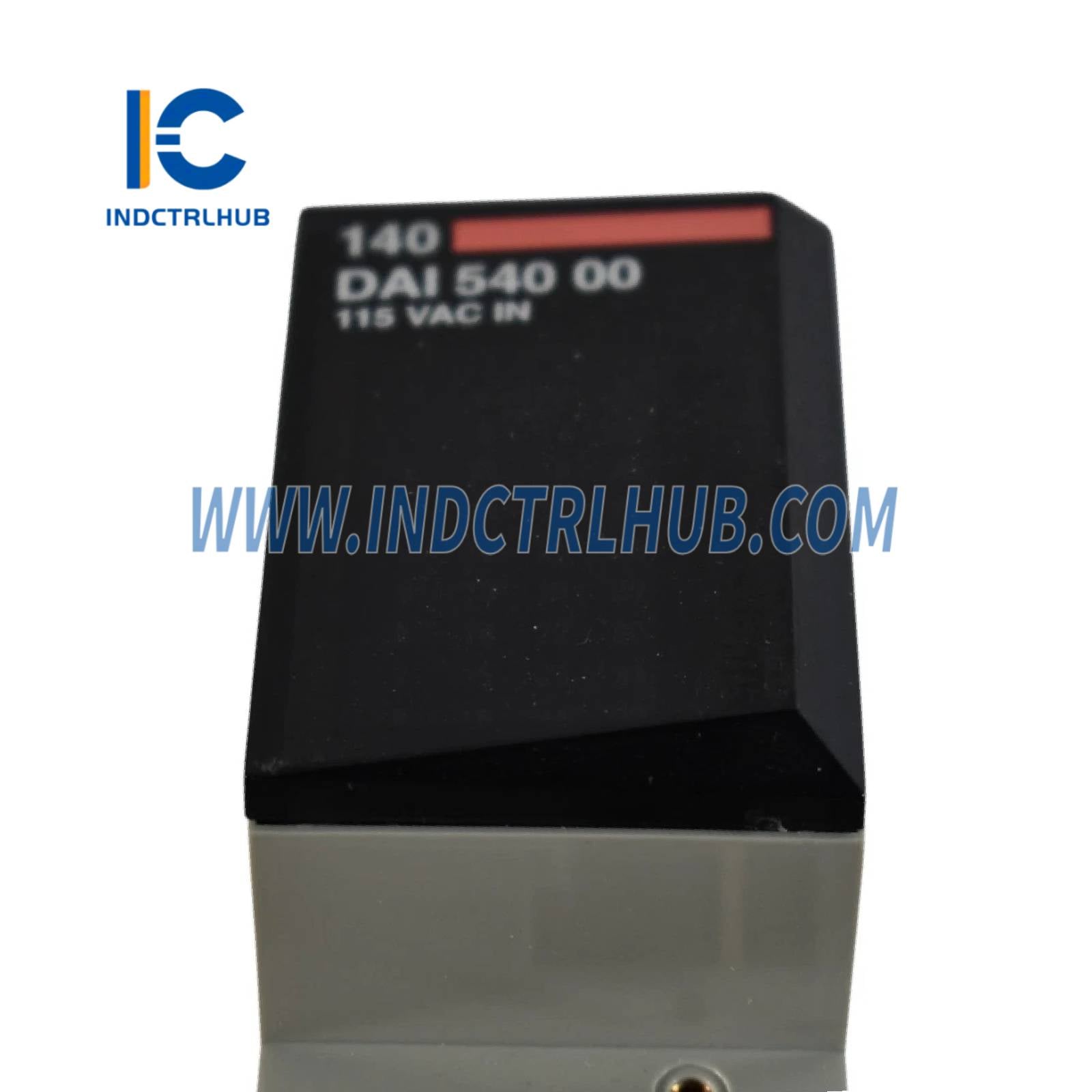

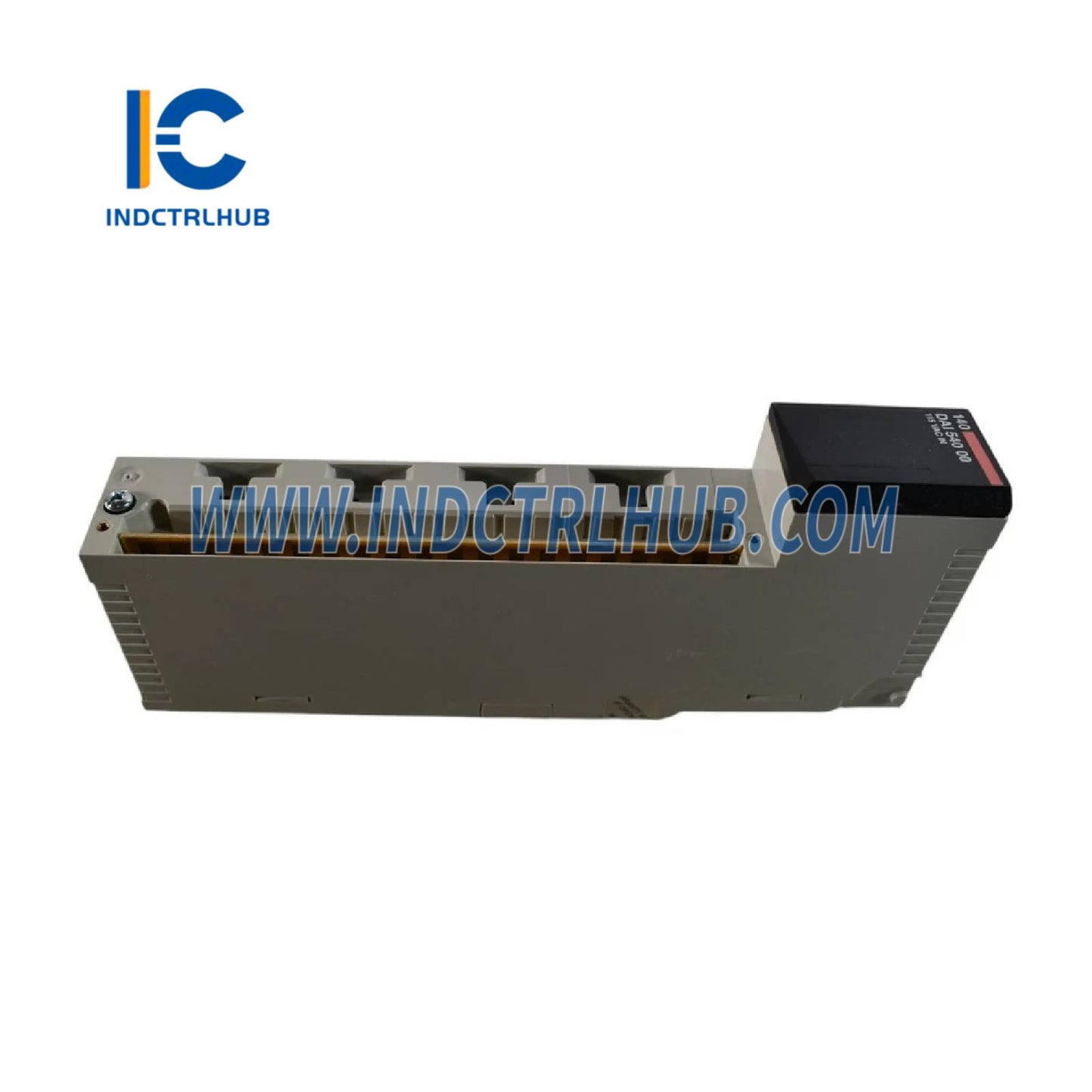

Discrete Input Module – Modicon Quantum – 16 Inputs – 115 V AC |
Model Type
|
Range of Product |
Modicon Quantum Automation Platform |
|---|---|
|
Product or Component Type |
VAC Discrete Input Module |
|
Software Compatibility |
Concept, ProWORX 32, Unity Pro |
Specifications
Input Characteristics
|
Number of Discrete Inputs |
16 |
|---|---|
|
Group of Channels |
16 (single group) |
|
Discrete Input Voltage |
115 V AC |
|
Input Current |
11.1 mA (57–63 Hz), 13.2 mA (47–53 Hz) |
|
Input Impedance |
12000 Ohm (57–63 Hz), 14400 Ohm (47–53 Hz) |
|
Voltage State 1 Guaranteed |
79–132 V AC (57–63 Hz), 85–132 V AC (47–53 Hz) |
|
Voltage State 0 Guaranteed |
0–20 V AC |
|
Network Frequency Limits |
47–63 Hz |
|
Maximum Leakage Current |
2.1 mA |
|
Absolute Maximum Input |
132 V continuous; 156 V for 10 s; 200 V for 1 cycle |
Response Time & Addressing
| Addressing Requirement | 1 input word |
| Response Time (Off-On) | 4.9…0.75 ms x line cycle |
| Response Time (On-Off) | 7.3…12.3 ms |
Isolation and Power
|
Isolation (Channel–Channel) |
1780 Vrms for 1 minute |
|---|---|
|
Isolation (Channel–Bus) |
1780 Vrms for 1 minute |
|
Bus Current Requirement |
180 mA |
|
Maximum Power Dissipation |
5.5 W |
Local Signaling
| LED Indicators | 1 Green (bus communication), 1 Red (fault), 16 Green (input status) |
Environmental Limits
|
Operating Temperature |
32…140 °F (0…60 °C) |
|---|---|
|
Storage Temperature |
-40…185 °F (-40…85 °C) |
|
Relative Humidity |
95% without condensation |
|
Operating Altitude |
≤ 16,404.2 ft (5000 m) |
|
Standards |
UL 508, CSA C22.2 No. 142 |
|
Certifications |
FM Class 1 Division 2, cUL, CE |
|
ESD Resistance |
4 kV contact, 8 kV air (IEC 801-2) |
|
EMF Resistance |
9.1 V/m (10 V/m) 80–2000 MHz (IEC 801-3) |
Physical Characteristics
|
Module Format |
Standard |
|---|---|
|
Net Weight |
0.68 lb (0.31 kg) |
Ordering Information
|
Category |
US1PC2118155 |
|---|---|
|
Discount Schedule |
PC21 |
|
GTIN |
3595861126916 |
|
Returnability |
Yes |
|
Country of Origin |
China |
Packing Details
|
Package |
Value |
|---|---|
|
Unit Type |
PCE |
|
Units per Package |
1 |
|
Height |
6.42 in (16.3 cm) |
|
Width |
1.77 in (4.5 cm) |
|
Length |
12.28 in (31.2 cm) |
|
Weight |
15.4 oz (438.0 g) |
