Product Description
🧾
Product Overview
|
Attribute |
Details |
|---|---|
|
Manufacturer |
Schneider Electric |
|
Model/Part Number |
140CRP93200 |
|
Description |

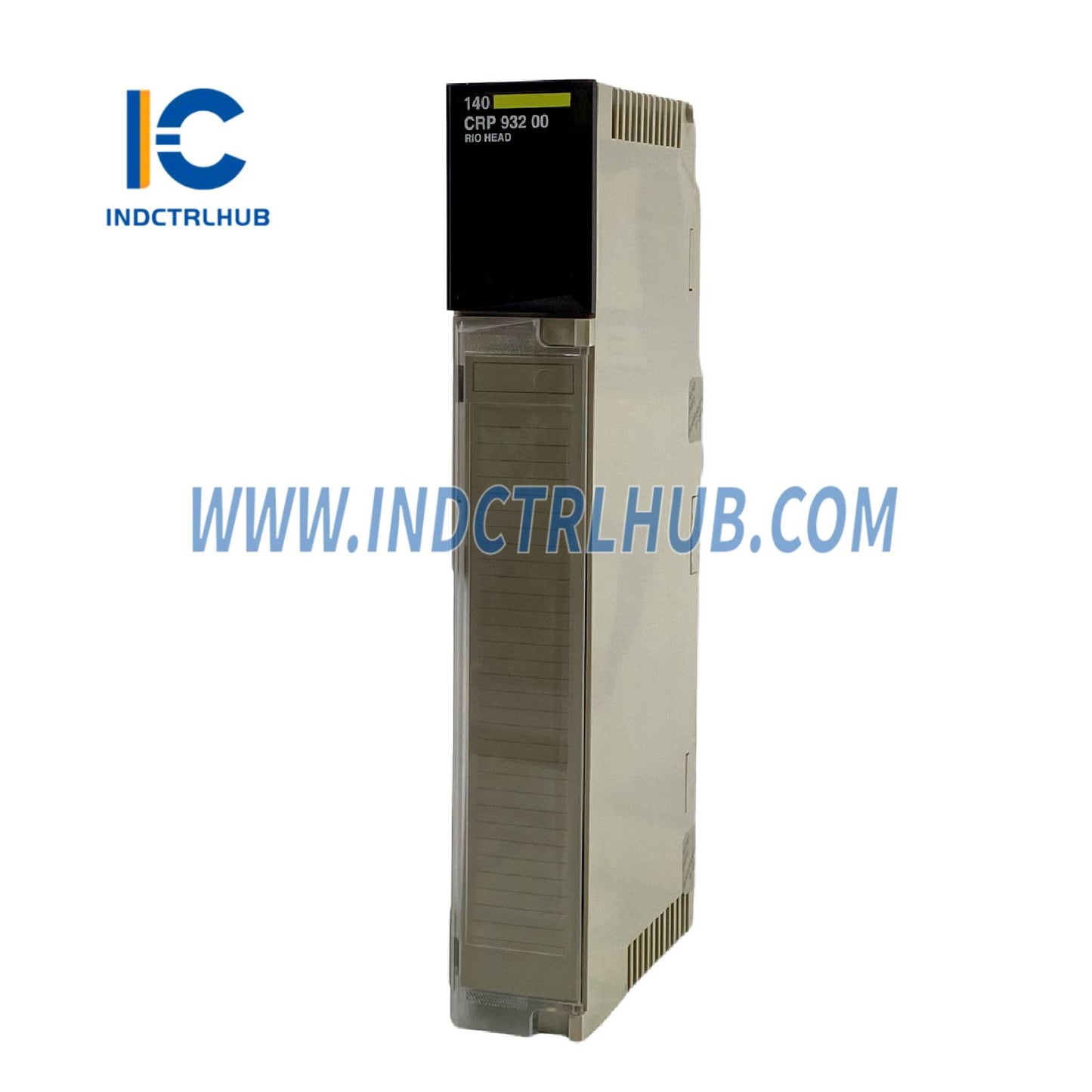

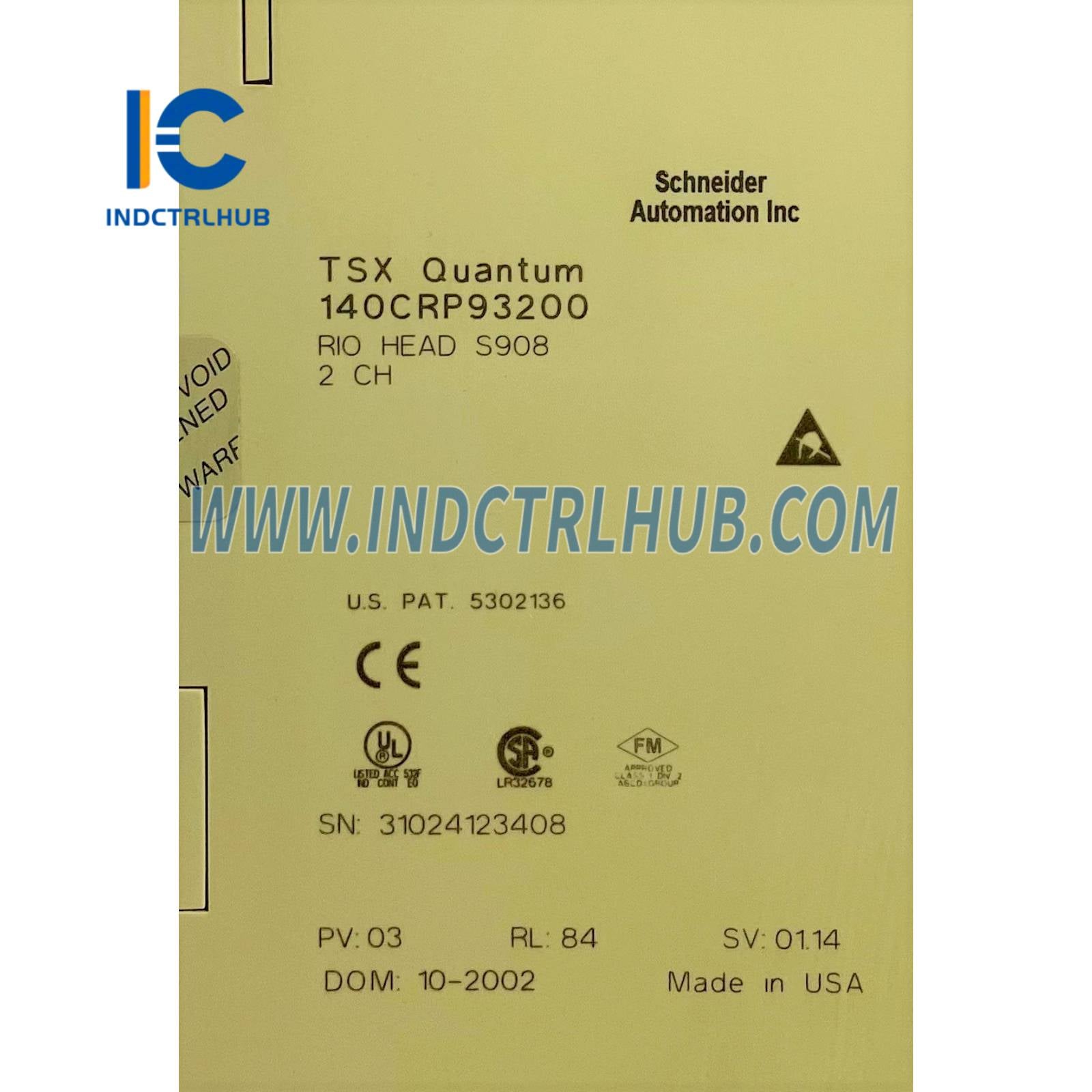

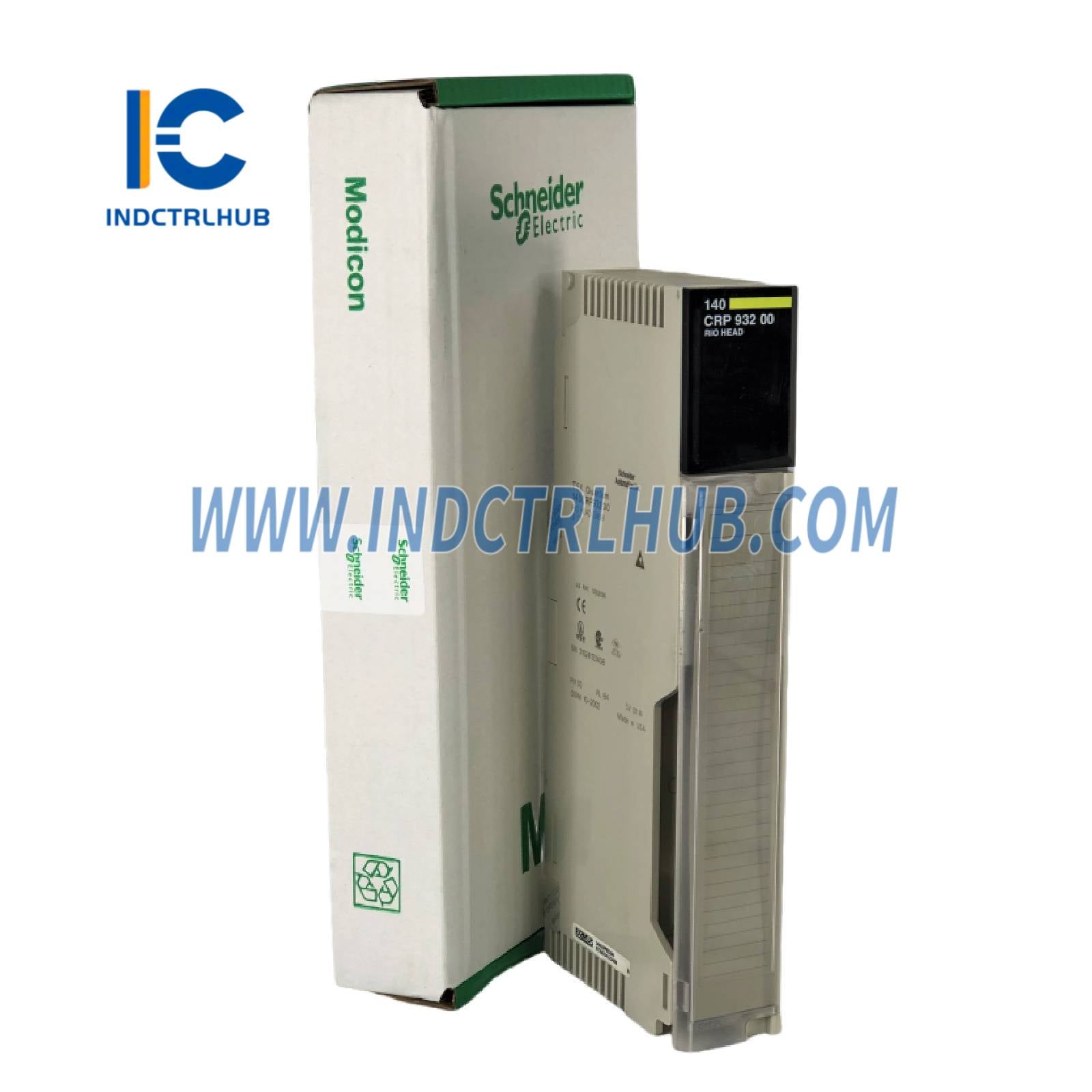

RIO head-end adaptor module with redundant cable |
|
Range |
Modicon Quantum automation platform |
|
Type |
RIO head-end adaptor module |
|
Product Compatibility |
Symax (any mix), Quantum 200/500/800 series |
|
Max Drops/Network |
31 drops |
|
I/O Words/Drop |
64 input/64 output |
⚙️
Technical Specifications
|
Specification |
Details |
|---|---|
|
Cable Type |
75 Ohm coaxial |
|
Transmission Rate |
1544 Mbit/s |
|
Dynamic Range |
35 dB |
|
Isolation Voltage |
500 V DC (coaxial center and ground) |
|
Electrical Connections |
2 female F connectors, elbowed, with redundant cable |
|
Diagnostics |
Memory check, LAN controller check, Power up |
|
Power Dissipation |
3 W (2 channels) |
|
Bus Current Requirement |
750 mA (2 channels) |
|
Module Format |
Standard |
🔌
Environmental Specifications
|
Specification |
Details |
|---|---|
|
Product Certifications |
FM Class 1 Division 2, UL 508, CSA C22.2 No 142, cUL |
|
Electrostatic Discharge Resistance |
4 kV contact, 8 kV on air (IEC 801-2) |
|
Electromagnetic Field Resistance |
9.1 V/m (10 V/m) 80…1000 MHz (IEC 801-3) |
|
Ambient Air Temperature (Operation) |
32…140 °F (0…60 °C) |
|
Ambient Air Temperature (Storage) |
-40…185 °F (-40…85 °C) |
|
Relative Humidity |
95% without condensation |
|
Operating Altitude |
≤ 16404.2 ft (5000 m) |
📦
Packaging Information
|
Attribute |
Details |
|---|---|
|
Unit Type |
PCE |
|
Package Quantity |
1 unit |
|
Dimensions (L × W × H) |
31.0 × 16.5 × 5.0 cm |
|
Package Weight |
531 g (18.7 oz) |
|
GTIN |
3595861133761 |
|
Returnability |
No |
|
Country of Origin |
United States |
