Product Description
General Information
|
Manufacturer |
Schneider Electric |
|---|---|
|
Model/Part Number |
140CRA93100C |
|
Description |

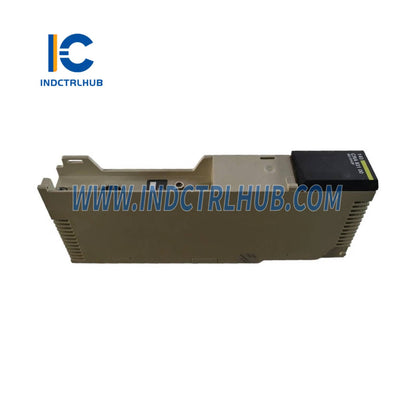

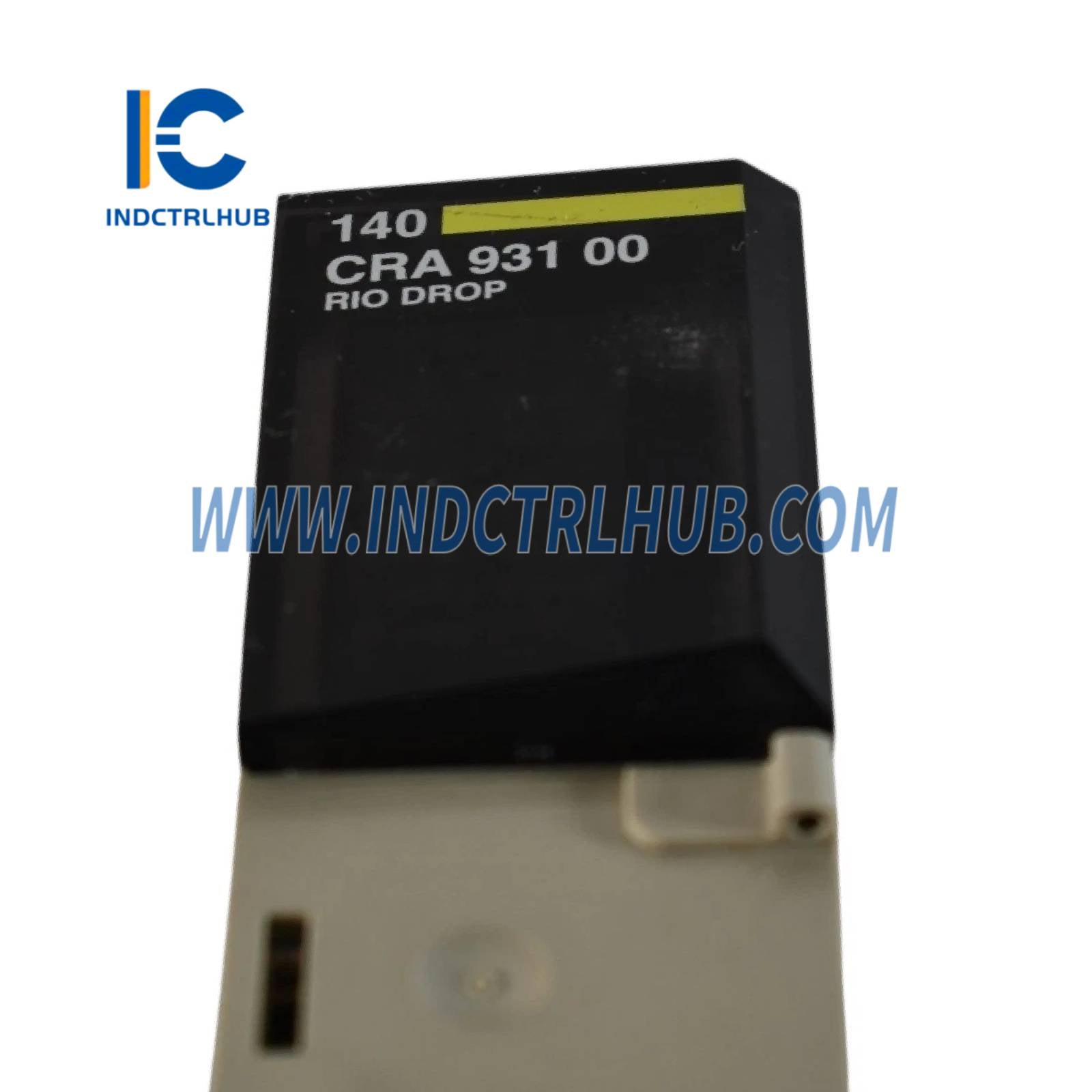

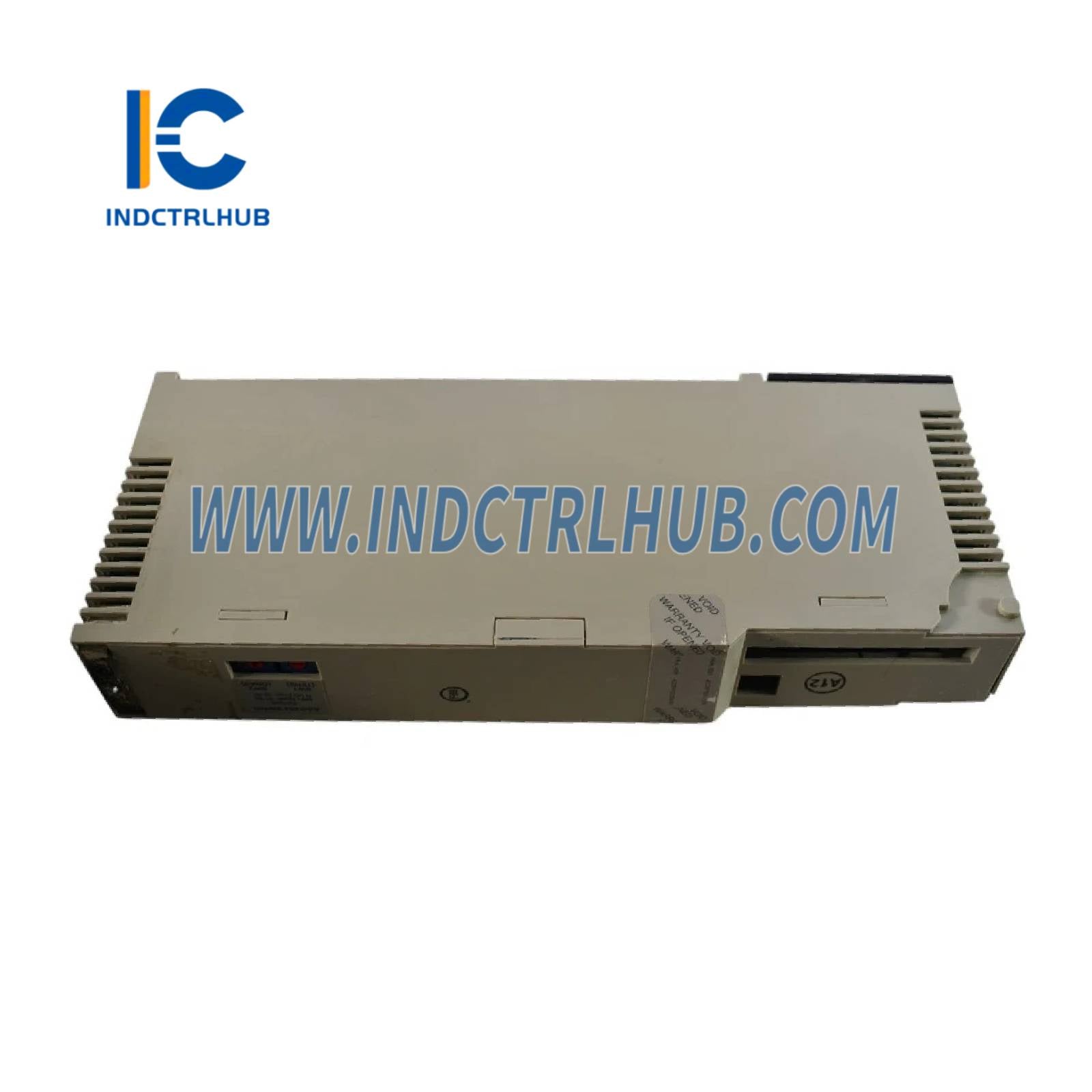

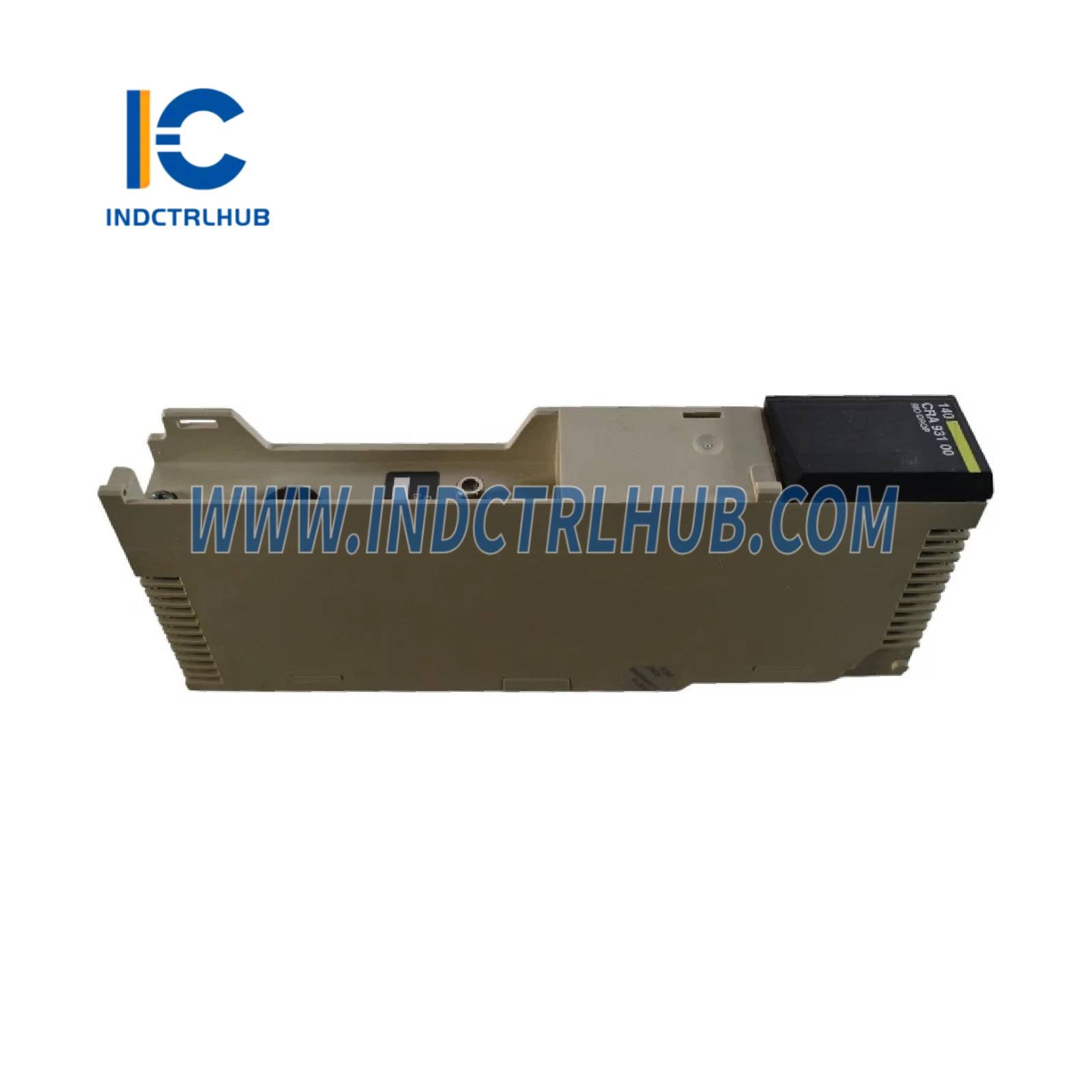

RIO Drop Adaptor Module for Modicon Quantum – 1 connector with single coaxial cable |
Model Type
|
Range of Product |
Modicon Quantum automation platform |
|---|---|
|
Product or Component Type |
RIO Drop Adaptor Module |
|
Module Format |
Standard |
Specifications
Complementary
|
Product Compatibility |
Modicon Quantum |
|---|---|
|
Max I/O Expansion Modules |
27 |
|
Cable Type |
75 Ohm coaxial |
|
Transmission Rate |
1.544 Mbit/s |
|
Dynamic Range |
35 dB |
|
Isolation Voltage |
500 V DC (coaxial center to ground) |
|
Electrical Connection |

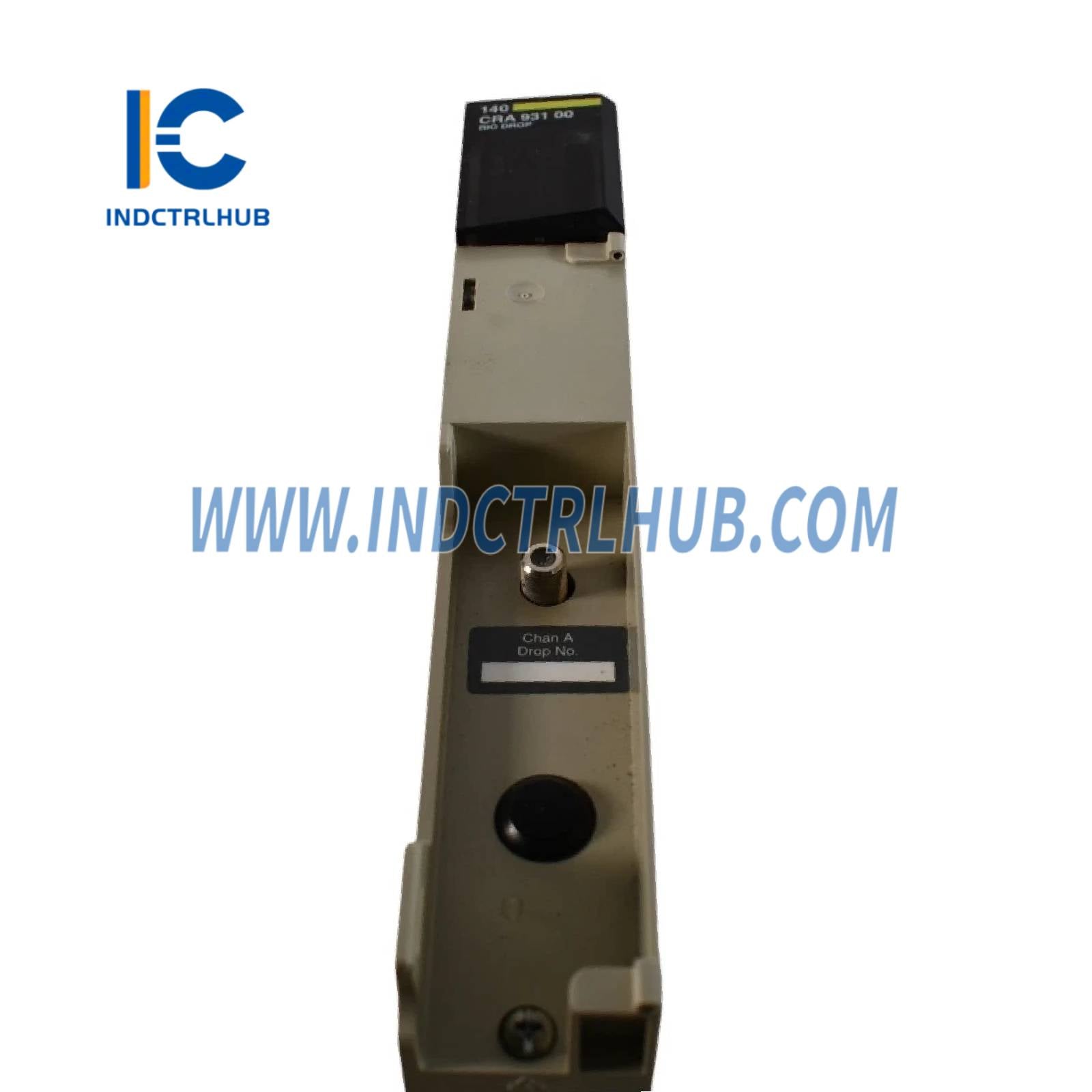

1 female F-type connector, elbowed, single cable |
|
Bus Current Requirement |
600 mA (1 channel) |
|
Power Dissipation |
3 W (1 channel) |
|
Diagnostics (Startup) |
Power up, runtime, RAM address/data, executive checksum |
Environmental Specifications
|
Protective Treatment |

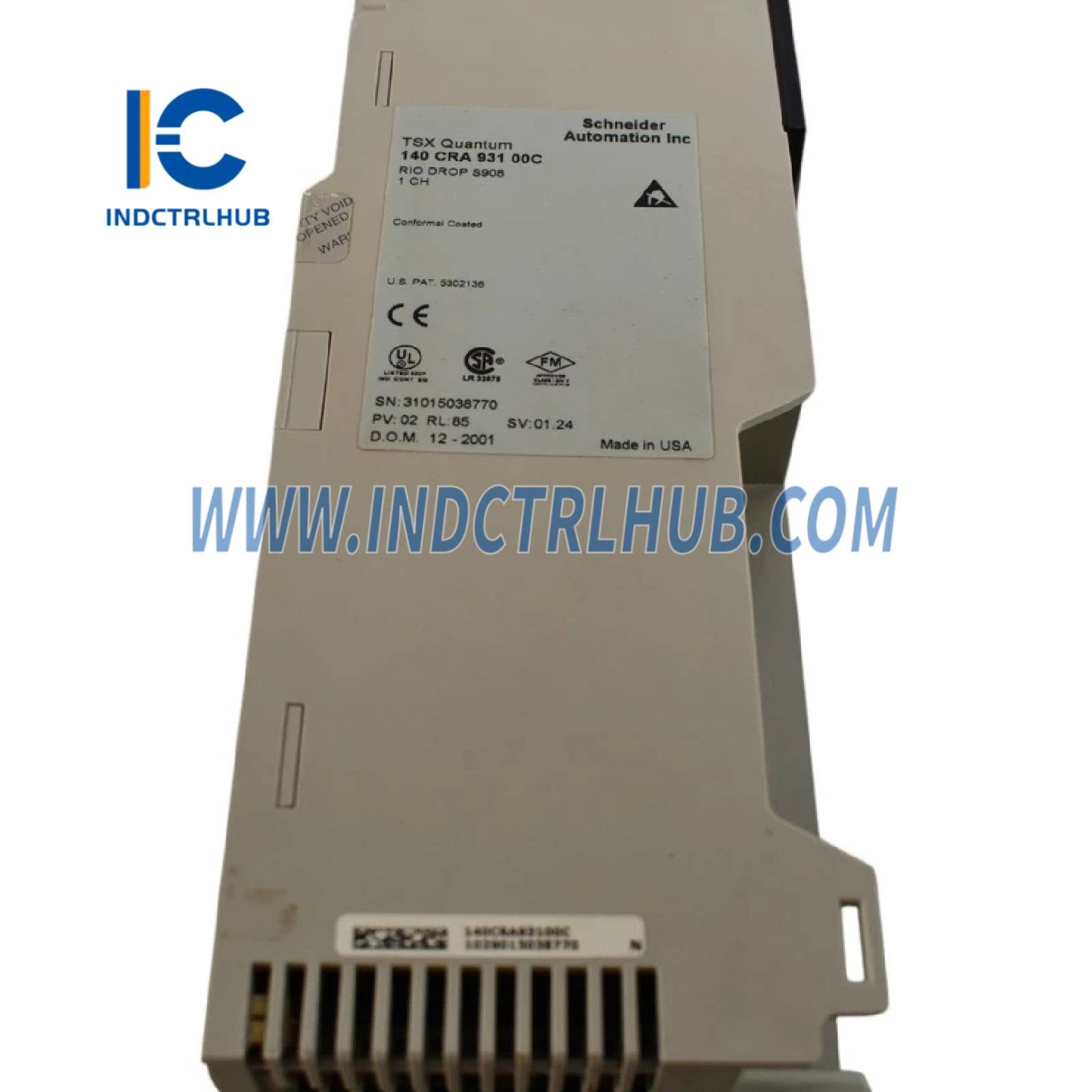

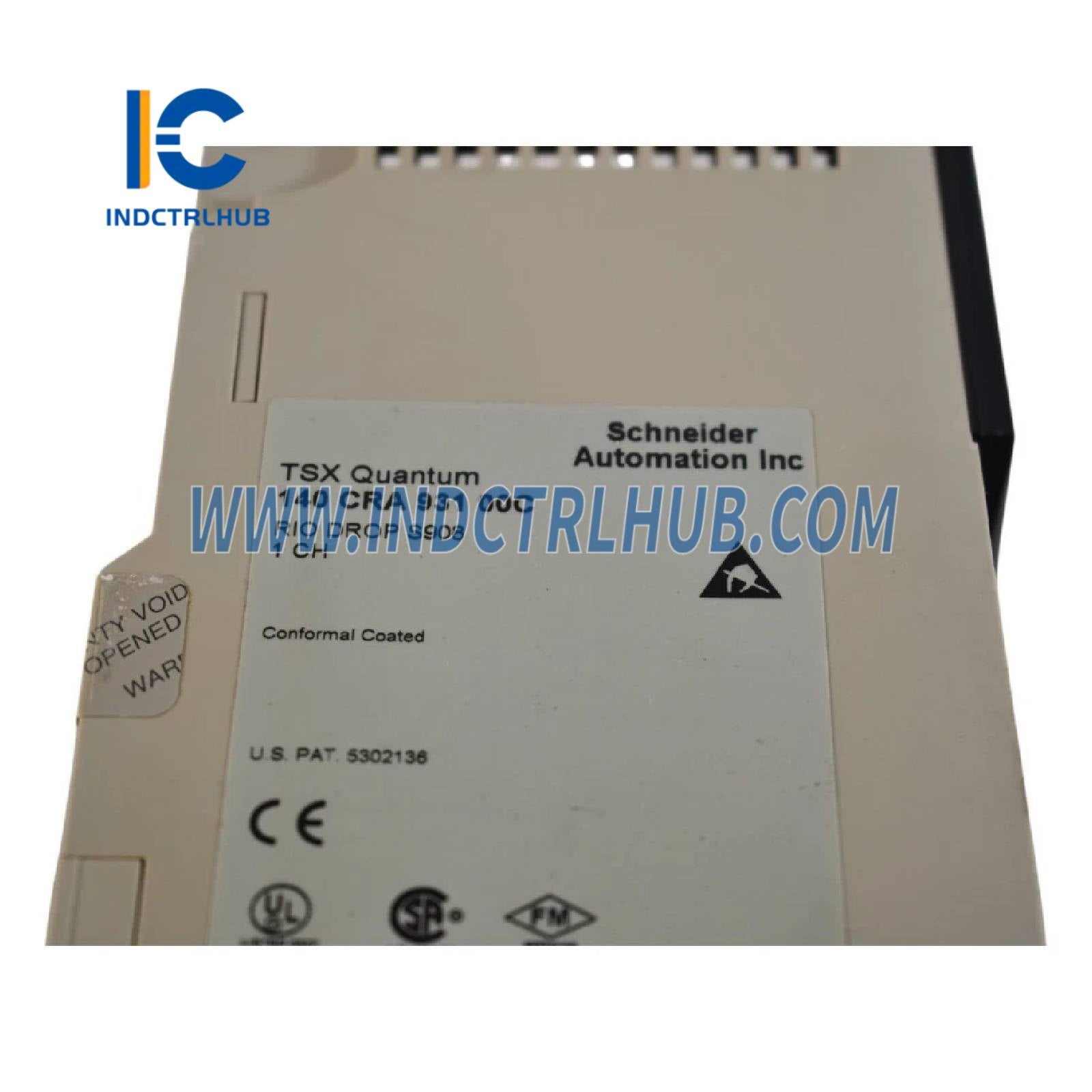

Conformal Coating (Humiseal 1A33) |
|---|---|
|
Standards |
CSA C22.2 No 142, UL 508, CUL |
|
ESD Resistance |
4 kV contact, 8 kV air (IEC 801-2) |
|
EM Field Resistance |
9.1 V/m (10 V/m) at 80–1000 MHz (IEC 801-3) |
|
Operating Temperature |
32 to 140 °F (0 to 60 °C) |
|
Storage Temperature |
-40 to 185 °F (-40 to 85 °C) |
|
Relative Humidity |
95% non-condensing |
|
Operating Altitude |
≤ 5000 m (16404.2 ft) |
Ordering Information
|
Category |
US1PC2118155 |
|---|---|
|
Discount Schedule |
PC21 |
|
GTIN |
3595861136298 |
|
Returnability |
No |
|
Country of Origin |
France |
Packing Details
|
Package |
Value |
|---|---|
|
Unit Type |
PCE |
|
Units per Package |
1 |
|
Height |
1.97 in (5.0 cm) |
|
Width |
6.69 in (17.0 cm) |
|
Length |
12.20 in (31.0 cm) |
|
Weight |
18.4 oz (522.0 g) |
