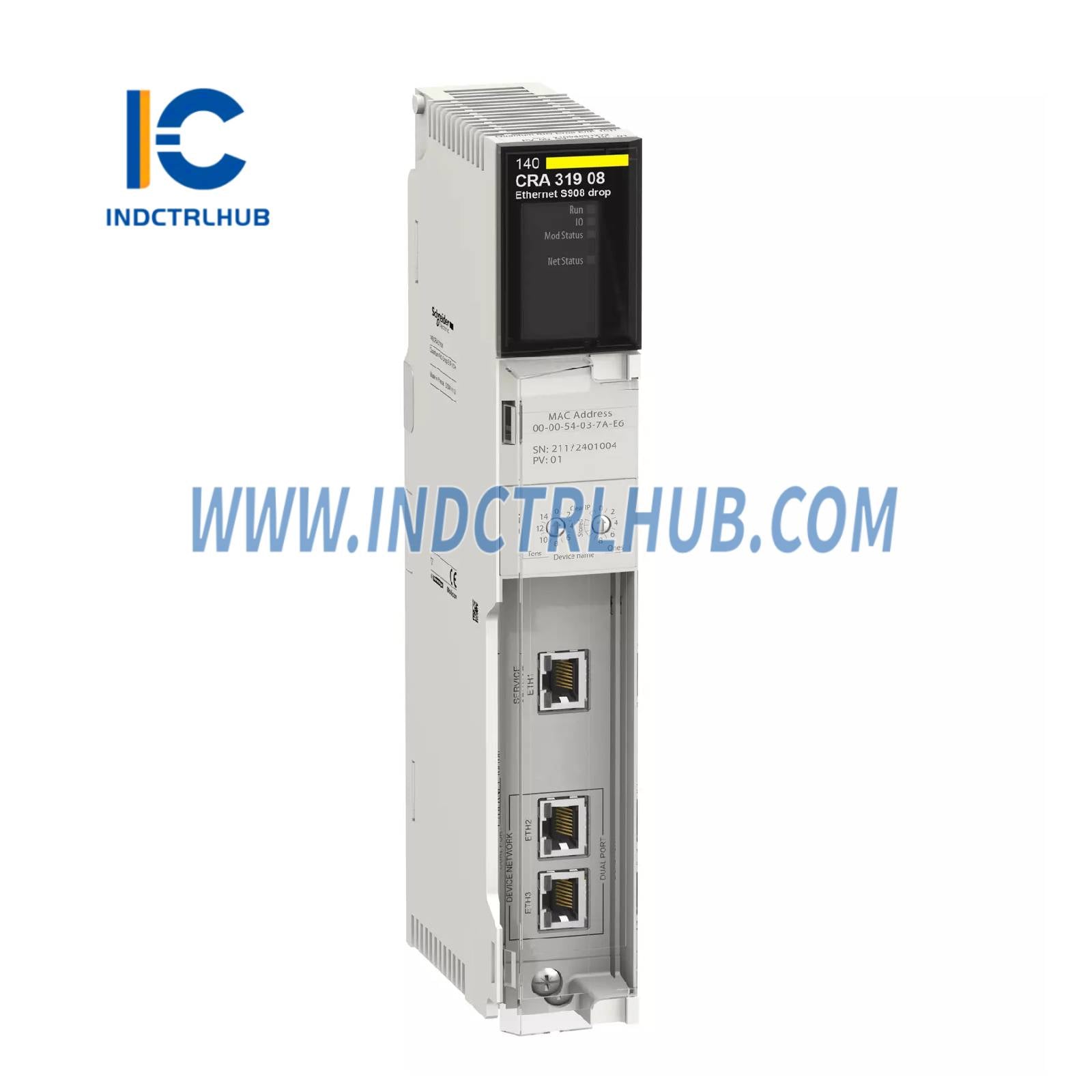

Schneider 140CRA31908 M580 Quantum S908 RIO Drop Adapter

Manufacturer

Schneider Electric

Model/Part Number

140CRA31908

Description

M580 Quantum S908 RIO Drop Adapter

Product Range

Modicon Quantum

Product Type

Ethernet RIO Drop Adaptor

Device Application

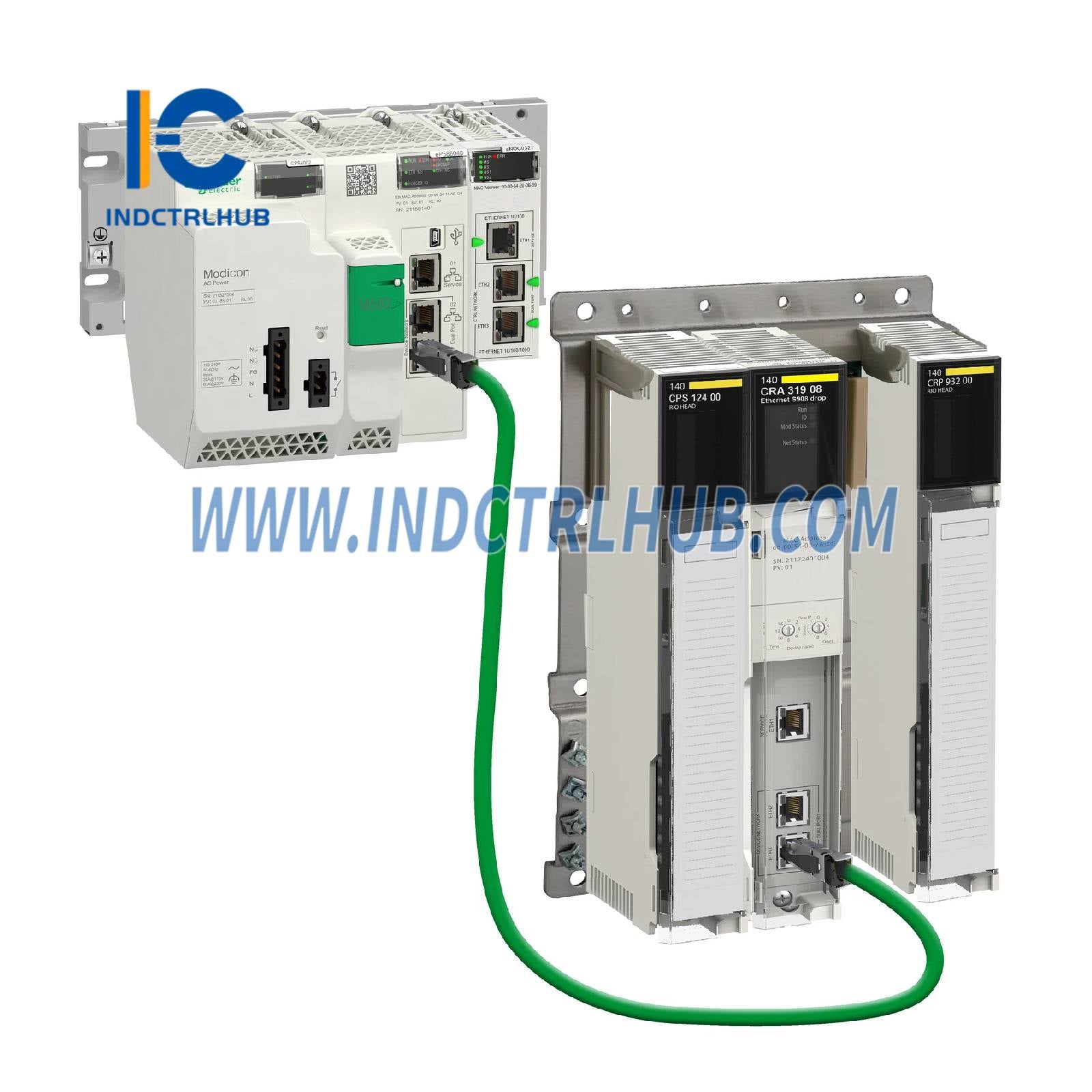

Provides the ability for an M580 system to control Modicon S908 coaxial bus

Number of Ports

3

Integrated Connection Type

Ethernet IP / Modbus TCP service port

Communication Protocol

Ethernet IP / Modbus TCP

Product Destination

Modicon Quantum

Communication Service

Input data collected and published to the remote I/O head adaptor; Output modules updated with data from the remote I/O head adaptor

Topology

Daisy chain loop, S908 bus

Module Status LED

1 LED (Green/Red)

Network Communication LED

1 LED (Green/Red)

RUN LED

1 LED (Green)

I/O LED

1 LED (Red)

Width

6.6 in (167 mm)

Height

2.0 in (50 mm)

Net Weight

1.221 lb (0.554 kg)

Hazardous Location Class

Class I, Division 2 EN/IEC 61131-1

IP Degree of Protection

IP20 (EN 61131-2, IEC 60527)

Overvoltage Category

Class I (EN 61131-2)

Ambient Temperature for Operation

0–60 °C (32–140 °F) IEC 60068-2-2

Ambient Temperature for Storage

-40–85 °C (-40–185 °F) IEC 60068-2-2

Vibration Resistance

3.5 mm constant amplitude (f = 0.5–8.4 Hz) (EN 61131-2)  1 gn constant acceleration (f = 8.4–150 Hz) (EN 61131-2)

Operating Altitude

6561.68 ft (2000 m)

Maximum Transport Altitude

9842.5 ft (3000 m)

Relative Humidity

93% (IEC 60068)

Certifications

UL 508, CE, C-Tick

Standards

IEC 61000-4-16, CSA C22.2 No 142, EN 55011

Category

US1PC3418160

Discount Schedule

PC34

GTIN

3606481207470

Returnability

No

Country of Origin

USA

Package Type

PCE

Units per Package

1

Package Dimensions

12.40 x 6.50 x 1.97 in (LWH)

Package Weight

592 g (20.882 oz)

Package Type (2)

S03

Units per Package (2)

7

Package Dimensions (2)

15.75 x 11.81 x 11.81 in (LWH)

Package Weight (2)

4.590 kg (10.119 lb)
