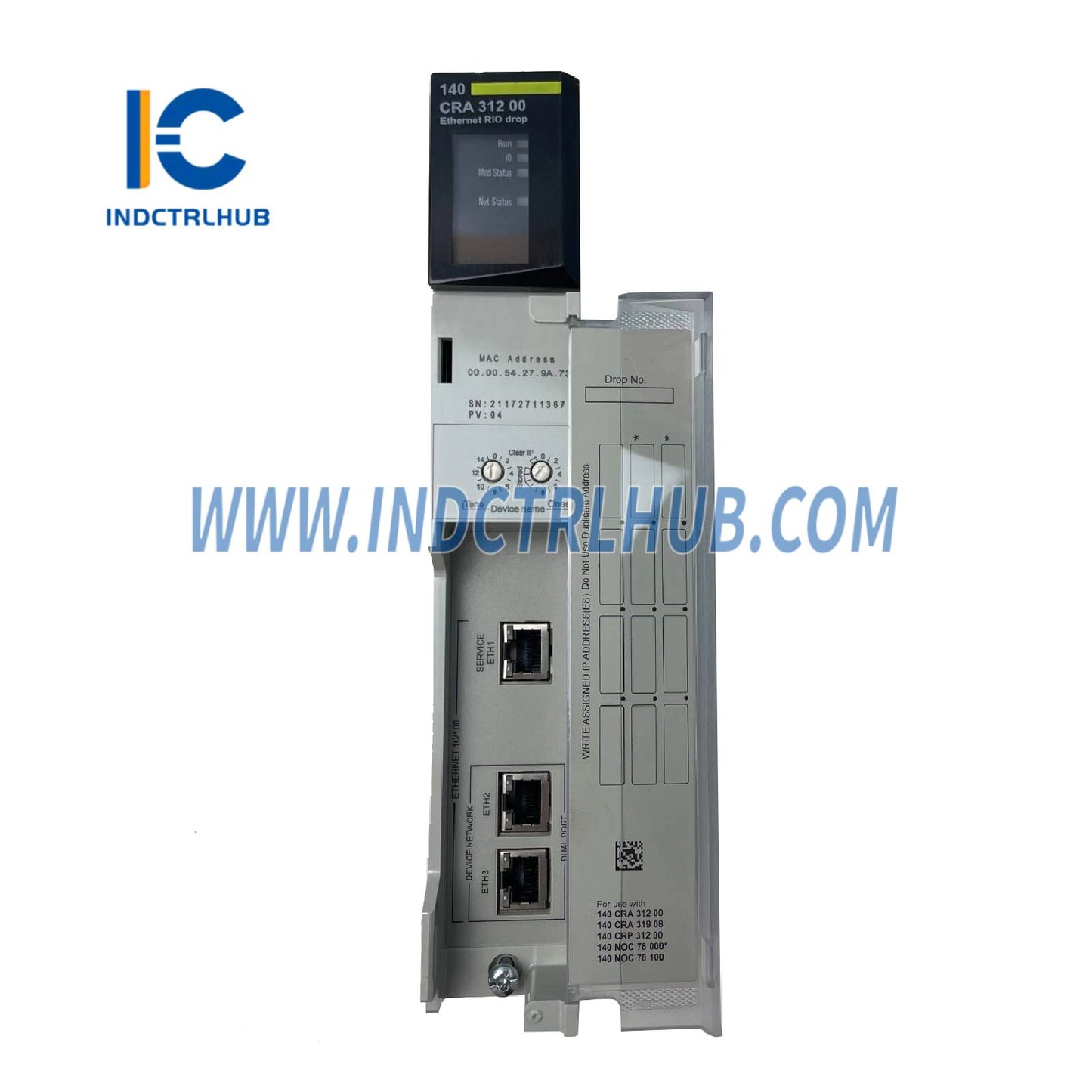

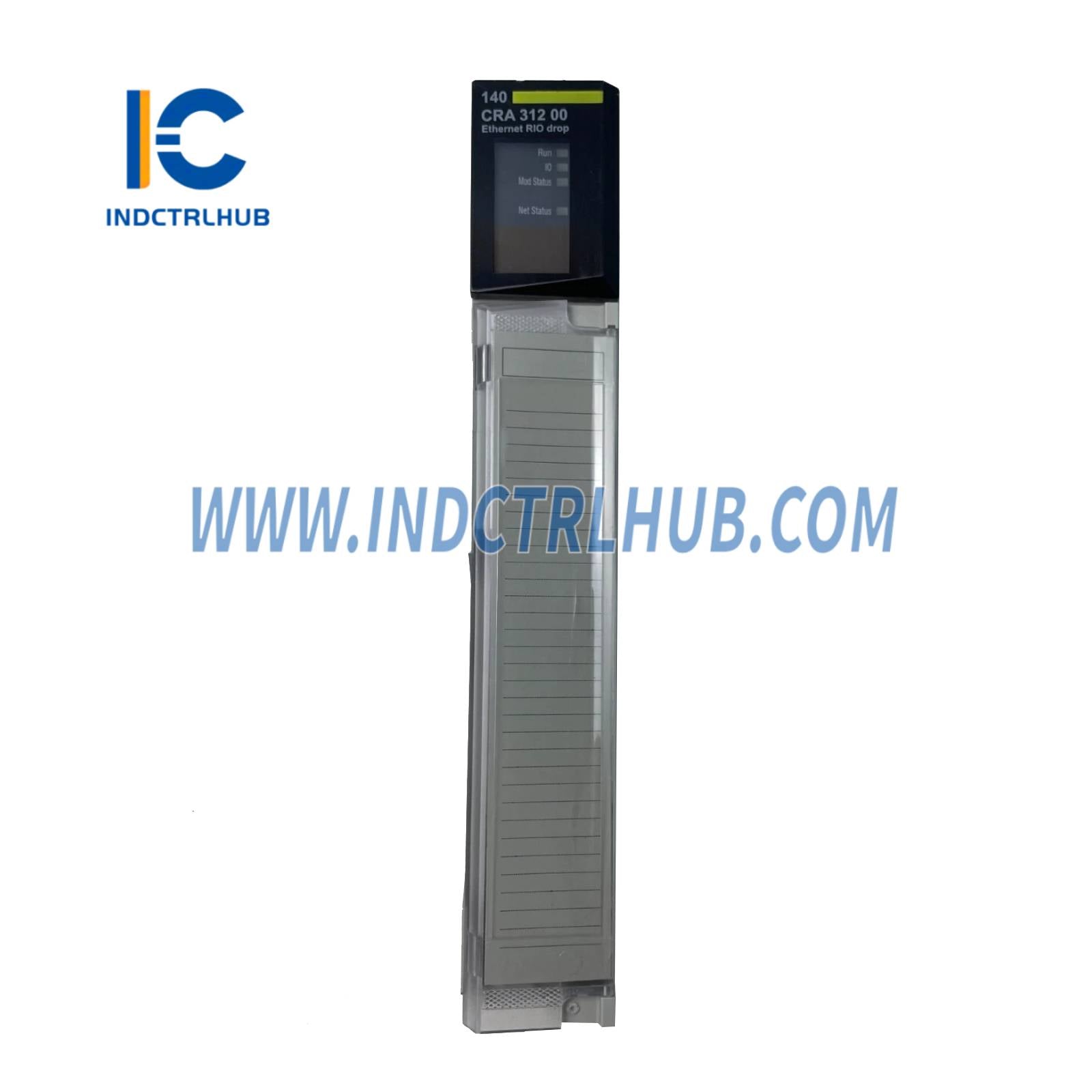

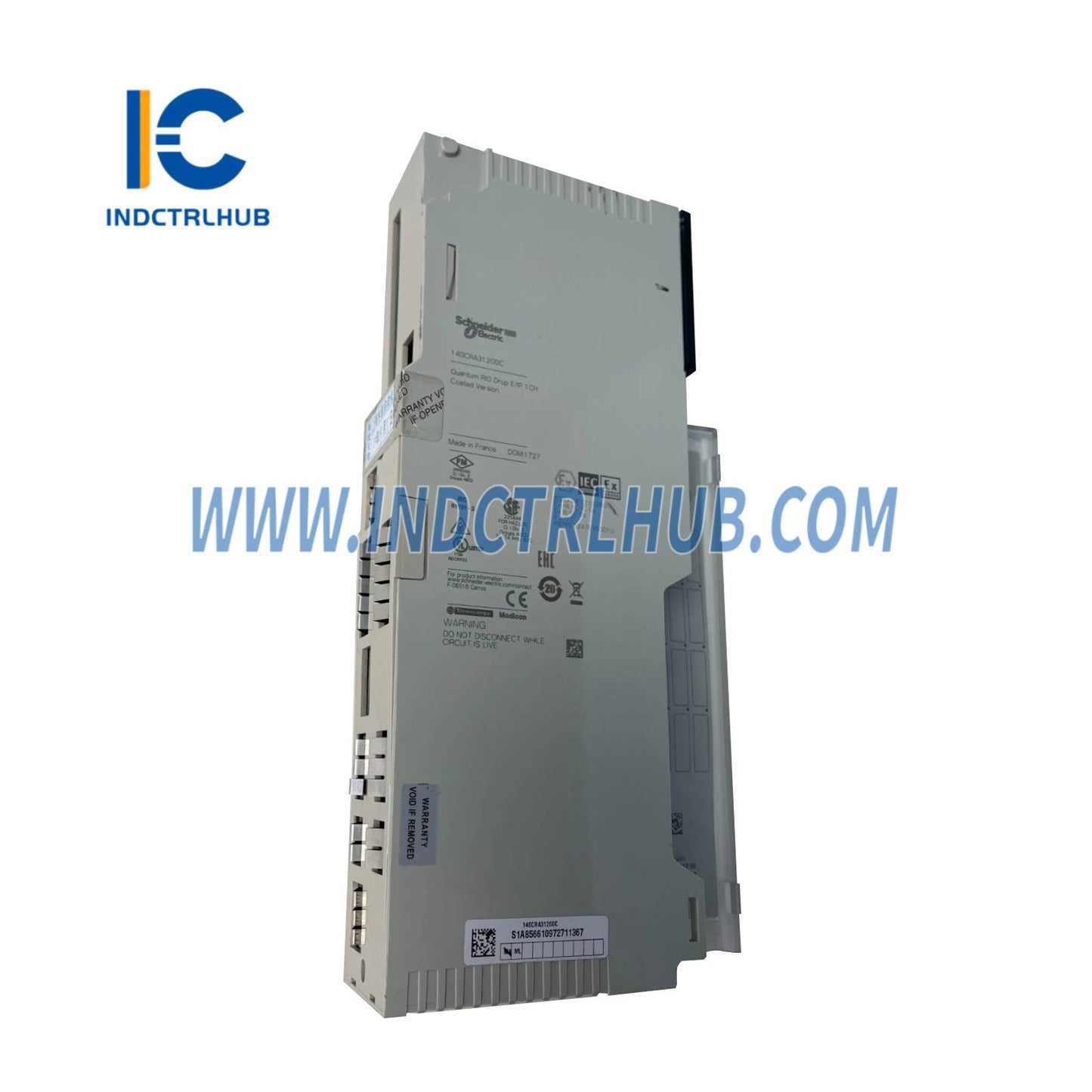

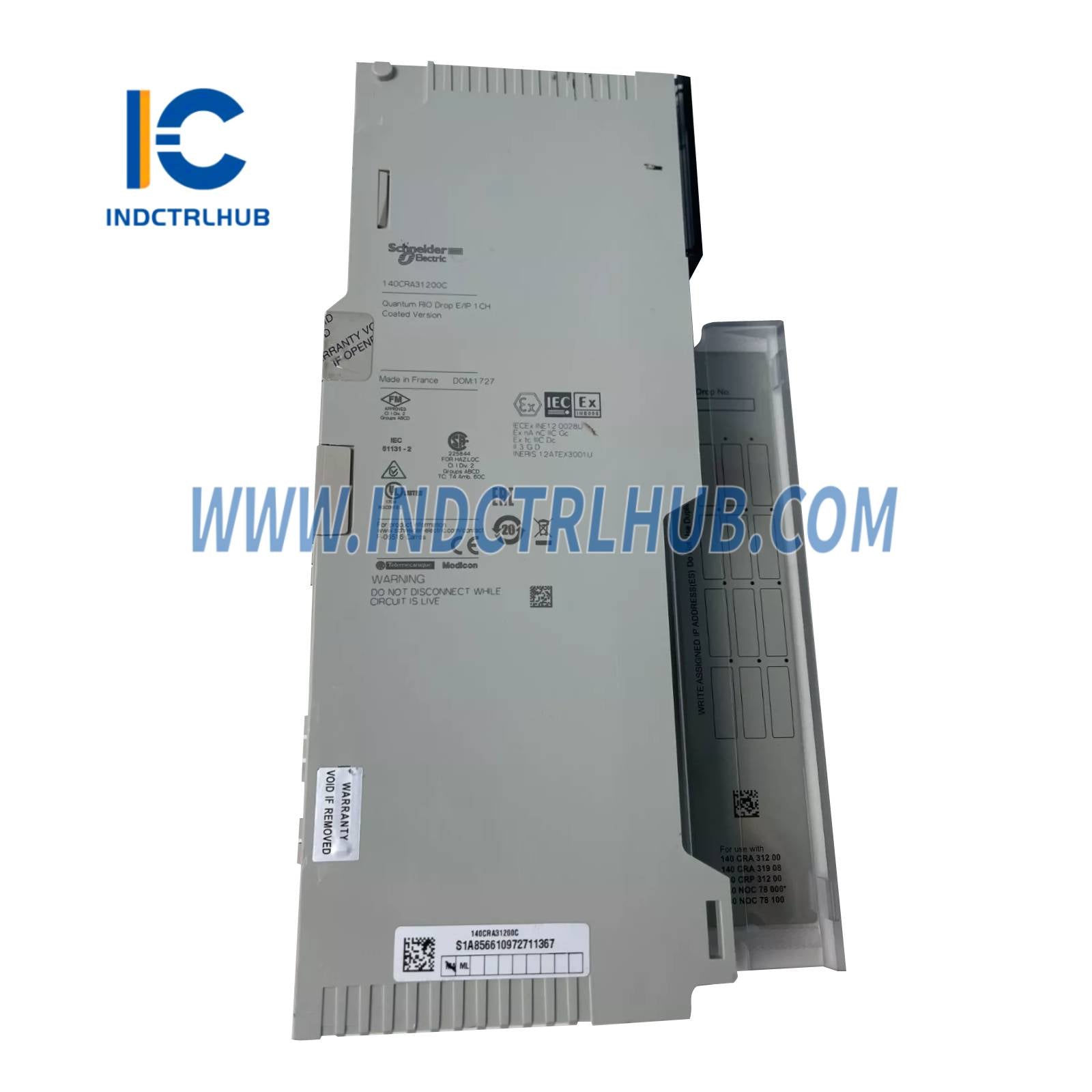

Product Description
General Information
|
Field |
Description |
|---|---|
|
Manufacturer |
Schneider Electric |
|
Model/Part Number |
140CRA31200C |
|
Description |
Quantum RIO Drop E/IP 1CH - Conformal Coated |
|
Product Range |
Modicon Quantum |
|
Product Type |
Ethernet RIO Drop Adaptor |
Specifications
Communication & Port Details
|
Parameter |
Specification |
|---|---|
|
Number of Ports |
3 |
|
Integrated Connection Type |
Ethernet IP / Modbus TCP service port |
|
Communication Protocol |
Ethernet IP / Modbus TCP |
|
Communication Service |
Output modules updated with data from remote I/O head adaptor; Input data published to remote I/O head adaptor |
|
Topology |
Daisy chain loop |
Indicators & Signaling
|
Parameter |
Specification |
|---|---|
|
Module Status LED |
1 LED (Green/Red) |
|
Network Communication LED |
1 LED (Green/Red) |
|
RUN LED |
1 LED (Green) |
|
I/O LED |
1 LED (Red) |
Compatibility
| Product Compatibility | 140CRP31200 |
Physical Characteristics
|
Parameter |
Specification |
|---|---|
|
Width |
6.6 in (167 mm) |
|
Height |
2.0 in (50 mm) |
|
Net Weight |
1.221 lb (0.554 kg) |
Environmental & Standards
|
Parameter |
Specification |
|---|---|
|
Hazardous Location Class |
Class I, Division 2 EN/IEC 61131-1 |
|
IP Degree of Protection |
IP20 (EN 61131-2, IEC 60527) |
|
Overvoltage Category |
Class I (EN 61131-2) |
|
Ambient Temperature for Operation |
0–60 °C (32–140 °F) IEC 60068-2-2 |
|
Ambient Temperature for Storage |
-40–85 °C (-40–185 °F) IEC 60068-2-2 |
|
Vibration Resistance |
3.5 mm constant amplitude (f = 0.5–8.4 Hz) (EN 61131-2) 1 gn constant acceleration (f = 8.4–150 Hz) (EN 61131-2) |
|
Operating Altitude |
6561.68 ft (2000 m) |
|
Maximum Transport Altitude |
9842.5 ft (3000 m) |
|
Relative Humidity |
93% (IEC 60068) |
Certifications
|
Certification / Standard |
Value |
|---|---|
|
Certifications |
UL 508, CE, C-Tick |
|
Standards |
EN 55011, IEC 61000-4-16, CSA C22.2 No 142 |
Ordering Information
|
Field |
Value |
|---|---|
|
Category |
US1PC2118155 |
|
Discount Schedule |
PC21 |
|
GTIN |
3595864118017 |
|
Returnability |
No |
|
Country of Origin |
France |
Packing Details
|
Parameter |
Value |
|---|---|
|
Package Type |
PCE |
|
Units per Package |
1 |
|
Package Dimensions |
12.60 x 6.50 x 1.97 in (LWH) |
|
Package Weight |
609 g (21.481 oz) |
|
Package Type (2) |
S02 |
|
Units per Package (2) |
2 |
|
Package Dimensions (2) |
15.75 x 11.81 x 5.91 in (LWH) |
|
Package Weight (2) |
1.5 kg (3.307 lb) |
