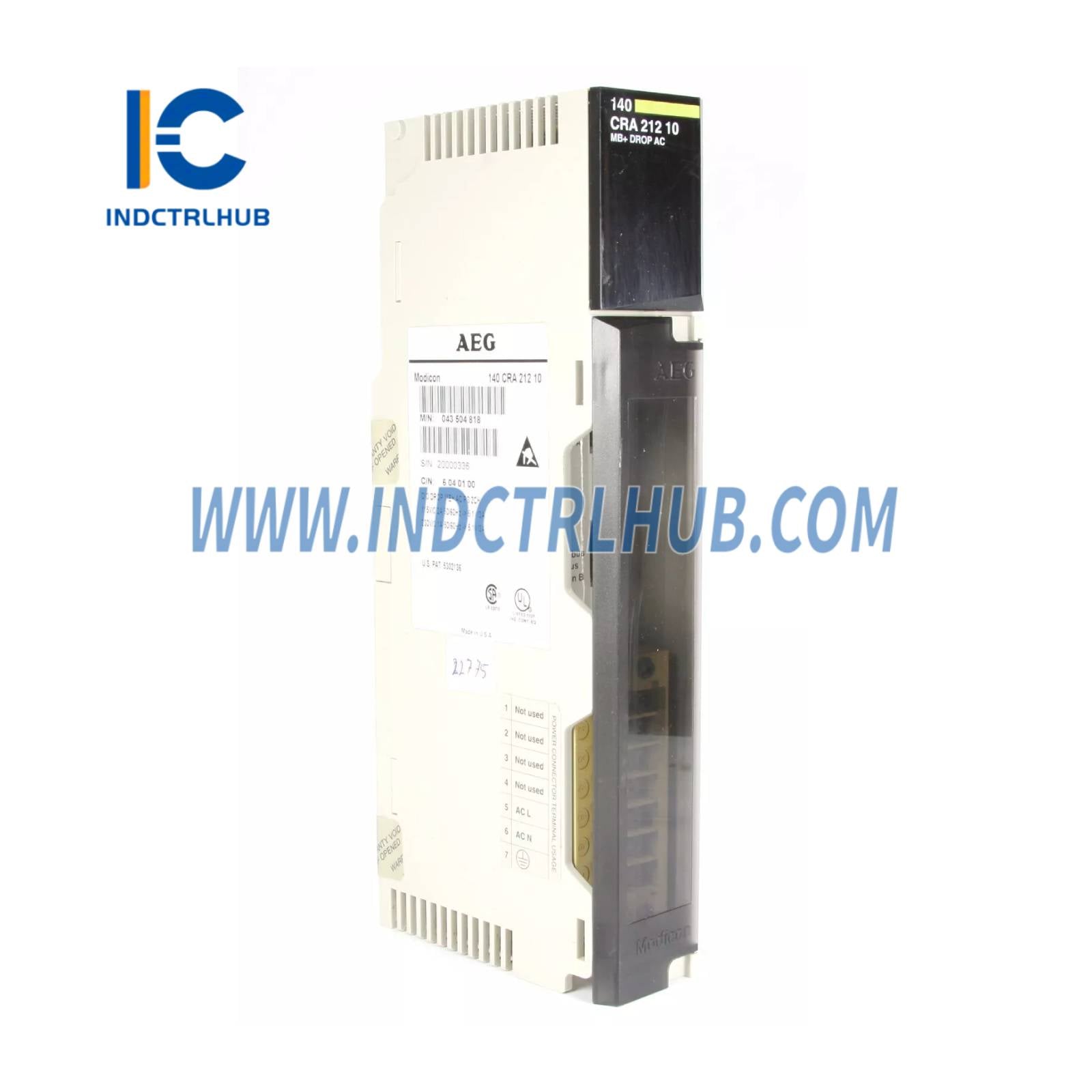

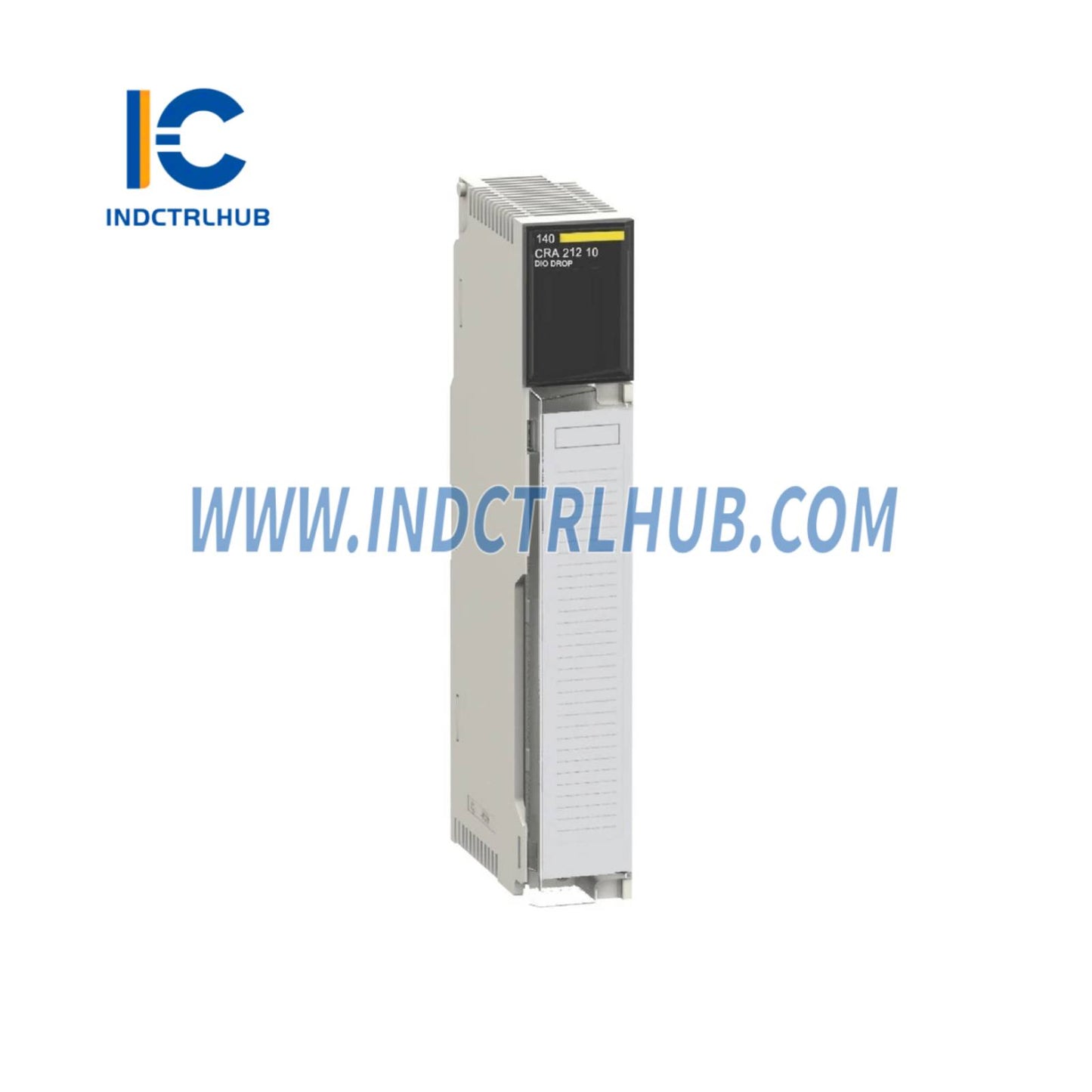

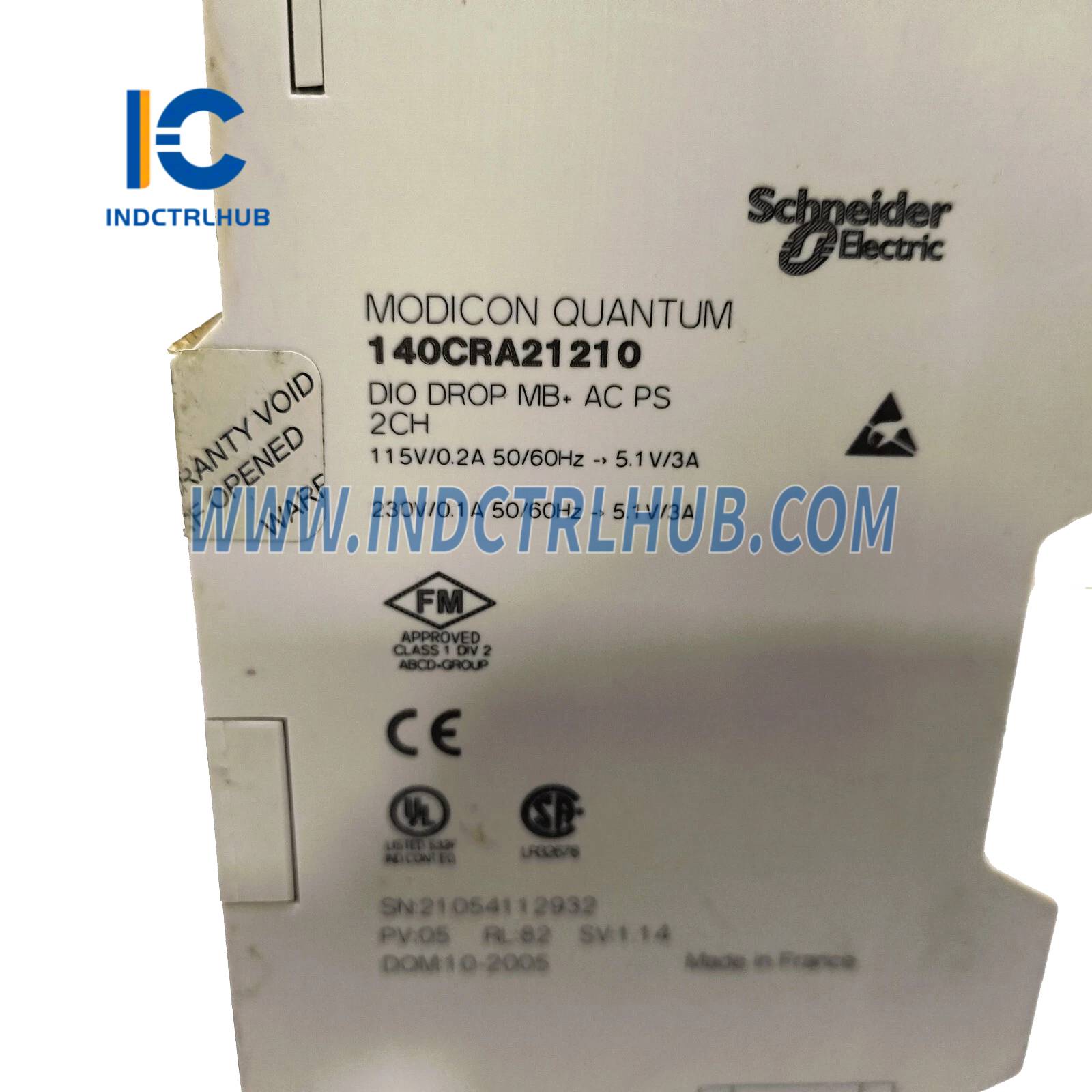

Schneider 140CRA21210 DIO Drop Interface Modicon Quantum

Manufacturer

Schneider Electric

Model/Part Number

140CRA21210

Description

DIO Drop Interface Modicon Quantum - 115/230 V AC - 1 Redundant Port

Product Range

Modicon Quantum Automation Platform

Product Type

DIO Drop Interface

Rated Supply Voltage

115/230 V AC

Supply Voltage Limits

85–276 V

Supply Frequency

47–63 Hz

Max Supply Current

0.2 A @ 115 V, 0.4 A @ 230 V

Inrush Current

10 A @ 115 V, 20 A @ 230 V

Rated Power (VA)

50 VA

Output Voltage

5.1 V

Nominal Output Current

3 A

Minimum Load Current

0 A

Short-circuit Protection

Yes

Output Overvoltage Protection

Yes

I/O Words

30 inputs / 32 outputs

Associated Fuse Rating

1.5 A

2, 3, 4, 6, 10, 16 positions

Startup

RAM address, Checksum

Runtime

RAM address, Checksum

Terminal Block

7 poles

Number of Ports

1 single

Module Format

Standard

11 W

Operating Temperature

0–60 °C (32–140 °F)

Storage Temperature

-40–85 °C (-40–185 °F)

Relative Humidity

95% (non-condensing)

Operating Altitude

≤ 5000 m (16,404.2 ft)

Protective Treatment

TC

Electrostatic Discharge Resistance

4 kV (contact), 8 kV (air)

Electromagnetic Field Resistance

10 V/m (80–2000 MHz)

UL 508

CSA Class 1 Division 2

GOST

C-Tick

DNV

UL

Category

US1PC2118155

Discount Schedule

PC21

GTIN

3595861136755

Returnability

No

Country of Origin

France

Package Type

PCE

Units per Package

1

Package Dimensions

12.52 x 6.46 x 1.89 in (LWH)

Package Weight

708 g (24.974 oz)
