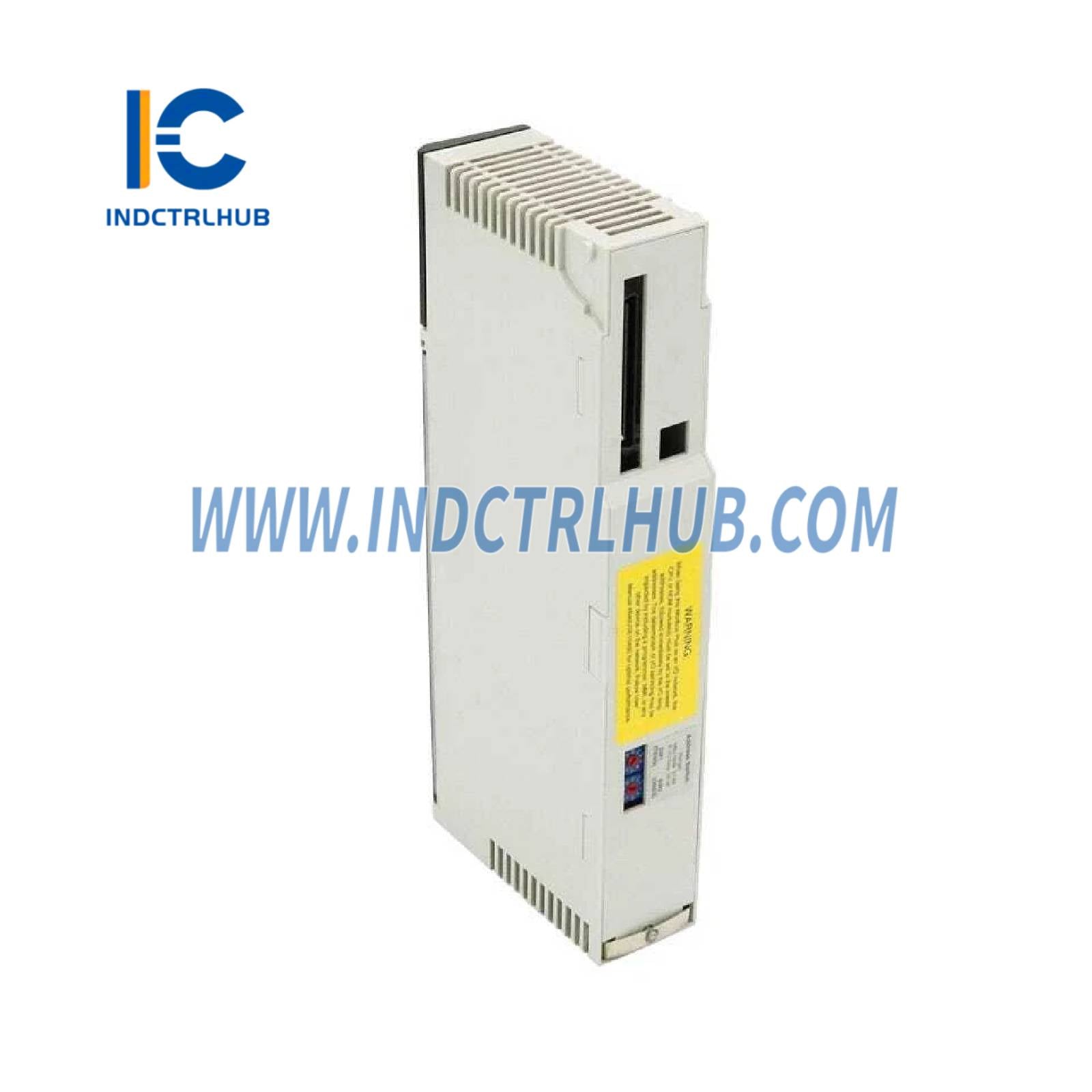

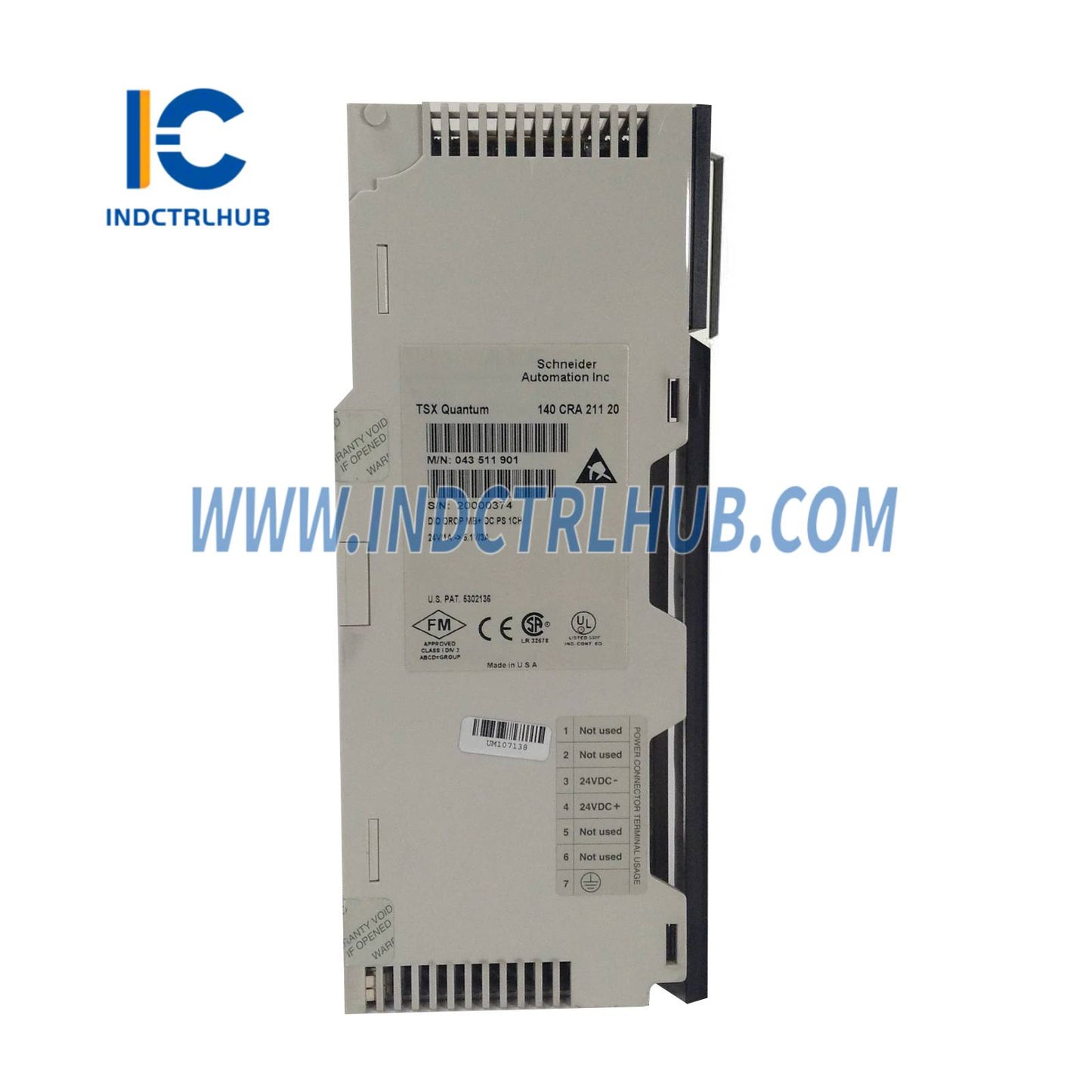

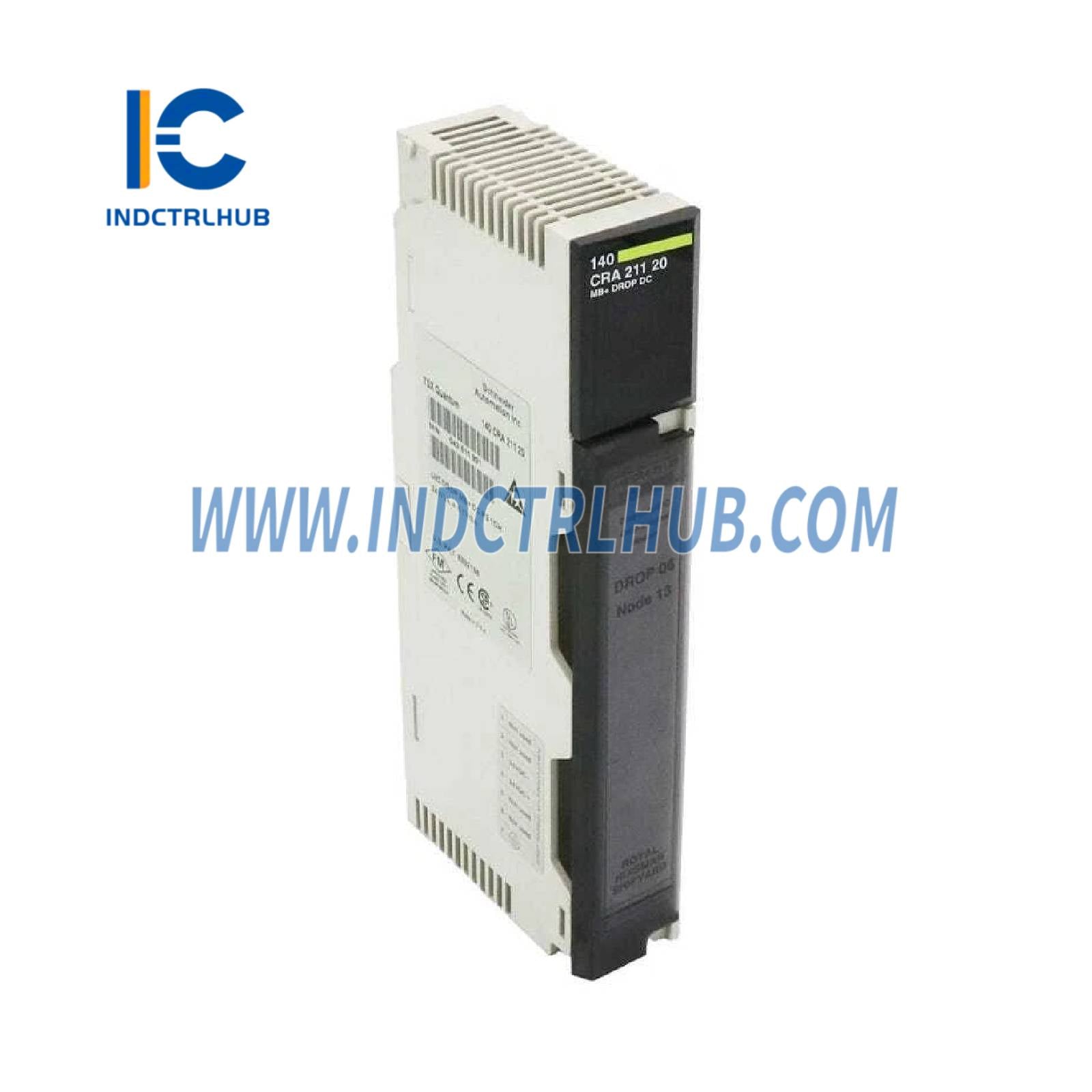

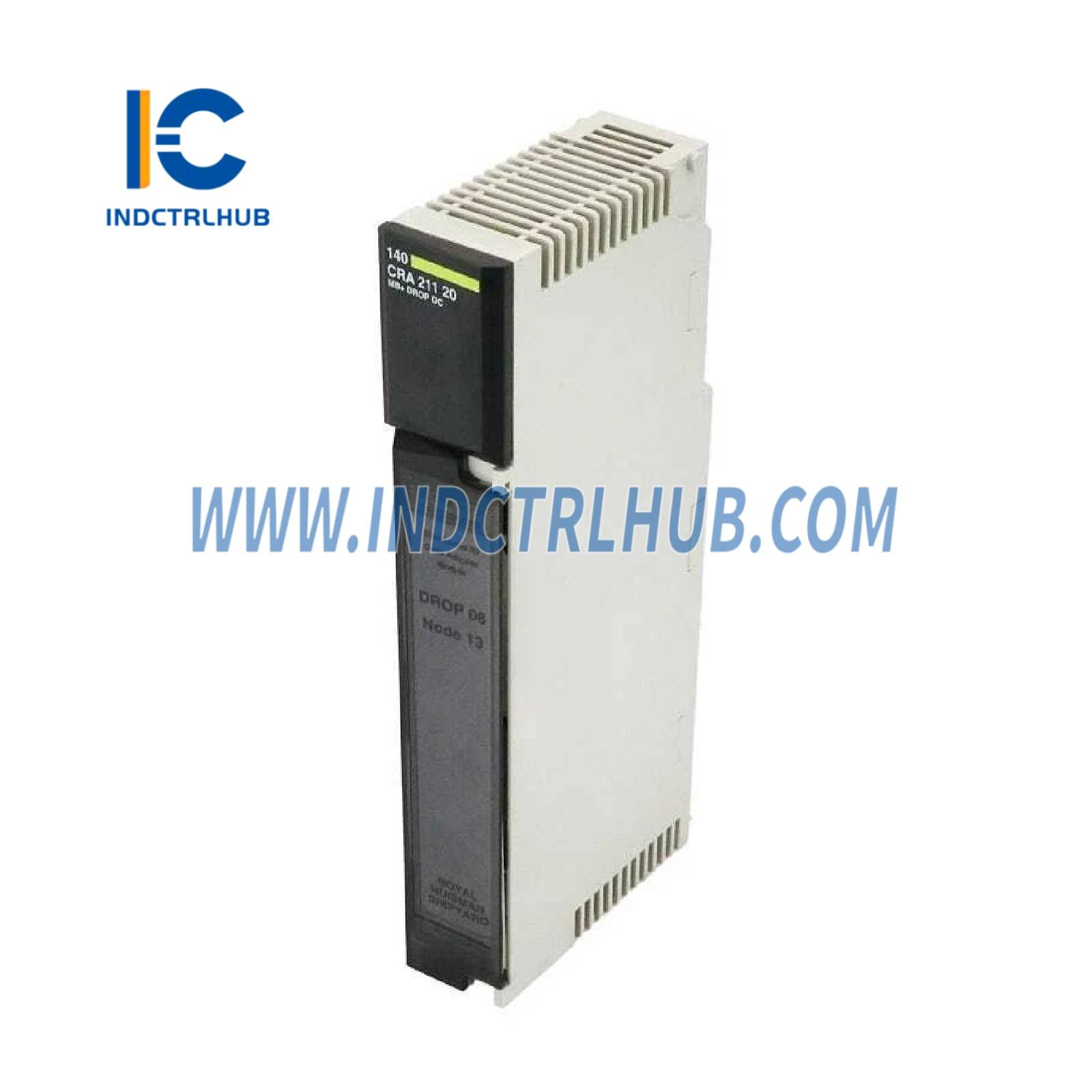

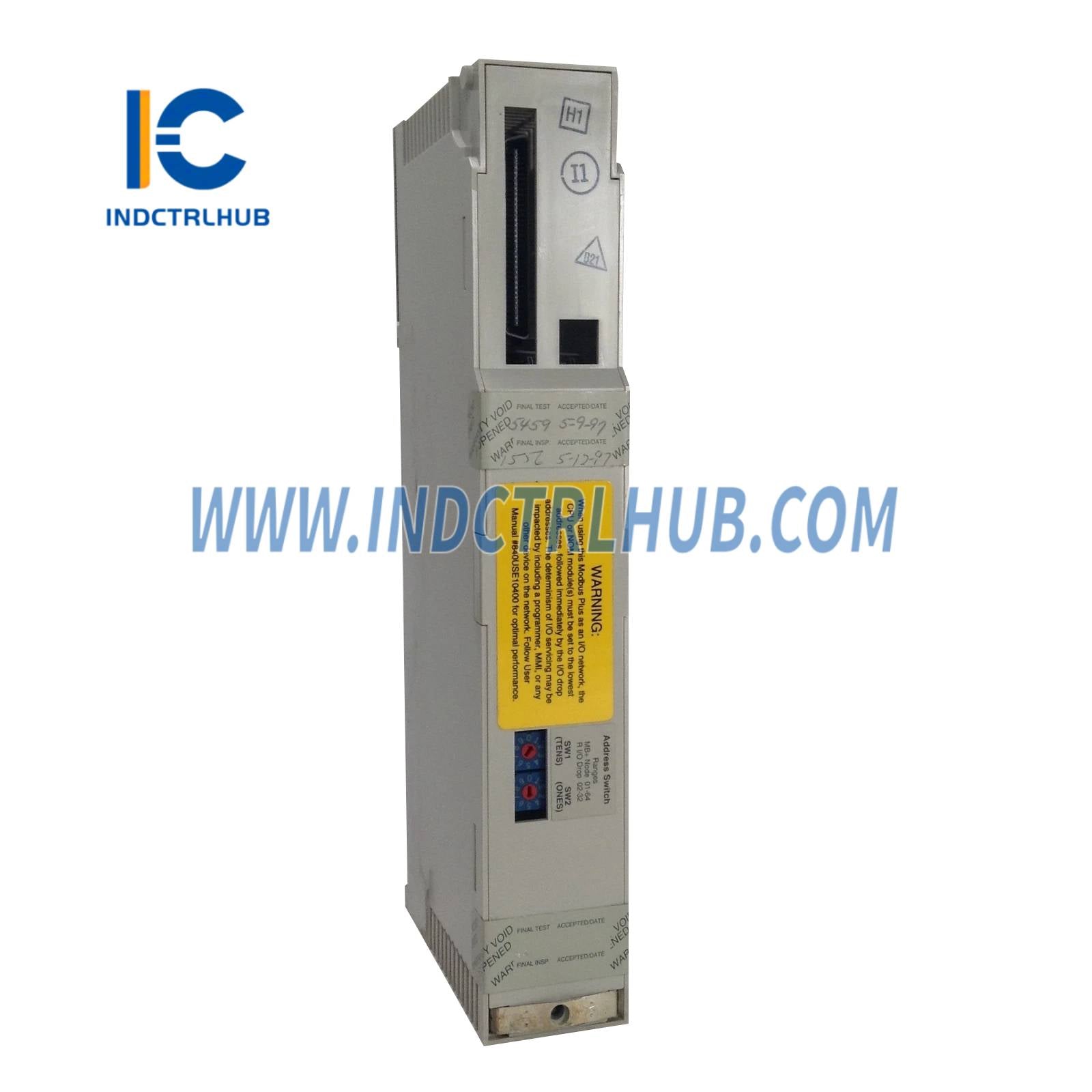

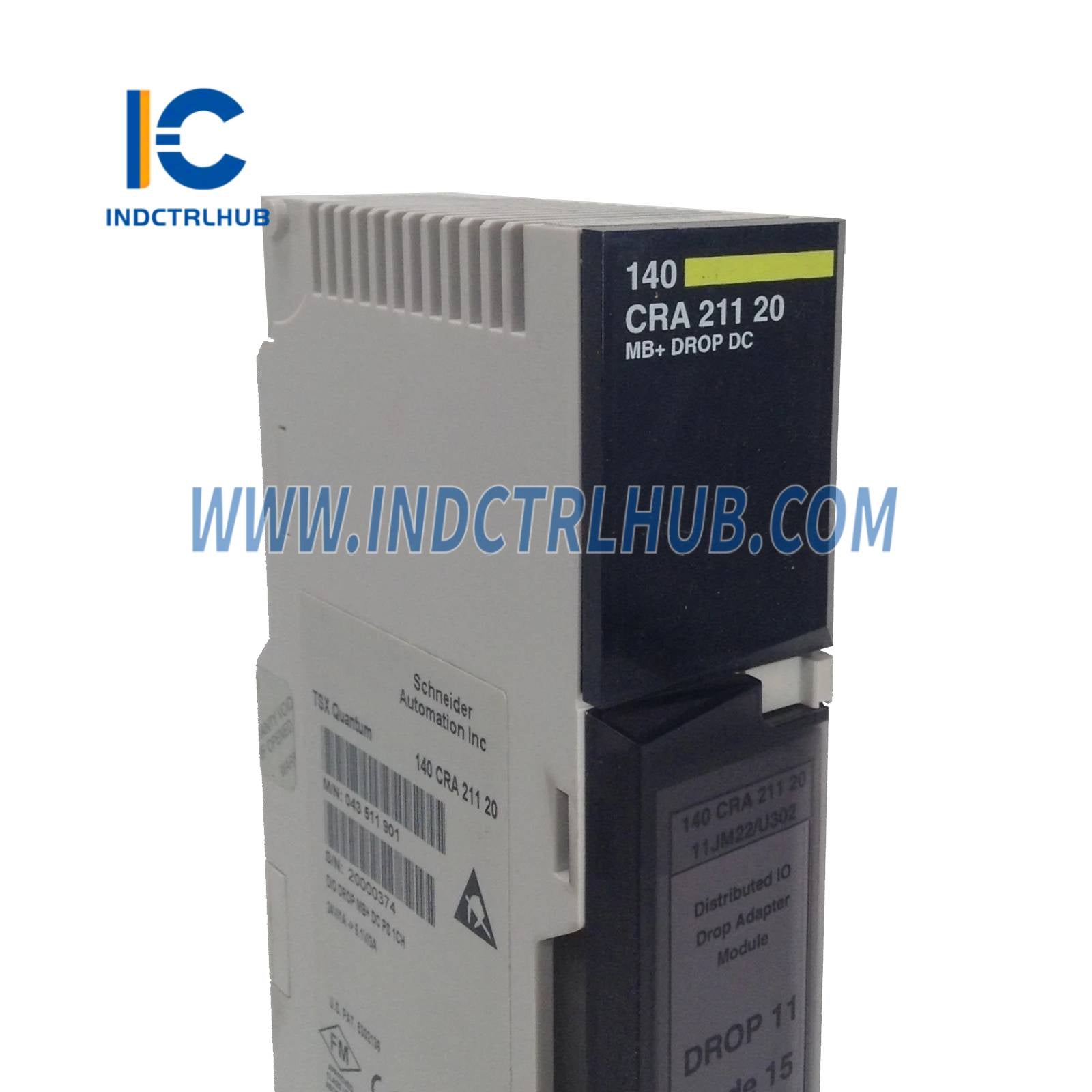

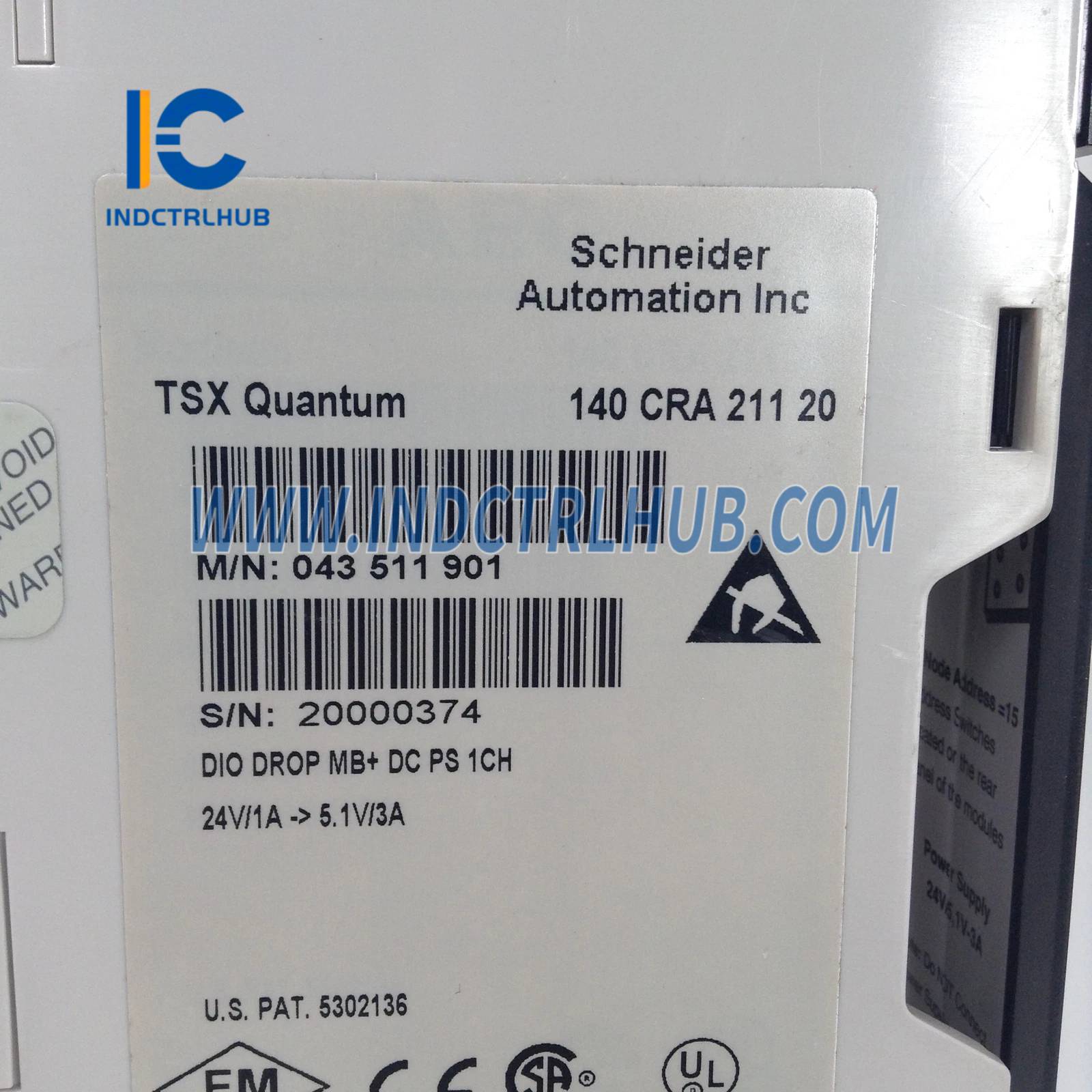

Schneider 140CRA21120 DIO Drop Interface Modicon Quantum
Schneider 140CRA21120 DIO Drop Interface Modicon Quantum
Manufacturer: Schneider
Product No.: 140CRA21120
Condition:1000 in stock
Product Type: DIO Drop Interface Modicon Quantum
Product Origin: USA
Payment: T/T, Western Union
Weight: 674g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
_
General Information
|
Field |
Description |
|---|---|
|
Manufacturer |
Schneider Electric |
|
Model/Part Number |
140CRA21120 |
|
Description |
DIO Drop Interface Modicon Quantum - 24 V DC - 2 Single Ports |
|
Product Range |
Modicon Quantum Automation Platform |
|
Product Type |
DIO Drop Interface |
_
_
Specifications
_
Electrical & I/O
|
Parameter |
Specification |
|---|---|
|
Rated Supply Voltage |
24 V DC |
|
Supply Voltage Limits |
20_30 V |
|
Max Supply Current |
1.6 A @ 24 V |
|
Inrush Current |
30 A @ 24 V |
|
Output Voltage |
5.1 V |
|
Nominal Output Current |
3 A |
|
Minimum Load Current |
0 A |
|
Short-circuit Protection |
Yes |
|
Output Overvoltage Protection |
Yes |
|
I/O Words |
30 inputs / 32 outputs |
|
Associated Fuse Rating |
2.5 A |
_
Backplane Support
|
Backplane Sizes Supported |
|---|
|
2, 3, 4, 6, 10, 16 positions |
_
Diagnostics
|
Type |
Included Details |
|---|---|
|
Startup |
Checksum, RAM, RAM address |
|
Runtime |
Checksum, RAM, RAM address |
_
Connections
|
Interface Type |
Details |
|---|---|
|
Terminal Block |
7 poles |
|
Number of Ports |
2 redundant |
|
Module Format |
Standard |
_
Power Dissipation
|
Value |
|---|
|
11 W |
_
_
Environmental Limits
|
Parameter |
Specification |
|---|---|
|
Operating Temperature |
0_60 °C (32_140 °F) |
|
Storage Temperature |
-40_85 °C (-40_185 °F) |
|
Relative Humidity |
95% (non-condensing) |
|
Operating Altitude |
_ 5000 m (16,404.2 ft) |
|
Protective Treatment |
TC |
|
Electrostatic Discharge Resistance |
4 kV (contact), 8 kV (air) |
|
Electromagnetic Field Resistance |
10 V/m (80_2000 MHz) |
_
_
Compliance & Certifications
|
Standard / Certification |
|---|
|
UL 508 |
|
CSA Class 1 Division 2 |
|
GOST |
|
C-Tick |
|
DNV |
|
UL |
_
_
Ordering Information
|
Field |
Value |
|---|---|
|
Category |
US1PC2118155 |
|
Discount Schedule |
PC21 |
|
GTIN |
3595861136694 |
|
Returnability |
No |
|
Country of Origin |
France |
_
_
Packing Details
|
Parameter |
Value |
|---|---|
|
Package Type |
PCE |
|
Units per Package |
1 |
|
Package Dimensions |
12.20 x 6.50 x 1.97 in (LWH) |
|
Package Weight |
674 g (23.8 oz) |
_
