Product Description
General Information
|
Field |
Description |
|---|---|
|
Manufacturer |
Schneider Electric |
|
Model/Part Number |
140CPU67261 |
|
Product Range |
Modicon Quantum automation platform |
|
Product Type |
Unity Processor |
|
Description |

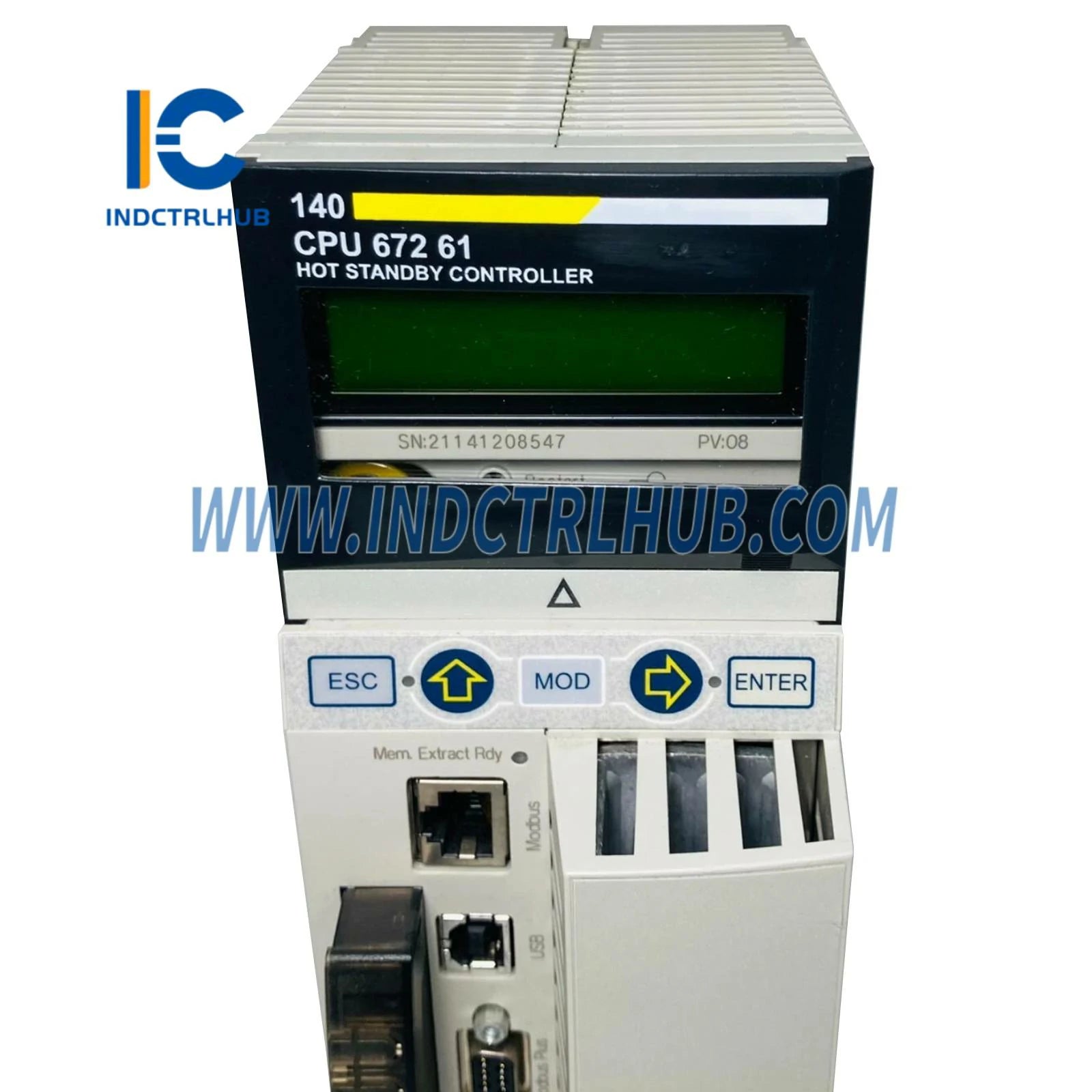

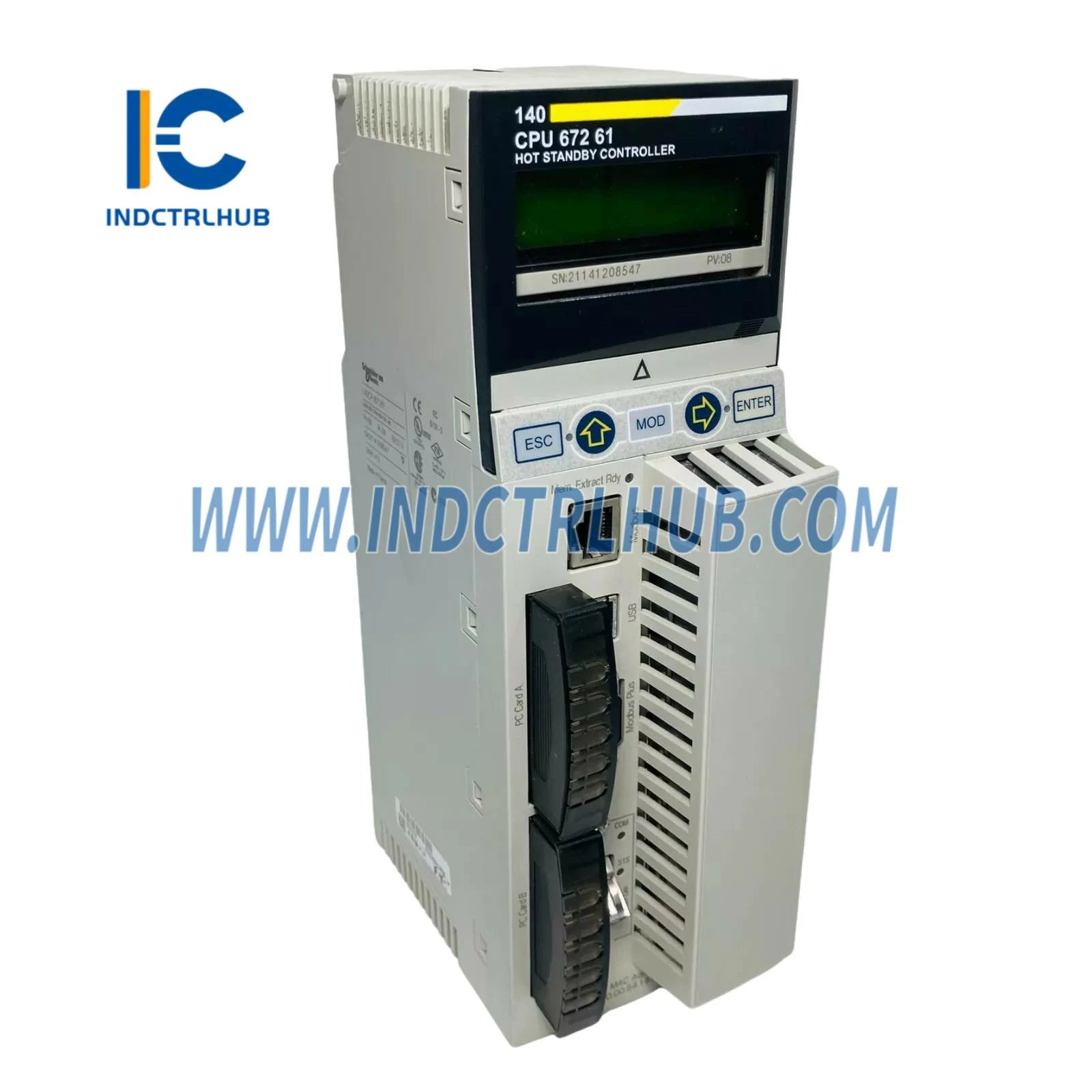

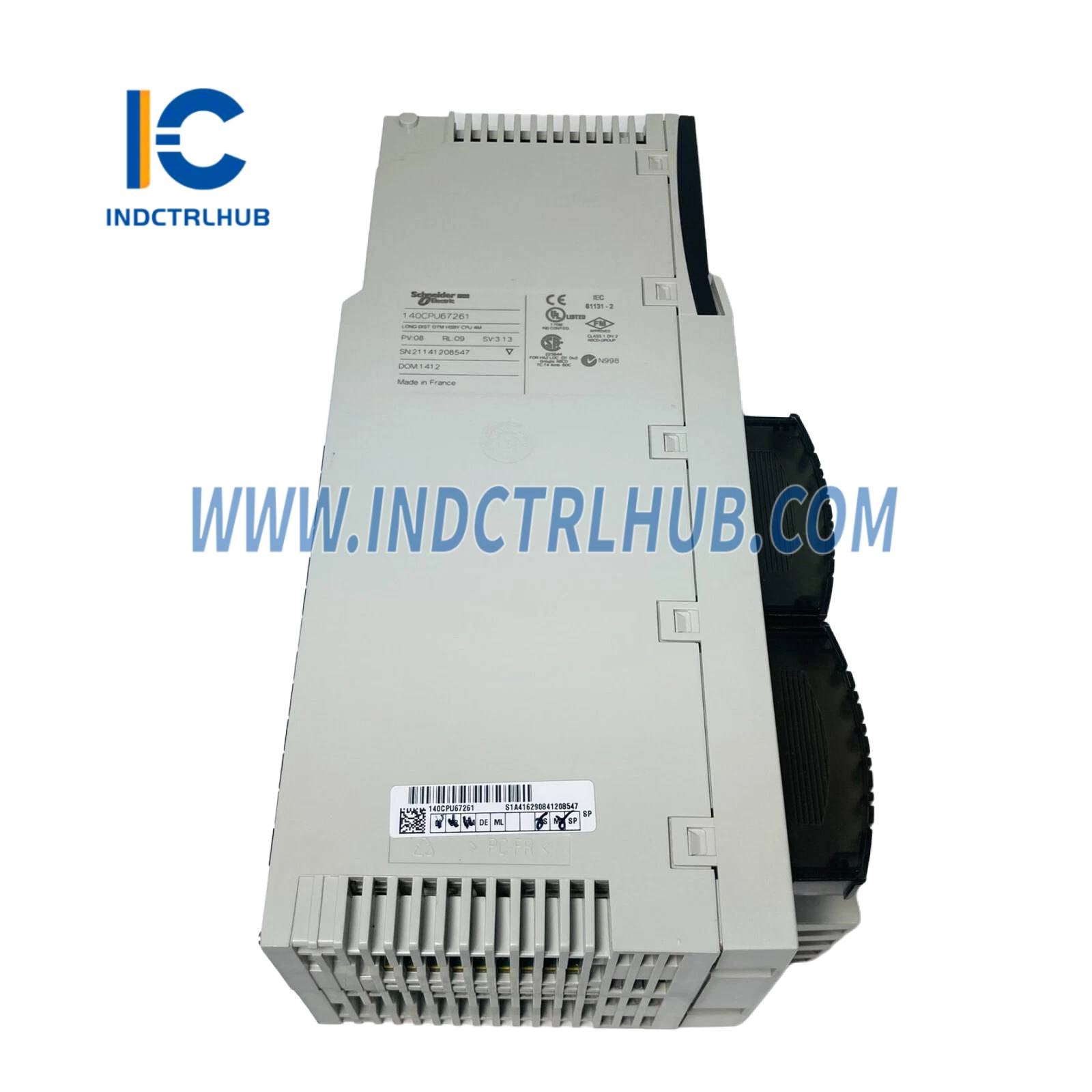

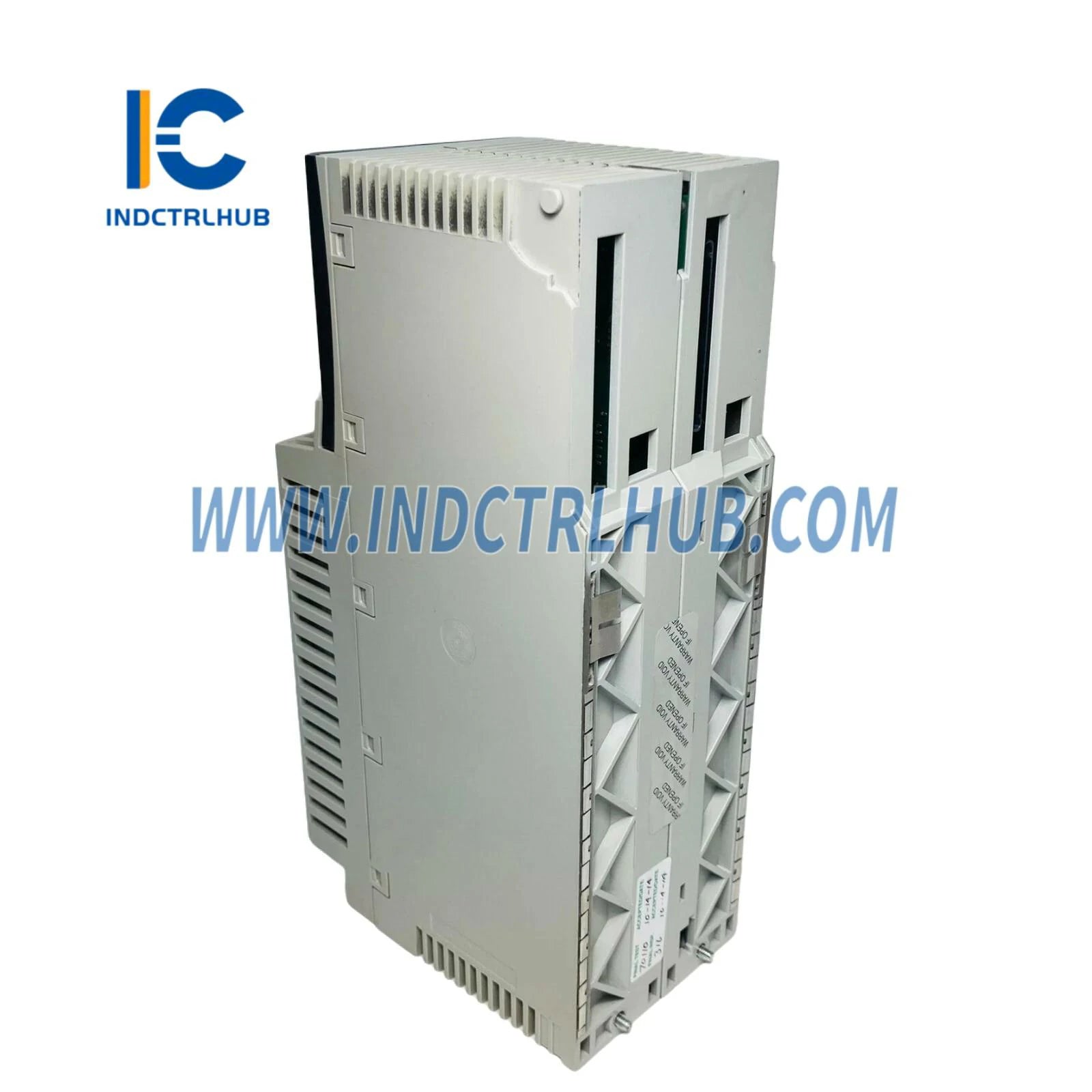

Unity Hot Standby processor with single mode Ethernet - 3072 kB - 266 MHz |
Technical Information
|
Parameter |
Specification |
|---|---|
|
Mode of Transmission |
Single mode |
|
Clock Frequency |
266 MHz |
|
Number of Slots |
16, 10, 6, 2, 4 |
|
Number of Racks (Local) |
2 |
|
Distributed I/O Stations |
63 (Modbus Plus) |
|
Remote I/O Stations |
31 (S908), 31 (Ethernet Quantum), 31 (Ethernet X80) |
|
Discrete I/O Capacity |
31744 inputs/outputs (remote), 8000 inputs/outputs (Modbus Plus), unlimited (Ethernet remote I/O) |
|
Analog I/O Capacity |
1984 inputs/outputs (remote), 500 inputs/outputs (Modbus Plus), unlimited (Ethernet remote I/O) |
|
Local I/O |
Not allowed in Hot Standby mode |
|
Application-Specific I/O |
Counter, High-speed interrupt inputs, Accurate time stamping, Serial link |
|
Integrated Connections |

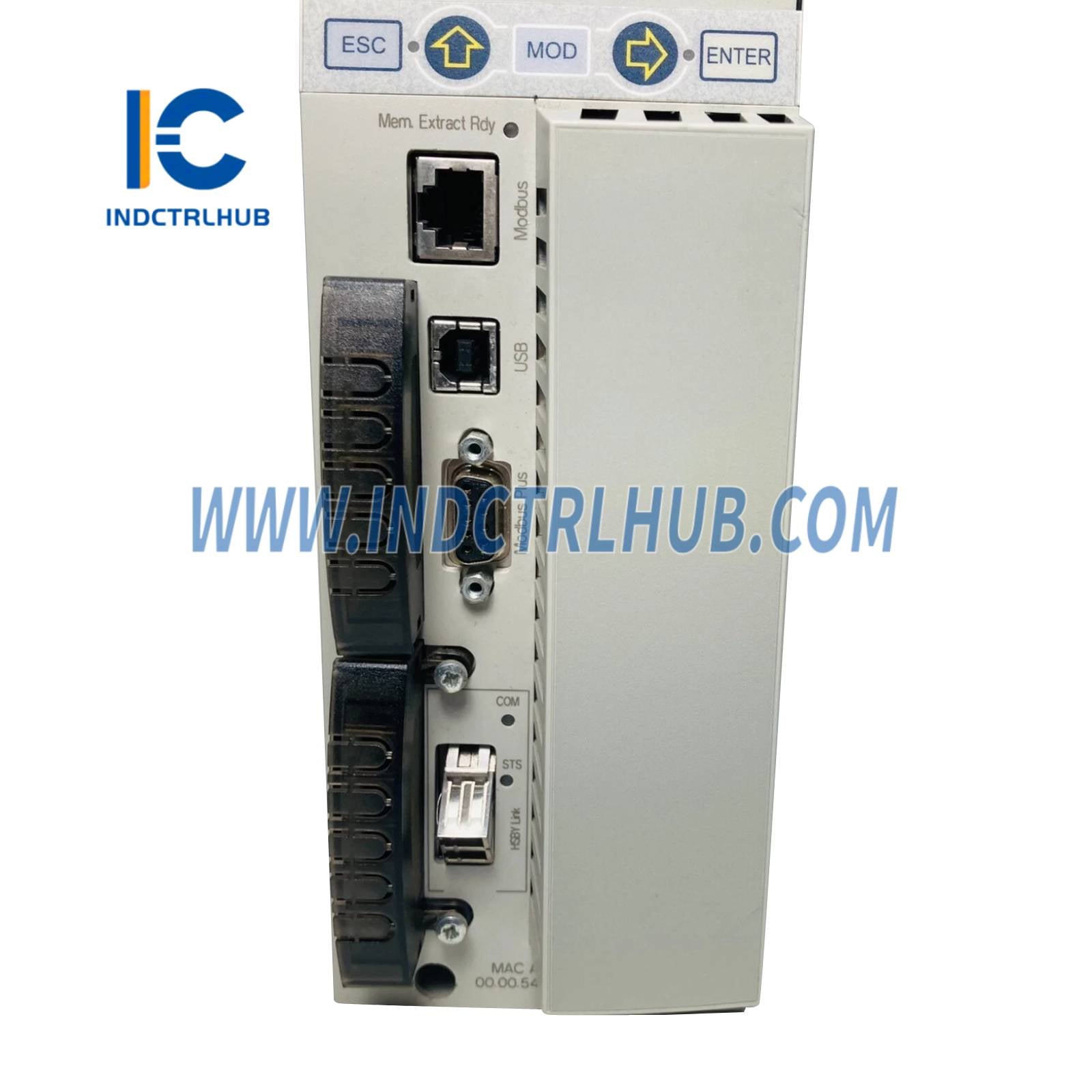

1 Modbus Plus, 1 Modbus, 1 USB, 1 fiber optic (Hot Standby, LC connector) |
|
Optional Modules |
6 (Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max) |
|
Max Connections |
USB (1), AS-Interface (2 distributed, 4 remote), Ethernet TCP/IP (6 local), Modbus Plus (6 local), Profibus DP (6 local), Modbus RS232/485 (1) |
|
Checks/Functions |
Hot Standby, Process Control |
|
Memory |
3072 kB internal RAM (1536 kB for data), expandable to 7168 kB program & 8 MB file storage |
|
Switch Function |
Key switch memory port on/off |
|
Application Structure |
1 cyclic/periodic master task; all other tasks (fast, I/O interrupt, etc.) forbidden in HSBY mode |
|
Instructions per ms |
10.28 Kinst/ms (Boolean), 10.07 Kinst/ms (65% Boolean, 35% numerical) |
|
System Overhead |
Fast task: 0.2 ms, Master task: 1 ms |
|
Bus Current Requirement |
2760 mA |
|
Local Signaling LEDs |
Ethernet Activity (green), Ethernet Collision (red) |
|
Electrical Connections |
SUB-D 9 (Modbus Plus), RJ45 (Modbus), LC (Single Mode fiber up to 16 km for HSBY link) |
Environmental & Certifications
|
Protective Treatment |
Not specified |
|---|---|
|
Certifications |

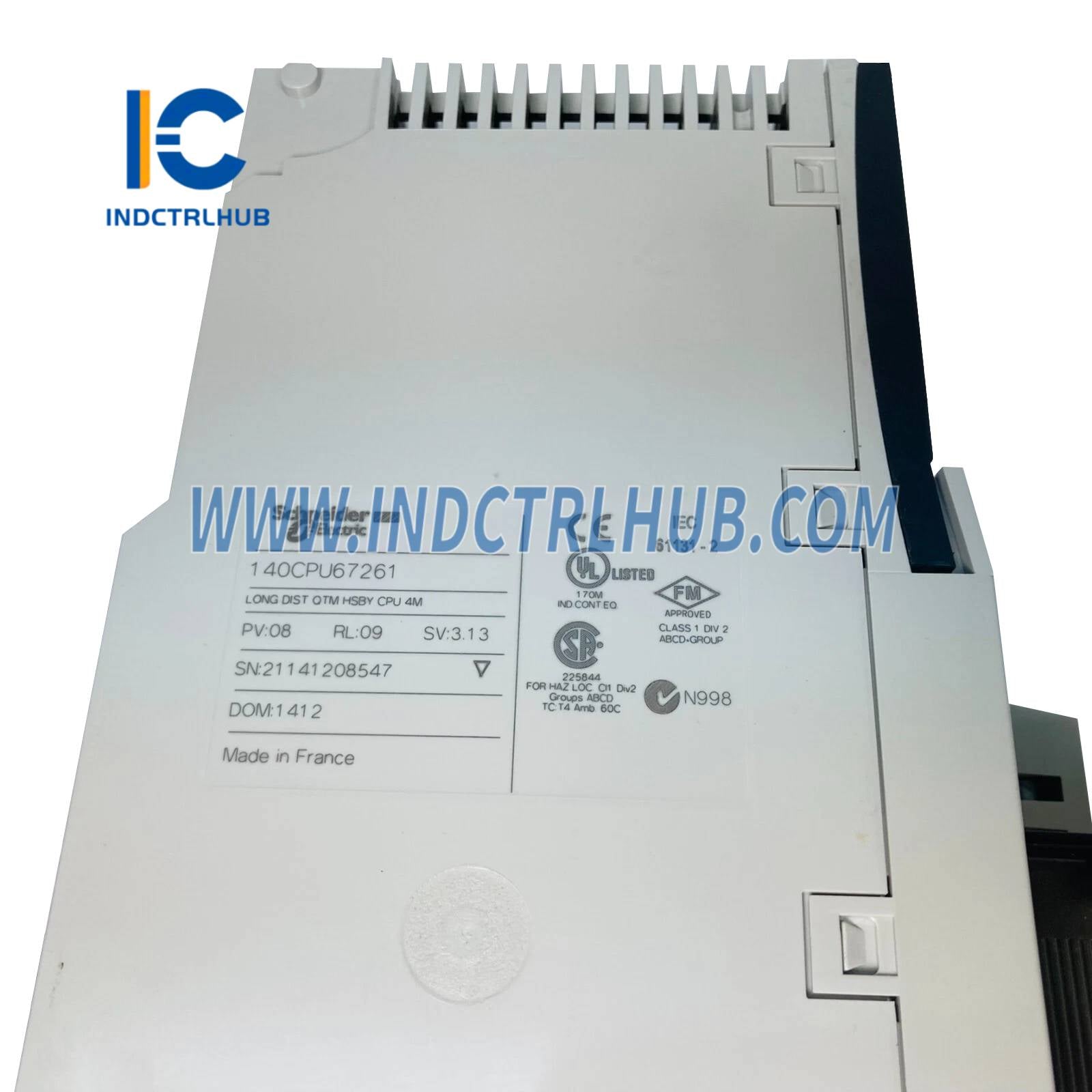

UL, CE, CSA, GOST, Marine, HazLoc |
Ordering & Packaging
|
Category |
18150-QUANTUM CONTROLLERS, HSBY, COMM. |
|---|---|
|
Discount Schedule |
PC21 |
|
GTIN |
3595864101002 |
|
Returnability |
No |
|
Country of Origin |
France (FR) |
|
Package Dimensions (HxWxL) |
11.0 cm x 19.0 cm x 32.5 cm |
|
Package Weight |
1.458 kg (3.214 lb) |
