Product Description
General Information
|
Field |
Details |
|---|---|
|
Manufacturer |
Schneider Electric |
|
Model/Part Number |
140CPU67160C |
|
Description |

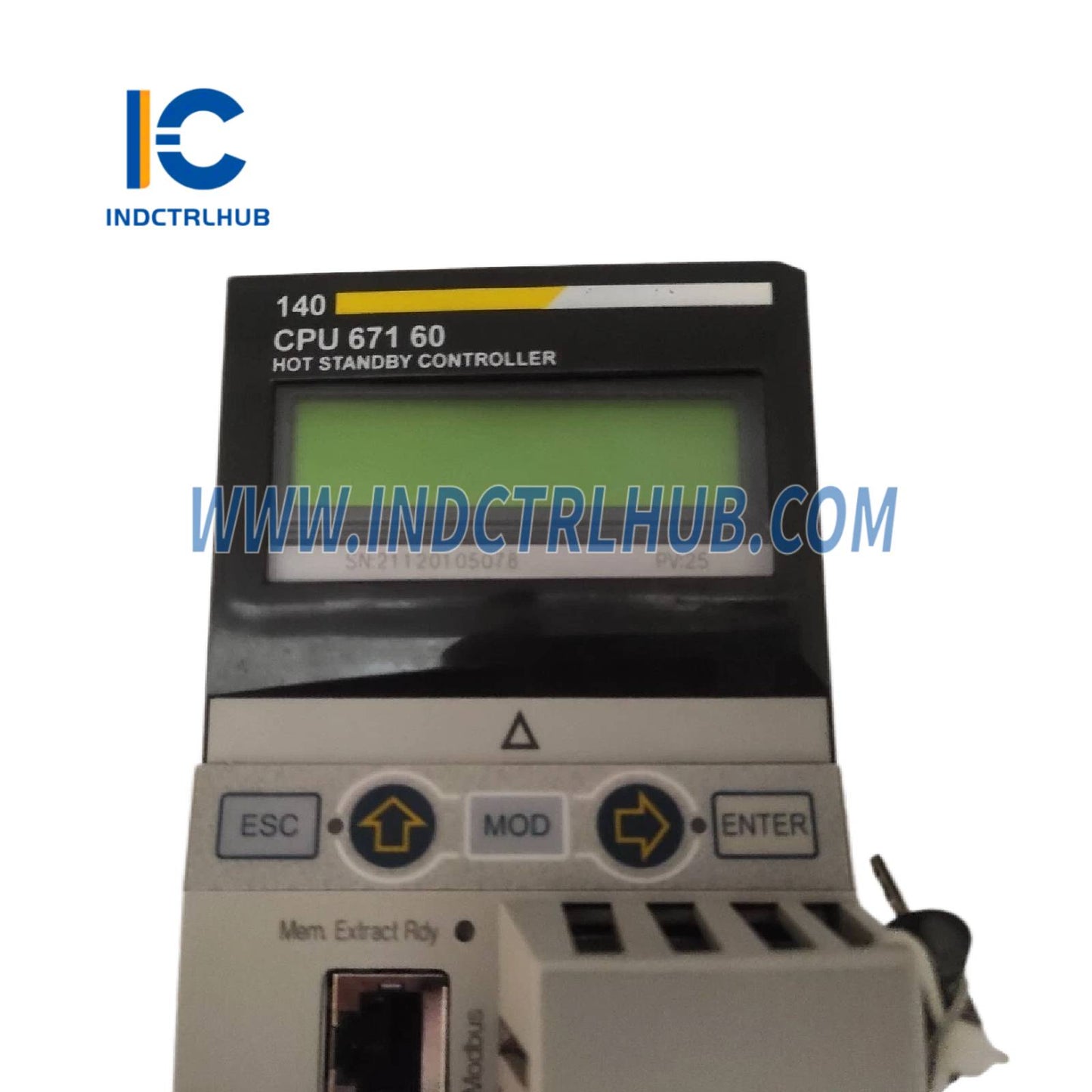

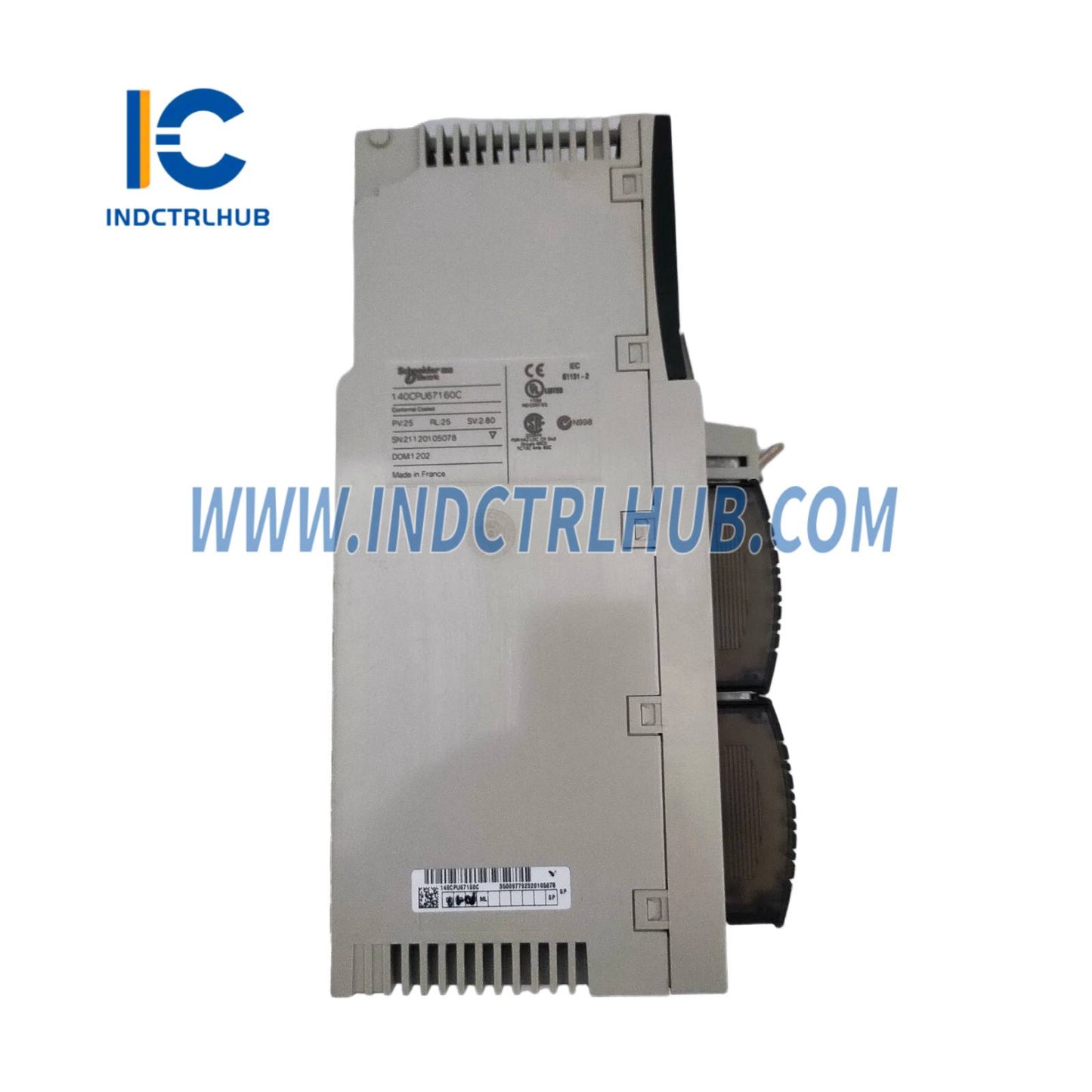

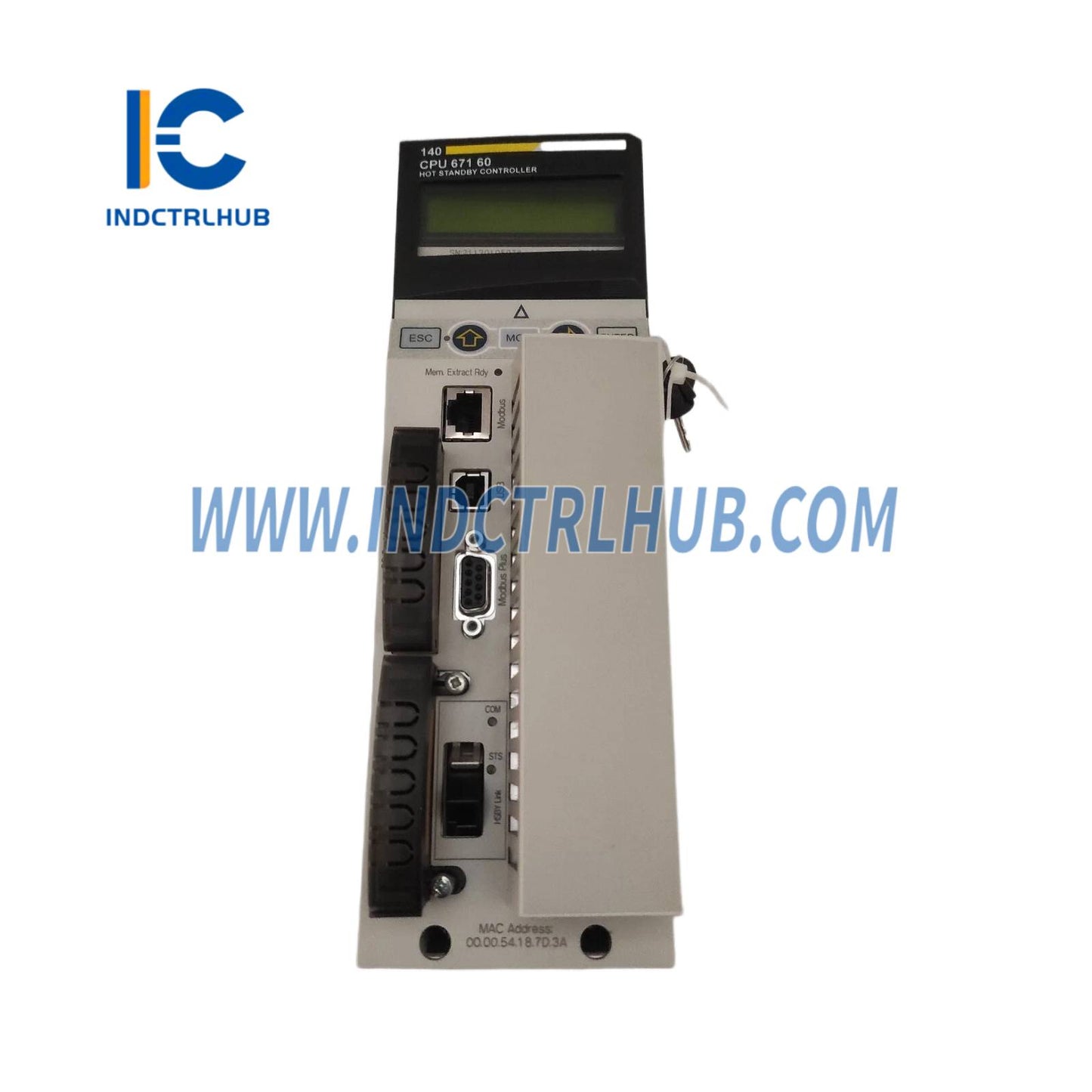

Unity Hot Standby processor with multimode Ethernet – 1024 kB – 266 MHz – coated |
|
Range of Product |
Modicon Quantum automation platform |
|
Product Type |
Unity Processor |
Technical Information
|
Parameter |
Specification |
|---|---|
|
Mode of Transmission |
Multimode Ethernet |
|
Clock Frequency |
266 MHz |
|
Internal RAM |
1024 kB (512 kB for data) |
|
Memory Expansion |
7168 kB (Program), 8 MB (File storage) via PCMCIA card |
|
Number of Slots |
16, 10, 4, 2, 6 (configurable combinations) |
|
Number of Racks (Local) |
2 |
|
Distributed I/O Stations |
63 (1 to 3 Modbus Plus) |
|
Remote I/O Stations |
- 31 (S908) - 31 (Ethernet Quantum) - 16 (Ethernet X80) |
|
Discrete I/O Capacity |
- 31744 Inputs/Outputs (Remote) - 8000 Inputs/Outputs (Modbus Plus) |
|
Analog I/O Capacity |
- 500 Inputs/Outputs (Modbus Plus) - 1984 Inputs/Outputs (Remote) |
|
Ethernet Remote I/O |
Unlimited (31 drops × 28 slots max) |
|
Application-Specific I/O |
Counter, Serial Link, High-Speed Interrupts, Time Stamping |
|
Optional Communication Modules |
Up to 6 (Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max) |
|
Max Number of Connections |
- 1 USB - 2 AS-Interface (Distributed) - 4 AS-Interface (Remote) - 6 each: Ethernet TCP/IP, Modbus Plus, Profibus DP - 1 Modbus RS232/485 |
|
Integrated Connection Types |
Modbus Plus, Modbus (RJ45), USB, Multimode Fiber Optic |
|
Checks Supported |
Hot Standby, Process Control |
|
Application Structure |
- 1 Cyclic/Periodic Master Task - Other interrupt tasks forbidden in Hot Standby |
|
Instruction Speed |
- 10.28 Kinst/ms (Boolean) - 10.07 Kinst/ms (Mixed Boolean/Numeric) |
|
System Overhead |
0.2 ms (Fast Task), 1 ms (Master Task) |
|
Bus Current Requirement |
2500 mA |
|
Local Signaling |
- 1 Green LED (Ethernet COM) - 1 Red LED (Ethernet Collision) |
|
Switch Function |
Key switch memory port On/Off |
Electrical & Environmental Information
|
Field |
Specification |
|---|---|
|
Protective Treatment |

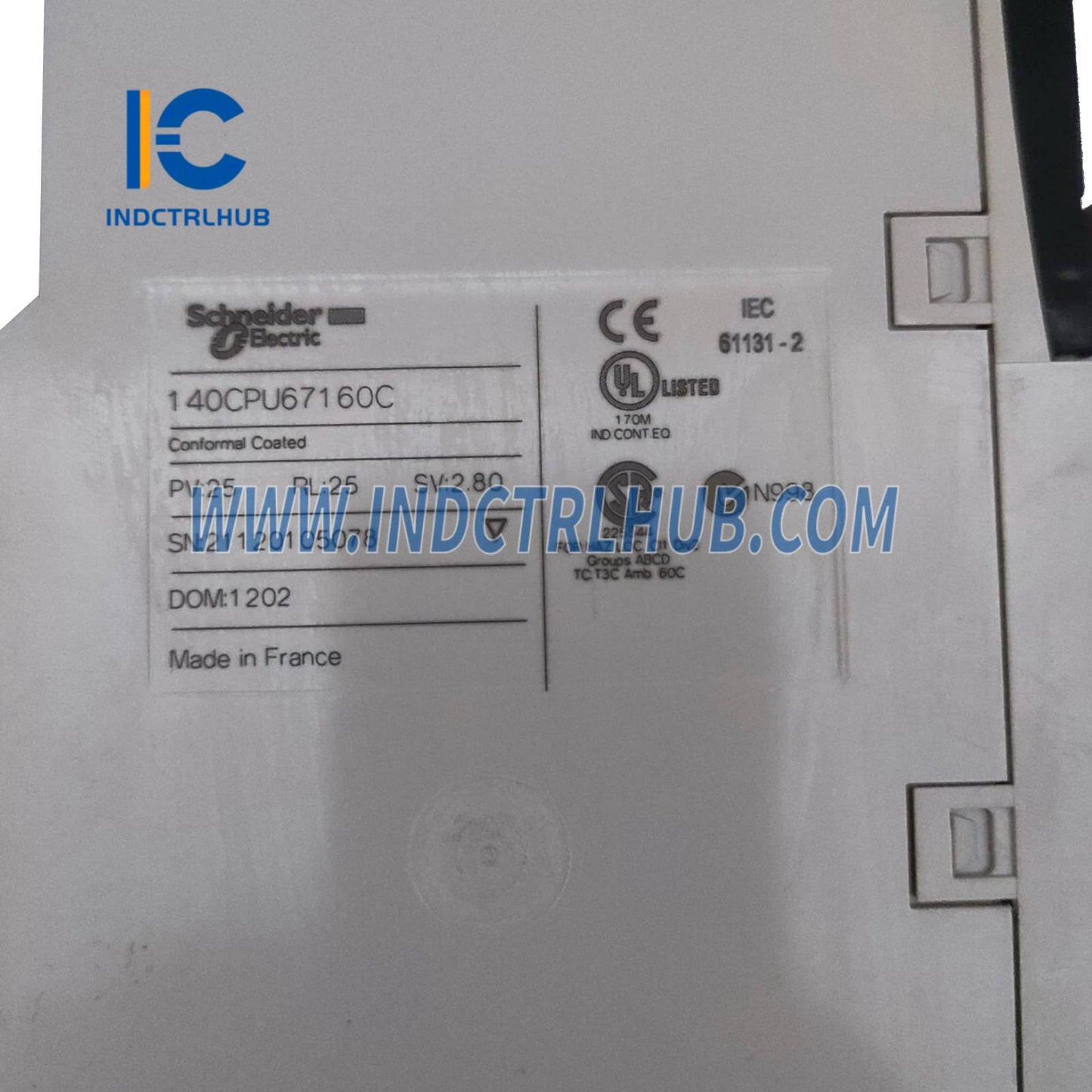

Conformal coating (Humiseal 1A33) |
|
Electrical Connection |
- SUB-D 9 Modbus Plus - RJ45 Modbus - MT-RJ Fiber Optic |
|
Certifications |
IEC-Ex, CE, Marine (Misc), CSA, UL, ATEX Zone 2, GOST |
|
Standards Compliance |
HazLoc |
Ordering & Shipping Information
|
Field |
Specification |
|---|---|
|
Category |
US1PC2118150 |
|
Discount Schedule |
PC21 |
|
GTIN |
3595863839852 |
|
Returnability |
No |
|
Country of Origin |
France (FR) |
|
Package 1 (PCE) |
1 unit Size: 32.5×19×11 cm Weight: 1.412 kg |
|
Unit Type of Package 2 (S04) |
Not specified (implied bulk packaging) |
