Product Description
General Information
|
Field |
Detail |
|---|---|
|
Manufacturer |
Schneider Electric |
|
Model/Part Number |

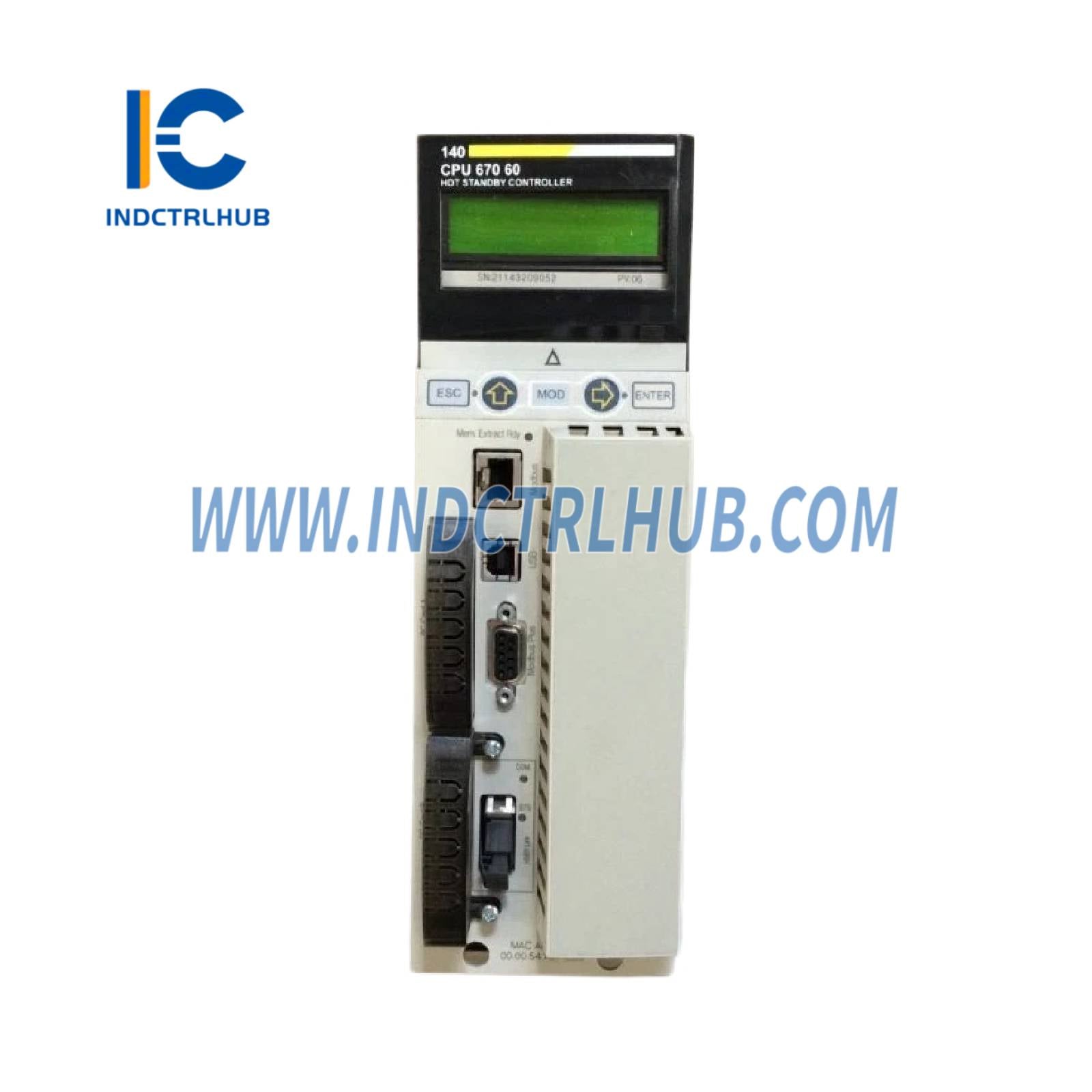

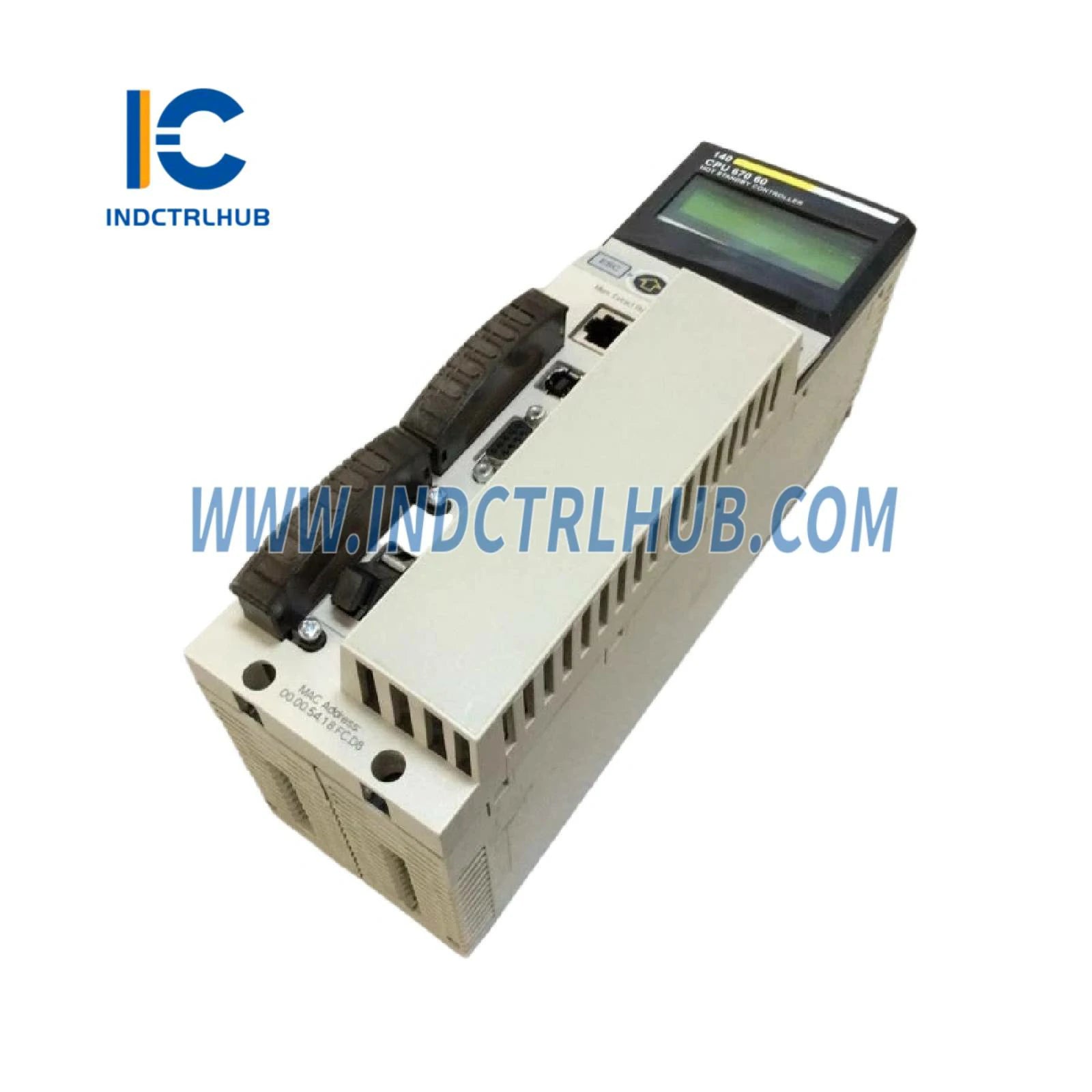

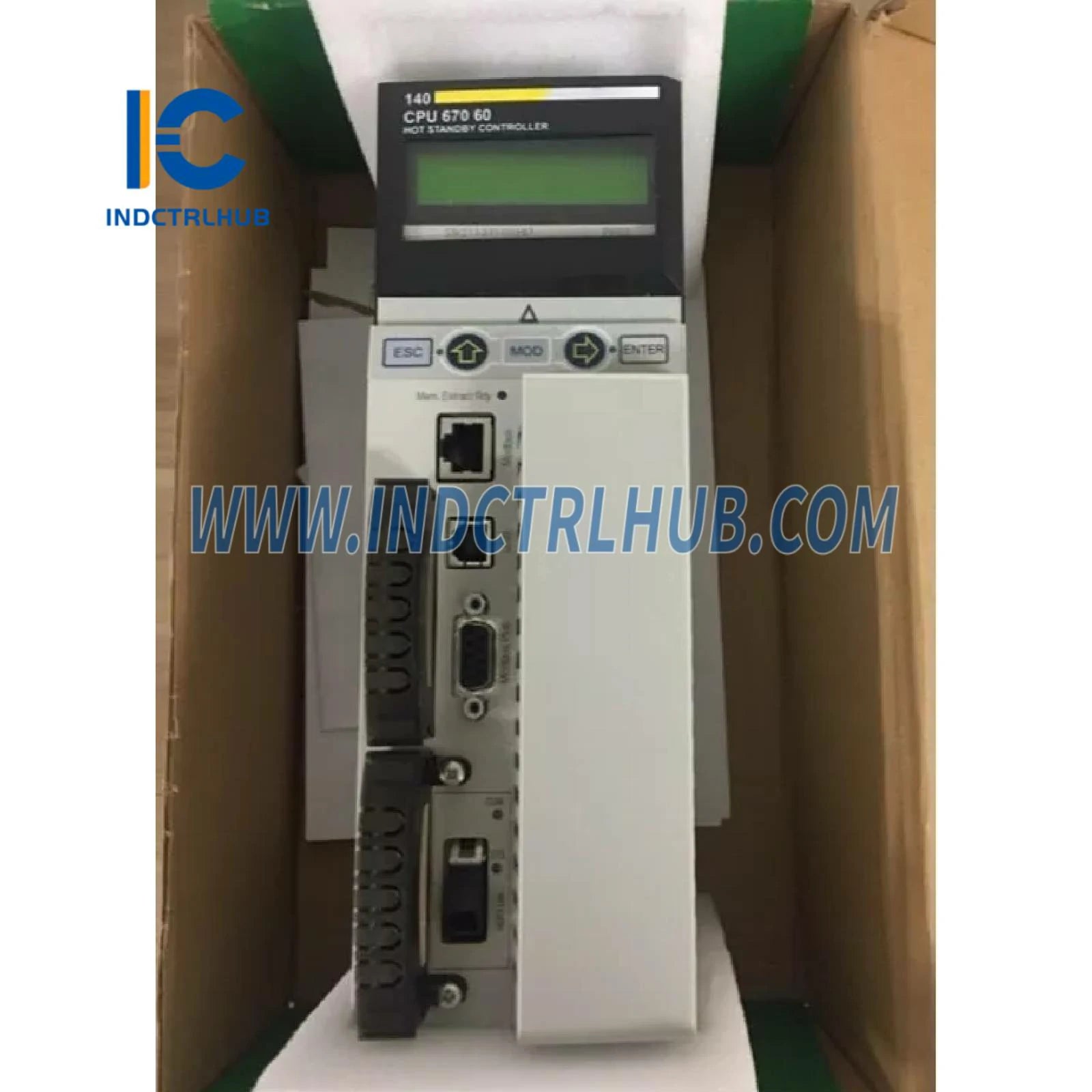

140CPU67060 |
|
Description |
Unity Hot Standby processor with multimode Ethernet - 512 kB - 266 MHz |
|
Range of Product |
Modicon Quantum automation platform |
|
Product Type |
Unity processor |
Specifications
Processor & Memory
|
Specification |
Detail |
|---|---|
|
Clock Frequency |
266 MHz |
|
Internal RAM |
512 kB |
|
Expandable Program Memory |
7168 kB (via PCMCIA card) |
|
Expandable File Storage |
8 MB (via PCMCIA card) |
I/O Capacity
|
Specification |
Detail |
|---|---|
|
Discrete I/O |
8000 inputs / 8000 outputs (Modbus Plus, distributed) |
|
Up to 6 drops (Ethernet X80) |
|
|
Local: Not allowed in Hot Standby application |
|
|
Analog I/O |
500 inputs / 500 outputs (Modbus Plus, distributed) |
|
Up to 6 drops (Ethernet X80) |
|
|
Local: Not allowed in Hot Standby application |
I/O Stations & Slots
|
Specification |
Detail |
|---|---|
|
Number of Slots |
2, 4, 6, 10, 16 |
|
Number of Racks |
2 Local |
|
Distributed I/O Stations |
63 Modbus Plus |
|
Remote I/O Stations |
6 Ethernet X80 |
|
S908 Remote I/O |
Not configurable (0) |
Application Specific I/O & Features
|
Feature |
Available |
|---|---|
|
Serial Link |
Yes |
|
Counter |
Yes |
|
Accurate Time Stamping |
Yes |
|
High-Speed Interrupt Inputs |
Yes |
|
Checks |
Hot Standby, Process Control |
Application Structure
|
Task Type |
Availability |
|---|---|
|
Cyclic/Periodic Master Task |
Available |
|
Periodic Fast Task |
Forbidden in Hot Standby |
|
I/O Interrupt Tasks |
Forbidden in Hot Standby |
|
Interrupt Tasks |
Forbidden in Hot Standby |
|
Timer Interrupt Tasks |
Forbidden in Hot Standby |
|
Auxiliary Tasks |
Forbidden in Hot Standby |
Performance
|
Specification |
Detail |
|---|---|
|
Instructions per ms |
10.28 Kinst/ms (100% Boolean)10.07 Kinst/ms (65% Boolean, 35% Numerical) |
|
System Overhead |
0.2 ms (Fast Task), 1 ms (Master Task) |
|
Bus Current Requirement |
2500 mA |
Communication & Networking
|
Specification |
Detail |
|---|---|
|
Integrated Connections |
1 Modbus Plus1 Modbus (RS232/485)1 USB1 Multimode Fibre (Hot Standby) |
|
Max Connections |
1 USB2 AS-Interface (Distributed)4 AS-Interface (Remote)3 Ethernet TCP/IP (Local)3 Modbus Plus (Local)3 Profibus DP (Local) |
|
Communication Service |
Ethernet Router |
|
Optional Modules |
3 max (Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max) |
Local Signaling
|
Indicator |
Description |
|---|---|
|
Ethernet Activity |
1 LED (Green) |
|
Ethernet Collision |
1 LED (Red) |
Electrical Connection
|
Connection Type |
Description |
|---|---|
|
Modbus Plus |
1 female connector (SUB-D 9) |
|
Modbus |
1 RJ45 connector |
|
Hot Standby |
1 MT-RJ multimode fiber connector (up to 4 km) |
Environmental & Compliance
|
Specification |
Detail |
|---|---|
|

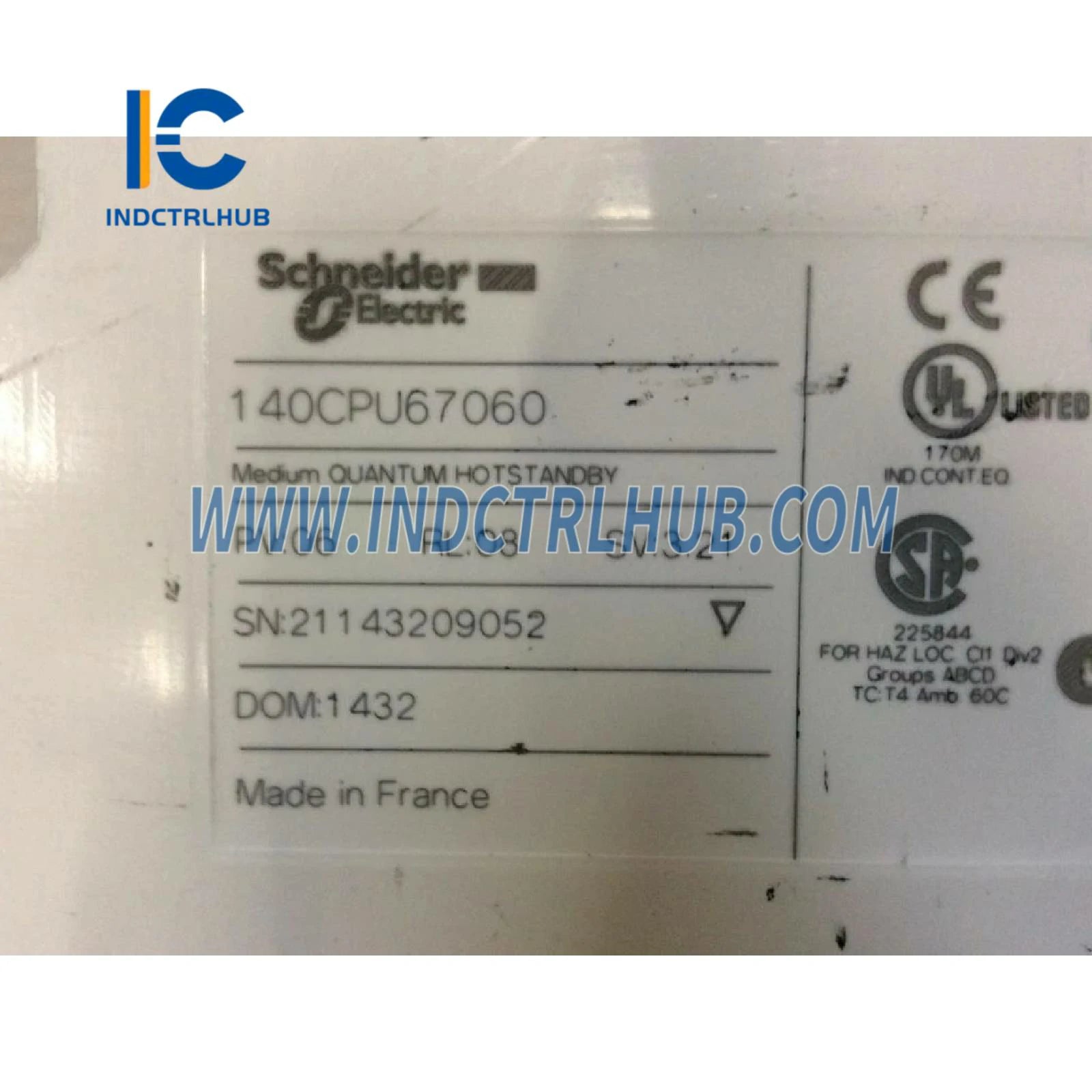

Certifications |
GOST, CE, Marine (Misc), CSA, UL |
|
Standards |
HazLoc |
Ordering & Shipping
|
Specification |
Detail |
|---|---|
|
Category |
US1PC2118150 |
|
Discount Schedule |
PC21 |
|
GTIN |
3595864155401 |
|
Returnability |
No |
|
Country of Origin |
France (FR) |
Package 1
|
Attribute |
Detail |
|---|---|
|
Type |
PCE |
|
Quantity |
1 unit |
|
Dimensions |
11.0 × 18.5 × 32.5 cm |
|
Weight |
1.459 kg |
Package 2
|
Attribute |
Detail |
|---|---|
|
Type |
S04 |
|
Quantity |
6 units |
|
Dimensions |
30.0 × 40.0 × 60.0 cm |
|
Weight |
9.0 kg |
