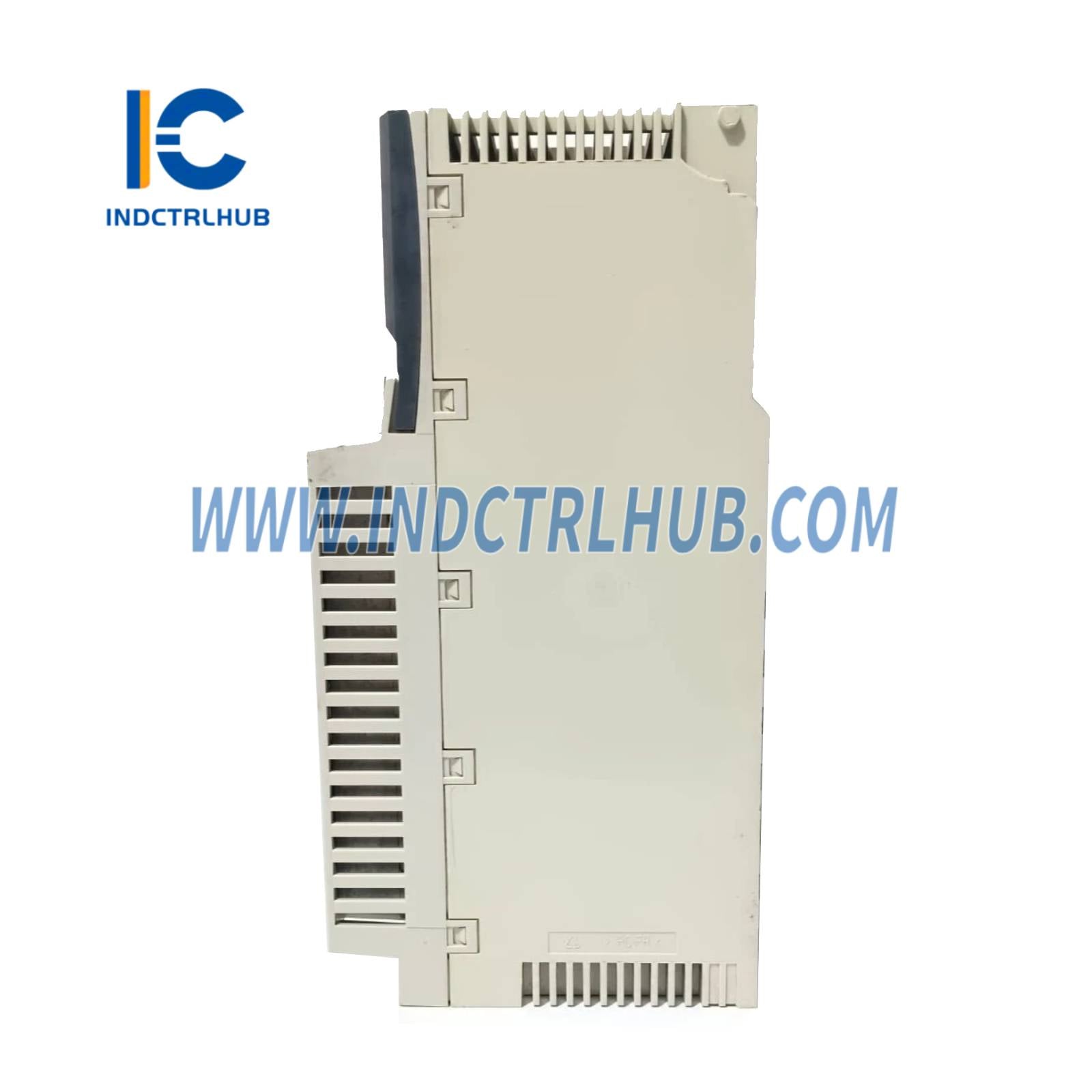

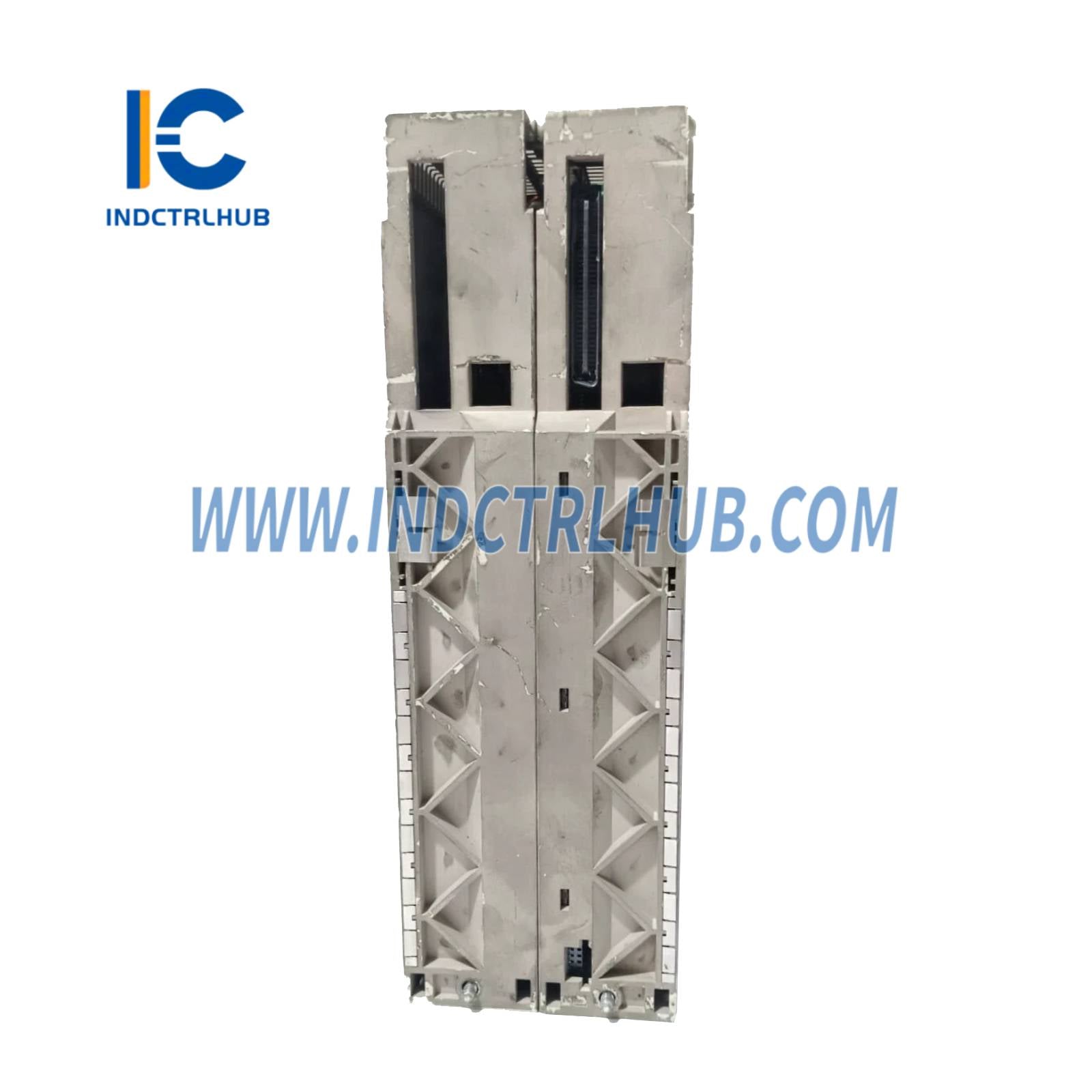

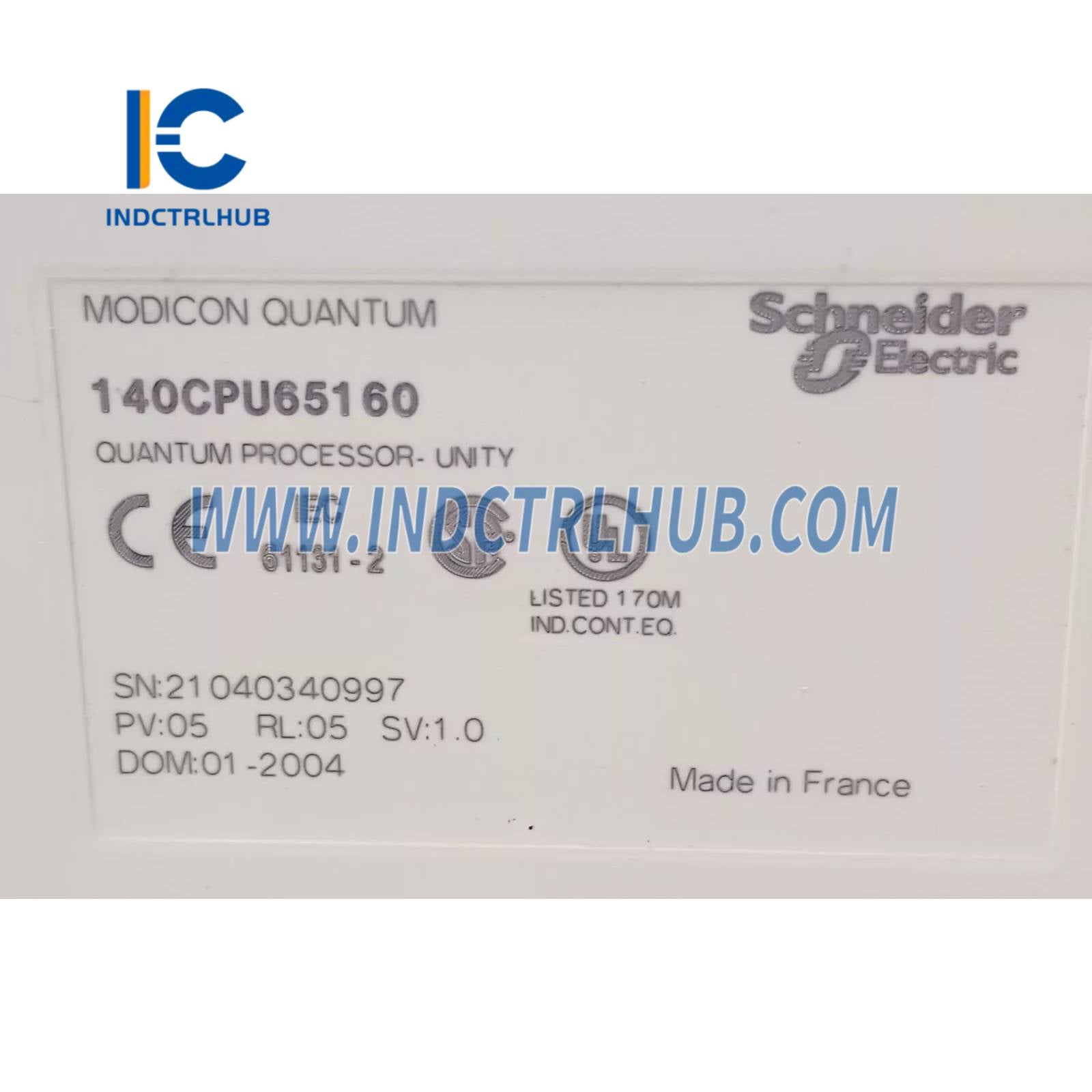

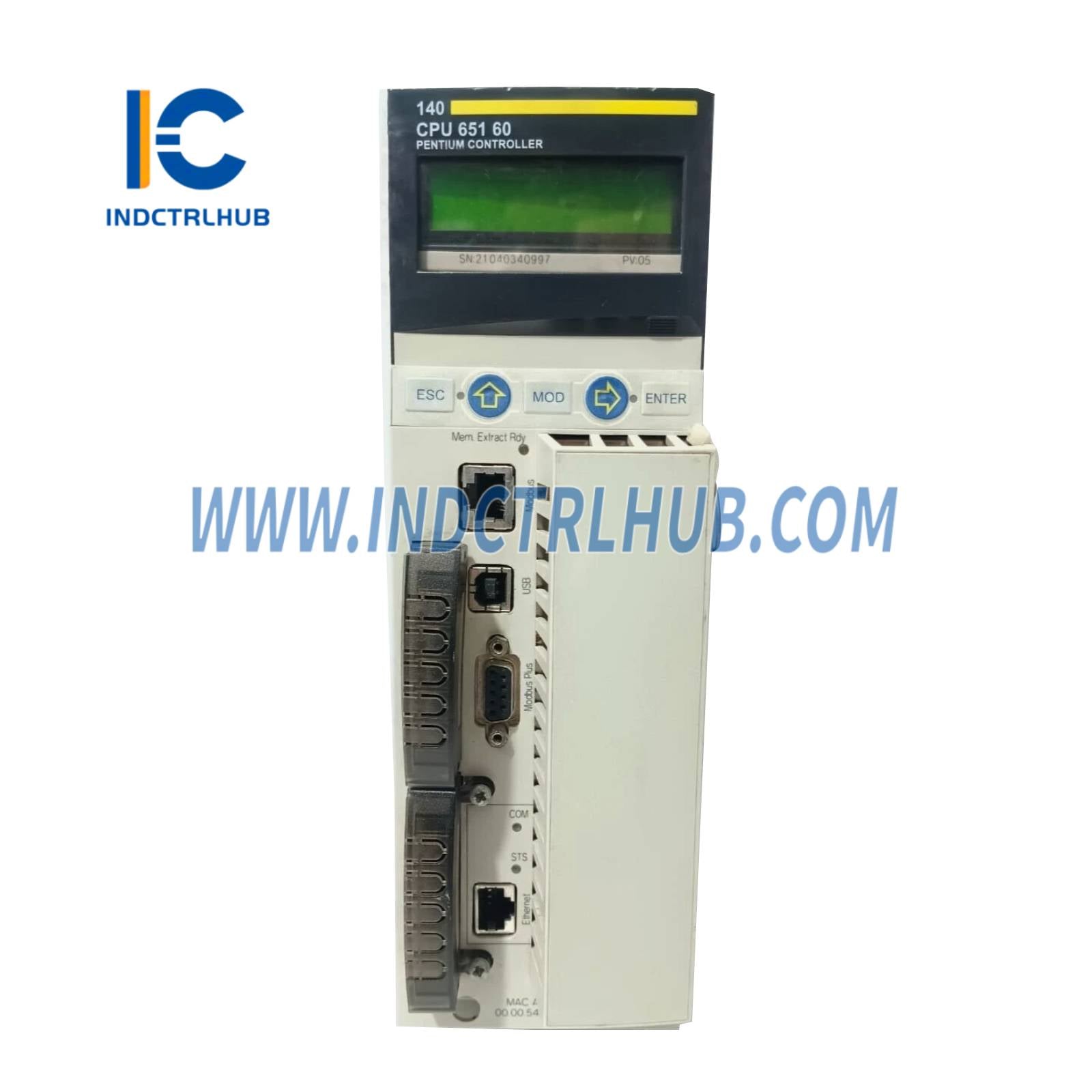

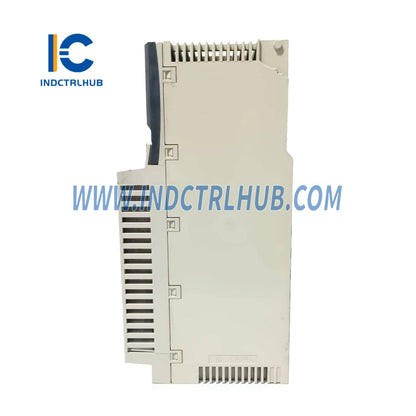

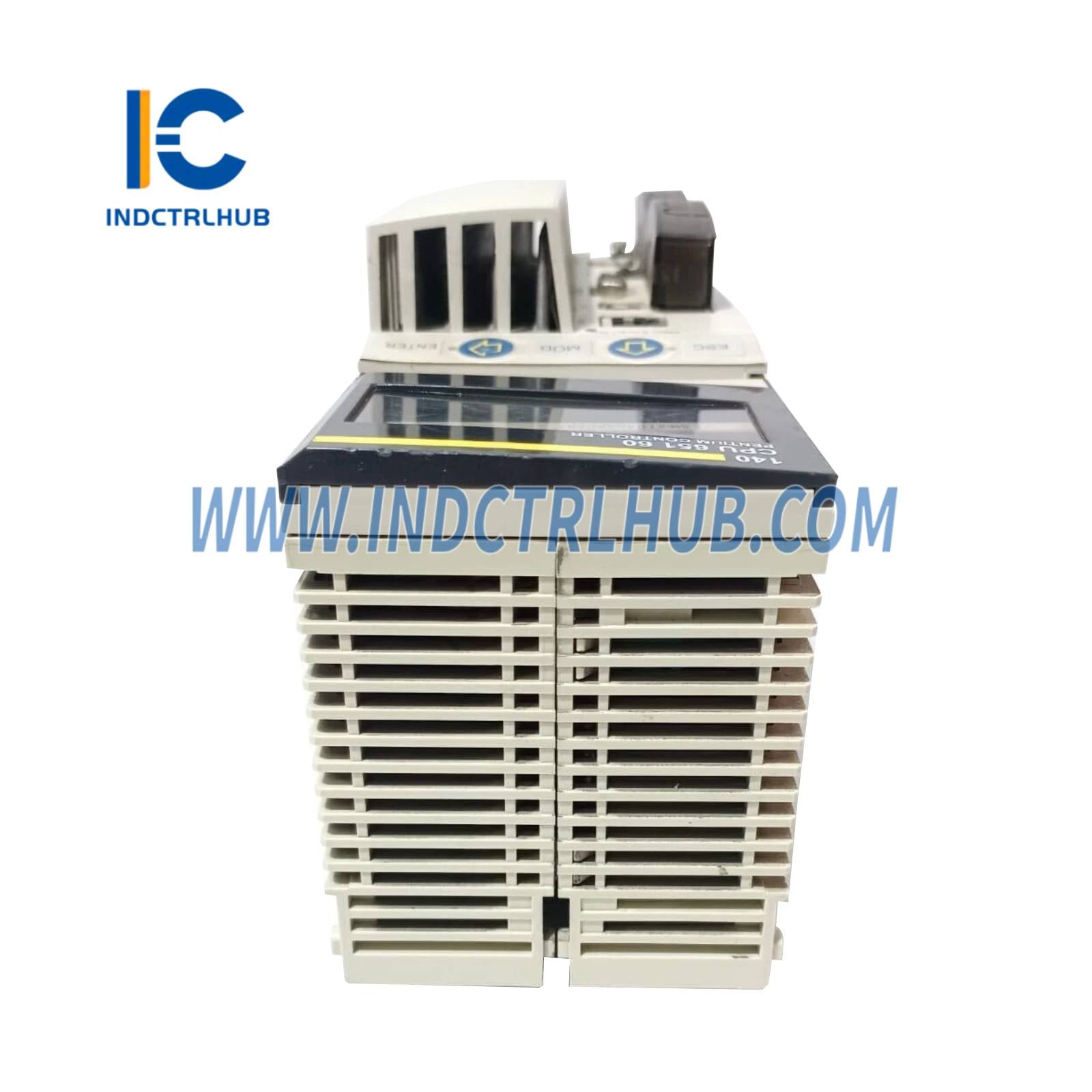

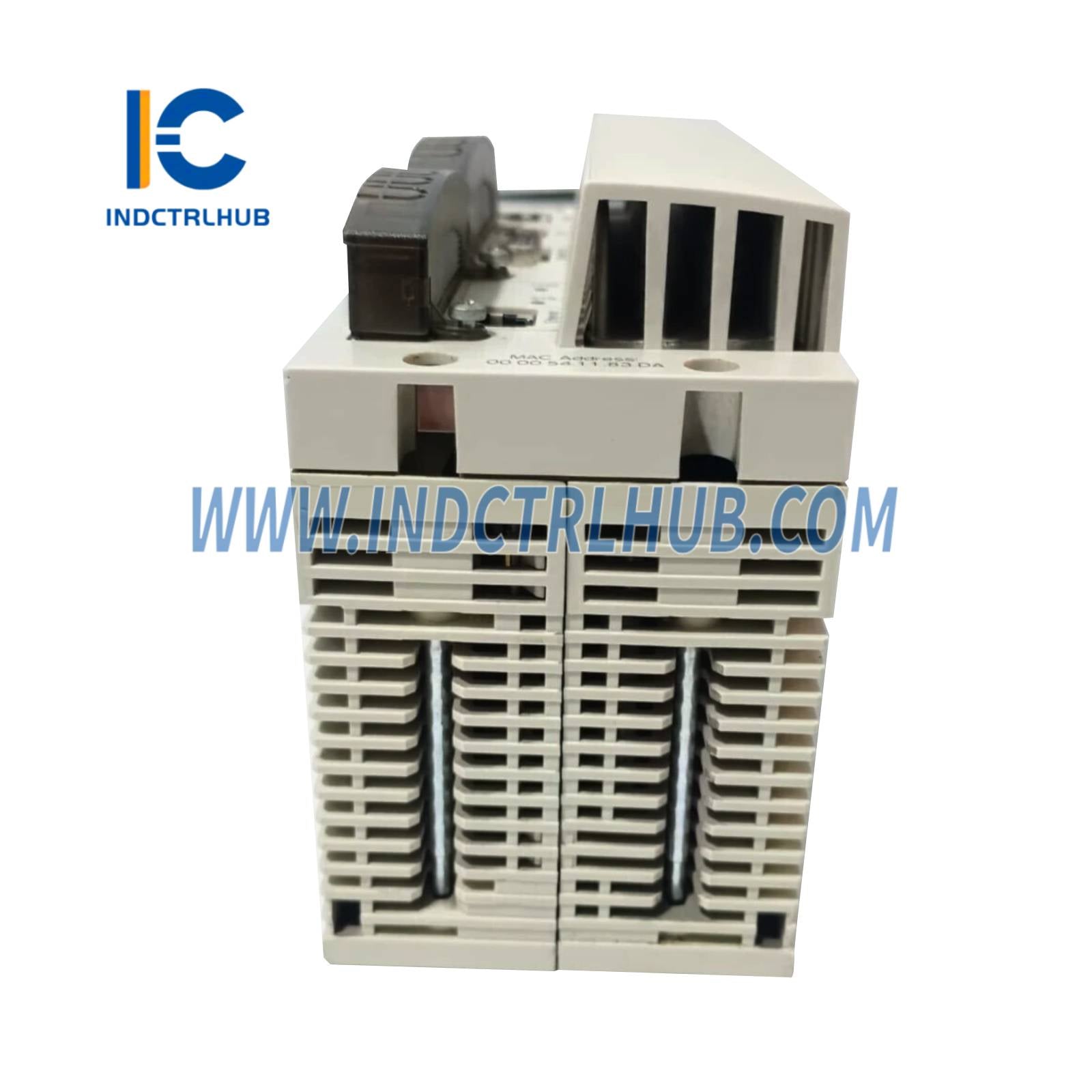

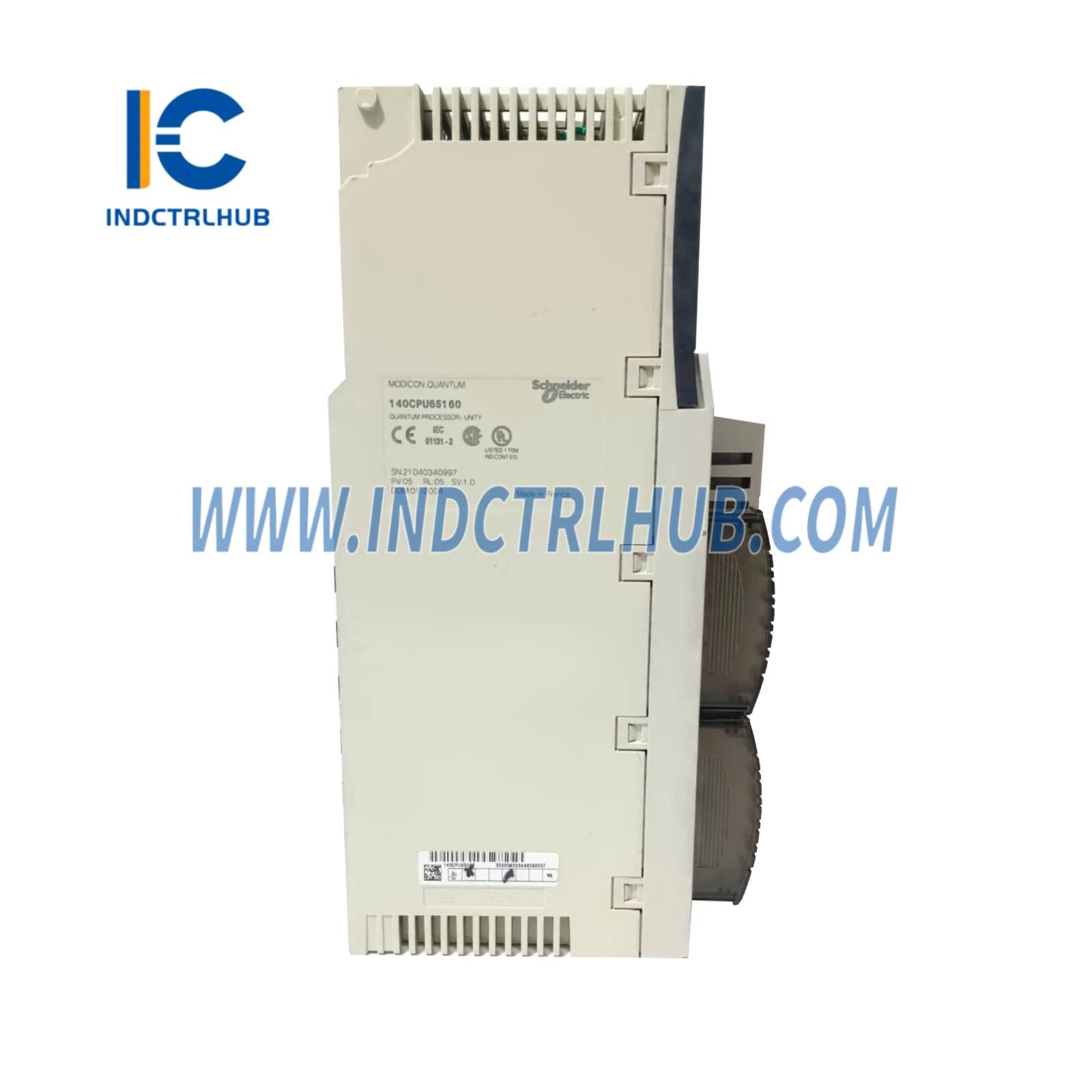

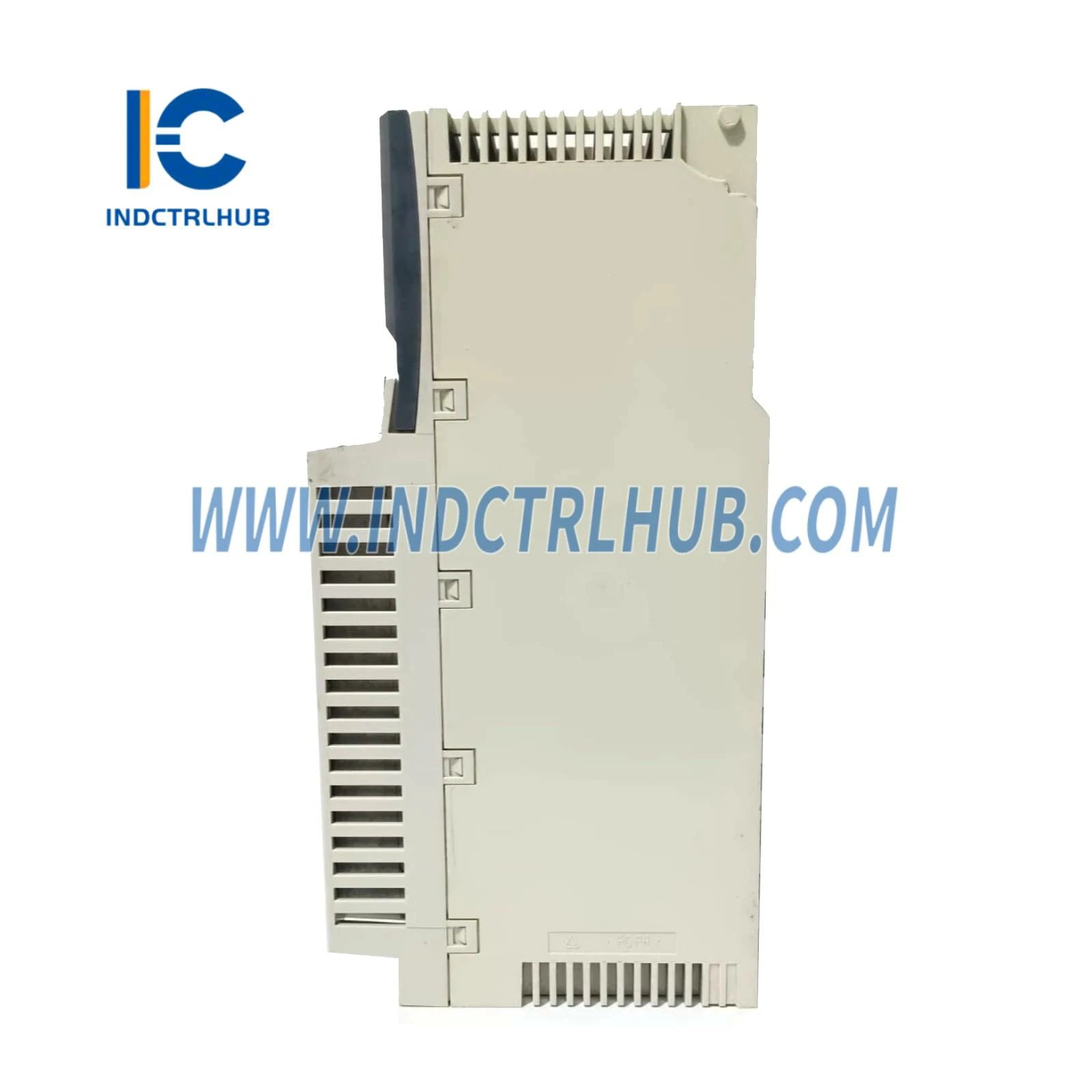

Schneider 140CPU65160 Unity processor, Modicon Quantum platform

Manufacturer

Schneider Electric

Model/Part Number

140CPU65160

Description

Unity processor, Modicon Quantum platform, Modbus Plus, 1024 kB RAM, 266 MHz

Platform

Modicon Quantum

Processor Type

Unity Processor

Clock Frequency

266 MHz

Internal RAM

1024 kB

Expandable Program Memory (via PCMCIA)

Up to 7168 kB

Expandable File Storage (via PCMCIA)

Up to 8 MB

Instructions per ms

10.28 Kinst/ms (100% Boolean)

10.07 Kinst/ms (65% Boolean, 35% Numeric)

System Overhead

0.2 ms (fast task), 1 ms (master task)

Local I/O Capacity

Unlimited (up to 26 slots)

Remote I/O Stations

31 (2 racks each via S908 or Ethernet Quantum/X80)

Distributed I/O Stations

63 (1 rack each on up to 3 Modbus Plus networks)

Discrete I/O Capacity

- 31744 inputs & outputs (remote)- 8000 inputs & outputs (distributed per Modbus Plus)

Analog I/O Capacity

- 1984 inputs & outputs (S908 remote)- 500 inputs & outputs (distributed per Modbus Plus)

Application-Specific I/O

Accurate time stamping, high-speed interrupts, counters, serial link

1 Modbus Plus

SUB-D 9 female connector

1 Ethernet TCP/IP

RJ45

1 Modbus RS232/485

RJ45

1 USB

USB port

Max Connections

Varies by protocol:- 6 Ethernet TCP/IP (local)- 6 Modbus Plus (local)- 6 Profibus DP (local)- 2 AS-Interface (distributed)- 4 AS-Interface (remote)- 1 Modbus (RS232/485)

Cyclic/Periodic Master Task

1

Periodic Fast Task

1

I/O Interrupt Tasks

128

General Interrupt Tasks

128

Timer Interrupt Tasks

32

Auxiliary Tasks

4

1 Green LED

Ethernet Activity (COM)

1 Red LED

Ethernet Collision

Standards

HazLoc

Unit Type

PCE

Number of Units

1

Package Height

11.0 cm

Package Width

18.5 cm

Package Length

32.5 cm

Package Weight

1.46 kg
