Product Description
🧾
Product Overview
|
Attribute |
Details |
|---|---|
|
Manufacturer |
Schneider Electric |
|
Model/Part Number |
140CPS52400 |
|
Description |

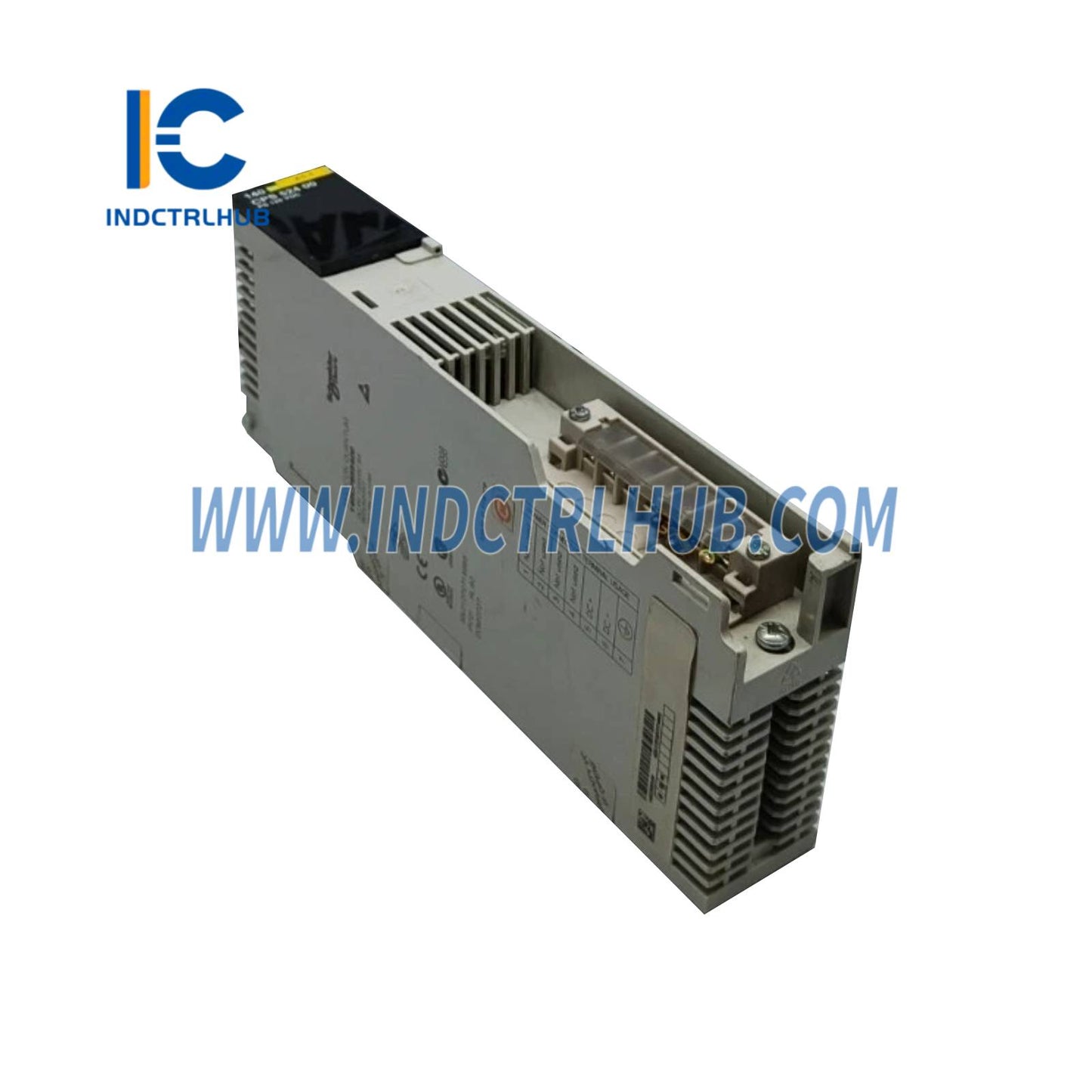

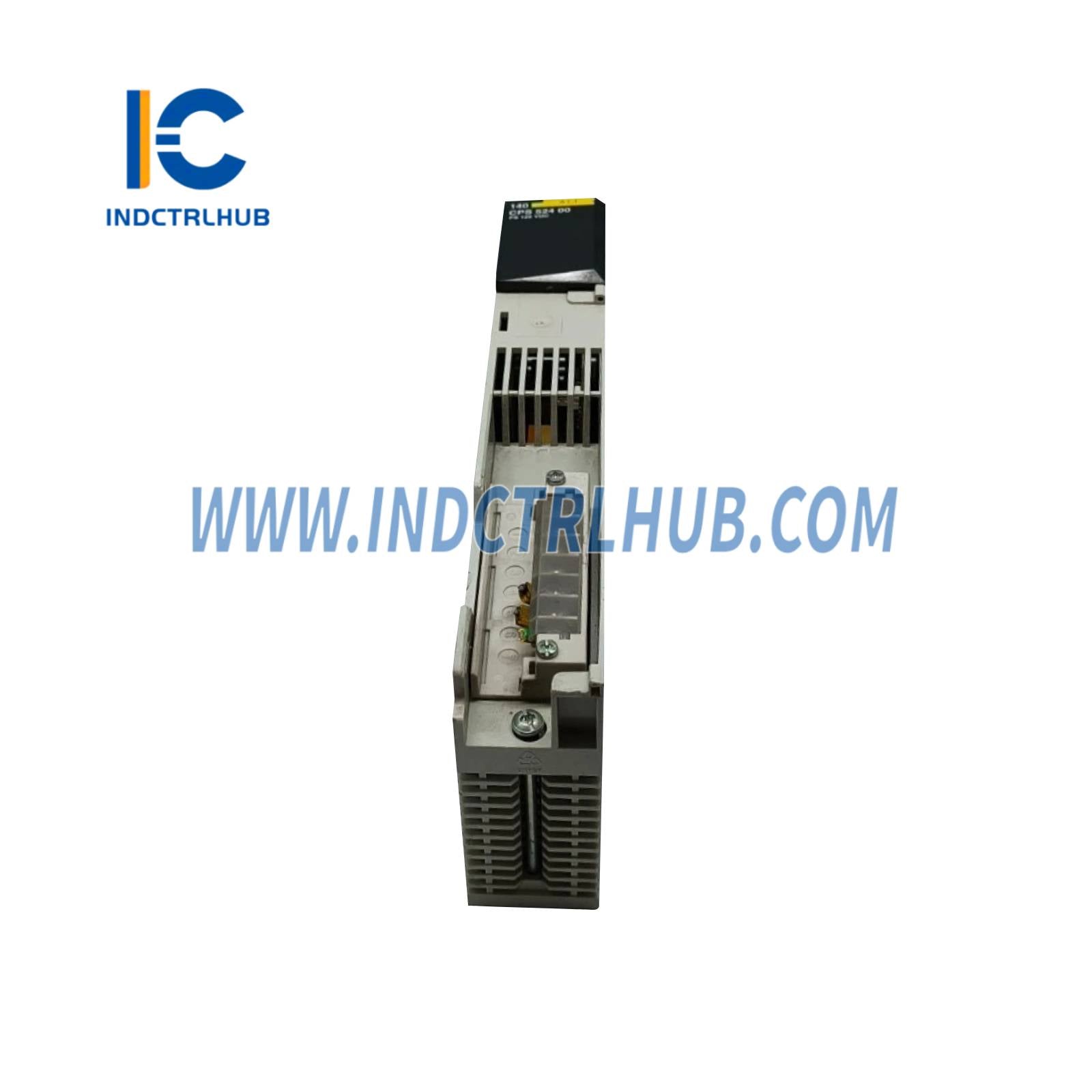

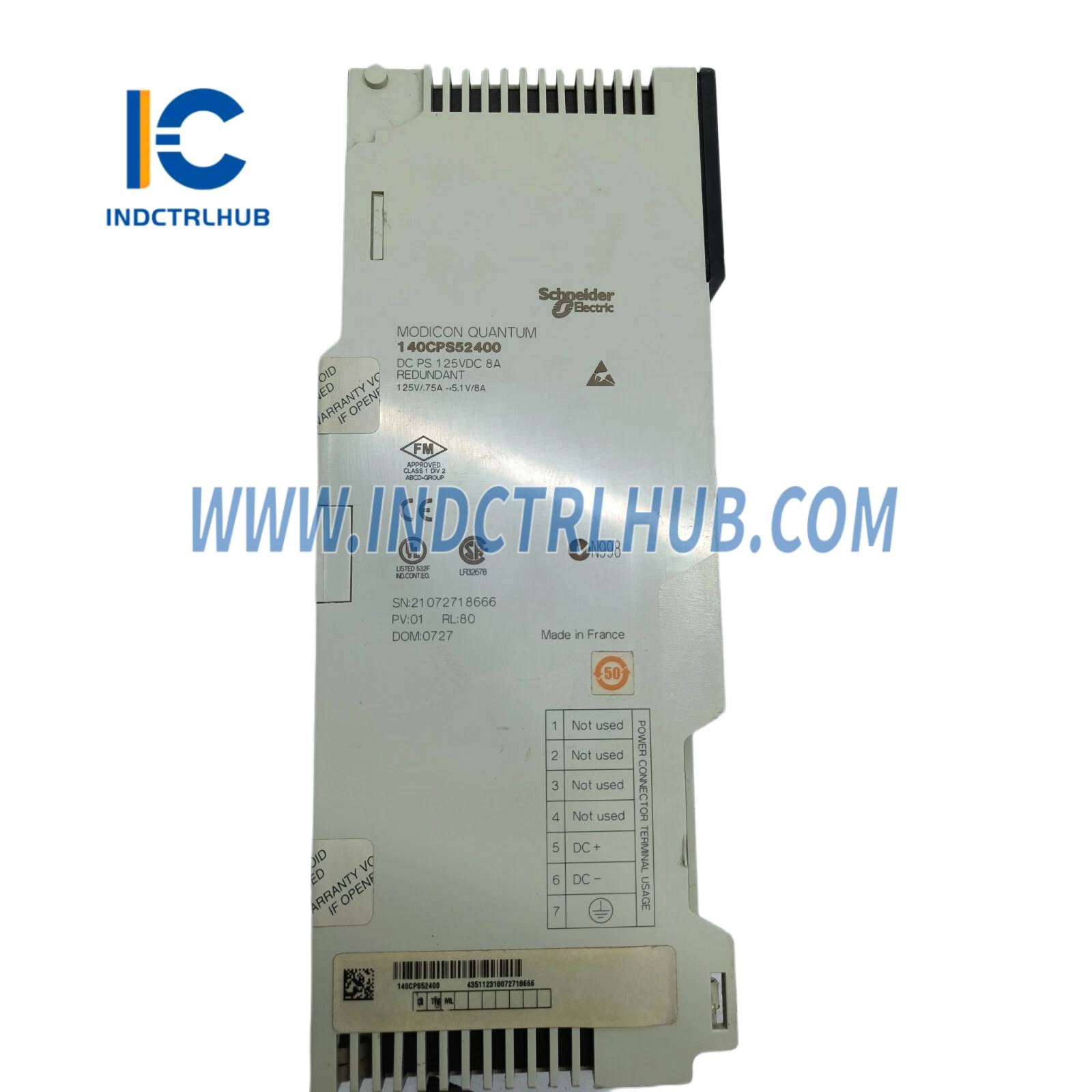

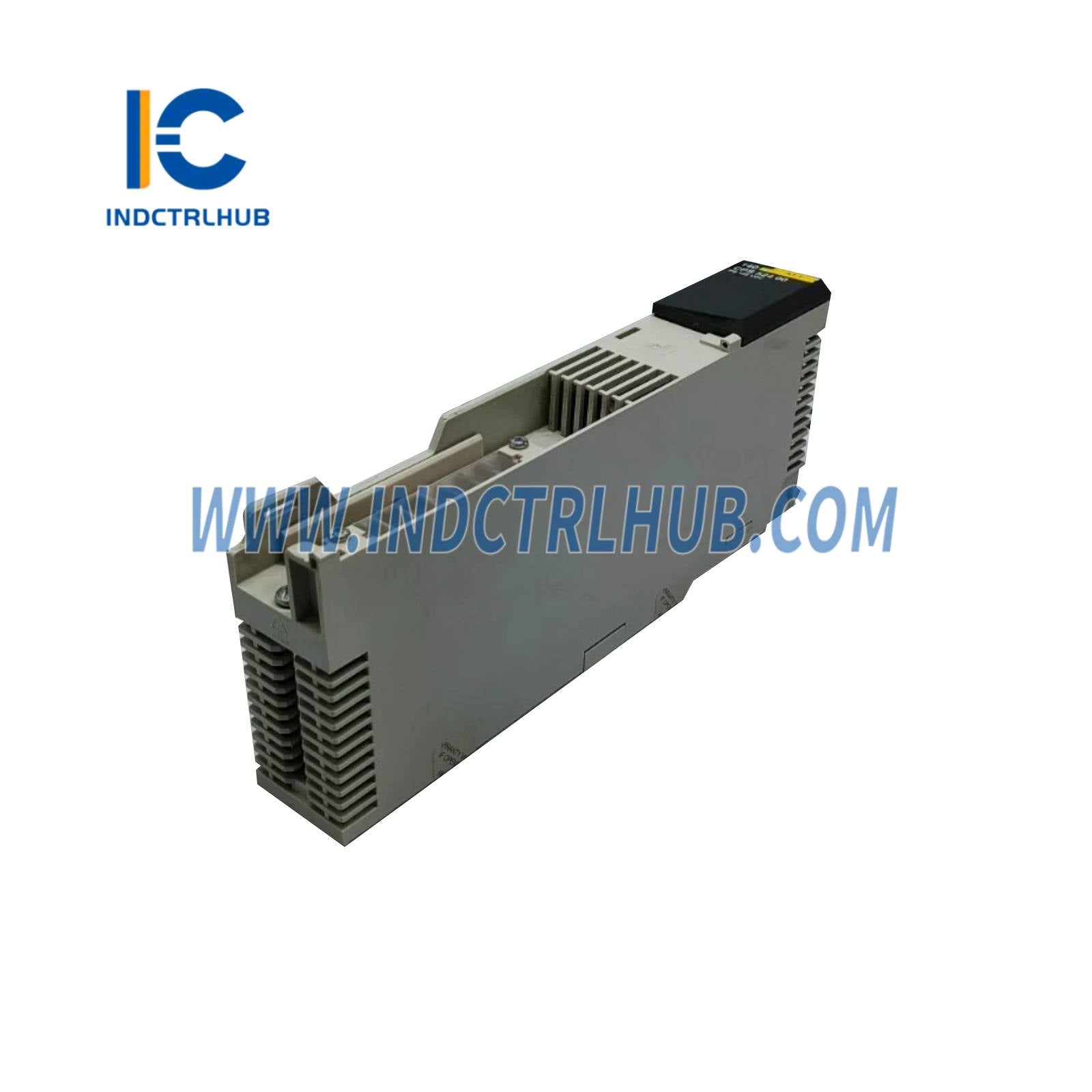

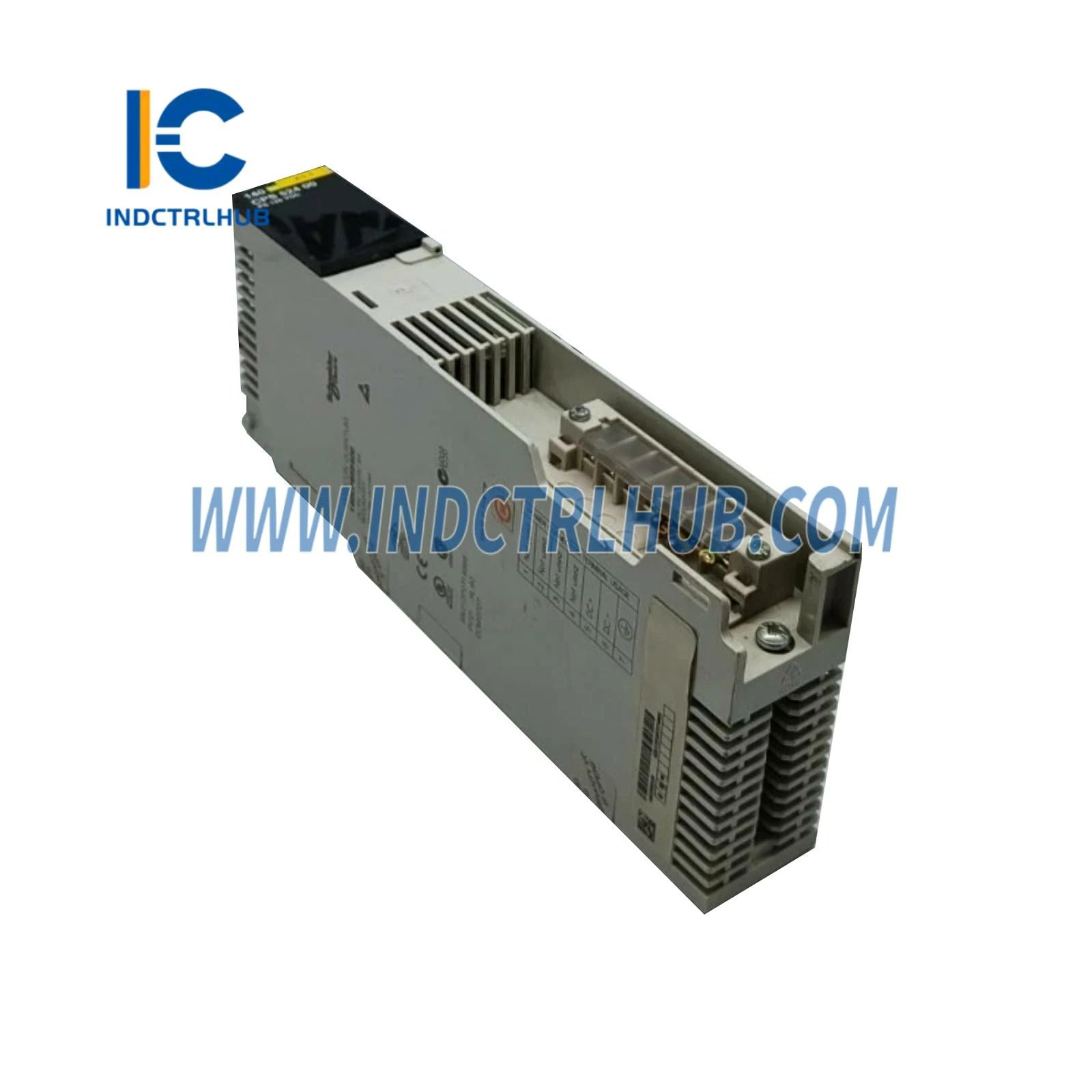

Power Supply Module Modicon Quantum – 125 V DC (100…150 V) – Redundant – 8 A |
🔌
Technical Specifications
|
Attribute |
Details |
|---|---|
|
Product Type |
Power Supply Module |
|
Power Supply Type |
Redundant |
|
Range of Product |
Modicon Quantum automation platform |
|
Input Voltage |
125 V DC (100…150 V range) |
|
Input Current |
500 mA at 125 V |
|
Inrush Current |
28 A at 125 V |
|
Max Input Power Interruption |
1 ms |
|
Associated Fuse Rating |
2 A, slow-blow |
|
Output Voltage |
5.1 V DC |
|
Output Current (Redundant) |
8 A |
|
Output Overvoltage Protection |
Internal |
|
Output Overload Protection |
Internal |
|
Power Dissipation |
6 + (1.5 × Iout) W (Iout in A) |
|
Local Signalling |
1 LED (green) – Power OK (PWR OK) |
|
Marking |
CE |
|
Module Format |
Standard |
|
Net Weight |
0.65 kg (1.43 lb) |
🌍
Environmental Specifications
|
Attribute |
Details |
|---|---|
|
Standards |
UL 508, CSA C22.2 No 142 |
|
Certifications |
FM Class 1 Division 2, cUL |
|
Electrostatic Discharge Resistance |
4 kV (contact), 8 kV (air) – IEC 801-2 |
|
EM Field Resistance |
9.1 V/m (10 V/m) 80…2000 MHz – IEC 801-3 |
|
Operating Temperature |
0…60 °C (32…140 °F) |
|
Storage Temperature |
-40…85 °C (-40…185 °F) |
|
Relative Humidity |
95 %, non-condensing |
|
Operating Altitude |
≤ 5000 m (16404.2 ft) |
📦
Ordering & Shipping
|
Attribute |
Details |
|---|---|
|
Category |
US1PC2118155 |
|
Discount Schedule |
PC21 |
|
GTIN |
3595861137127 |
|
Returnability |
No |
|
Country of Origin |
CN (China) |
|
Package Type 1 |
PCE |
|
Units in Package 1 |
1 |
|
Package 1 Dimensions |
31.5 × 16.51 × 4.83 cm |
|
Package 1 Weight |
0.91 kg (2.006 lb) |
|
Package Type 2 |
S03 |
|
Units in Package 2 |
7 |
|
Package 2 Dimensions |
40 × 30 × 30 cm |
|
Package 2 Weight |
6.8 kg (15.0 lb) |
