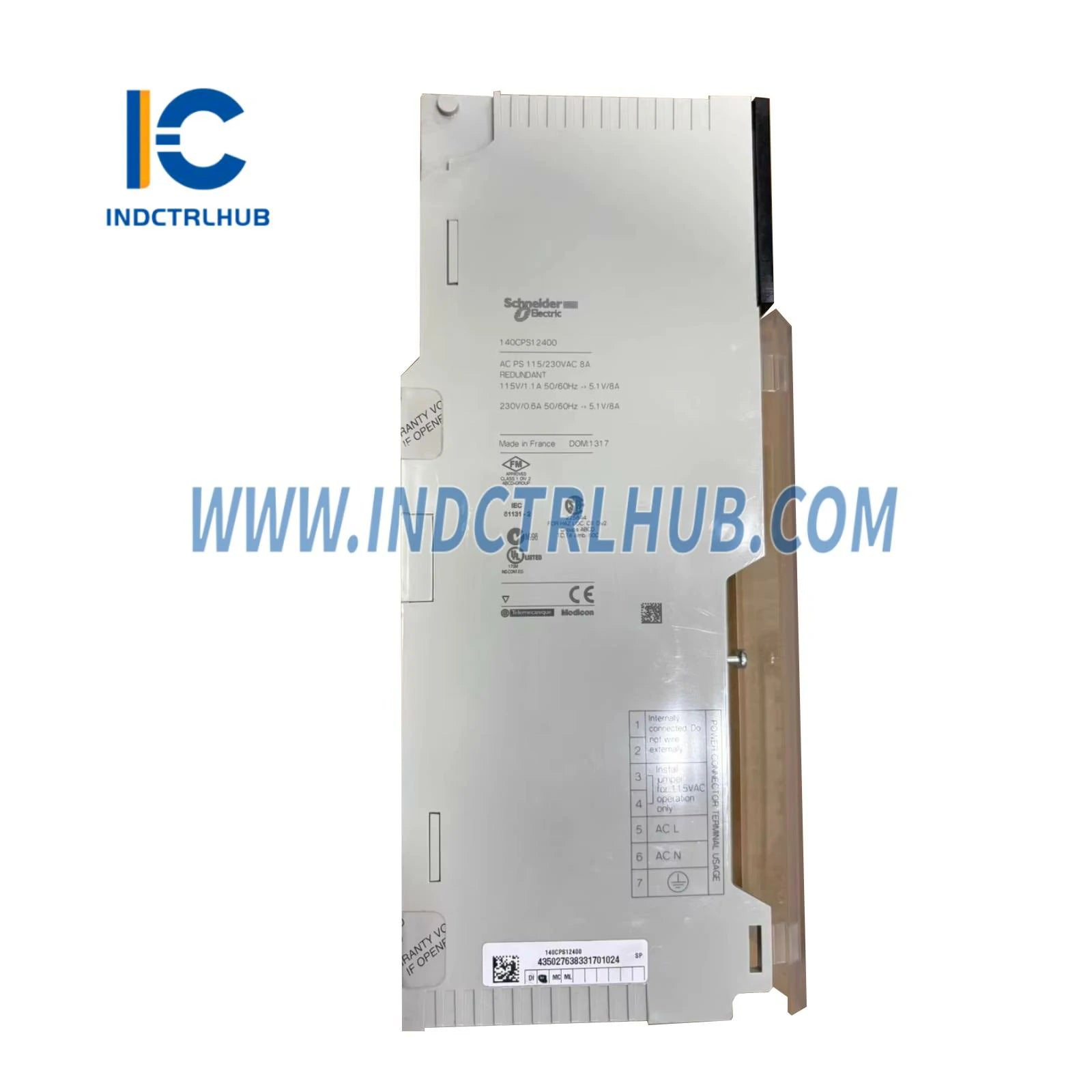

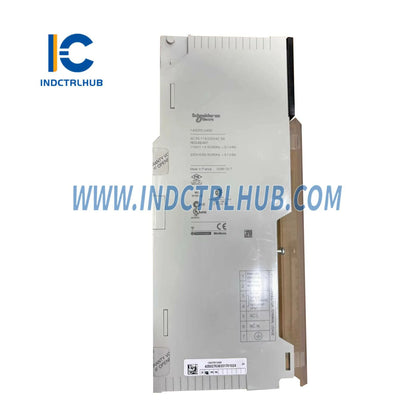

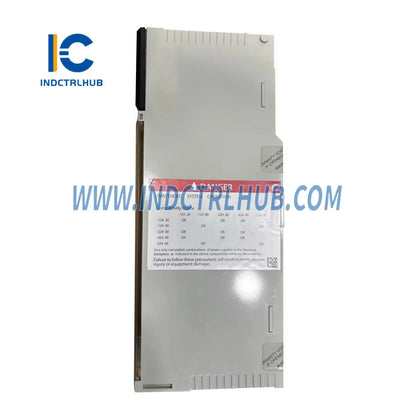

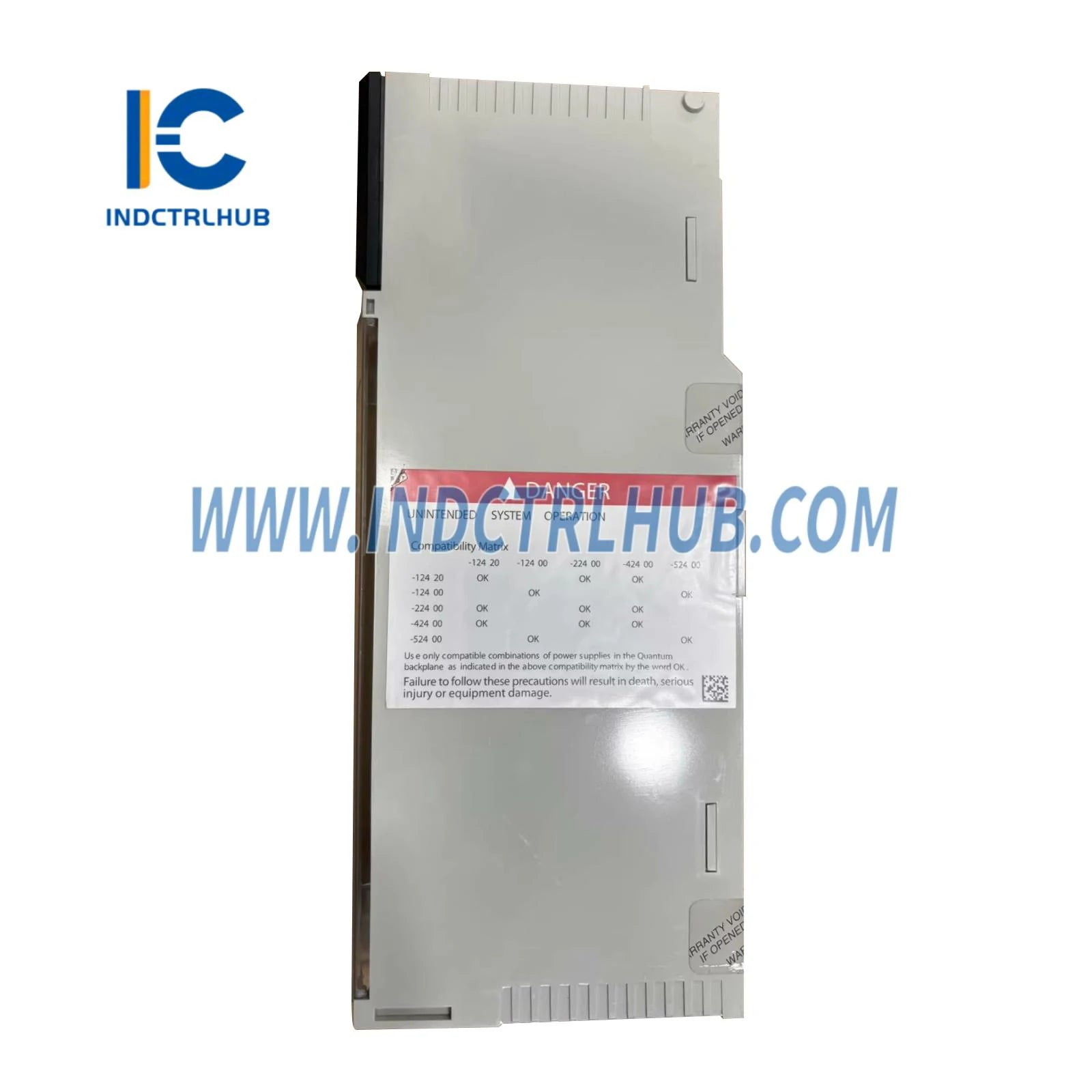

Schneider 140CPS21400C Power Supply Module Modicon Quantum

Manufacturer

Schneider Electric

Model/Part Number

140CPS21400C

Description

Power Supply Module Modicon Quantum - 24 V DC 20..30 V - Summable

Power Supply Type

Summable

Input Voltage

24 V (20…30 V) DC

Input Current

3800 mA

Inrush Current

14 A at 20 V, 25 A at 24 V

Maximum Input Power Interruption

100 ms at 24 V, 1 ms at 20 V

Associated Fuse Rating

5 A, slow-blow

Output Voltage

5.1 V DC

Output Current (Summable)

8 A

Output Overvoltage Protection

Internal

Output Overload Protection

Internal

Power Dissipation

6 + (1.8 × Iout), where Iout is in A

Alarm Output

1 NC 6 A 220 V power supply fault

Local Signalling

1 LED (green) for power (PWR OK)

Marking

CE

Protective Treatment

Conformal coating Humiseal 1A33

Standards

CSA C22.2 No 142, UL 508

Product Certifications

cUL, FM Class 1 Division 2

Resistance to Electrostatic Discharge

4 kV contact, 8 kV on air (IEC 801-2)

Resistance to Electromagnetic Fields

9.1 V/m (10 V/m) 80…2000 MHz (IEC 801-3)

Ambient Temperature for Operation

0…60 °C

Ambient Temperature for Storage

-40…85 °C

Relative Humidity

95 % without condensation

Operating Altitude

<= 5000 m

Unit Type

PCE

Package Quantity

1 unit

Dimensions (L × W × H)

31.2 × 4.5 × 16.3 cm

Package Weight

825 g (29.1 oz)
