Product Description
🧾
Product Overview
|
Attribute |
Details |
|---|---|
|
Manufacturer |
Schneider Electric |
|
Model/Part Number |
140CPS21100 |
|
Description |

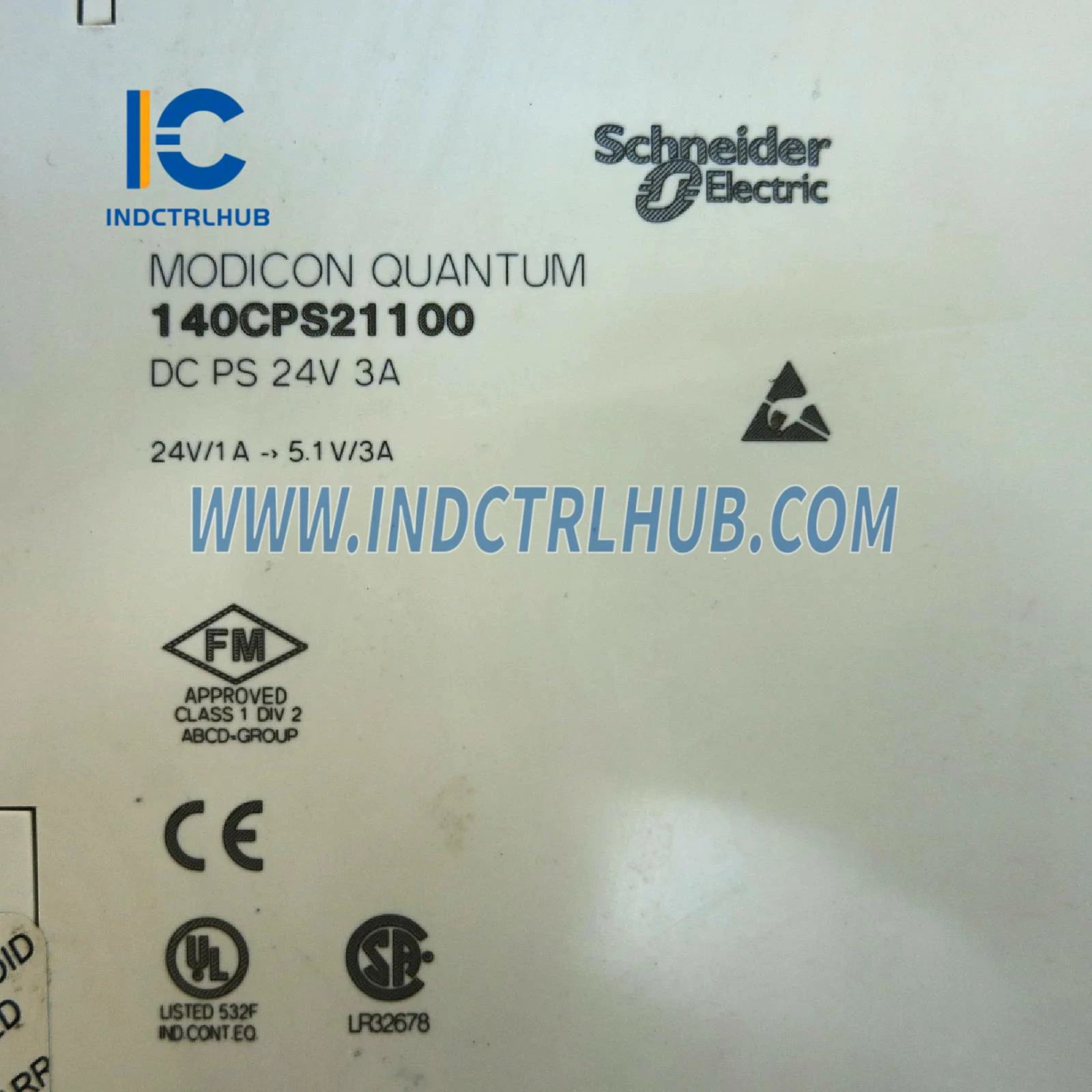

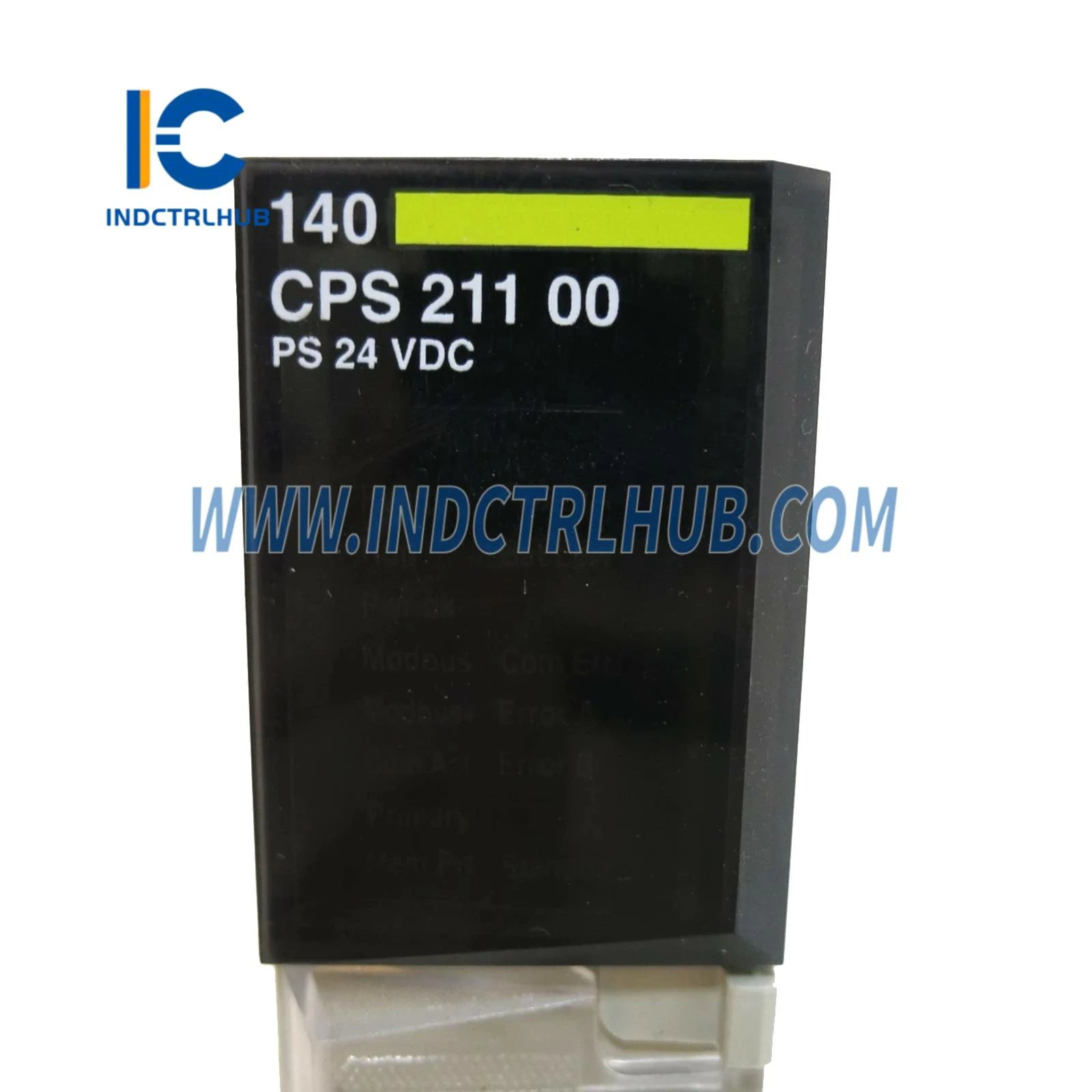

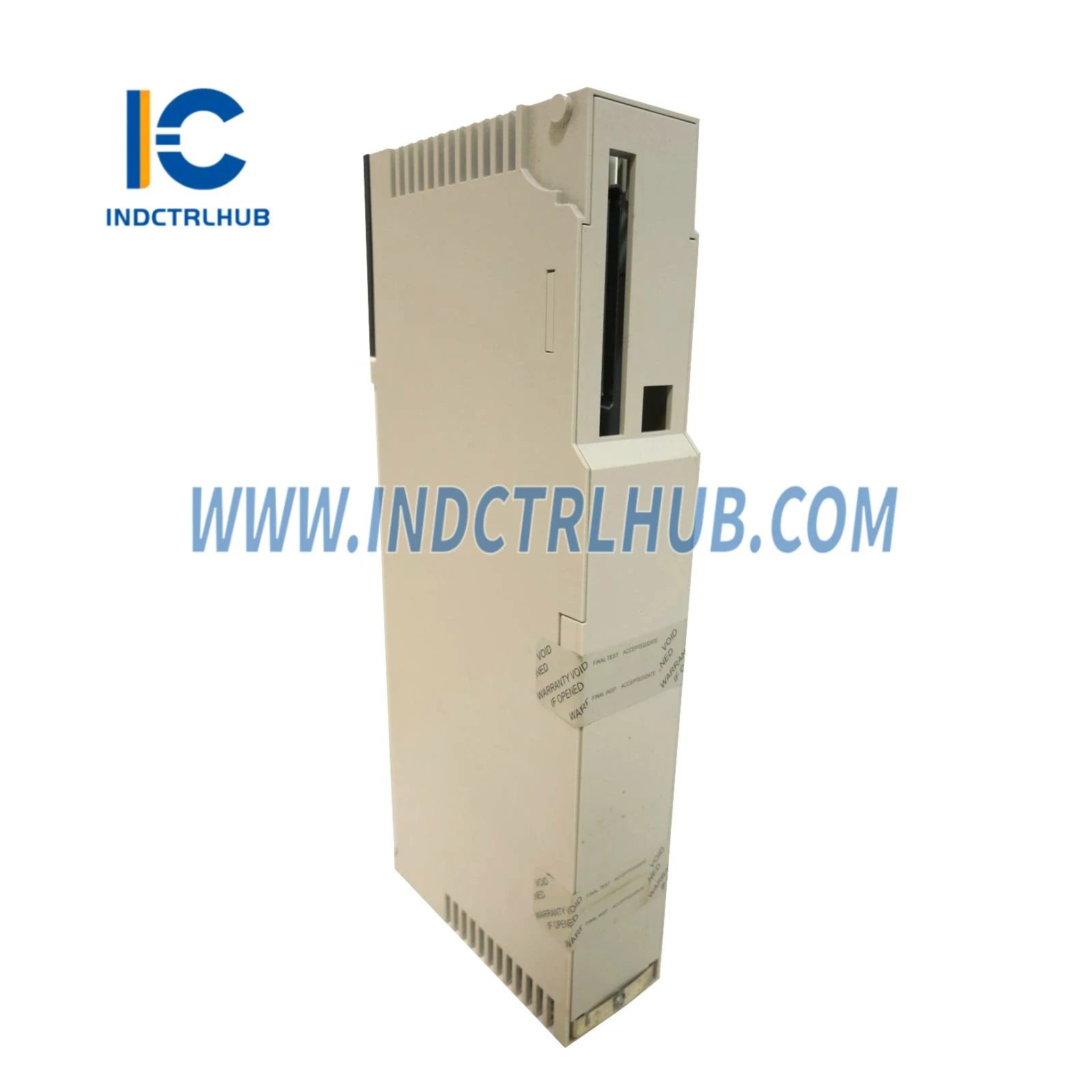

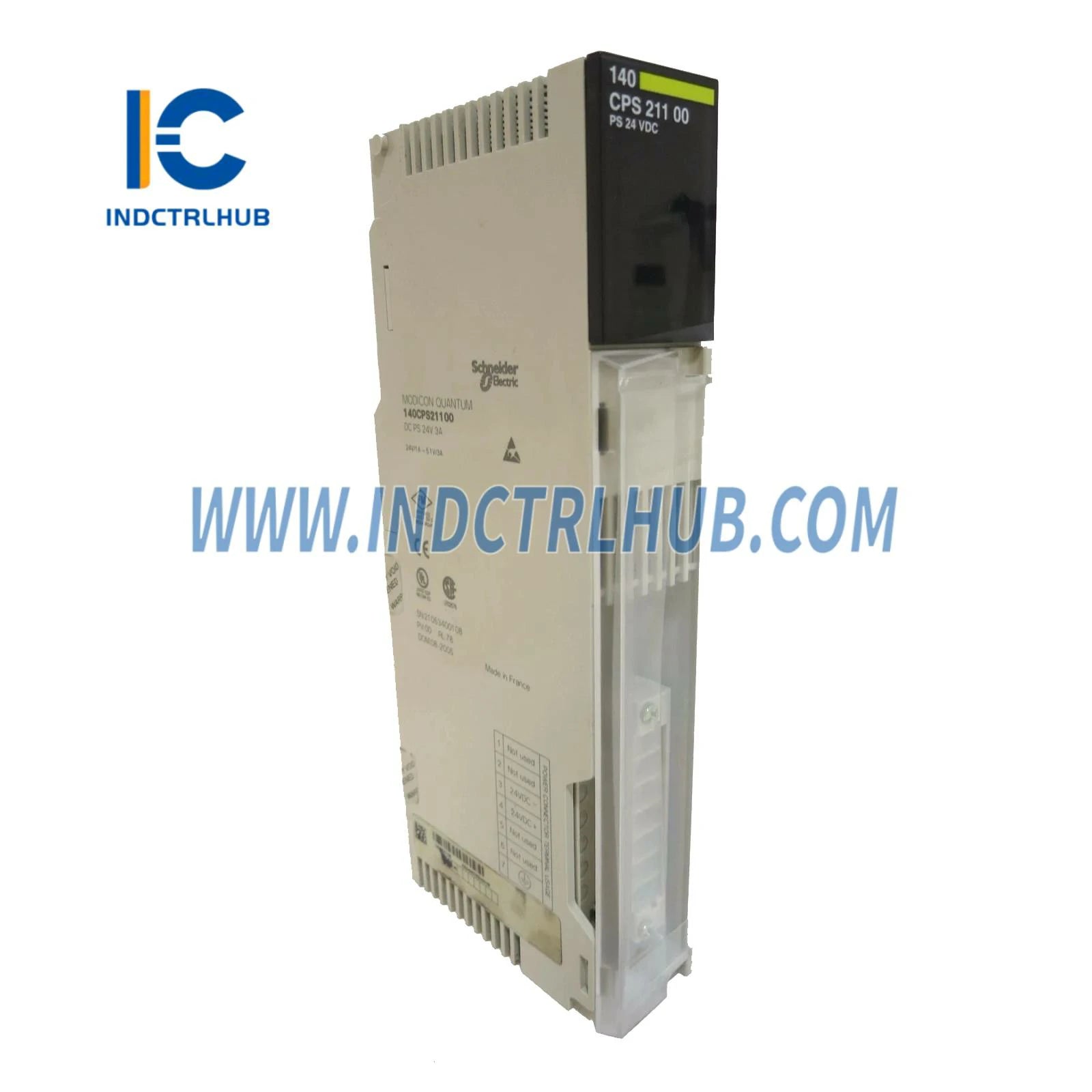

Power Supply Module Modicon Quantum - 24 V DC 20..30 V - Standalone |
🔌
Specifications
|
Attribute |
Details |
|---|---|
|
Power Supply Type |
Standalone |
|
Input Voltage |
24 V (20…30 V) DC |
|
Input Current |
1600 mA |
|
Inrush Current |
30 A |
|
Maximum Input Power Interruption |
1 ms at 20 V, 20 ms at 25 V |
|
Associated Fuse Rating |
2.5 A, slow-blow |
|
Output Voltage |
5.1 V DC |
|
Output Current (Standalone) |
0.3…3 A |
|
Output Overvoltage Protection |
Internal |
|
Output Overload Protection |
Internal |
|
Power Dissipation |
2 + (3 × Iout), where Iout is in A |
|
Local Signalling |
1 LED (green) for power (PWR OK) |
|
Marking |
CE |
🌍
Environmental Specifications
|
Attribute |
Details |
|---|---|
|
Standards |
UL 508, CSA C22.2 No 142 |
|
Product Certifications |
cUL, FM Class 1 Division 2 |
|
Resistance to Electrostatic Discharge |
4 kV contact, 8 kV on air (IEC 801-2) |
|
Resistance to Electromagnetic Fields |
9.1 V/m (10 V/m) 80…2000 MHz (IEC 801-3) |
|
Ambient Temperature for Operation |
0…60 °C |
|
Ambient Temperature for Storage |
-40…85 °C |
|
Relative Humidity |
95 % without condensation |
|
Operating Altitude |
<= 5000 m |
📦

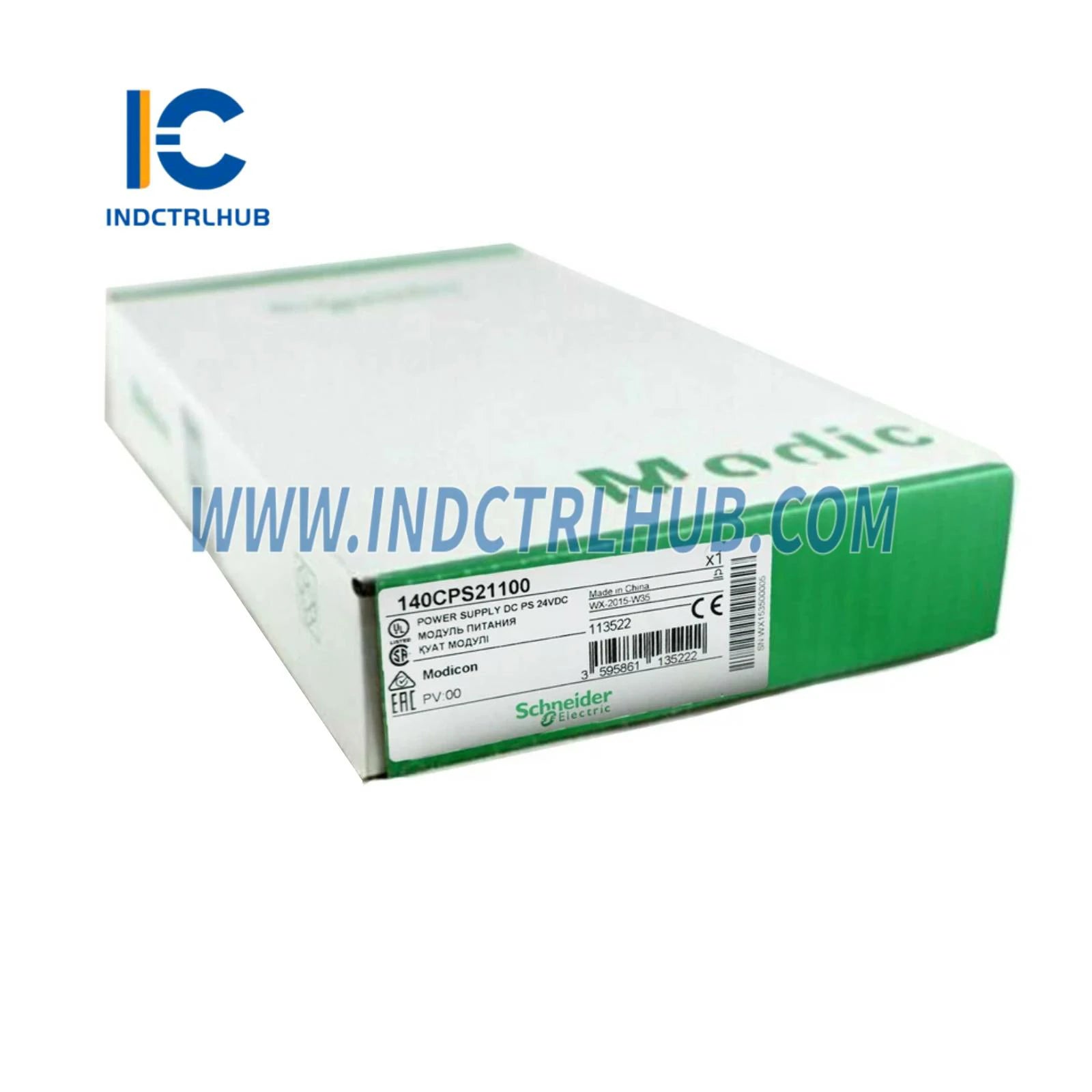

Packaging Information
|
Attribute |
Details |
|---|---|
|
Unit Type |
PCE |
|
Package Quantity |
1 unit |
|
Dimensions (L × W × H) |
31.2 × 4.5 × 16.3 cm |
|
Package Weight |
729 g (25.7 oz) |
