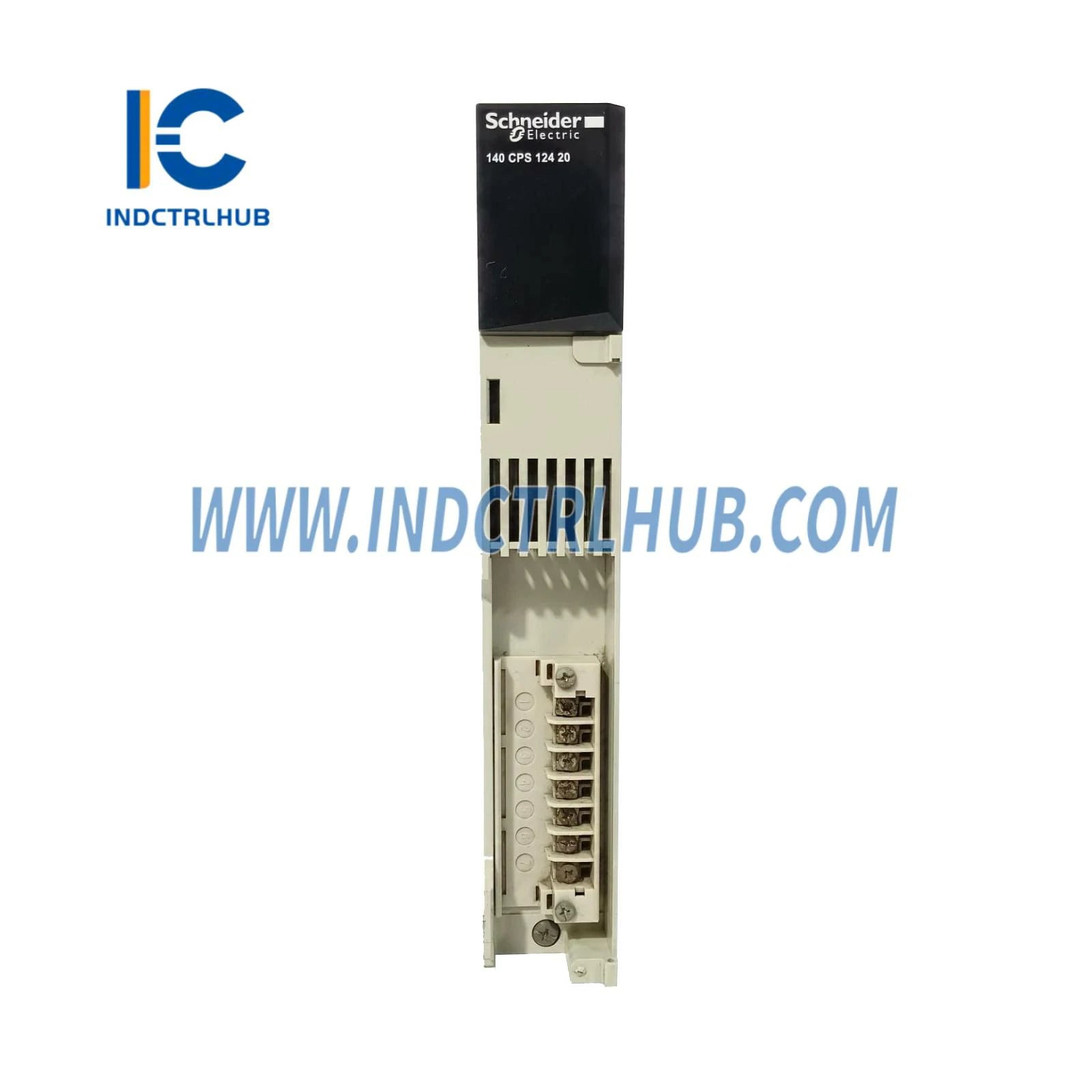

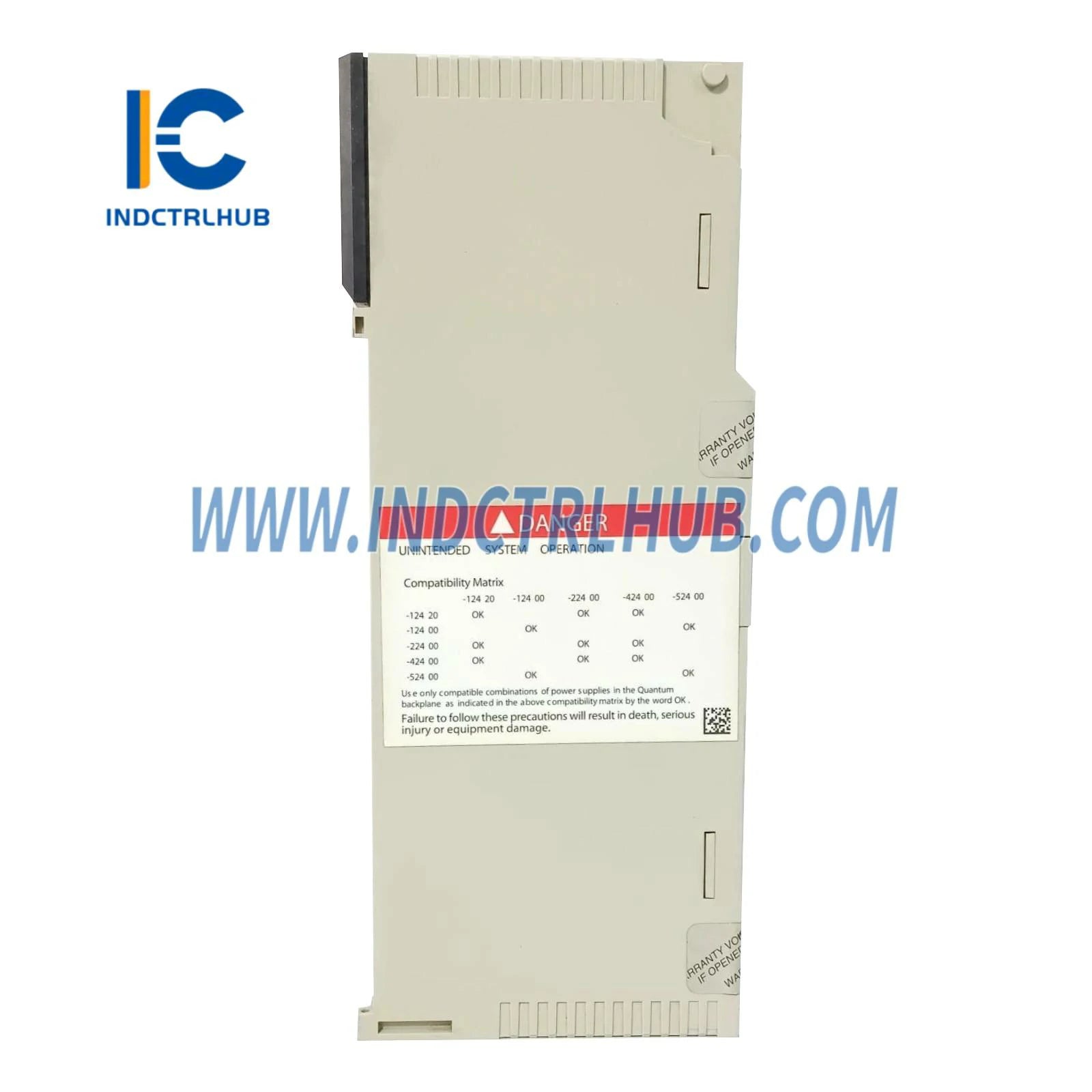

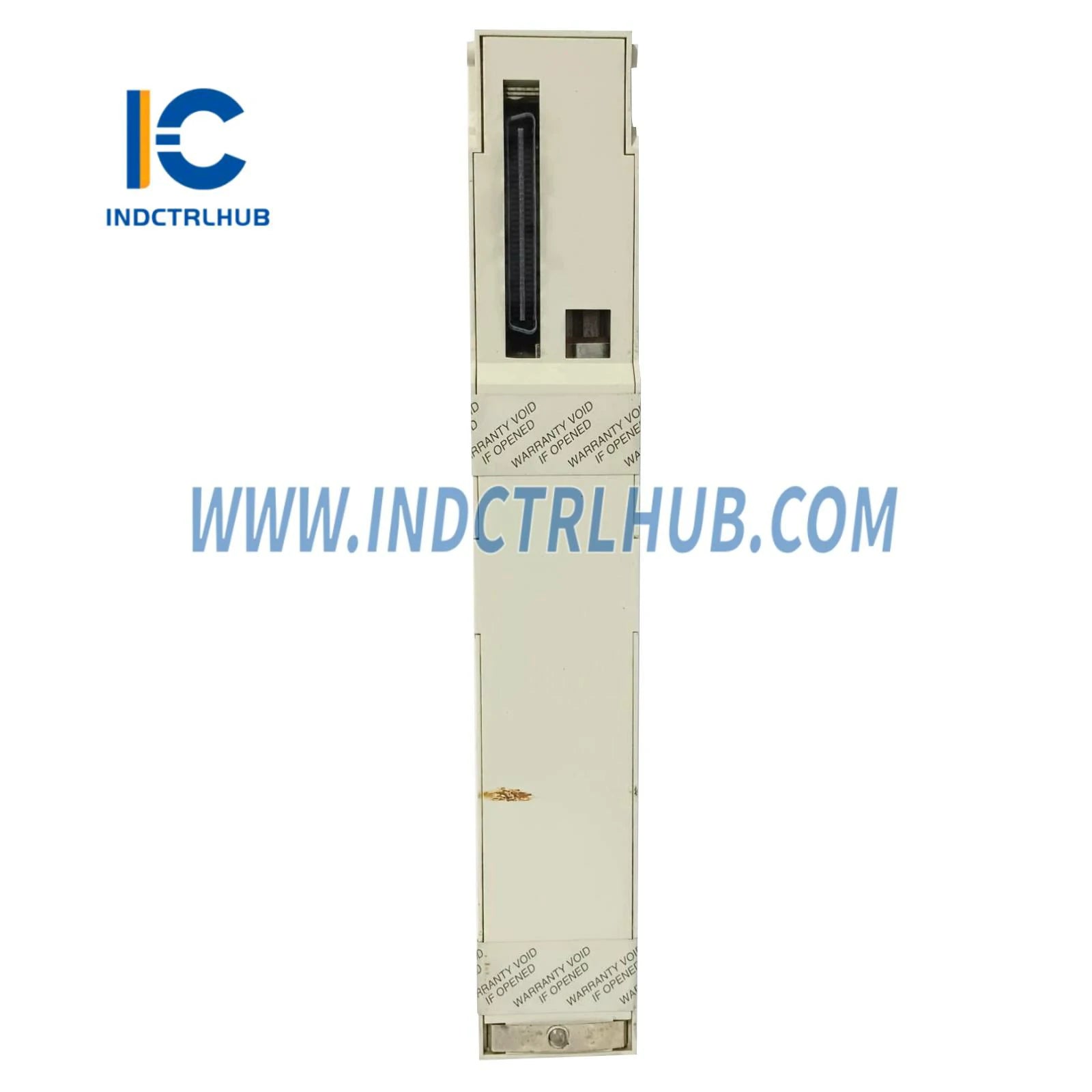

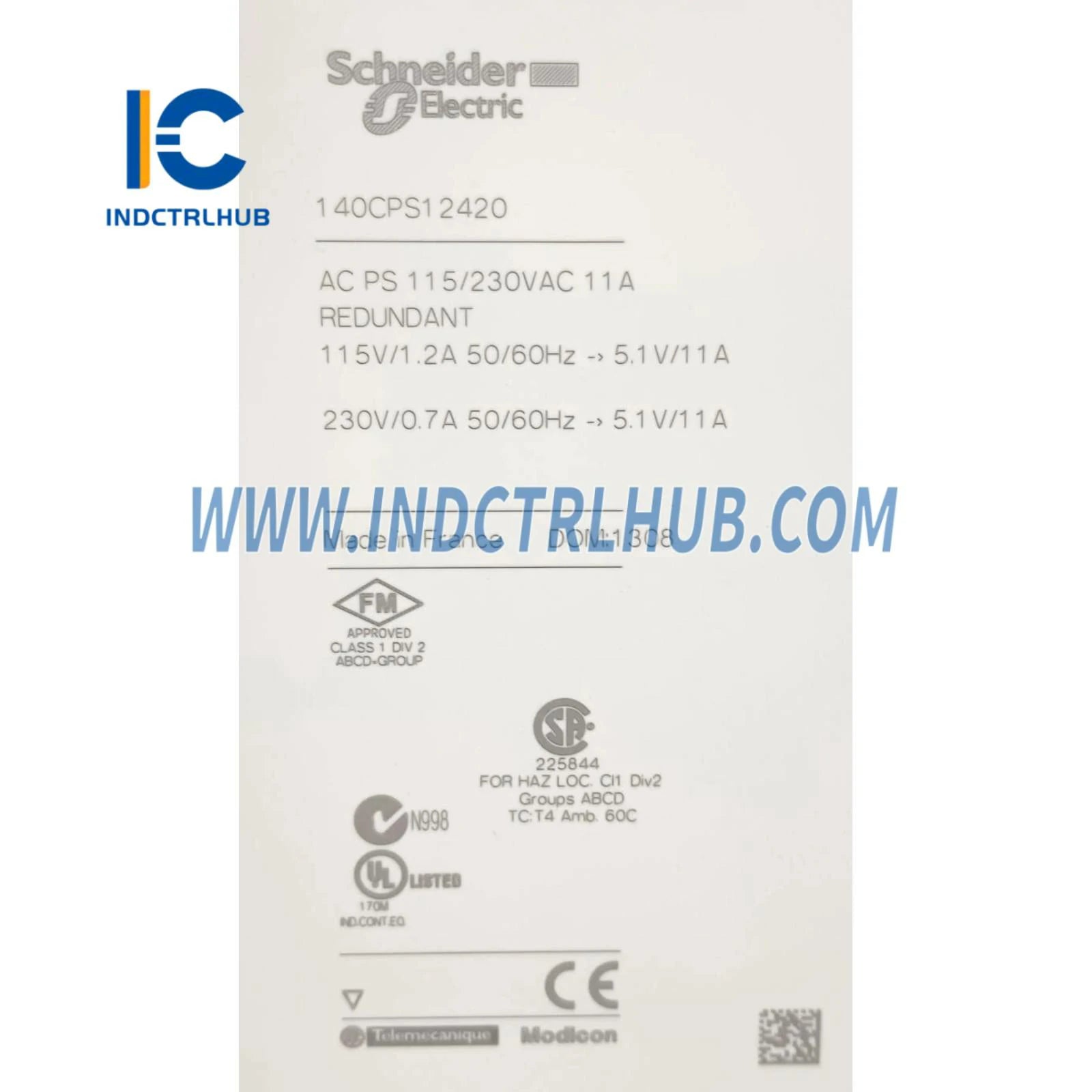

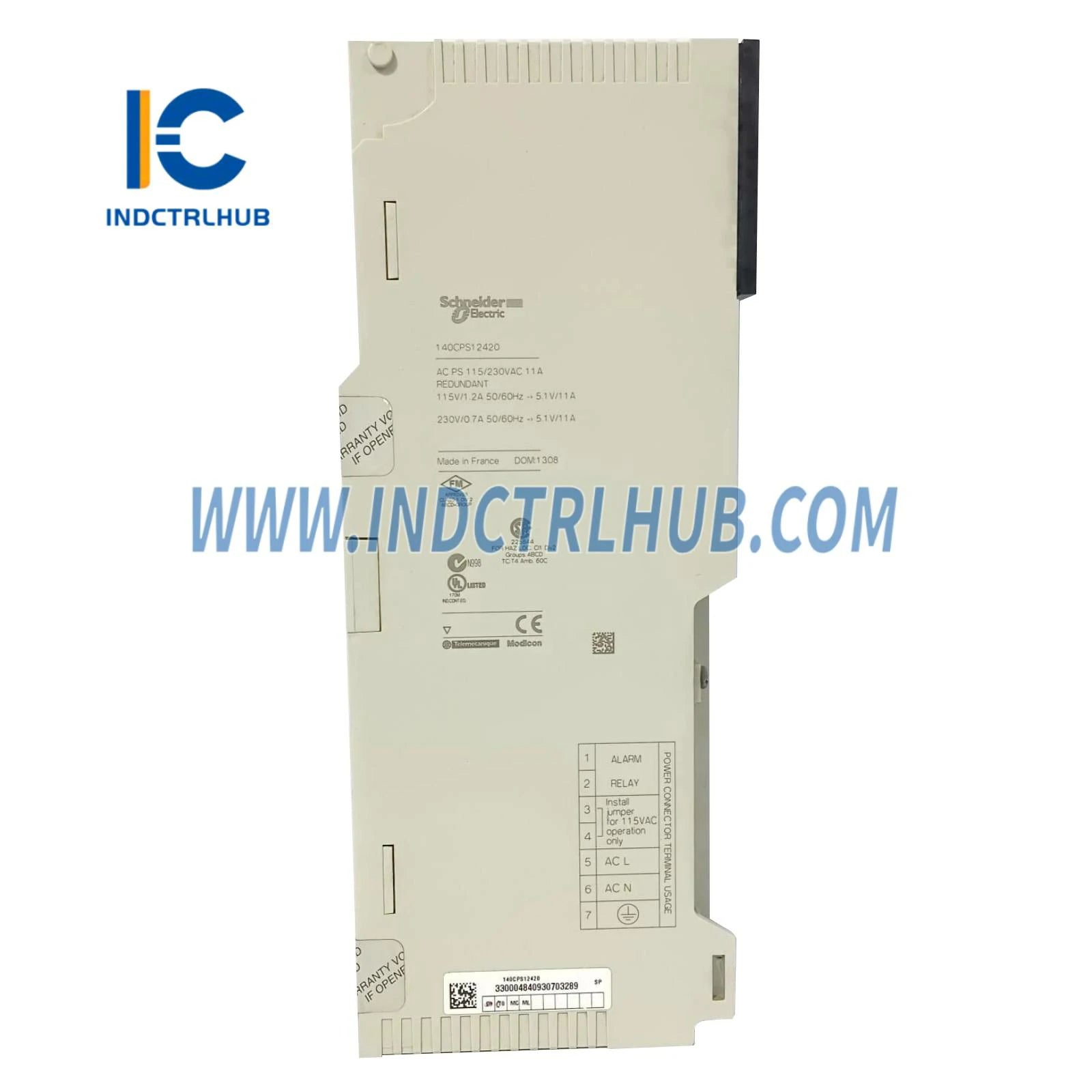

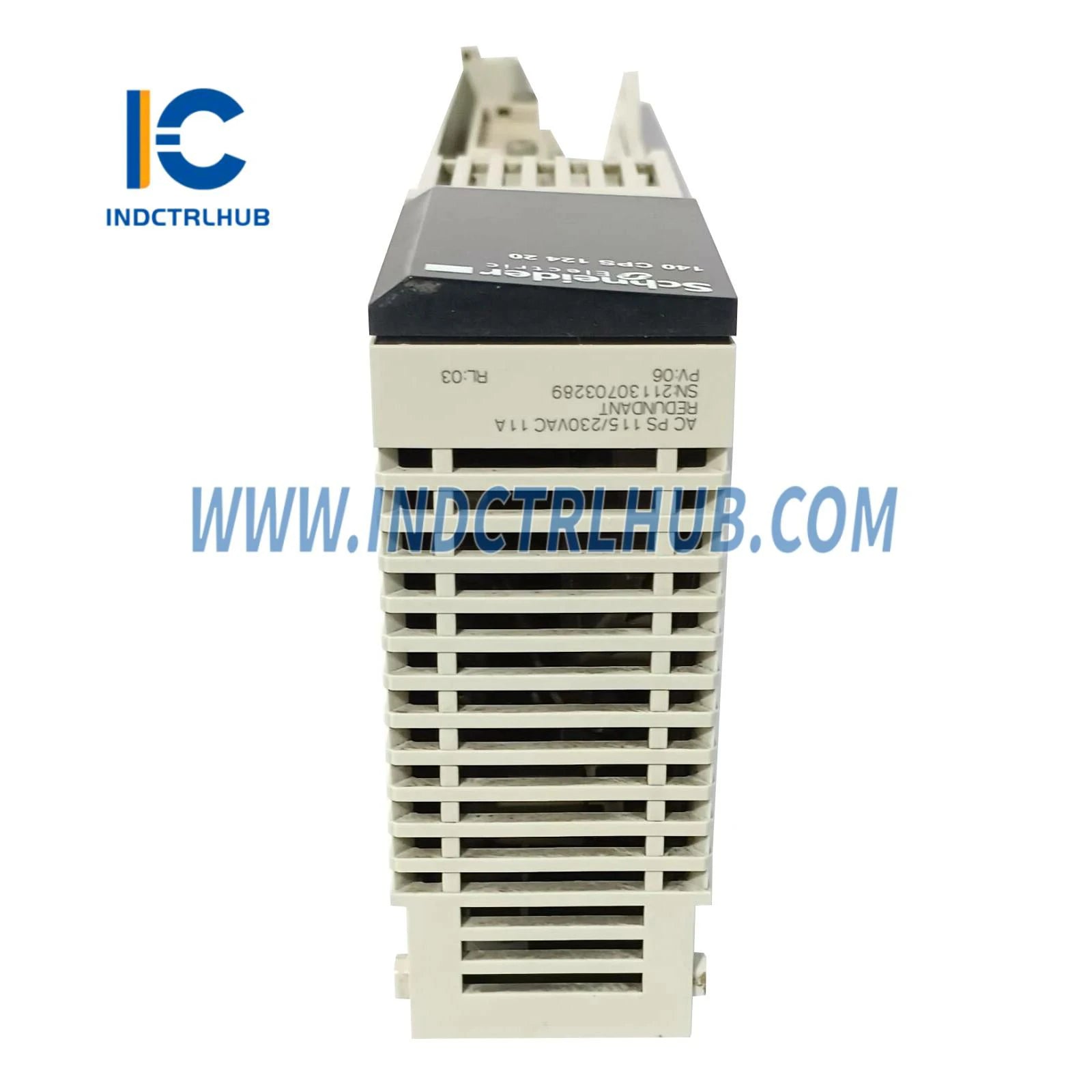

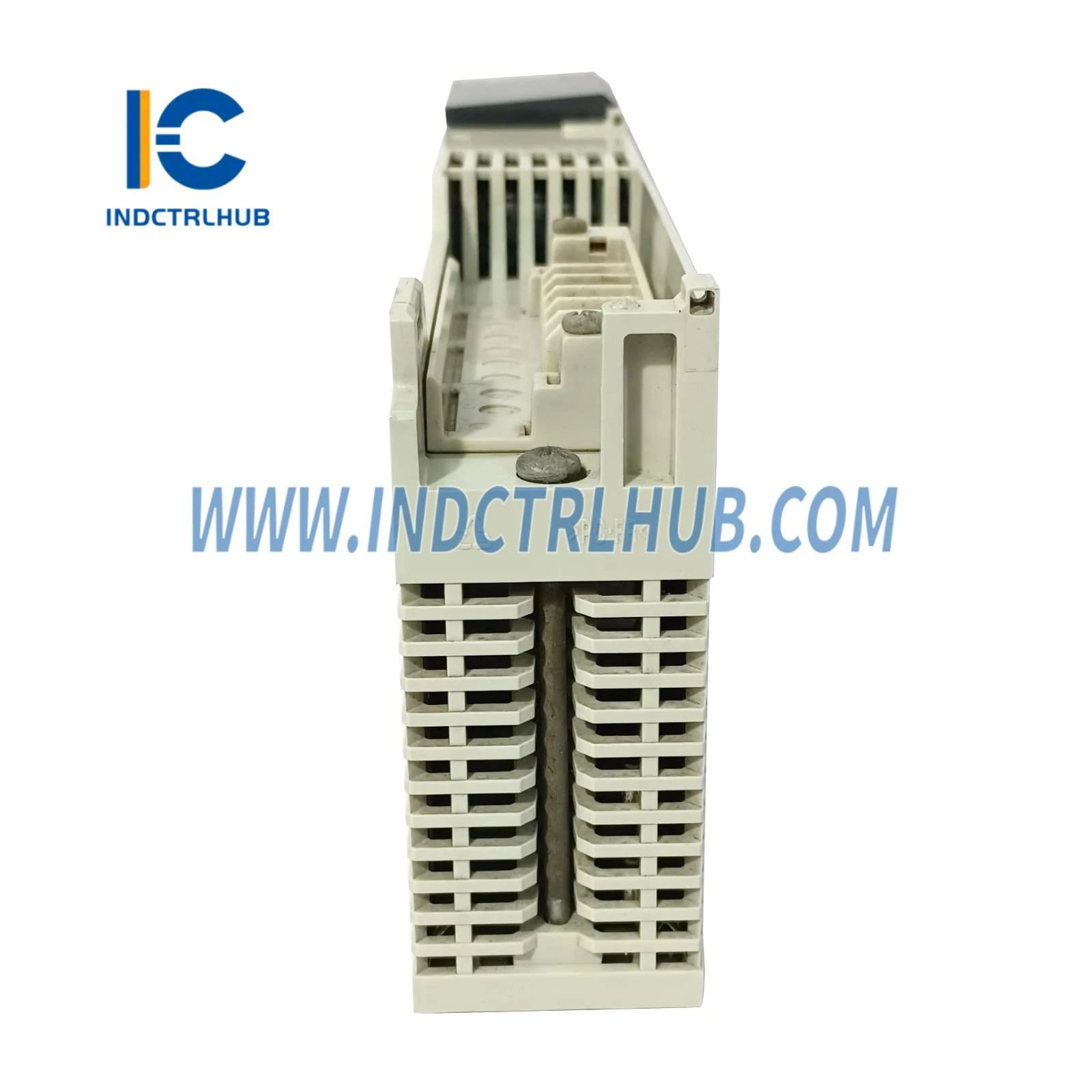

Schneider 140CPS12420 Power Supply Module Modicon Quantum

Manufacturer

Schneider Electric

Model/Part Number

140CPS12420

Description

Power Supply Module Modicon Quantum - 115 V/230 V AC - Redundant

Power Supply Type

Redundant

Input Voltage

115 V (93…138 V) AC 47…63 Hz, 230 V (170…276 V) AC

Input Current

1100 mA at 115 V, 600 mA at 230 V

Inrush Current

19 A at 230 V, 38 A at 115 V

Rated Power (VA)

130 VA

Associated Fuse Rating

2 A, slow-blow

Harmonic Distortion

<= 10 % of fundamental rms value

Output Voltage

5.1 V DC

Output Current (Redundant)

10 A at 140 °F (60 °C)

Output Current (Standalone)

11 A at 140 °F (60 °C)

Output Overvoltage Protection

Internal

Output Overload Protection

Internal

Power Dissipation

6 + (1.5 × Iout), where Iout is in A

Alarm Output

1 NC 6 A 220 V (Power supply fault)

Local Signalling

1 LED (green) for power (PWR OK)

Marking

CE

Standards

UL 508, CSA C22.2 No 142

Product Certifications

cUL

Resistance to Electrostatic Discharge

4 kV contact, 8 kV on air (IEC 801-2)

Resistance to Electromagnetic Fields

9.1 V/m (10 V/m) 80…2000 MHz (IEC 801-3)

Ambient Temperature for Operation

0…60 °C

Ambient Temperature for Storage

-40…85 °C

Relative Humidity

95 % without condensation

Operating Altitude

<= 5000 m

Unit Type

PCE

Package Quantity

1 unit

Dimensions (L × W × H)

31.8 × 17.2 × 5.1 cm

Package Weight

753 g (26.6 oz)
