Product Description

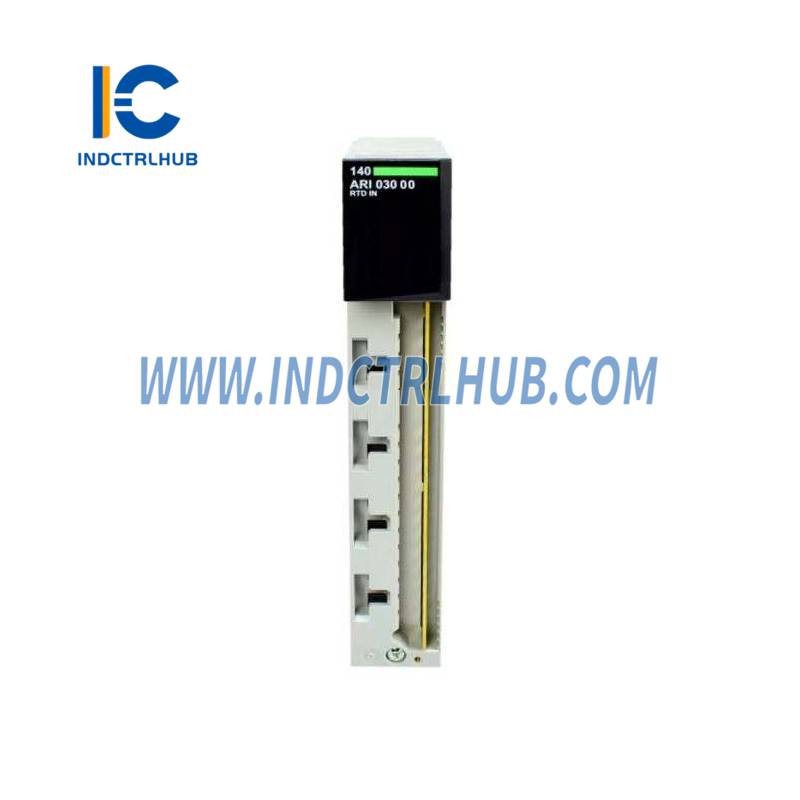

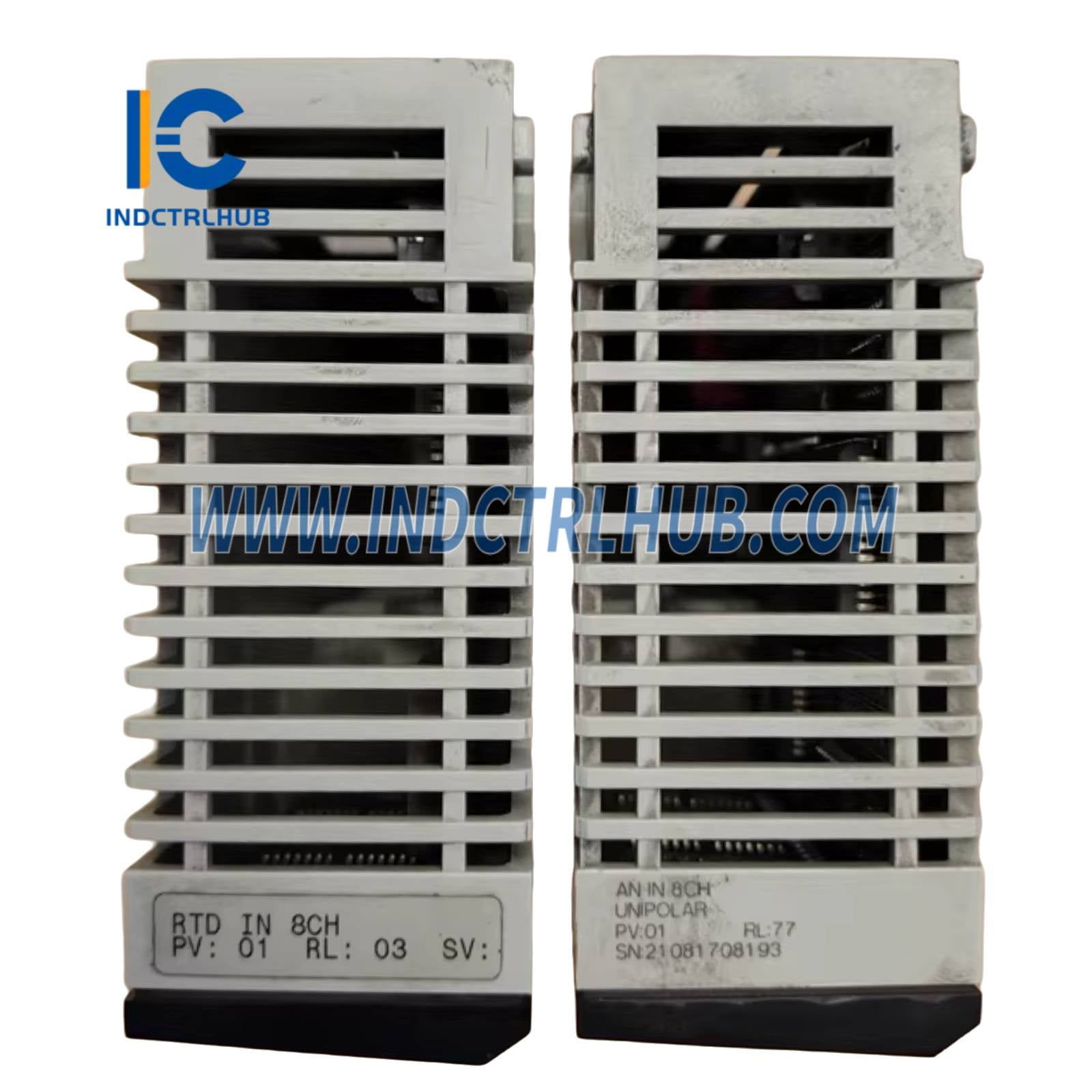

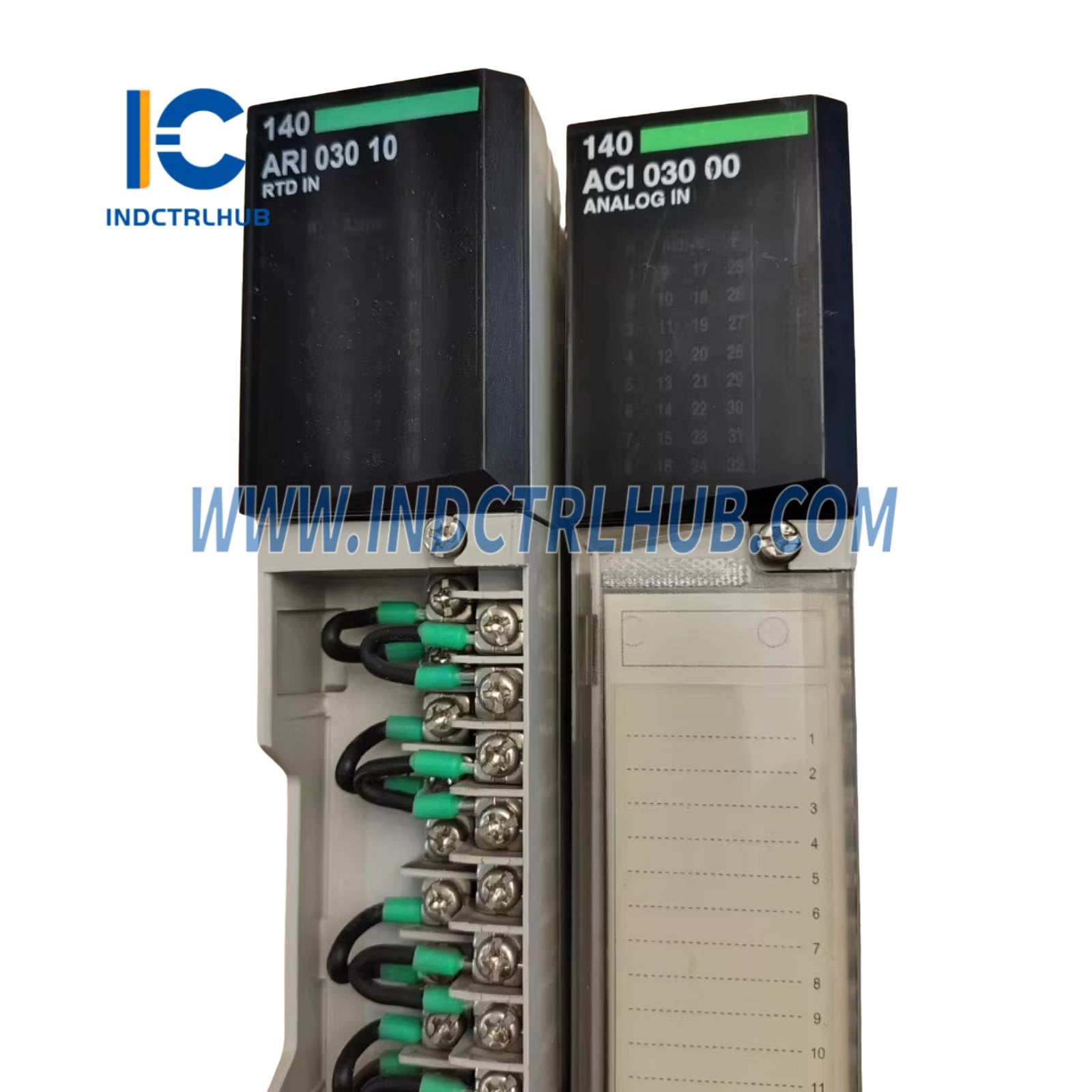

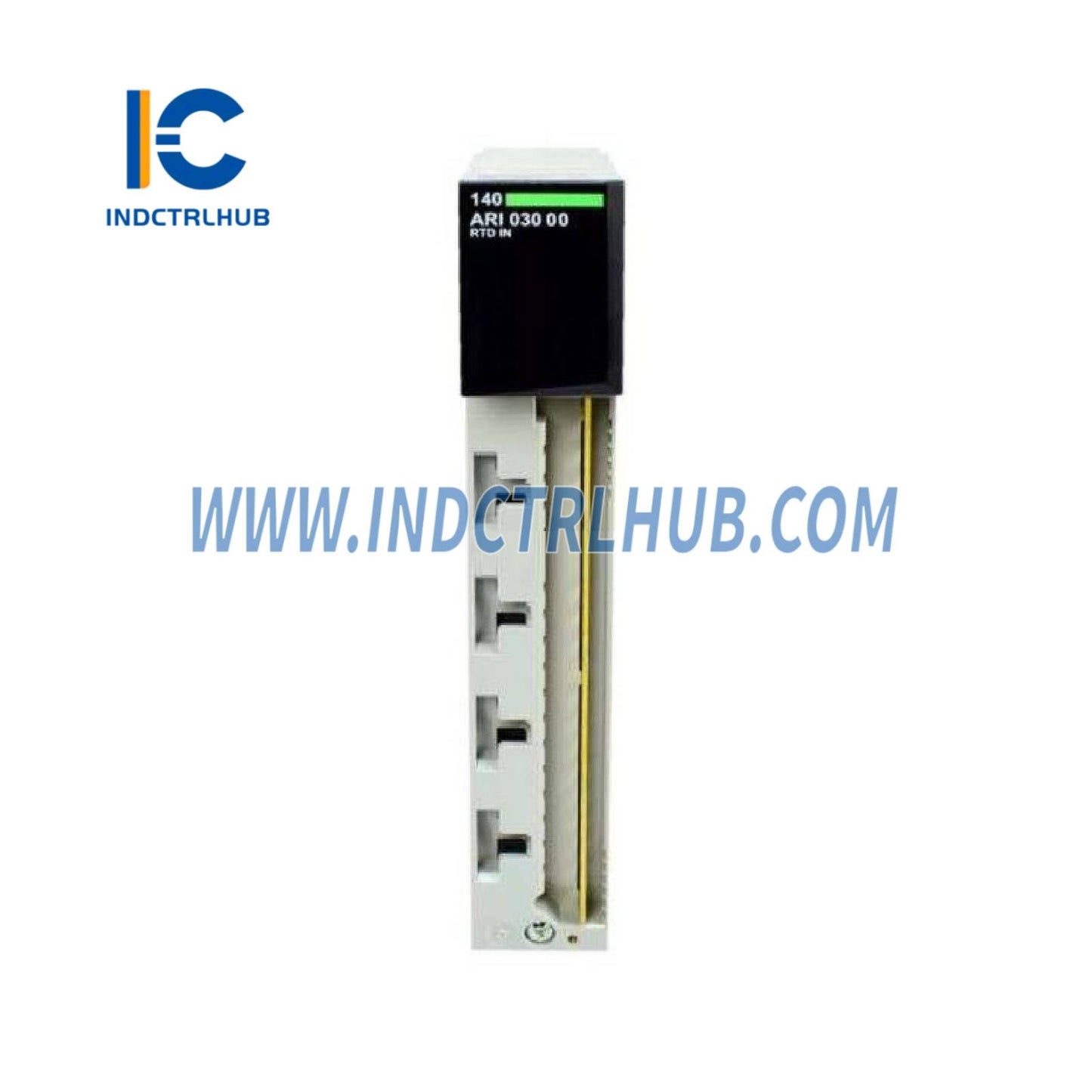

Schneider Electric 140ARI03000 Modicon Quantum Analog Input Module
Product Overview
- The Schneider Electric 140ARI03000 is a Modicon Quantum Analog Input Module designed for the Quantum automation platform. This module provides 8 channels for RTD (Resistance Temperature Detector) inputs, supporting precise temperature measurements in industrial automation applications. It is used in industries such as manufacturing, oil and gas, and power generation for monitoring temperature in processes involving sensors like Pt100, Pt200, Ni100, and Ni200. The module ensures high accuracy and reliability in harsh industrial environments.
Technical Specifications
- The 140ARI03000 has the following specifications based on industry sources:
| Specification | Details |
|---|---|
| Model/Part Number | 140ARI03000 |
| Manufacturer | Schneider Electric |
| Description | Modicon Quantum Analog Input Module, 8-Channel RTD |
| Series | Modicon Quantum |
| Function | Acquires 8 RTD inputs (Pt100, Pt200, Ni100, Ni200); supports 2-, 3-, or 4-wire configurations |
| Input/Output | 8 analog inputs (RTD: Pt100, Pt200, Ni100, Ni200) |
| Temperature Range | Pt100: -200°C to +850°C Ni100: -60°C to +180°C |
| Resolution | 0.1°C |
| Accuracy | ±0.5°C (typical for Pt100 at 25°C) |
| Isolation | Between channels and bus: 1780 V AC or 2500 V DC for 60 s Between channels: 220 V AC or 300 V DC |
| Power Supply | Via Quantum backplane (typically 5 VDC) |
| Power Consumption | 1.5 W (typical) |
| Bus Current Requirement | 280 mA |
| Environmental Specifications | Ambient Temperature: 0°C to +60°C Storage Temperature: -40°C to +85°C Relative Humidity: 5% to 95% non-condensing Shock: 15 g, 11 ms (IEC 60068-2-27) Vibration: 1 g, 10–500 Hz (IEC 60068-2-6) |
| Dimensions | Approx. 250 mm (H) x 40 mm (W) x 105 mm (D) |
| Weight | Approx. 0.3 kg |
| Mounting | Plugs into Modicon Quantum backplane/rack |
| Certifications | CE, UL, CSA C22.2 No. 142, FM Class 1 Div 2 |
