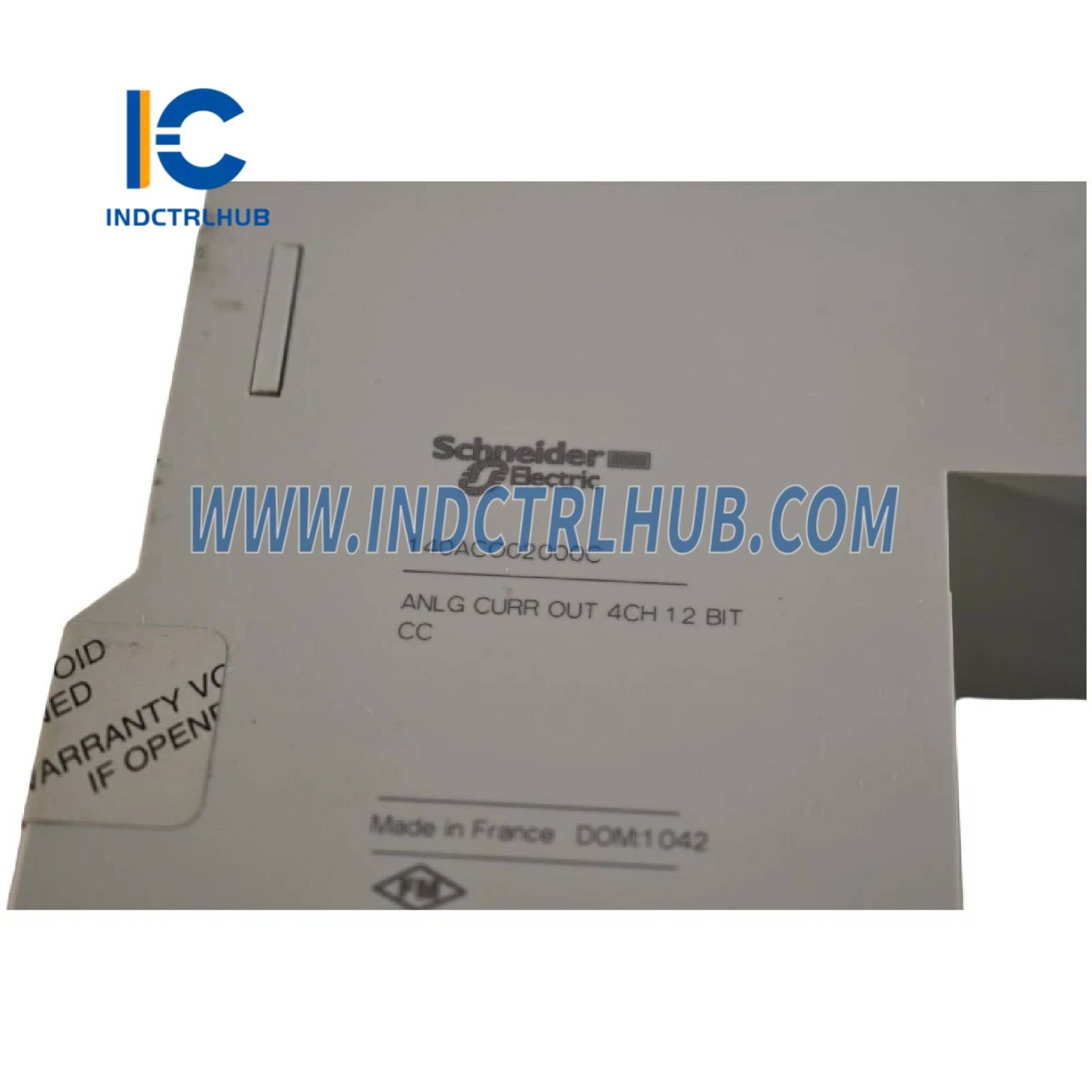

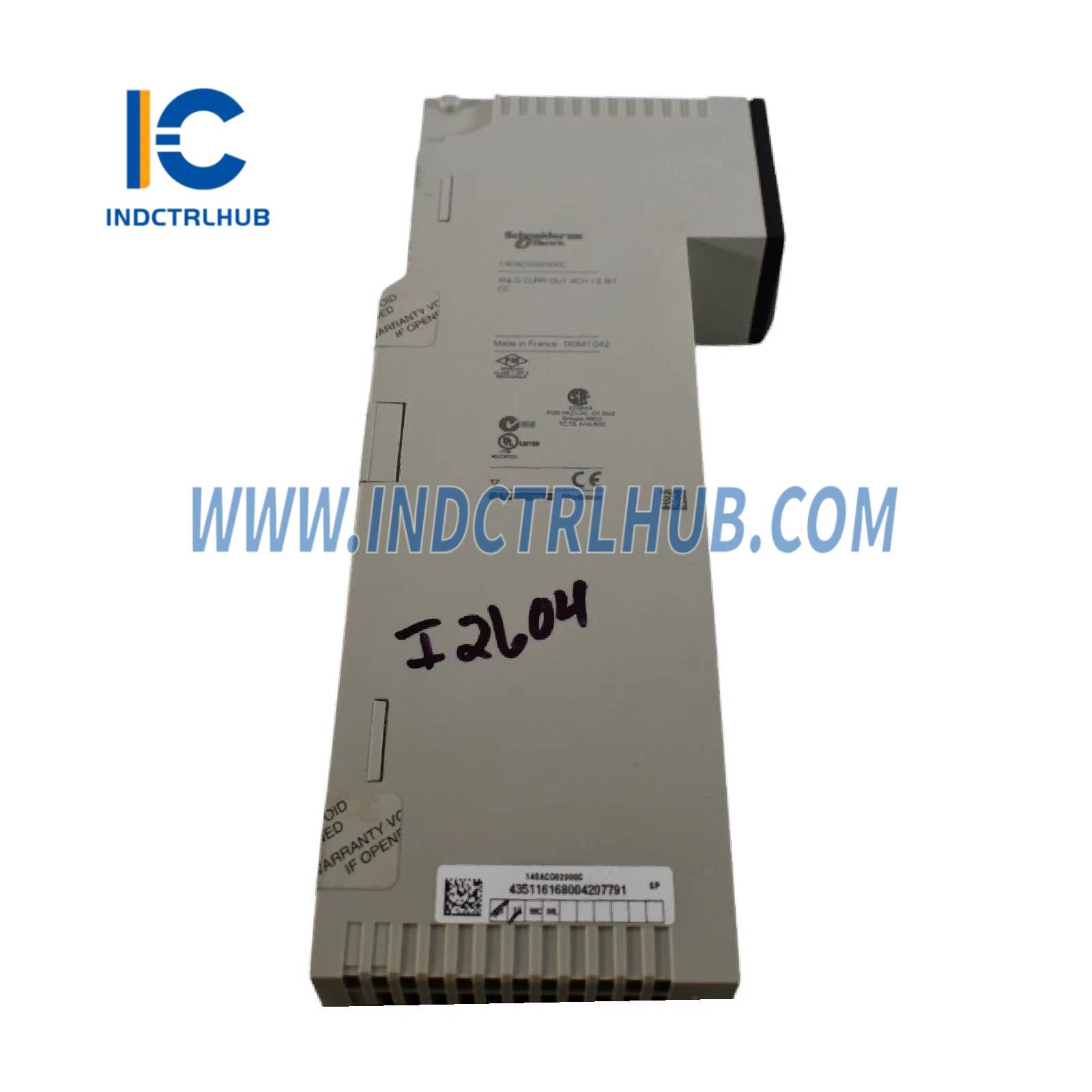

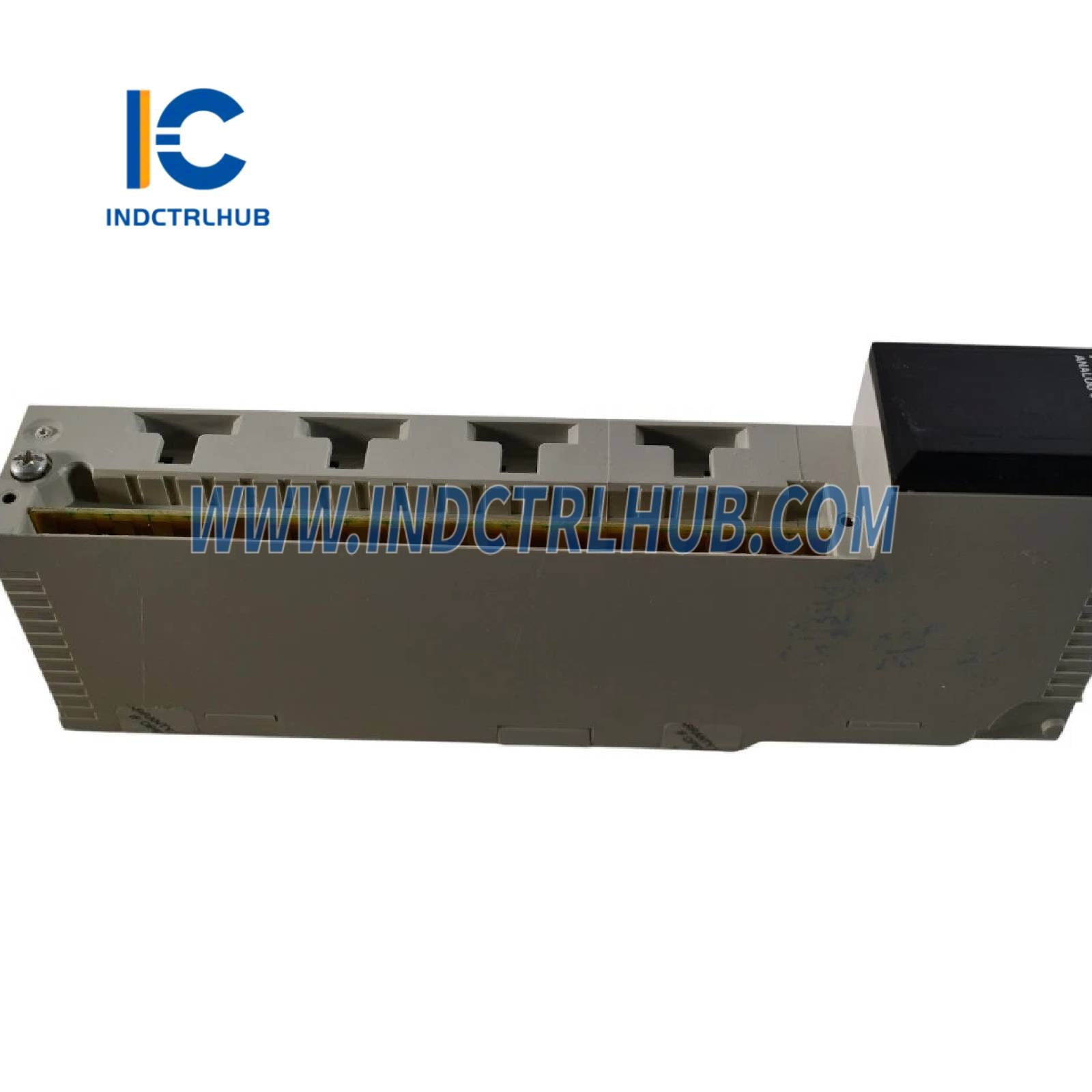

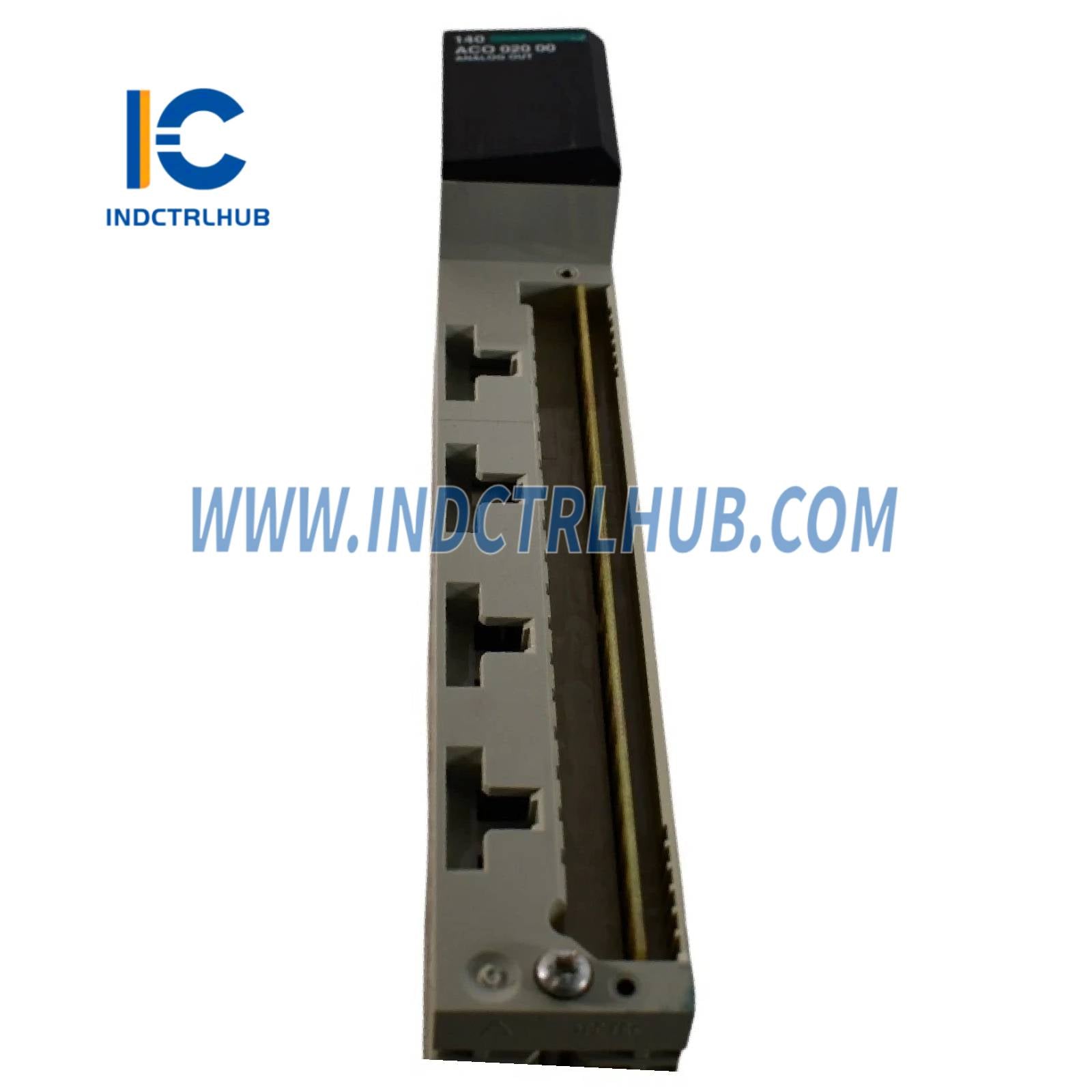

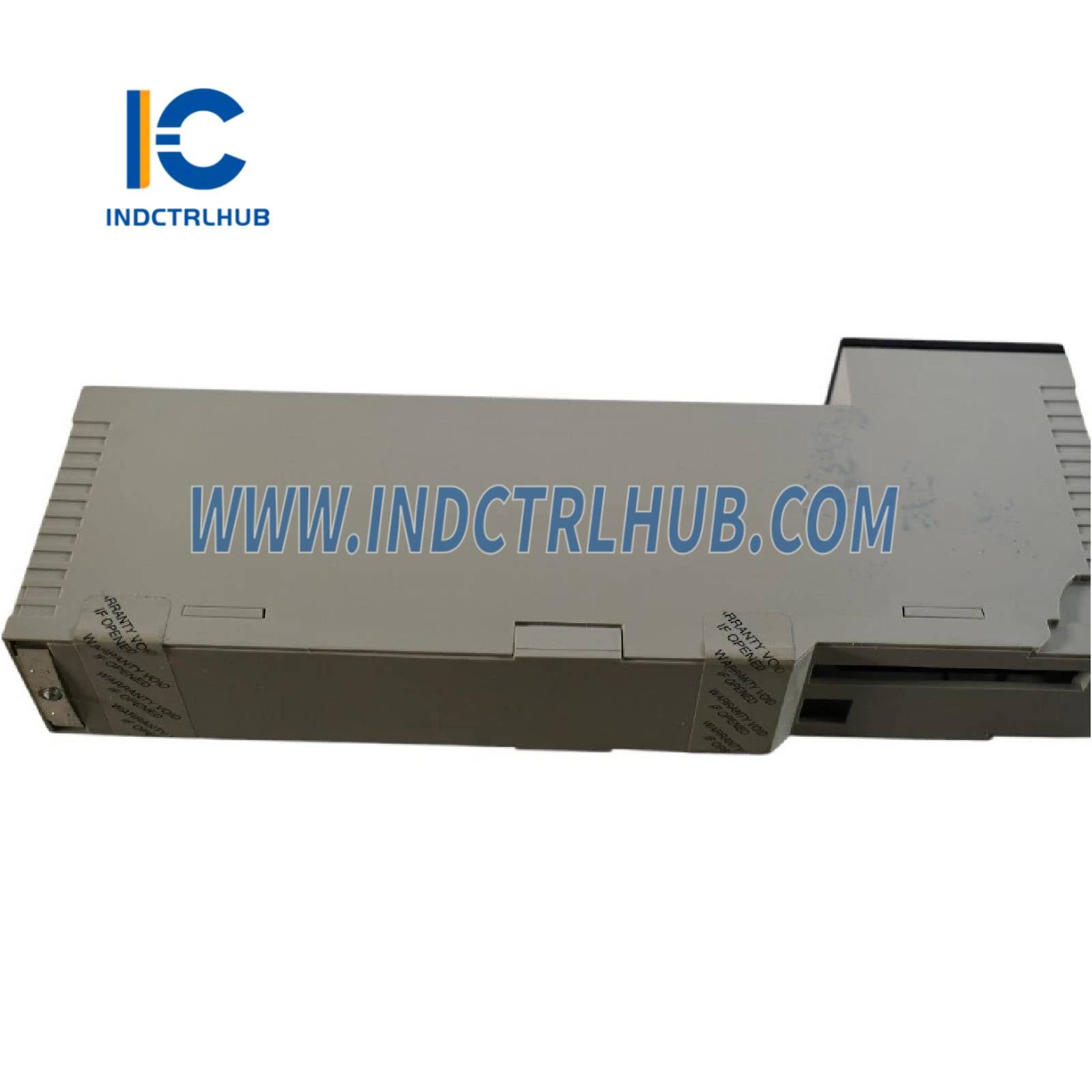

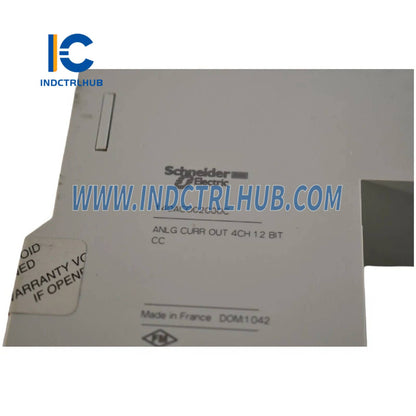

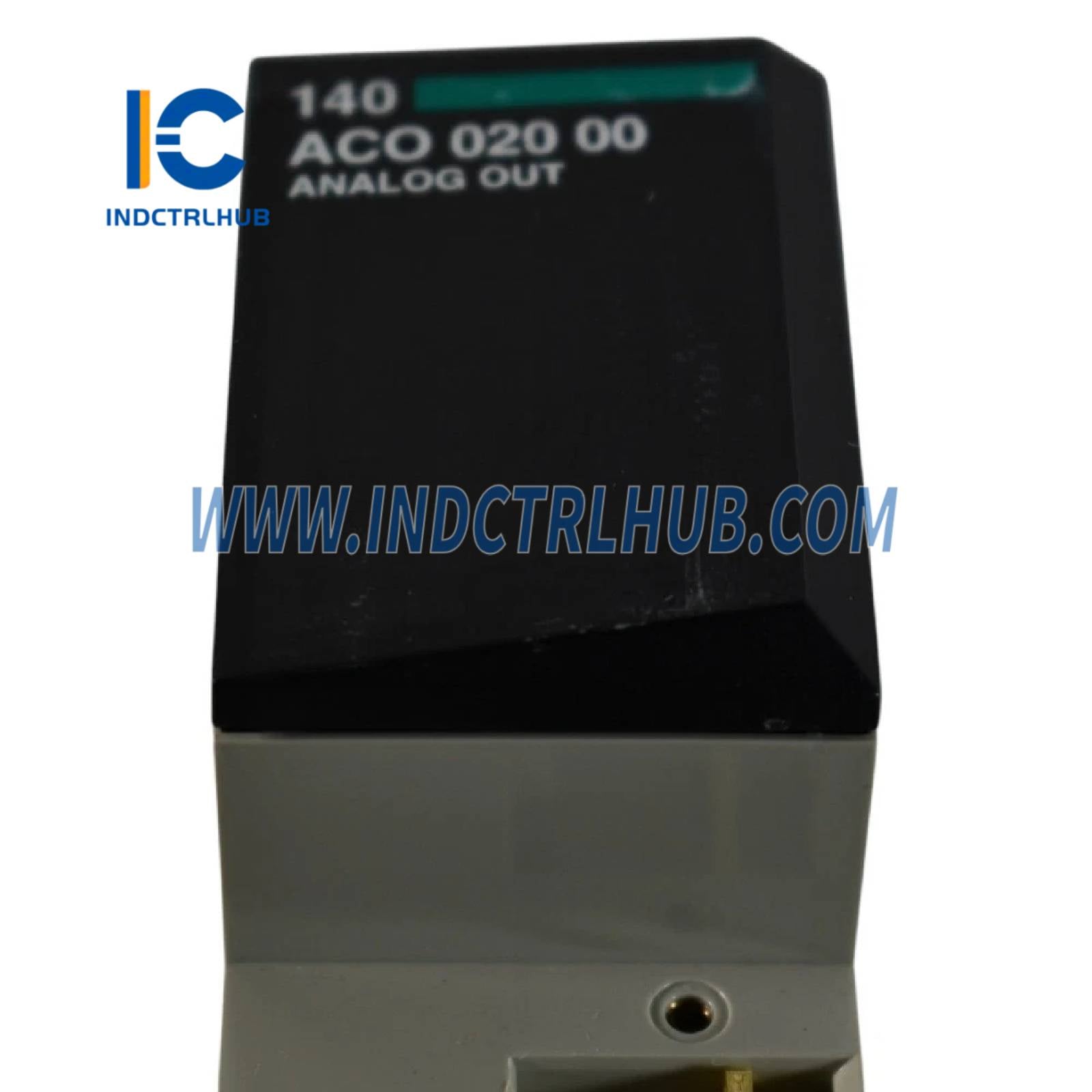

Schneider 140ACO02000 Analog Output Module

Manufacturer

Schneider Electric

Model/Part Number

140ACO02000

Description

Analog Output Module (4 Channels, 4–20 mA)

Module Format

Standard

Weight

0.3 kg (0.66 lb)

Marking

CE

Analog Output Channels

4

Output Range

4–20 mA (0–4096 counts, 12-bit resolution)

Loop Voltage

12 to 30 V DC

Voltage Drop

30 V @ 20 mA

Addressing Requirement

4 output words

Absolute Accuracy

±0.20% of full scale @ 25°C

Linearity

±1 LSB

Accuracy Drift (Temp.)

±0.004% FS/°C (typ), ±0.007% FS/°C (max)

Isolation Between Channels

500 V AC (47–63 Hz), 750 V DC (1 min)

Update Time

3 ms

Setting Time

900 µs to ±0.1% of final value

Fault Detection

Open circuit (4–20 mA)

Bus Current Requirement

480 mA

Power Dissipation

≤5.3 W

External Power Required

12–30 V DC

4 Green LEDs

Channel ON

4 Red LEDs

Channel Fault

1 Green LED

Bus Communication Active

1 Red LED

External Fault

Operating Temp.

0 to 60 °C (32 to 140 °F)

Storage Temp.

-40 to 85 °C (-40 to 185 °F)

Relative Humidity

95% non-condensing

Altitude

≤5000 m (16,404 ft)

EM Field Resistance

10 V/m (80–2000 MHz), IEC 801-3 compliant

Category

18155 - Quantum I/O & Power Supplies

Discount Schedule

PC21

GTIN

00785901792192

Units per Package

1

Package Weight

1.02 lb

Returnability

Yes

Country of Origin

France

Certifications

UL, CUL, FM Class 1 Div 2

Standards

UL 508, CSA C22.2 No 142

Sustainable Offer

Green Premium Product

RoHS Compliance

Compliant since 0750

REACh Compliance

No SVHC above threshold

Environmental Profile & EOL

Available

California Prop 65 Warning

Contains lead and compounds
