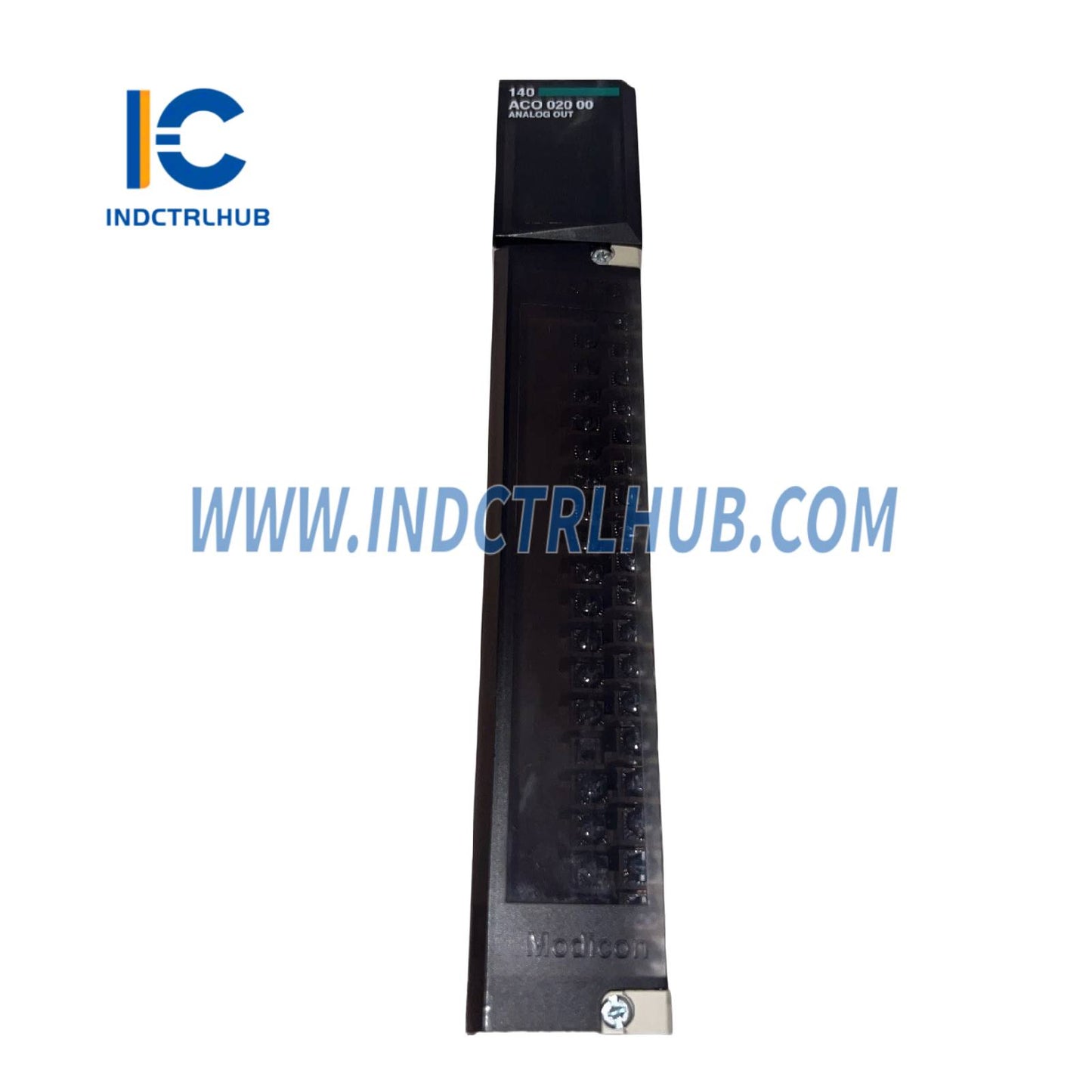

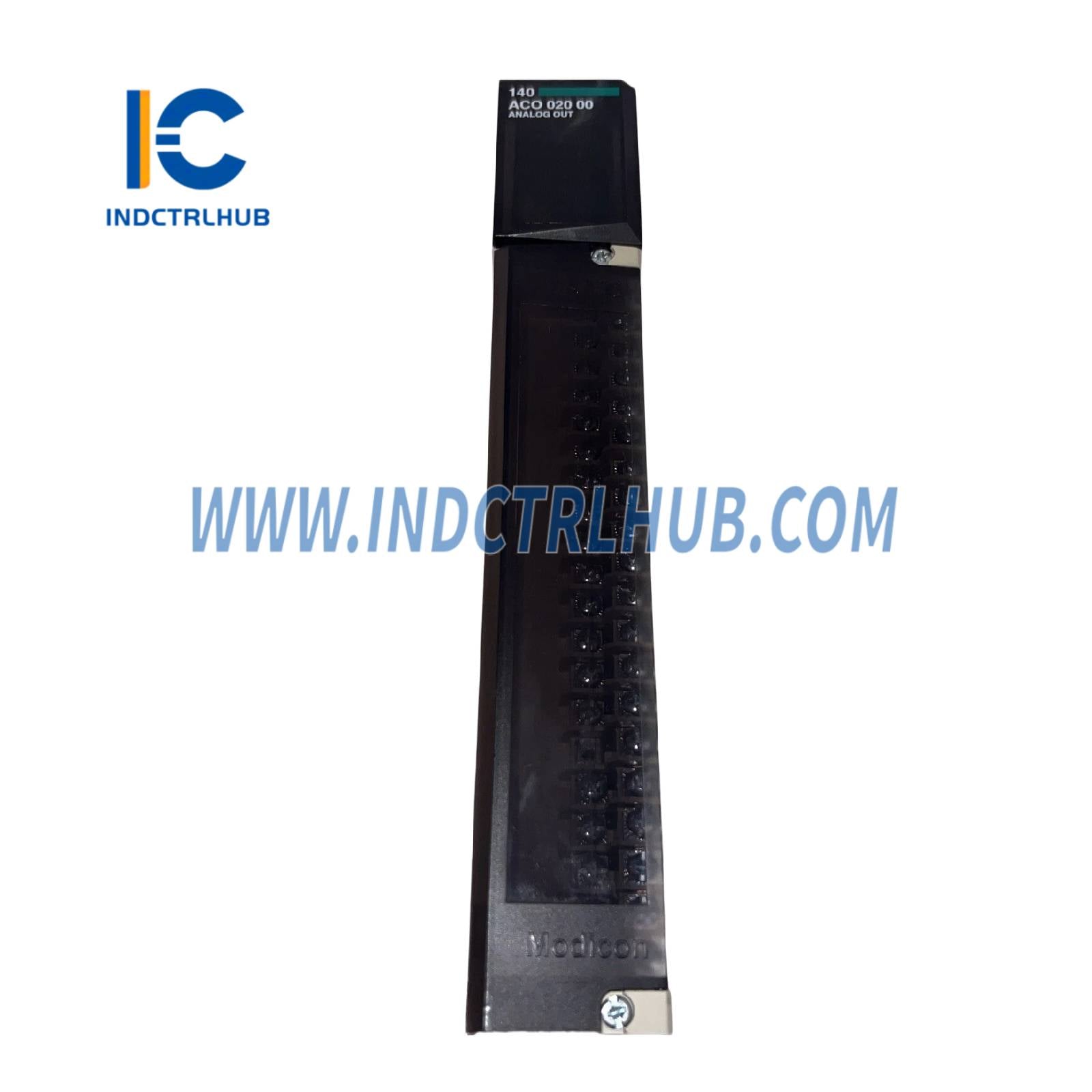

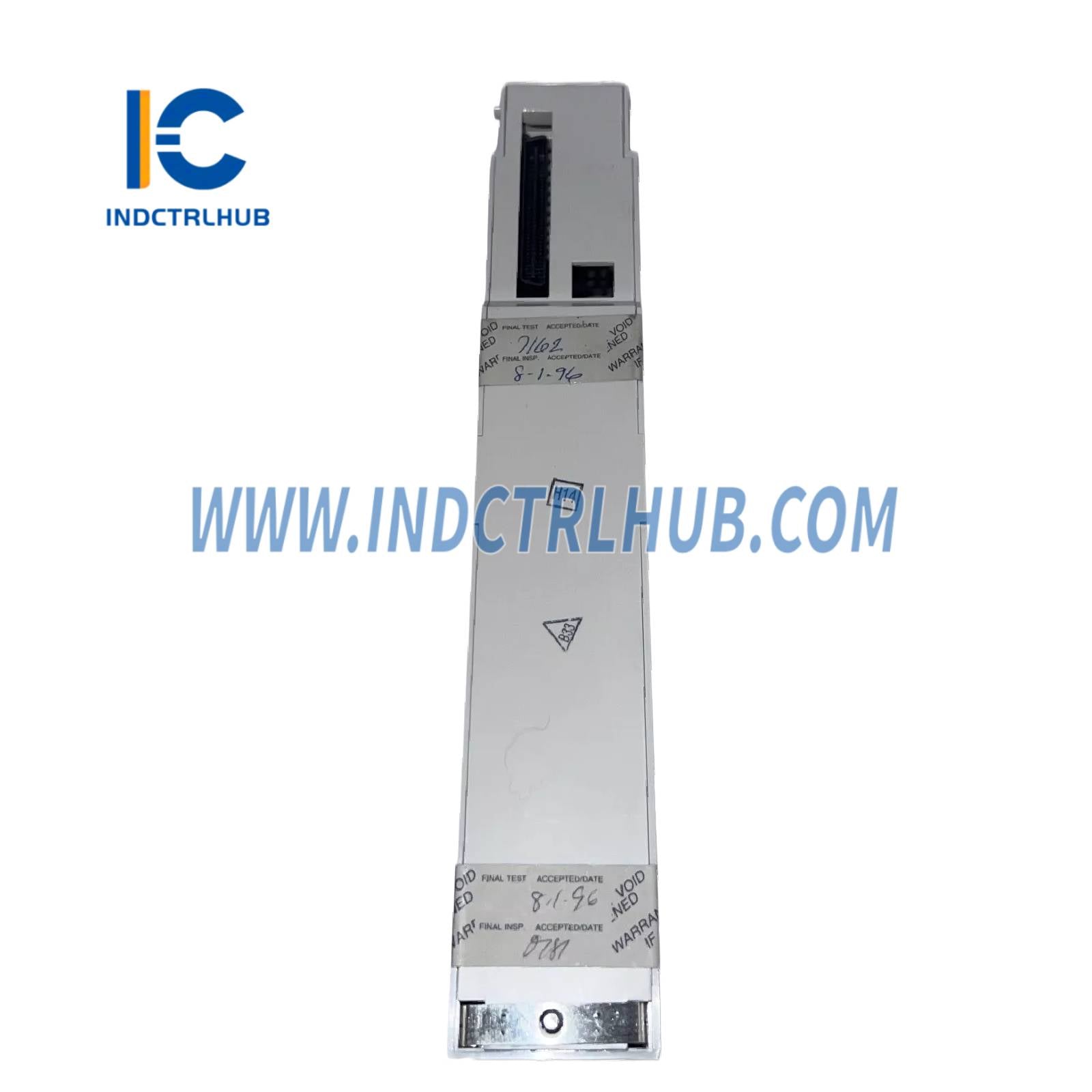

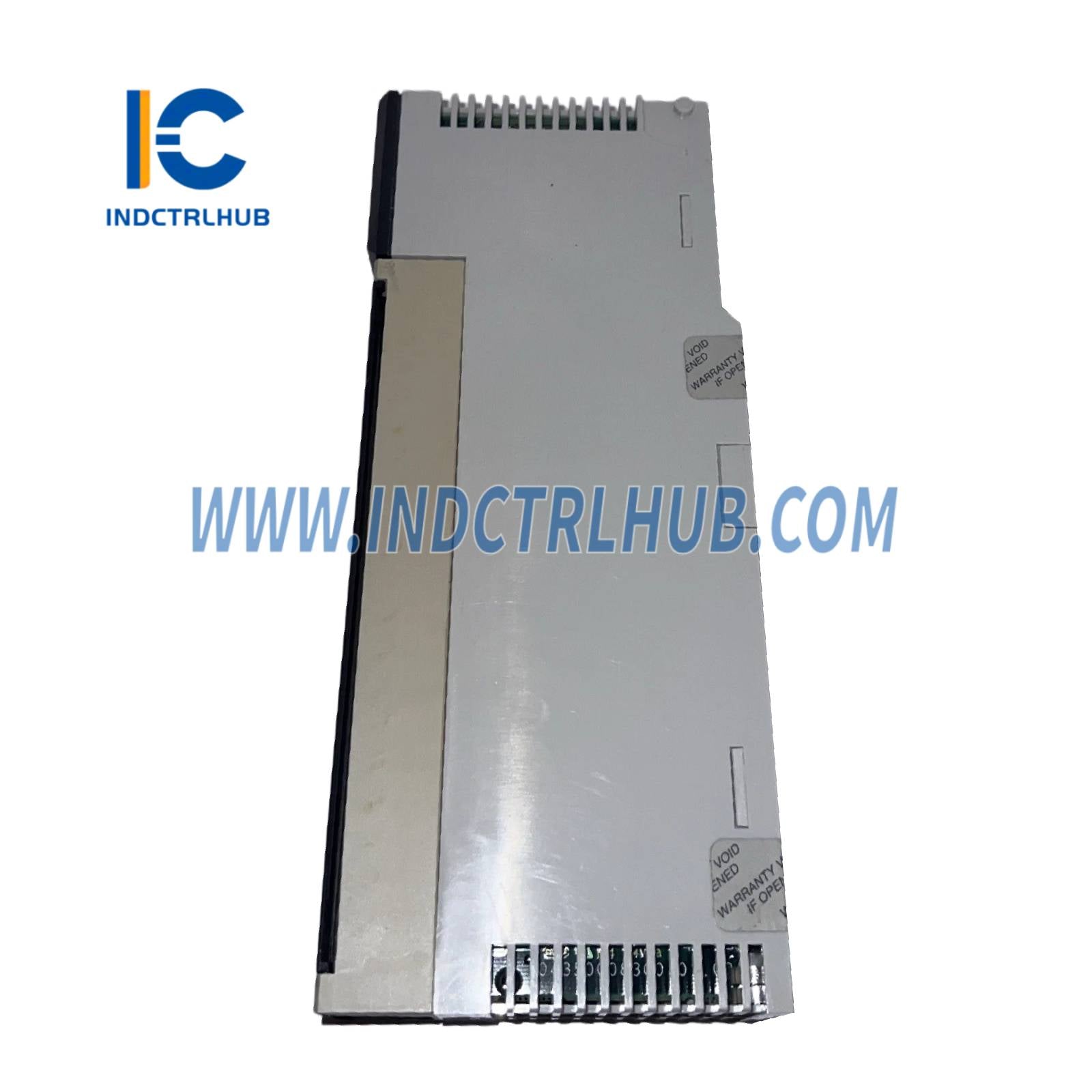

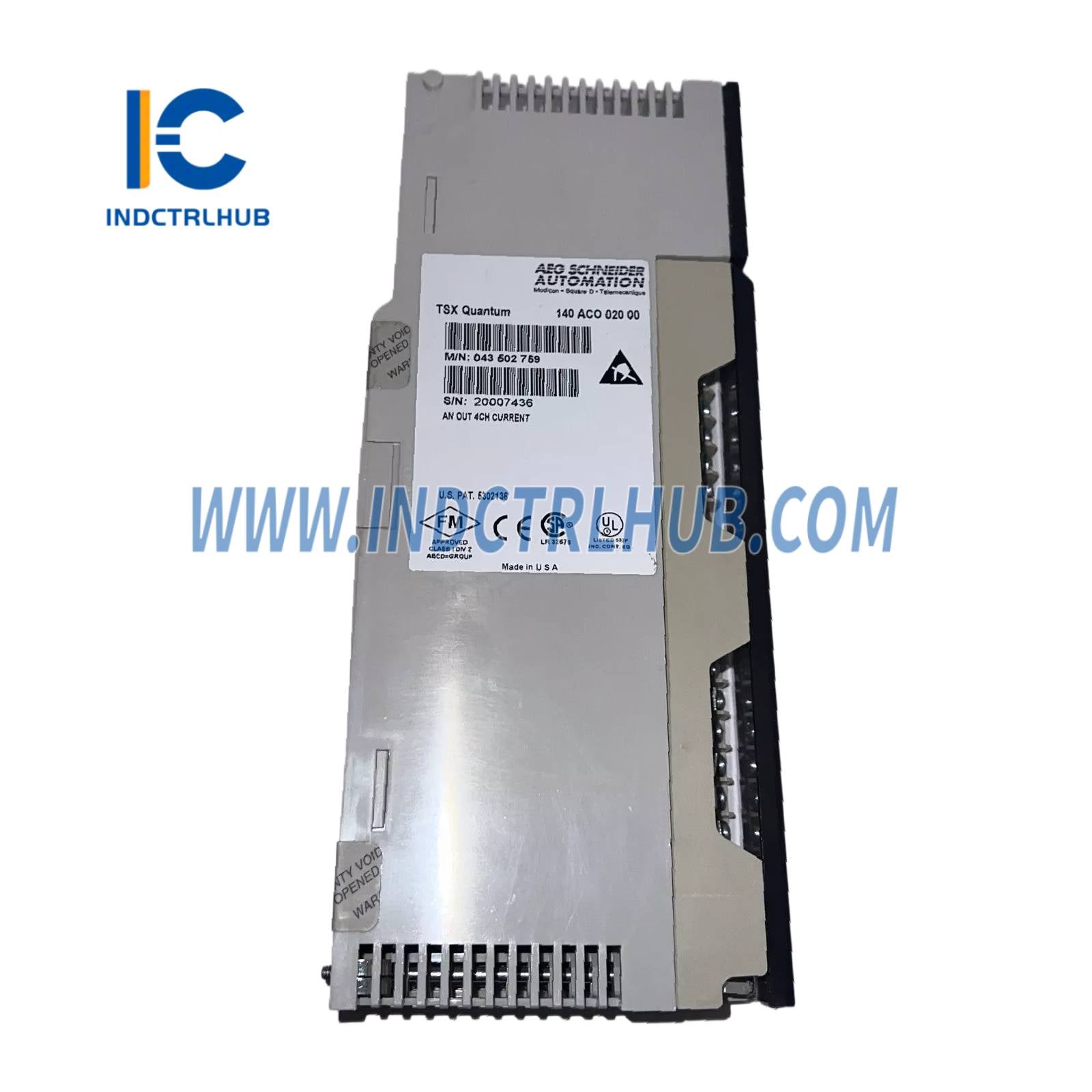

Schneider 140ACO0200 Analog output module

Manufacturer

Schneider Electric

Model/Part Number

140ACO02000

Description

Analog output module – 4 channels, 12-bit, current

Range

Modicon Quantum automation platform

Product Type

Analog Output Module

Number of Analog Outputs

4

Addressing Requirement

4 output words

Loop Voltage Range

12 to 30 V DC

Max Voltage Drop

<30 V @ 20 mA

Output Range & Resolution

4–20 mA: 0–4096 counts, 12-bit bipolar current

Absolute Accuracy

±0.20% of full scale @ 25 °C

Linearity

±1 LSB

Accuracy Drift (Temp Coefficient)

Typical: ±0.004% FS/°CMaximum: ±0.007% FS/°C

Channel Isolation

500 V AC (47–63 Hz), 750 V DC for 1 minute

Update Time

3 ms

Setting Time

900 µs to ±0.1% of final value

Fault Detection

Open circuit (4–20 mA)

Bus Current Requirement

480 mA

Max Power Dissipation

5.3 W

External Power Requirement

12 to 30 V DC

Module Format

Standard

Net Weight

0.3 kg (0.7 lb)

1 LED

Green

Bus communication active

1 LED

Red

External fault

4 LEDs

Green

Output channel active

4 LEDs

Red

Output channel fault

Operating Temp

0…60 °C (32…140 °F)

Storage Temp

-40…85 °C (-40…185 °F)

Relative Humidity

95% non-condensing

Operating Altitude

≤ 5000 m (16404.2 ft)

EM Field Resistance

9.1 V/m (10 V/m) 80–2000 MHz, IEC 801-3 compliant

FM Class 1 Division 2

UL 508, CSA C22.2 No 142

CE, cUL

Package Type

PCE (1 unit)

Dimensions (L×W×H)

31.5 × 16.5 × 4.8 cm

Package Weight

457 g (16.1 oz)

GTIN

3595861126572

Returnable

Yes

Country of Origin

United States
