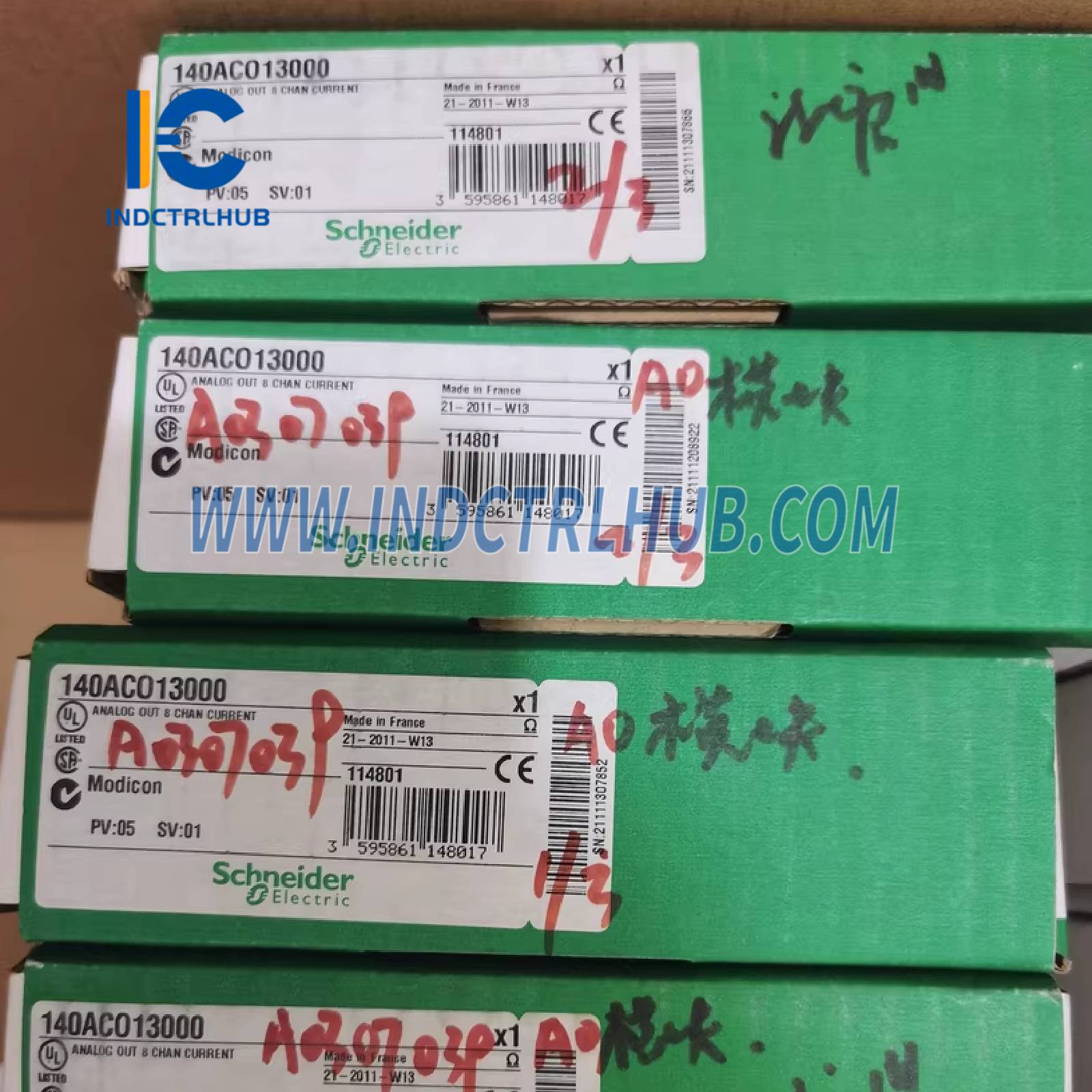

Schneider 140ACO01300 Analog output module

Manufacturer

Schneider Electric

Model/Part Number

140ACO13000

Description

Analog output module – 8 channels, multirange

Range

Modicon Quantum automation platform

Product Type

Analog Output Module

Number of Analog Outputs

8

Addressing Requirement

8 output words

Loop Voltage Range

6 to 30 V DC

Max Voltage Drop

<30 V @ 25 mA

Output Ranges & Resolution

0–20 mA: 0–20000 counts

0–25 mA: 0–25000 counts

4–20 mA: 0–16000 counts

4–20 mA: 0–4095 counts

Absolute Accuracy

±0.2% of full scale @ 25 °C

Linearity Error

±12 µA (4–20 mA, 0–4095 counts)

±4 µA (0–20/25 mA, 4–20 mA other ranges)

Temp Drift (Accuracy)

Typical: 0.004% FS/°CMax: 0.007% FS/°C

Isolation (Channels to Bus)

1780 V AC for 1 min

Update Time

5 ms

Setting Time

3.2 ms to ±0.1% of final value

1.6 ms to 5% of final value

Fault Detection

Open circuit detection (4–20 mA)

Bus Current Requirement

550 mA

Max Power Dissipation

5 W

External Power Requirement

6 to 30 V DC

Module Format

Standard

Net Weight

0.3 kg

1 LED

Green

Bus communication active

1 LED

Red

External fault

8 LEDs

Green

Output channel active

8 LEDs

Red

Output channel fault

Operating Temp

0…60 °C

Storage Temp

-40…85 °C

Relative Humidity

95% non-condensing

Operating Altitude

≤ 5000 m

EM Field Resistance

10 V/m (80–2000 MHz, IEC 801-3 compliant)

FM Class 1 Division 2

UL 508, CSA C22.2 No 142

CE, cUL

Package Dimensions (L×W×H)

31.5 × 16.7 × 4.8 cm

Package Weight

438 g
