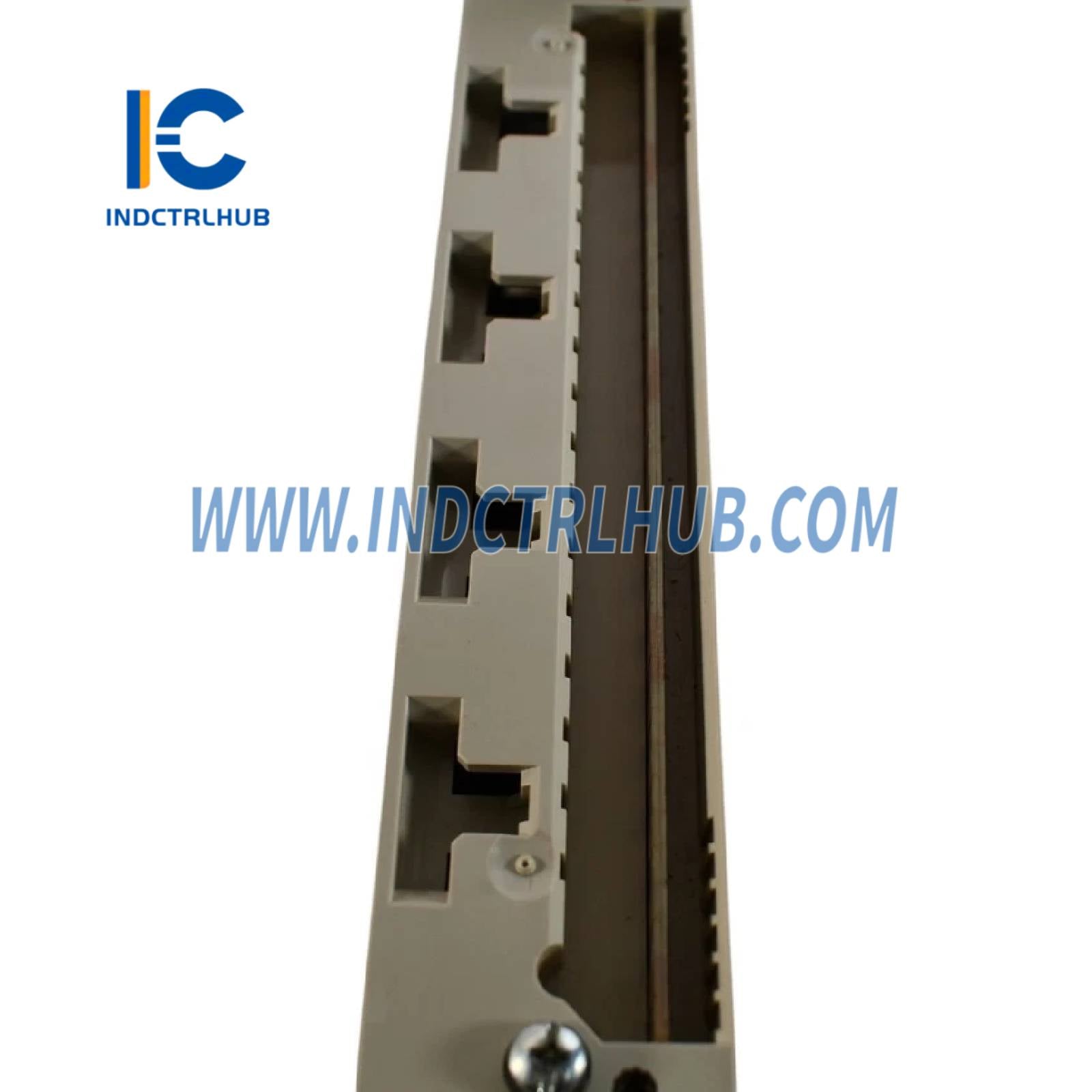

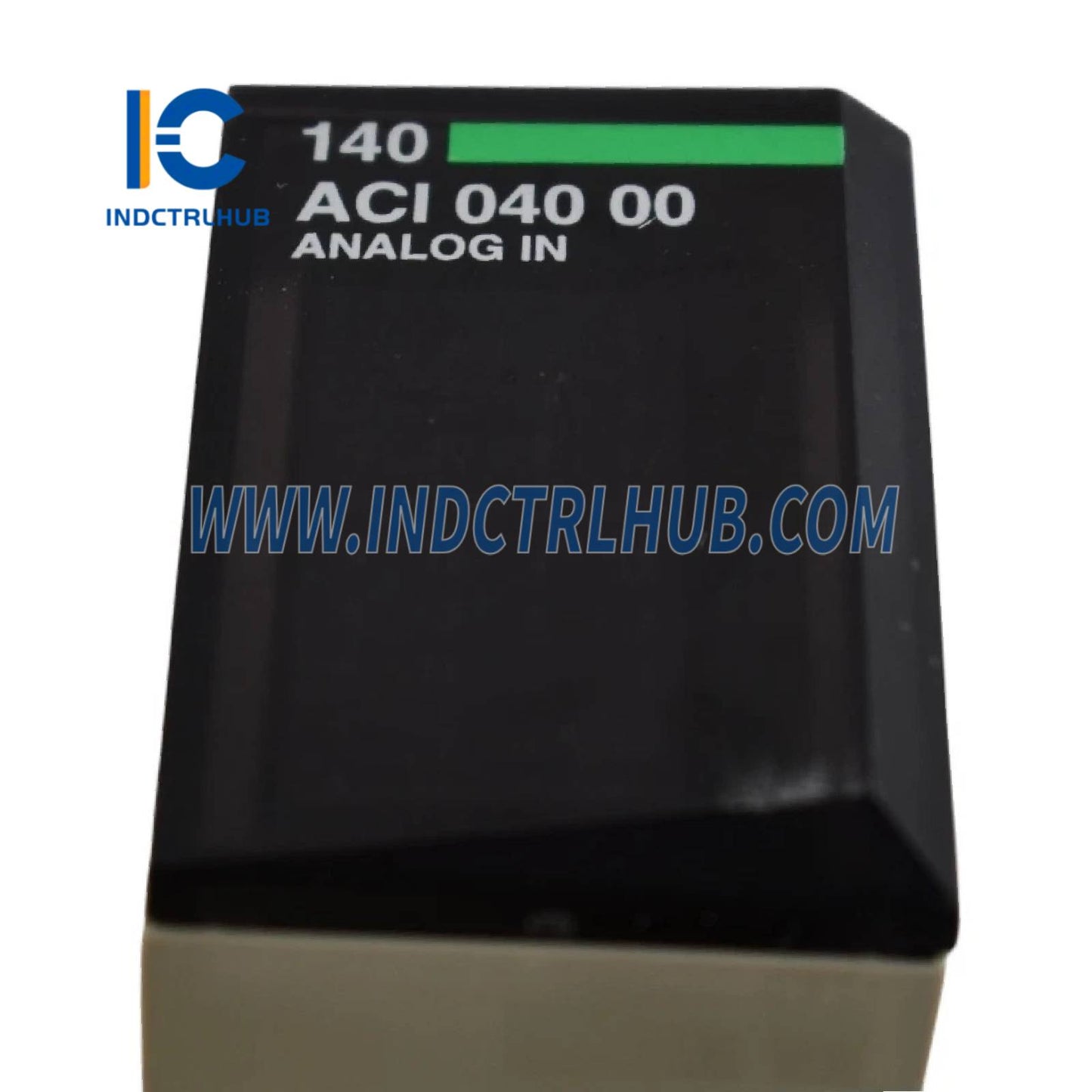

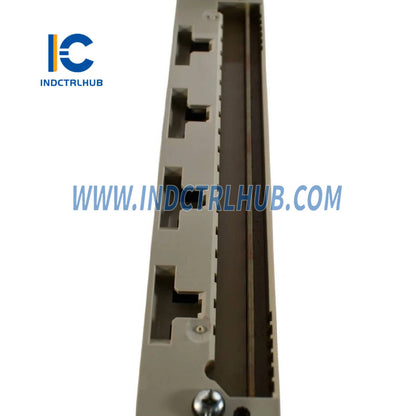

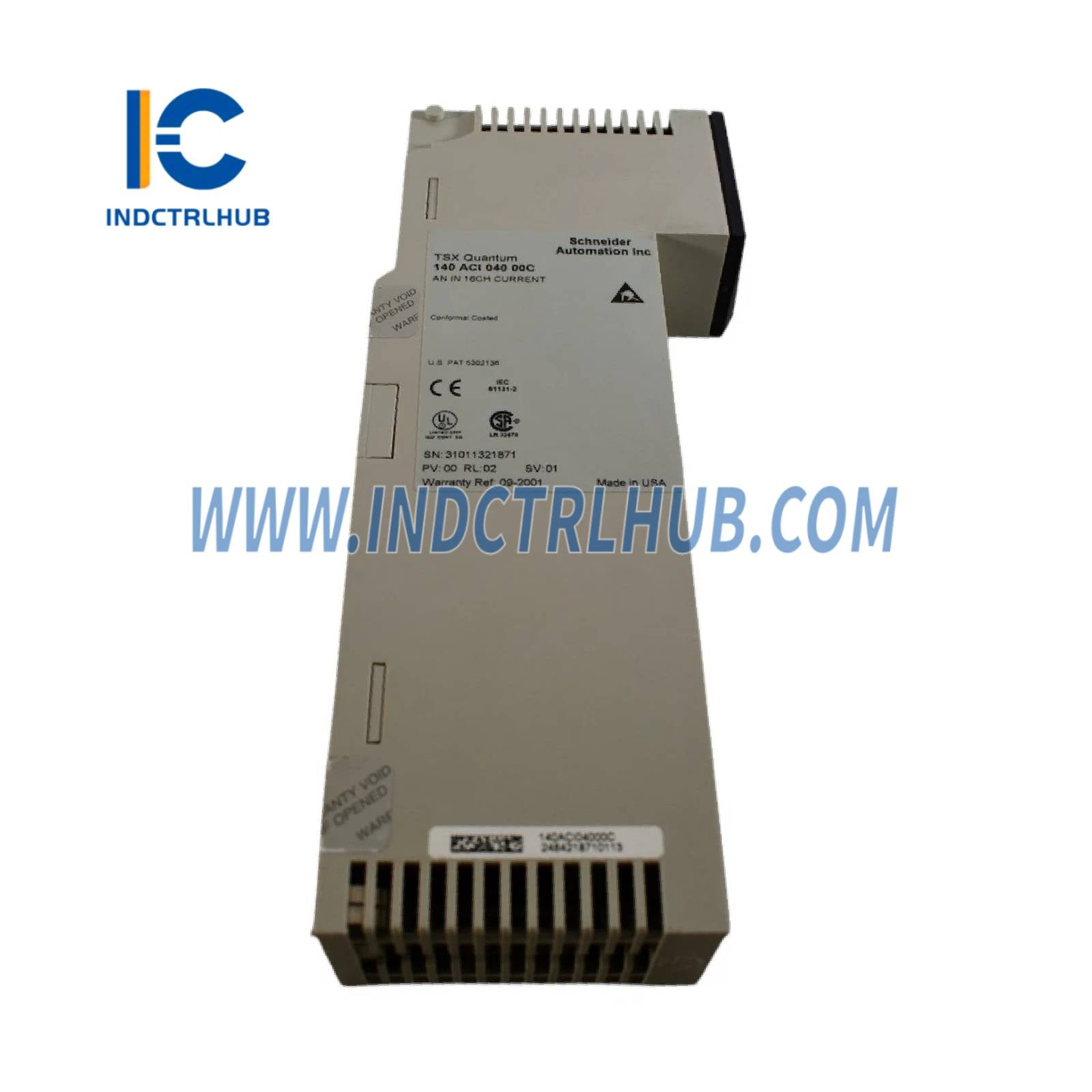

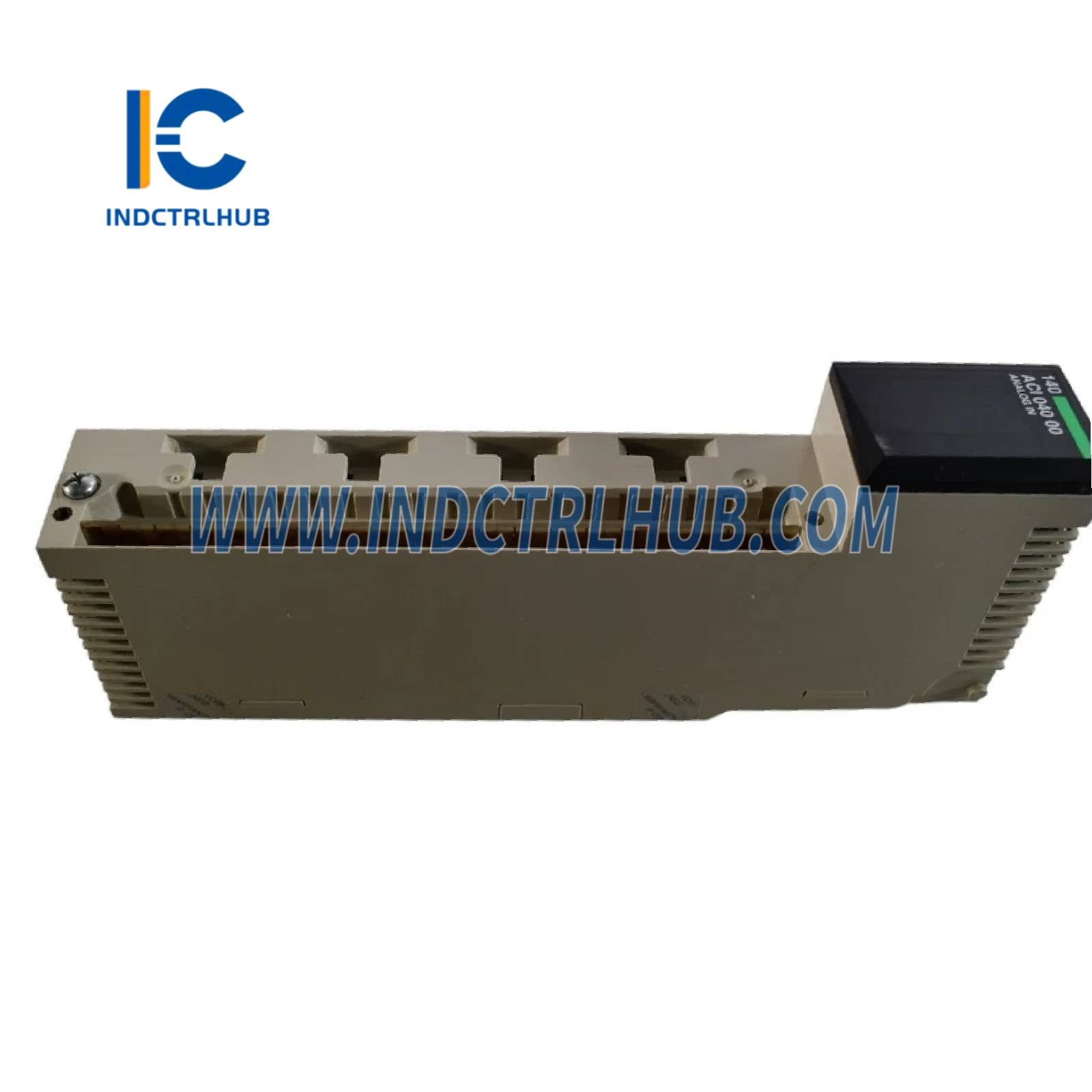

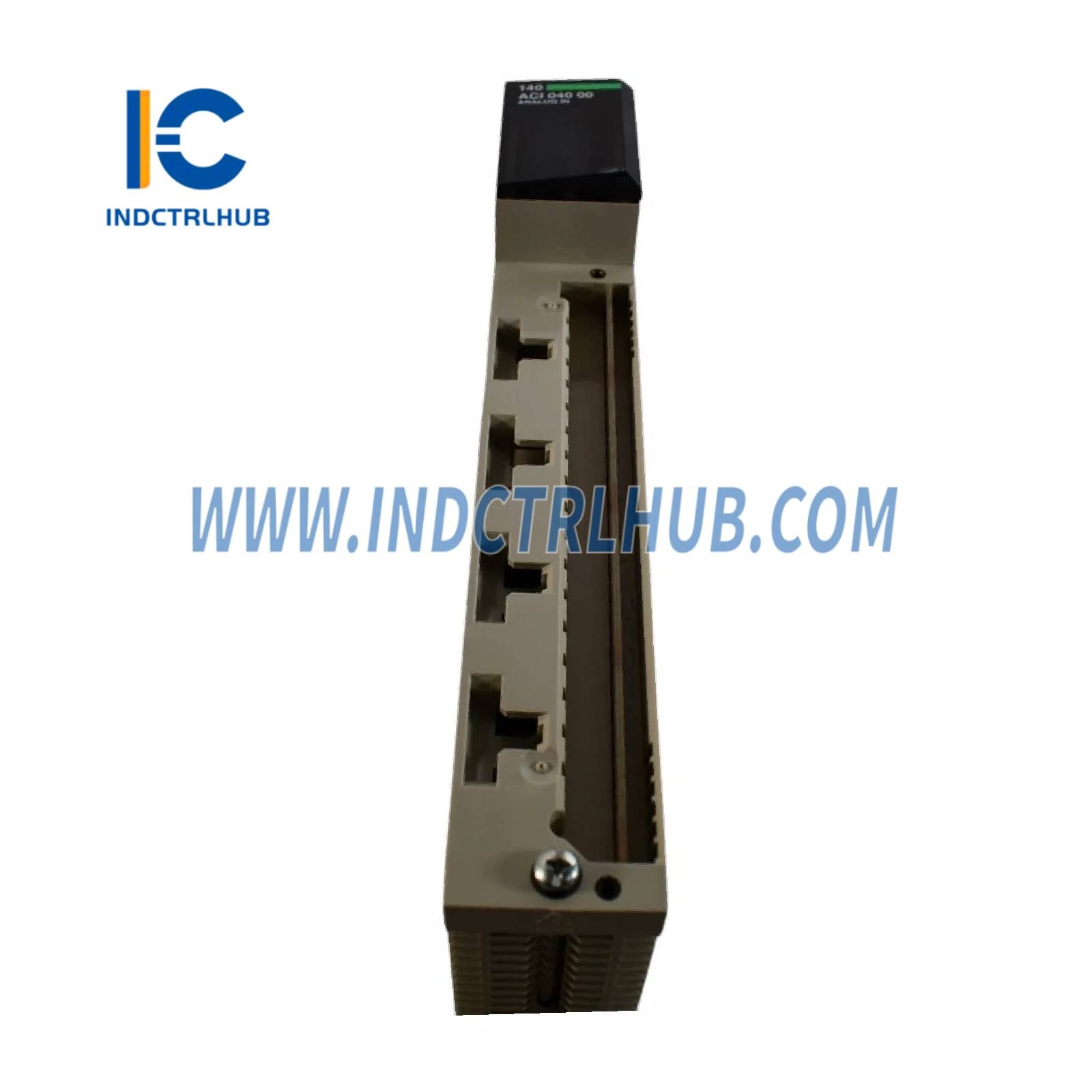

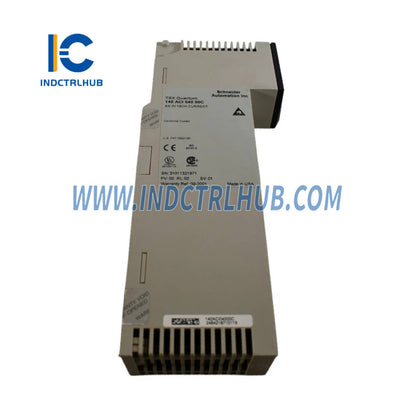

Schneider 140ACI04000C Analog input module
Schneider 140ACI04000C Analog input module
Manufacturer: Schneider
Product No.: 140ACI04000C
Condition:1000 in stock
Product Type: Analog input module
Product Origin: USA
Payment: T/T, Western Union
Weight: 450g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
_§¾
Product Overview
|
Attribute |
Details |
|---|---|
|
Manufacturer |
Schneider Electric |
|
Model/Part Number |
140ACI04000C |
|
Description |
Analog input module _ 16 channels, multirange |
|
Range |
Modicon Quantum automation platform |
|
Product Type |
Analog Input Module |
|
Input Type |
Differential |
|
Filter Type |
Single pole low pass _ 3 dB at 34 Hz ±25% |
_
_
___
Technical Specifications
|
Specification |
Details |
|---|---|
|
Number of Analog Inputs |
16 |
|
Resolution |
0_16000 counts (4_20 mA) |
|
0_20000 counts (0_20 mA) |
|
|
0_25000 counts (0_25 mA) |
|
|
0_4095 counts (4_20 mA) |
|
|
Addressing Requirement |
17 input words |
|
Absolute Max Input |
30 mA |
|
Input Impedance |
250 Ohm |
|
Accuracy Error |
±0.125% of full scale |
|
Linearity Error |
±12 µA max (4_20 mA) |
|
±6 µA max (0_20/25 mA, 4_20 mA) |
|
|
Temp Drift (Accuracy) |
_ ±0.0025% to ±0.0050% of full scale/°C |
|
Common Mode Rejection |
> -90 dB @ 60 Hz |
|
Isolation (Channels to Bus) |
1780 V AC for 60 s |
|
Update Time |
15 ms (2-wire/4-wire) |
|
Fault Type Detection |
Broken wire (4_20 mA) |
|
Power Dissipation |
_ 5 W |
|
Bus Current Requirement |
360 mA |
|
Module Format |
Standard |
|
Net Weight |
0.3 kg |
_
_
__
Local Signaling LEDs
|
Indicator |
Color |
Function |
|---|---|---|
|
1 LED |
Green |
Bus communication active |
|
1 LED |
Red |
External fault |
|
16 LEDs |
Green |
Channel active |
|
16 LEDs |
Red |
Channel fault |
_
_
__
Environmental Specifications
|
Specification |
Details |
|---|---|
|
Protective Treatment |
Conformal coating (Humiseal 1A33) |
|
Operating Temp |
0_60 °C |
|
Storage Temp |
-40_85 °C |
|
Relative Humidity |
95% non-condensing |
|
Operating Altitude |
_ 5000 m |
|
EM Field Resistance |
10 V/m (80_1000 MHz, per IEC 801-3) |
|
ESD Resistance |
4 kV contact / 8 kV air (per IEC 801-2) |
_
_
_§ª
Certifications & Standards
|
Certifications |
Standards |
|---|---|
|
FM Class 1 Division 2 |
UL 508, CSA C22.2 No 142 |
|
CE, cUL |
_
_
__
Packaging Information
|
Package Type |
PCE (1 unit) |
|---|---|
|
Package Dimensions (L_W_H) |
31.0 _ 16.5 _ 4.8 cm |
|
Package Weight |
450 g |
_
