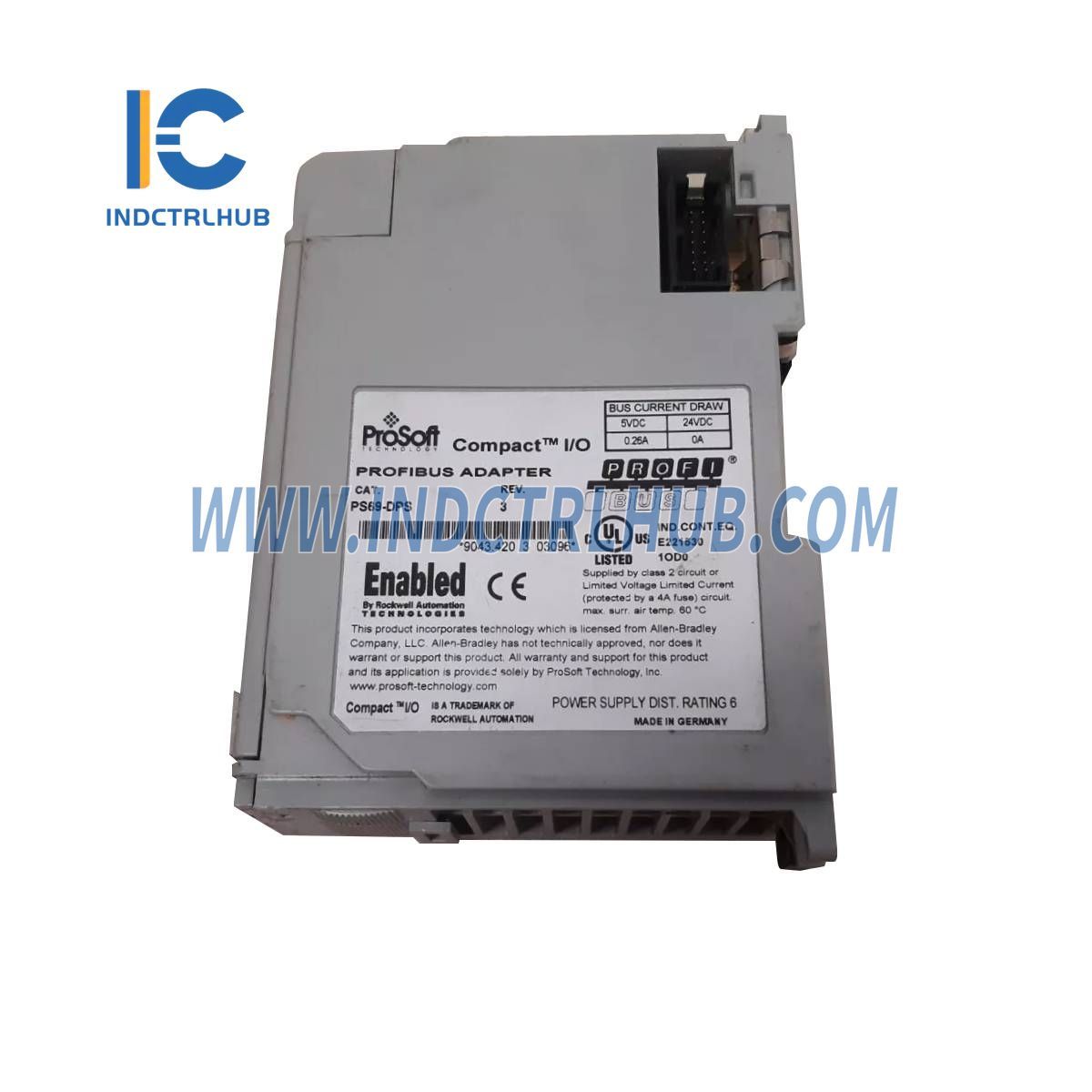

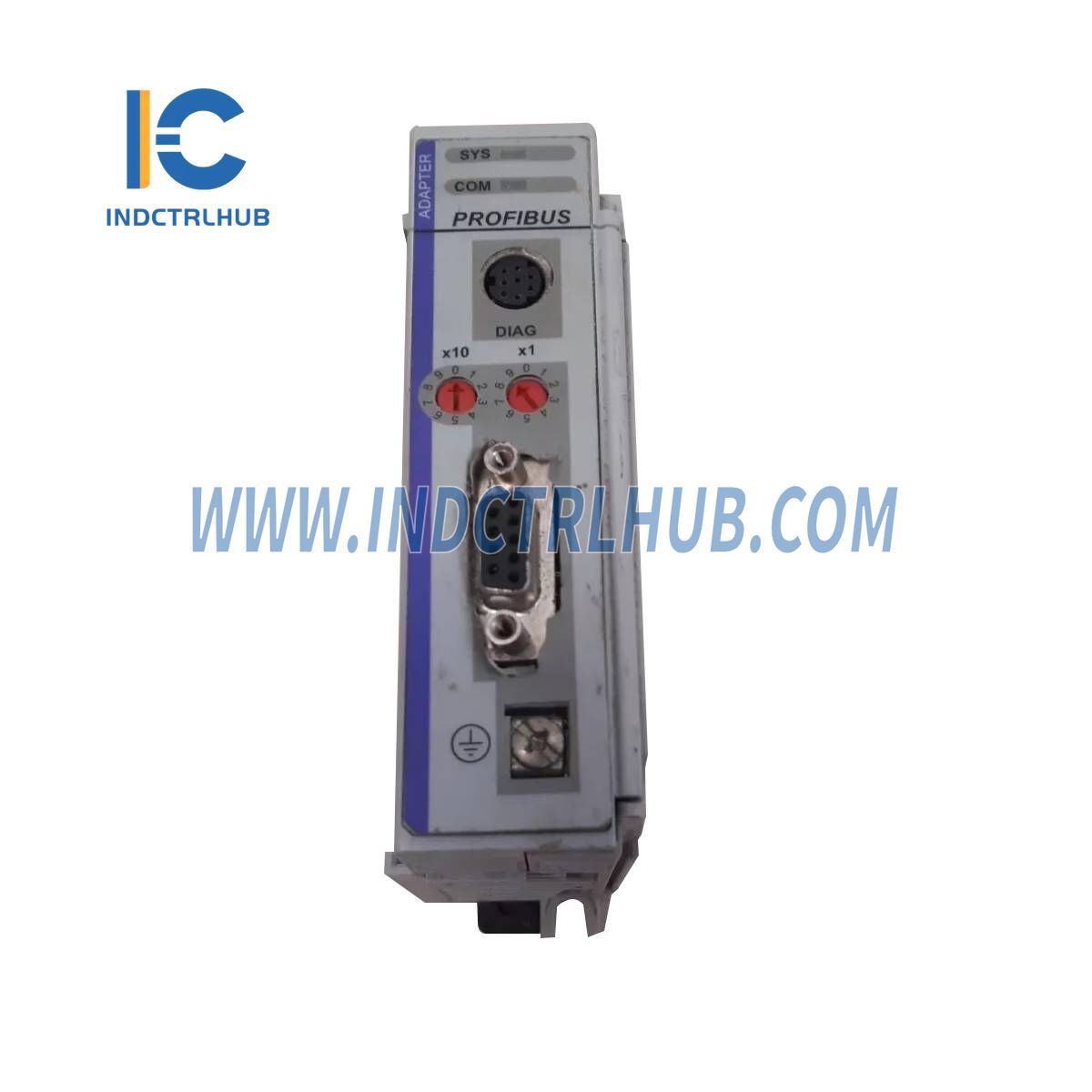

Product Description
General Information
|
Manufacturer |
Prosoft |
|---|---|
|
Model/Part Number |
PS69-DPS |
|
Description |
PROFIBUS DP Slave Communication Module |
Functional Specifications
|
Specification |
Description |
|---|---|
|
Input Data |
Max. 244 Bytes |
|
Output Data |
Max. 244 Bytes |
|
DPV1 Services |
Read/Write Class 1, Alarm |
|
GSD File |
PSFT097A.gsd |

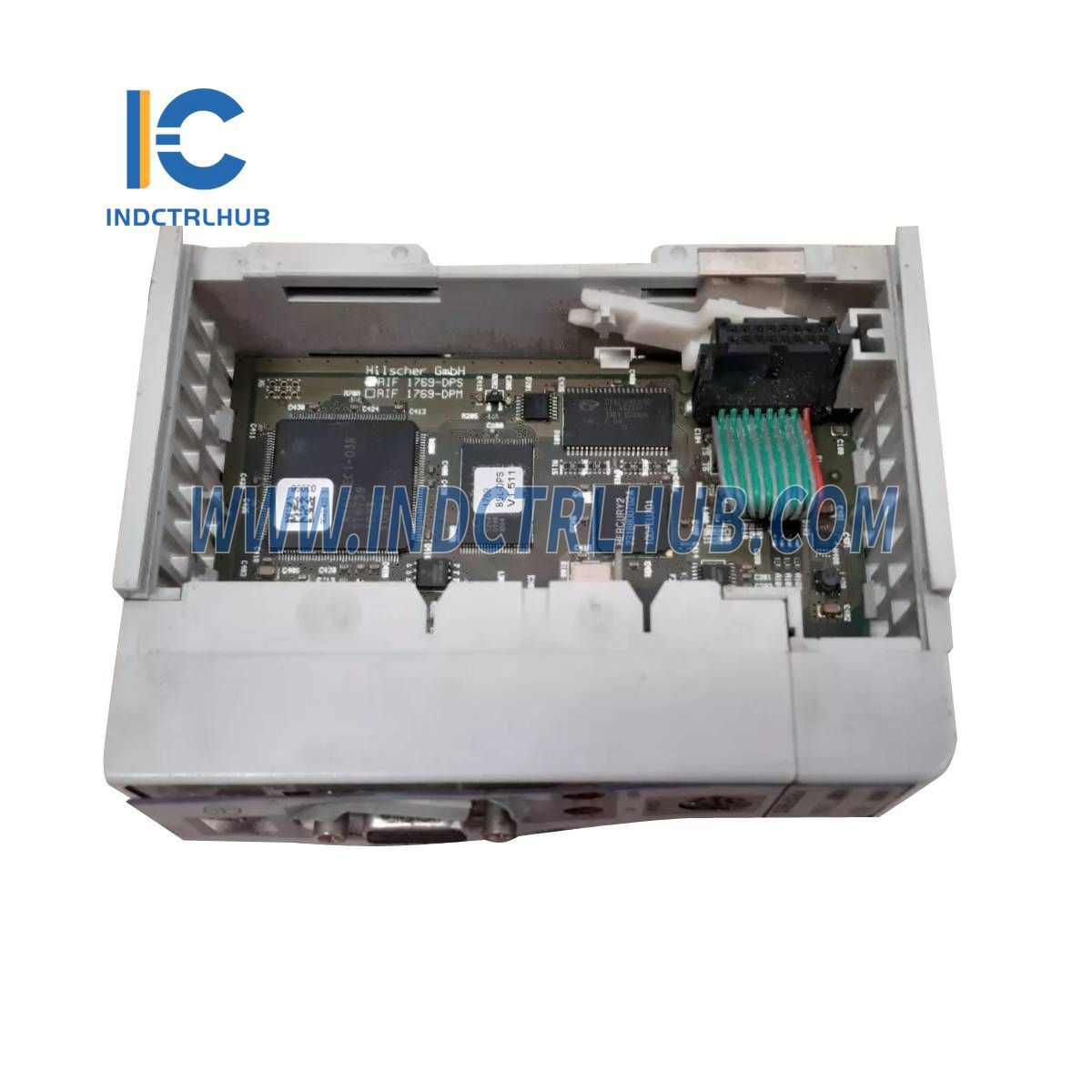

Hardware Specifications
|
Specification |
Description |
|---|---|
|
Processor |
EC1-160P with integrated ASPC2 |
|
PROFIBUS Interface |
RS-485, max. 12 Mbps, potential free, according to EN 50170 |
|
Diagnostic Interface |
RS-232, PS/2 Mini DIN female connector, 9600 Baud, non-isolated |
|
Power Supply |
+5 V ±5 % / 260 mA |
|
Max. Distance Rating |
Max. 6 modules to the power supply module |
|
Dimensions |
Standard 1769 Single-slot module |
|
Burst Protection |
EN 61000-4-4, 2 kV, 5 kHz |
|
Surge Protection |
EN 61000-4-5, 2 kV common mode, 1 kV differential mode |
|
ESD Protection |
EN 61000-4-2, 4 kV contact, 8 kV air, 4 kV indirect |
|
Radiated/Conducted Immunity |
EN 61000-4-3, 10 V/m, 30-1000 MHz, 80% AM, 1 kHz sinewave; EN 61000-4-6, 10 V, 0.15-30 MHz |
|
Radiated/Conducted Emission |
EN 55011 Class A |
|
Vibration/Shock |
IEC 60068-2-6, 10-150 Hz, ±0.75 mm, ±1 g, 1 Octave/min; IEC 60068-2-27, 15 g, 11 ms |
|
Operating Temperature |
0 to 60°C (32 to 140°F) |
|
Relative Humidity |
5 to 95% (non-condensing) |
|
Agency Certification |
UL/CE, C-UL certified, UL 508 listed, CE, PROFIBUS conformance certified |
Ordering Information
|
Model Number |
Description |
|---|---|
|
PS69-DPS |
PROFIBUS DPV1 Slave Communication Module |
