Product Description
__ General Information
|
Manufacturer |
Foxboro |
|---|---|
|
Model/Part Number |

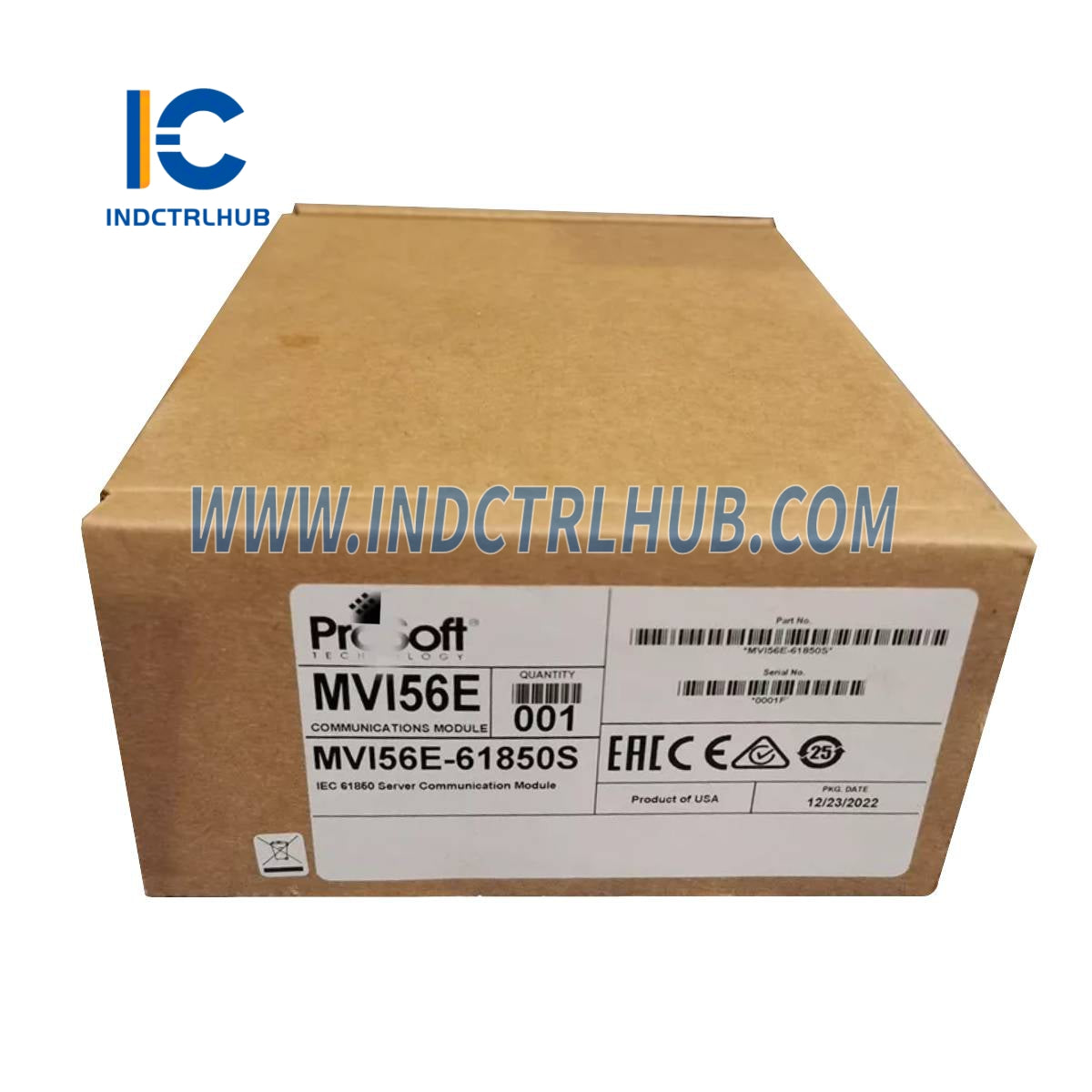

MVI56E-61850S |
|
Description |
ControlLogix® IEC 61850 Server Module |
_
_
__ Specifications
_
Functional Specifications
|
Specification |
Description |
|---|---|
|
Client Connections |
Supports up to 8 independent client connections |
|
61850 Data Point Types |
- Status with Quality: 200 points- SOE Status: 200 points- Control Points: 200 points (FLOATDB max. 50)- Buffered Reports: 8- Unbuffered Reports: 8 |
|
Supported Functions |
IEC 61850 Server with MMS Read/Write using GGIO logical node |
|
Supported Data Types |
BOOL, BYTE, INT, DINT (32-bit), REAL (32-bit float), FLOATDB (32-bit float) |
_
Hardware Specifications
|
Specification |
Description |
|---|---|
|
Backplane Current Load |
800 mA @ 5 VDC3 mA @ 24 VDC |
|
Operating Temperature |
0°C to 60°C (32°F to 140°F) |
|
Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
|
Shock |
30 g (Operational)50 g (Non-operational) |
|
Vibration |
5 g from 10 to 150 Hz |
|
Relative Humidity |
5% to 95%, non-condensing |
|
LED Indicators |
Battery Status (ERR), Application Status (APP), Module Status (OK) |
|
4-Character Display |
Displays module IP address |
|
Ethernet Port |
10/100 Base-T, RJ45 (CAT5)Link/Activity LEDs, Auto-crossover |
|
Included Accessories |
5-foot Ethernet straight-through cable |
