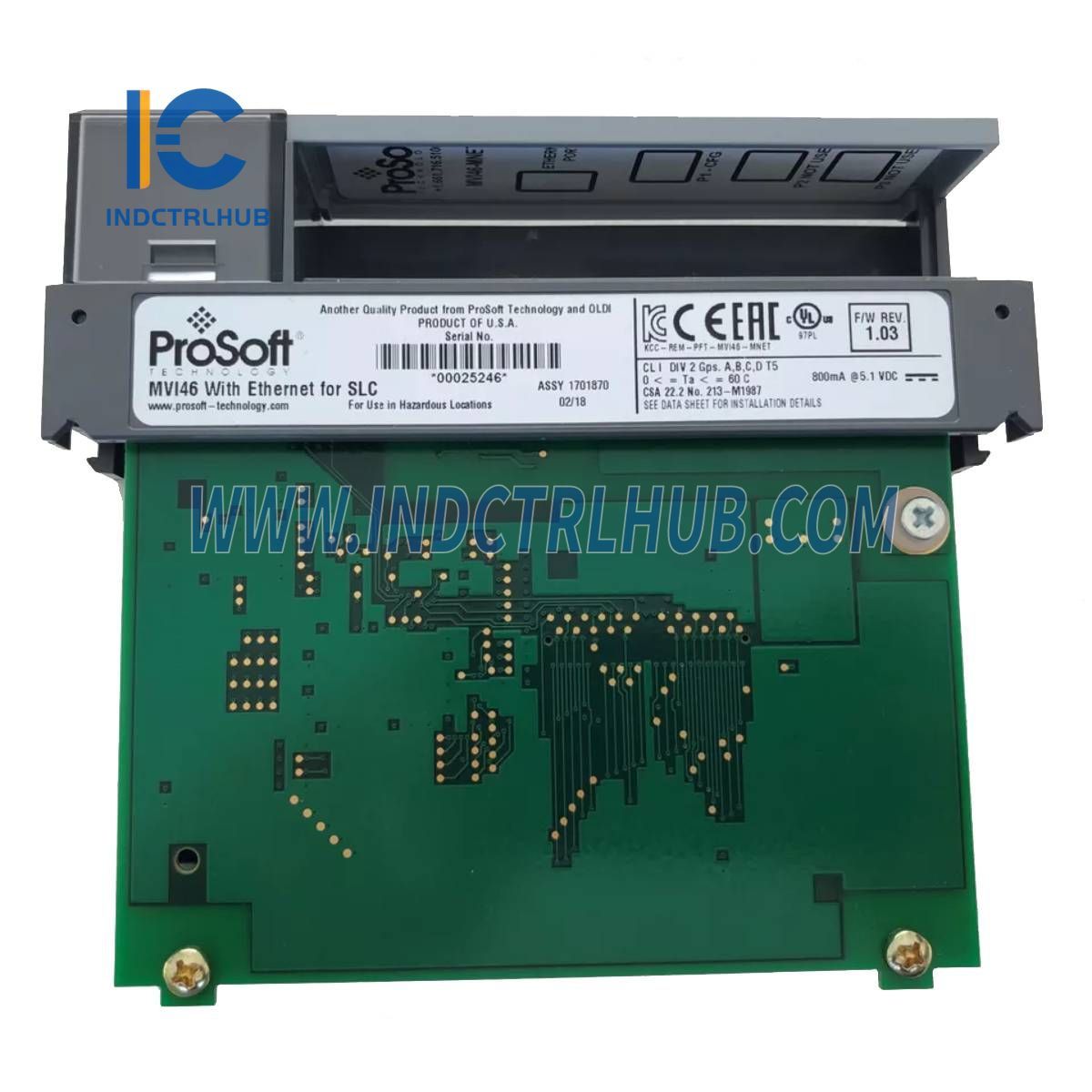

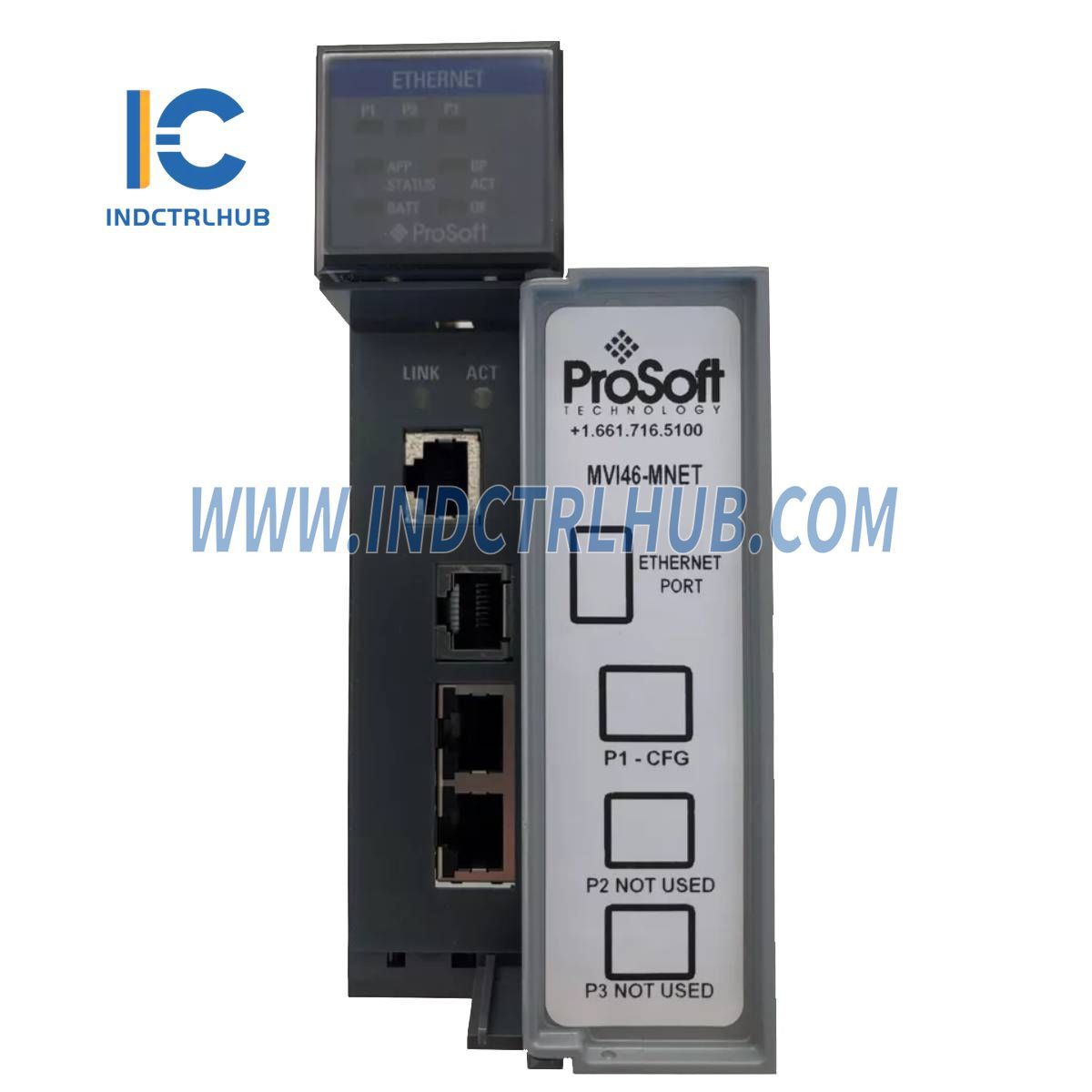

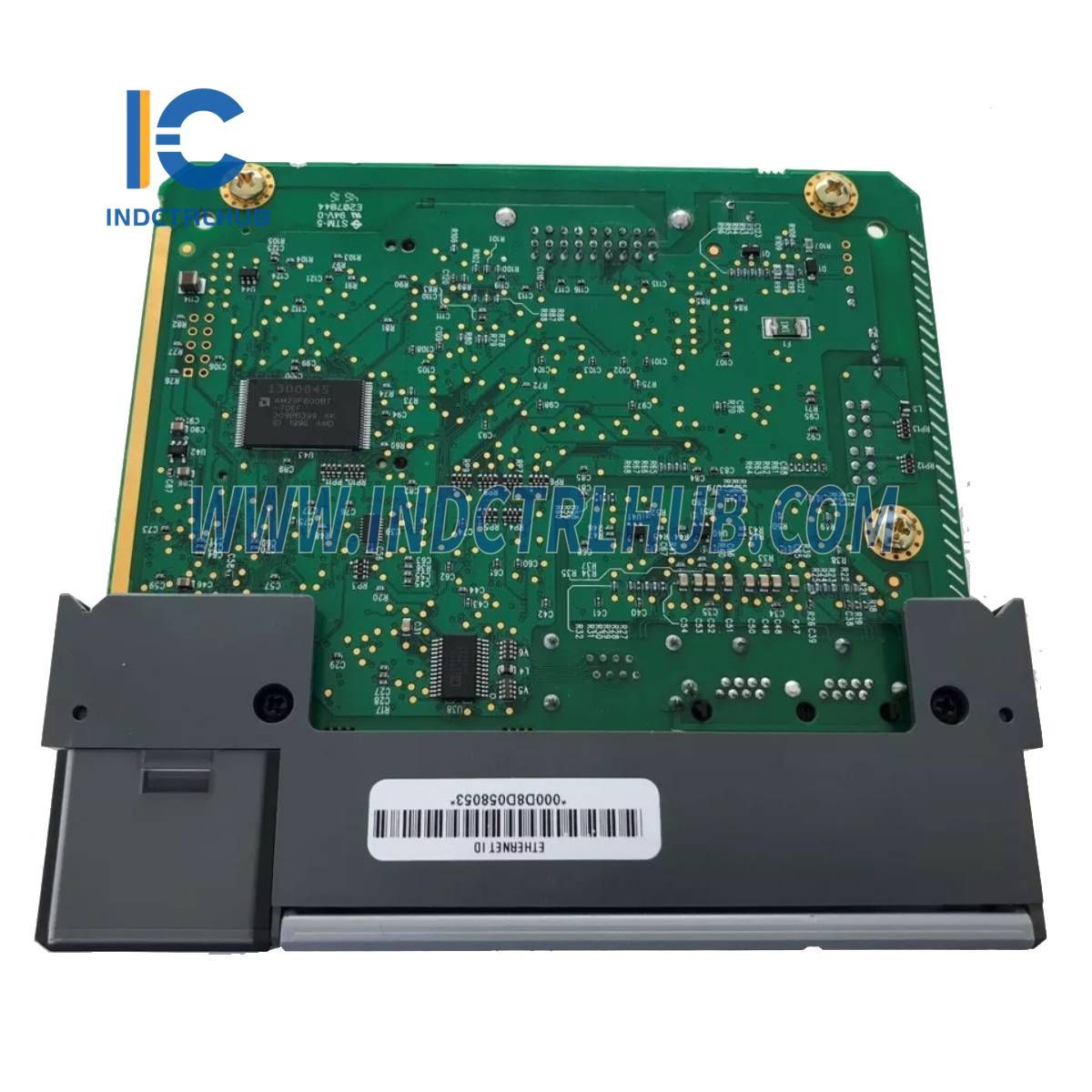

Product Description
General Information
|
Manufacturer |
Prosoft |
|---|---|
|
Model/Part Number |
MVI46-MNET |
|
Description |
Modbus TCP/IP Interface Module |
Hardware Specifications
|
Specification |
Description |
|---|---|
|
Backplane Current Load |
800 mA @ 5V (from backplane) |
|
Operating Temperature |
0 to 60°C (32 to 140°F) |
|
Storage Temperature |
-40 to 85°C (-40 to 185°F) |
|
Relative Humidity |
5% to 95% (non-condensing) |
|
Shock |
30g operational, 50g non-operational |
|
Vibration |
5g from 10-150 Hz |
|
Processor Compatibility |
Compatible with Rockwell Automation SLC 5/02 M0/M1 capable processors or newer |
|
LED Indicators |
Module status, Backplane transfer status, Application status, Serial activity (debug port), Ethernet link and activity, and error LED status |
|
Debug/Configuration Port (CFG) |
RJ45 (DB-9M with supplied cable), RS-232 only, No hardware handshaking |
|
Configuration Connector |
RJ45 RS-232 Connector (RJ45 to DB-9 cable shipped with unit) |
|
Application Ports |
Ethernet Port: RJ45 Connector, Link and activity LED indicators |
|
Electrical Isolation |
1500 V rms at 50 Hz to 60 Hz for 60 s, applied as specified in section 5.3.2 of IEC 60950: 1991 |
|
Ethernet Broadcast Storm Resiliency |
≤ 5000 [ARP] frames-per-second, ≤ 5 minutes duration |
