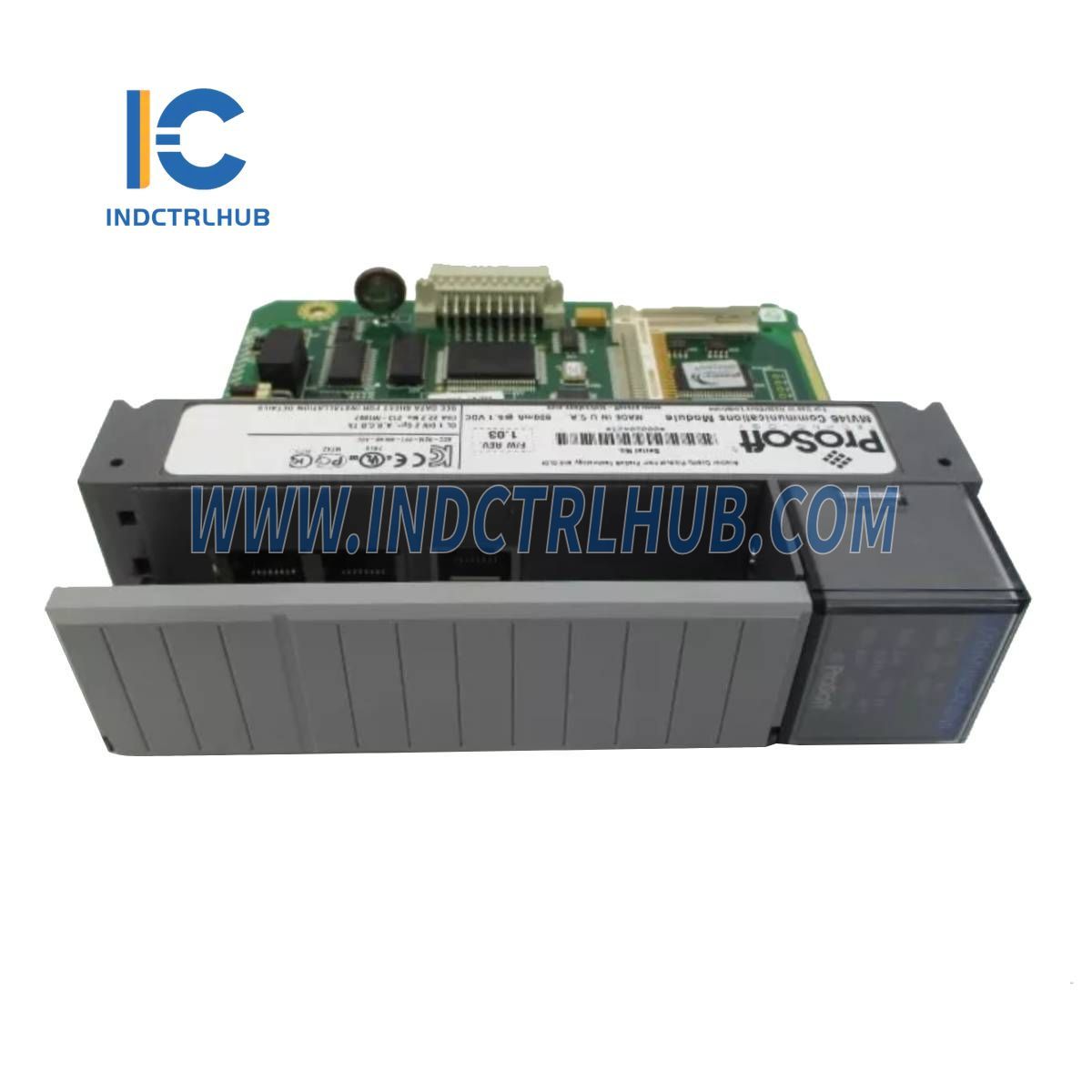

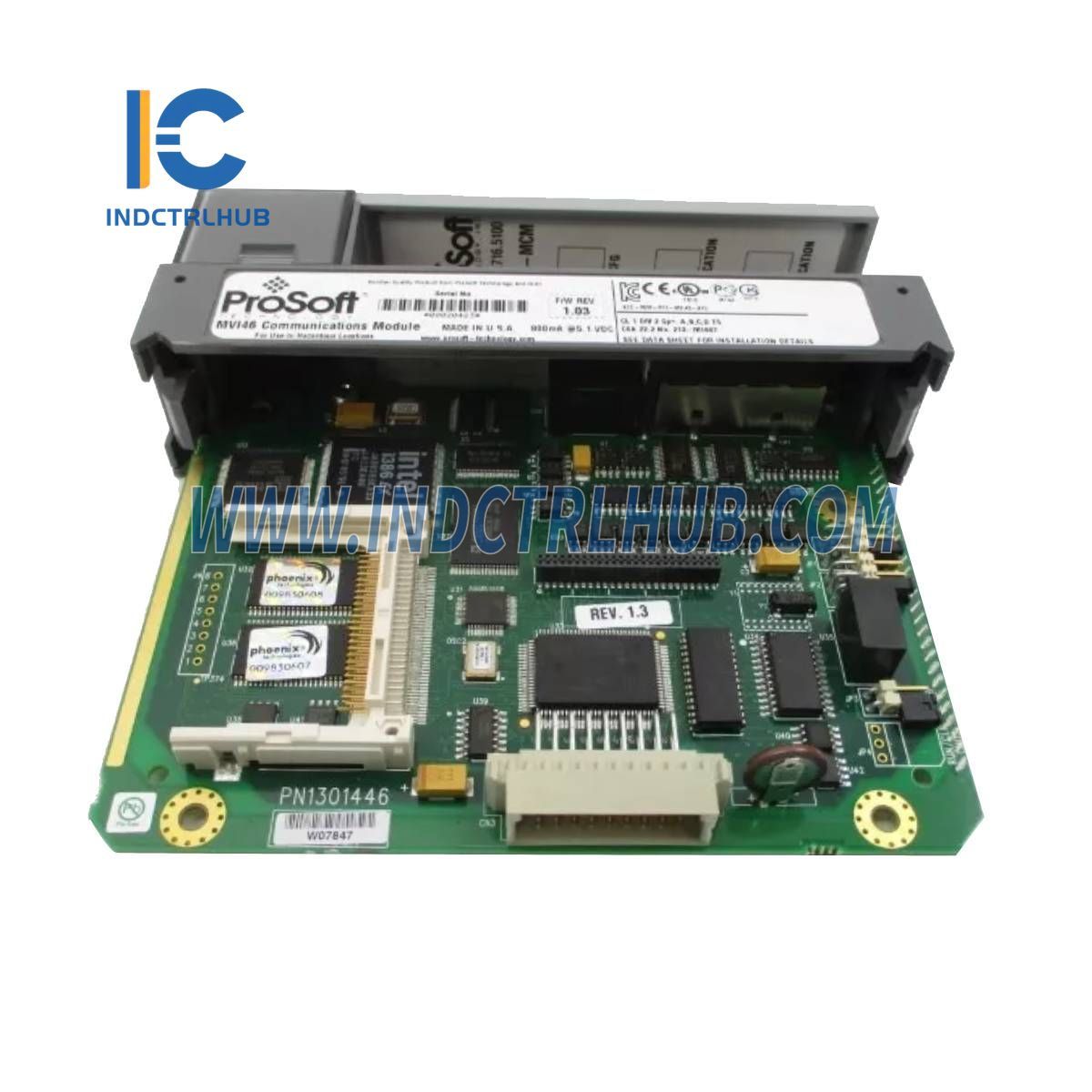

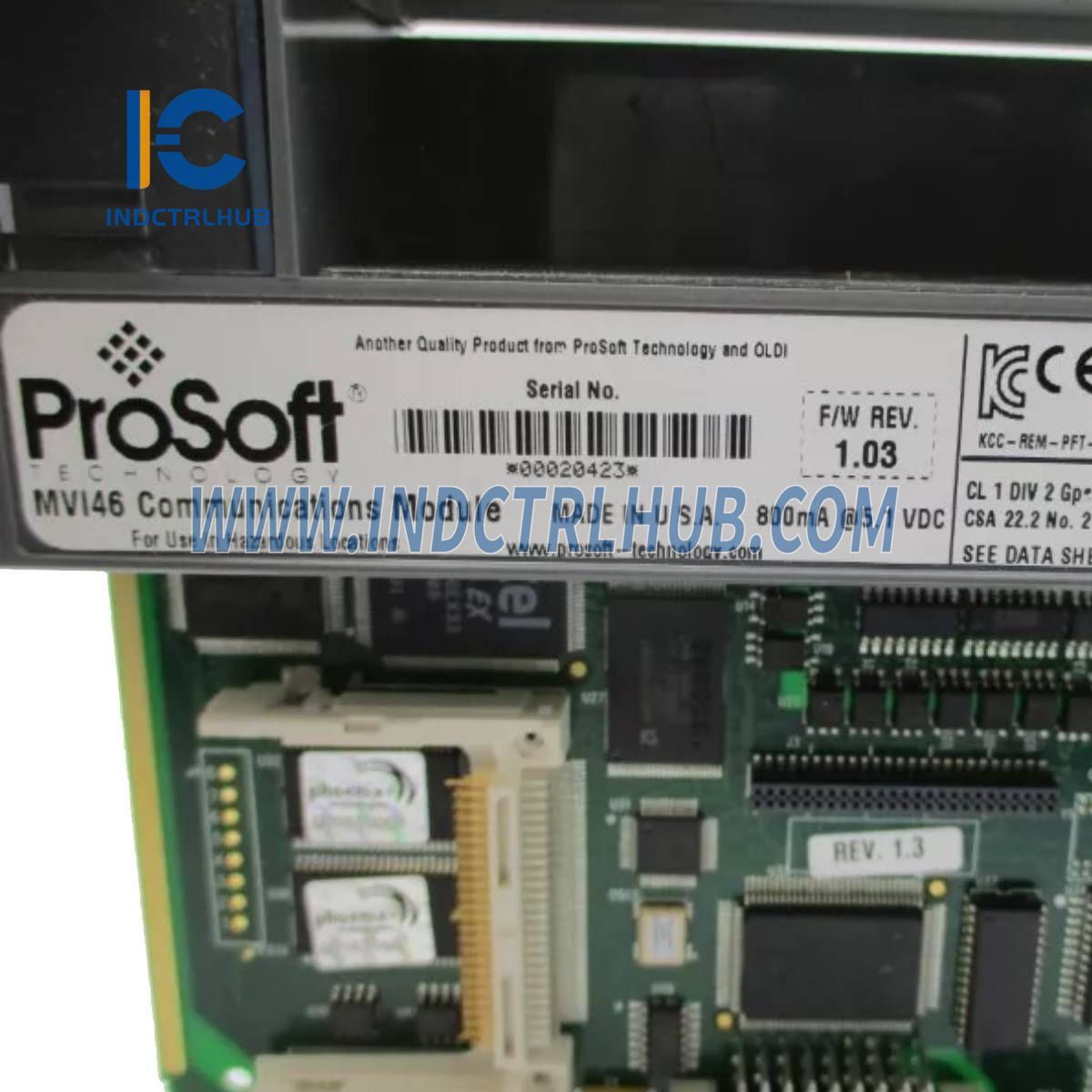

ProSoft MVI46-MCM SLC Platform Modbus Communication Module
ProSoft MVI46-MCM SLC Platform Modbus Communication Module
Manufacturer: ProSoft
Product No.: MVI46-MCM
Condition:1000 in stock
Product Type: SLC Platform Modbus Communication Module
Product Origin: USA
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
General Information
|
Manufacturer |
Prosoft |
|---|---|
|
Model/Part Number |
3100-MCM |
|
Description |
Modbus Master/Slave Communication Module |
Hardware Specifications
|
Specification |
Description |
|---|---|
|
Backplane Current Load |
3100 module for PLC: 0.65 A |
|
Operating Temperature |
0 to 60°C (32 to 140°F) |
|
Storage Temperature |
-40 to 85°C (-40 to 185°F) |
|
Relative Humidity |
5% to 95% (non-condensing) |
|
LED Indicators |
- Module Status__- Backplane Transfer Status__- Serial Port TX/RX Activity LED__- Serial Port Error LED Status |
|
Application Serial Ports |
- DB-25F3100 Module__- RS-232/422/485 jumper selectable__- RS-422/485 screw termination included (two per module)__- RS-232 hardware handshaking (RTS/CTS, DTR)__- 500V optical isolation from backplane |
Functional Specifications
__Up to 100 entries in the command list, each fully configurable for function, slave address, register-to/from addressing, and word/bit count (Master port)
__Continuous polling of command list (Master port)
__Supports storage and transfer of up to 4000 registers to/from the PLC
__Event-driven bit and register write commands (Master port)
__Full radio, modem, and multi-drop support
__Supports RS-232C, RS-422, and RS-485 interfaces
__Communication error codes and counters returned to ladder logic (Slave port)
__Communication error codes returned to ladder logic on a per-command basis (Master Port)
Ordering Information
|
Model Number |
Description |
|---|---|
|
3100-MCM |
Modbus Master/Slave Communication Module |
_
