Product Description
Product Overview

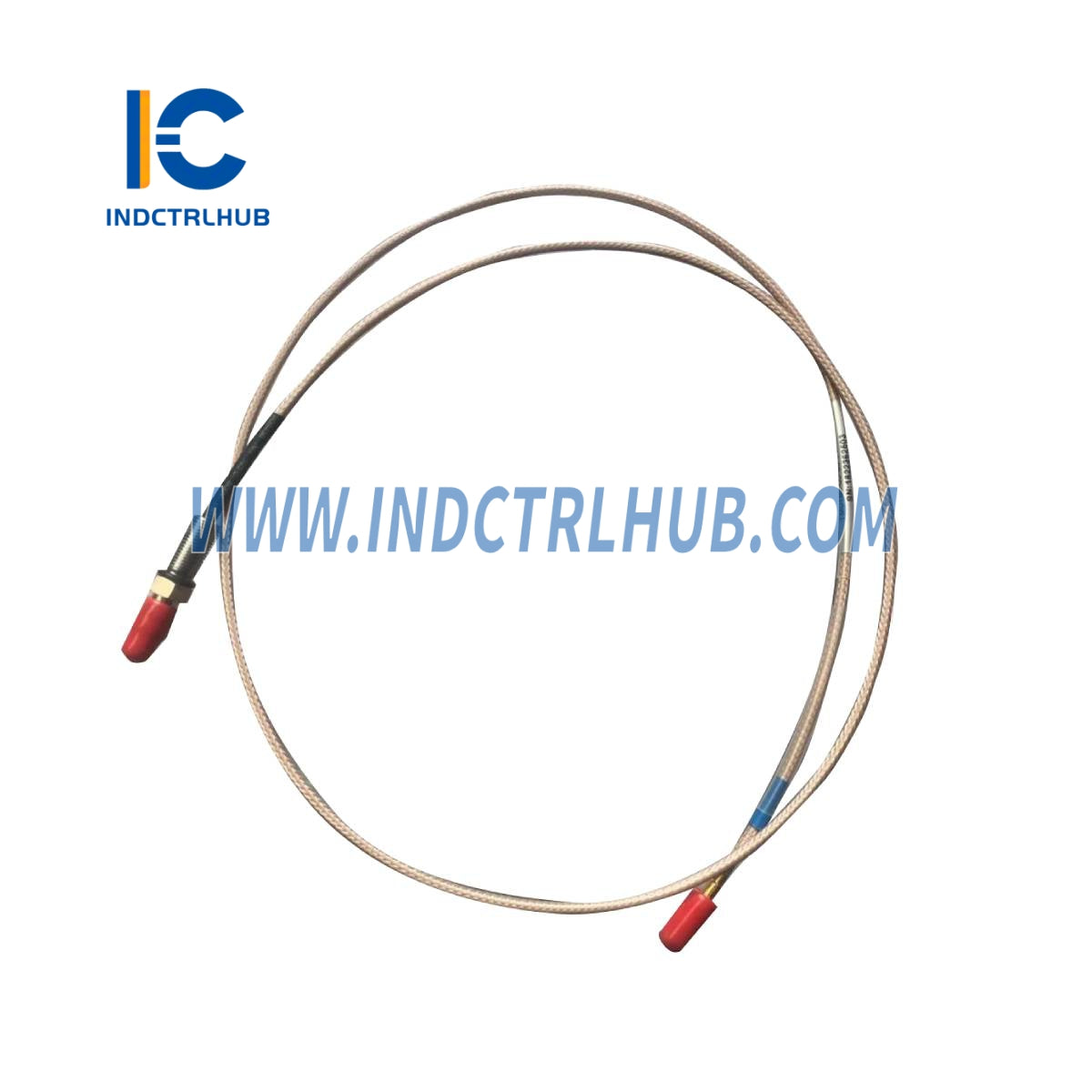

The PREDICTECH TM0180-05-05-03-10-02 is a Proximity Probe Vibration Sensor designed for non-contact vibration monitoring of rotating machinery, such as turbines, pumps, and compressors. Manufactured by PredicTech (also branded as ProvibTech), a specialist in condition monitoring solutions, this sensor employs eddy current technology to measure shaft vibration and displacement, delivering critical data for predictive maintenance and equipment protection. It is commonly used in industrial applications like power generation, oil and gas, and manufacturing, where it connects to monitoring systems via an extension cable (e.g., TM0181) and a driver (e.g., TM0182). The TM0180-05-05-03-10-02 features a robust, API 670-compliant design, ensuring reliable performance in harsh environments and seamless integration with standard vibration analysis systems.
Technical Information
| Item | Specifications |
|---|---|
| Manufacturer | PREDICTECH (ProvibTech) |
| Series | TM0180 |
| Model/Part Number | TM0180-05-05-03-10-02 |
| Description | Proximity Probe Vibration Sensor |
| Probe Diameter | 8 mm |
| Measurement | Shaft vibration and displacement |
| Linear Range | 2 mm (80 mils) |
| Unthreaded Length | 5 mm (0.2 in) |
| Case Length | 30 mm (1.18 in) |
| Total Length | 10 meters (32.8 ft) |
| Power Supply | -23 to -30 Vdc (via driver/monitor) |
| Operating Temperature | -40 °C to +177 °C (-40 °F to +350 °F) |
| Dimensions | 30 mm L x 8 mm Dia (1.18 in x 0.31 in, probe tip); 10 m cable |
| Weight | 0.45 kg (0.99 lb) |
