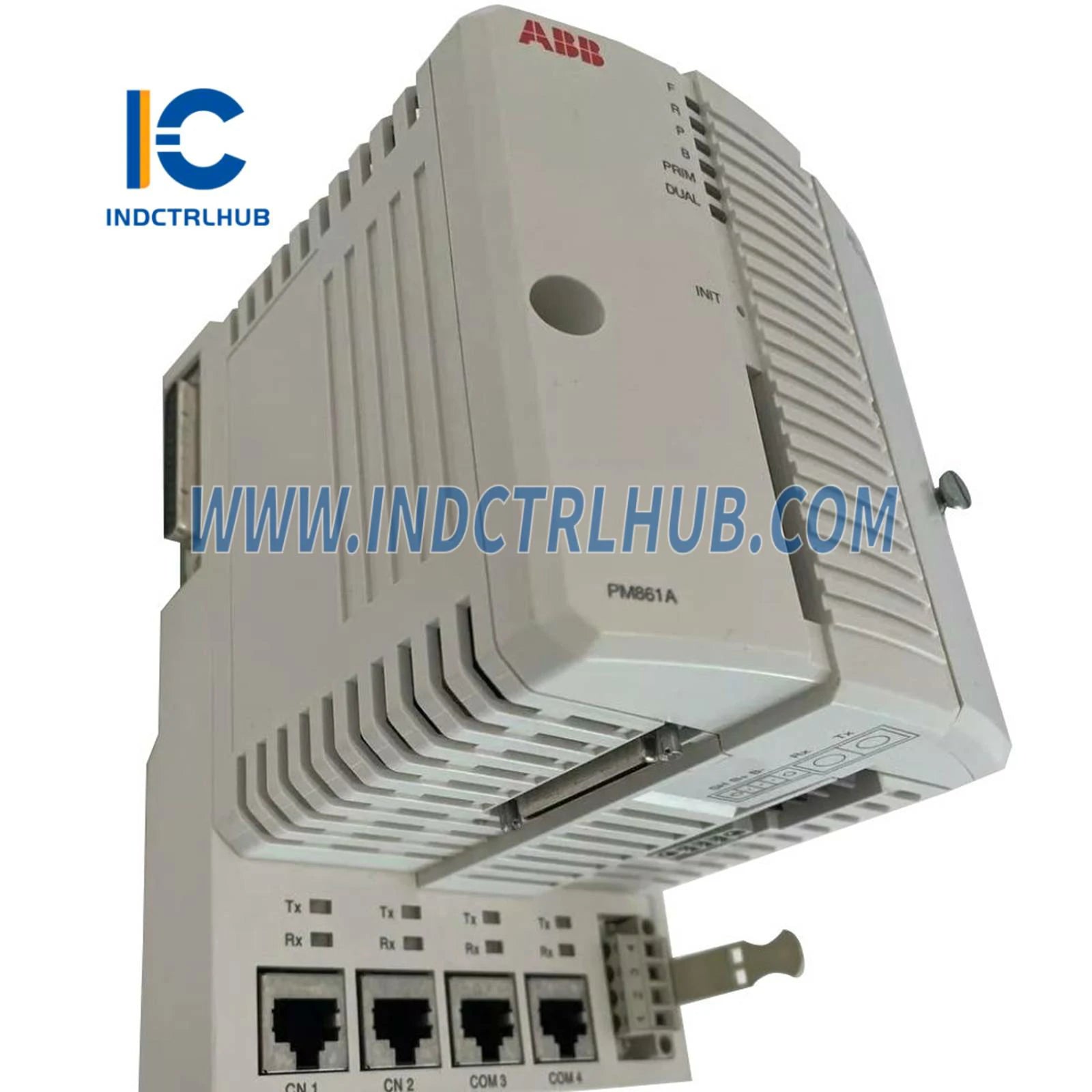

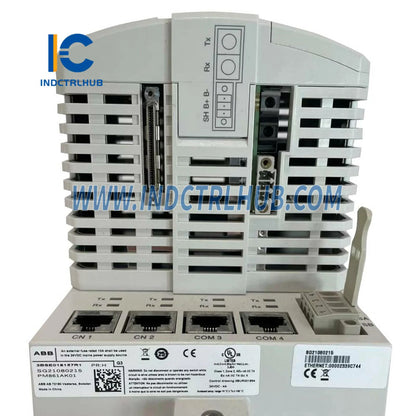

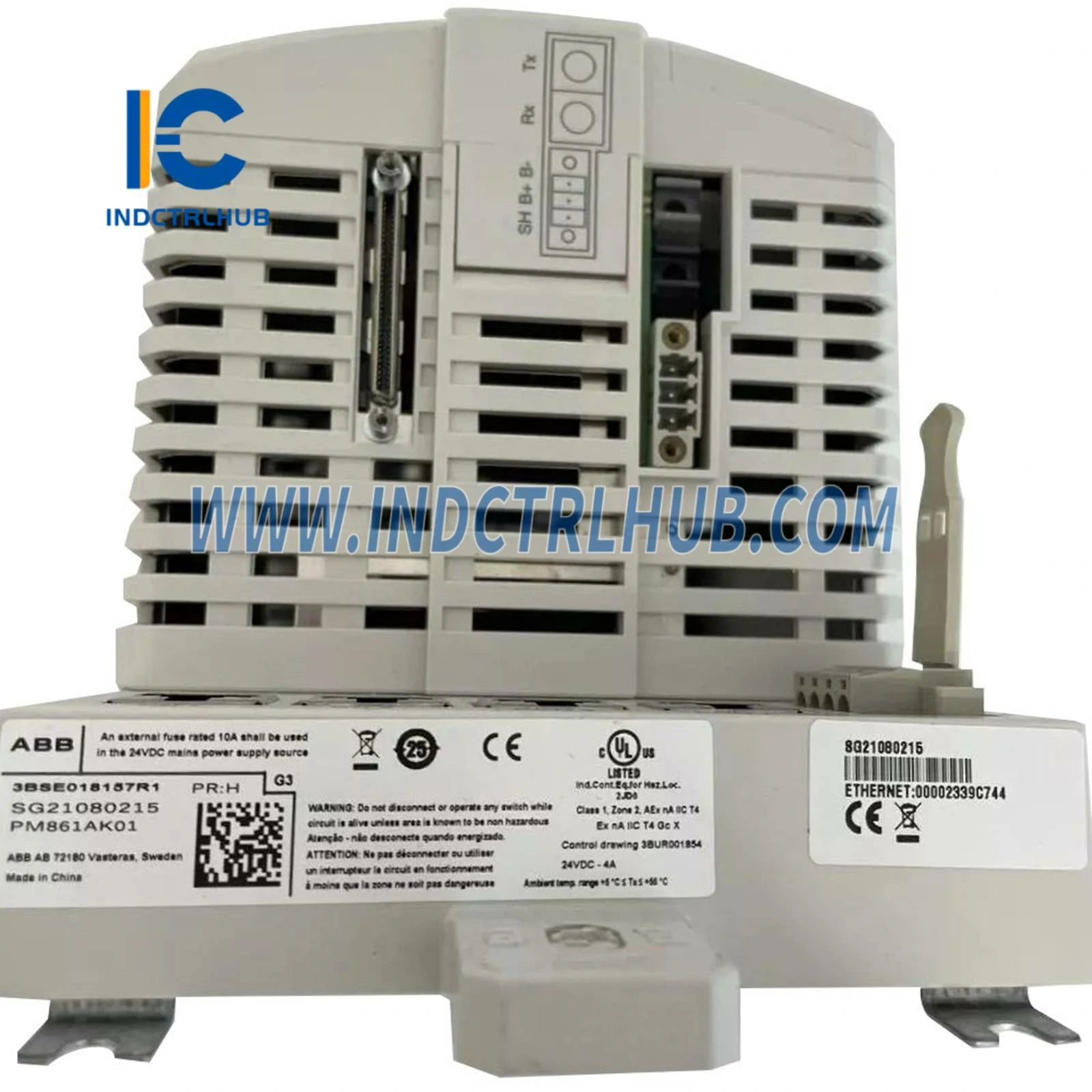

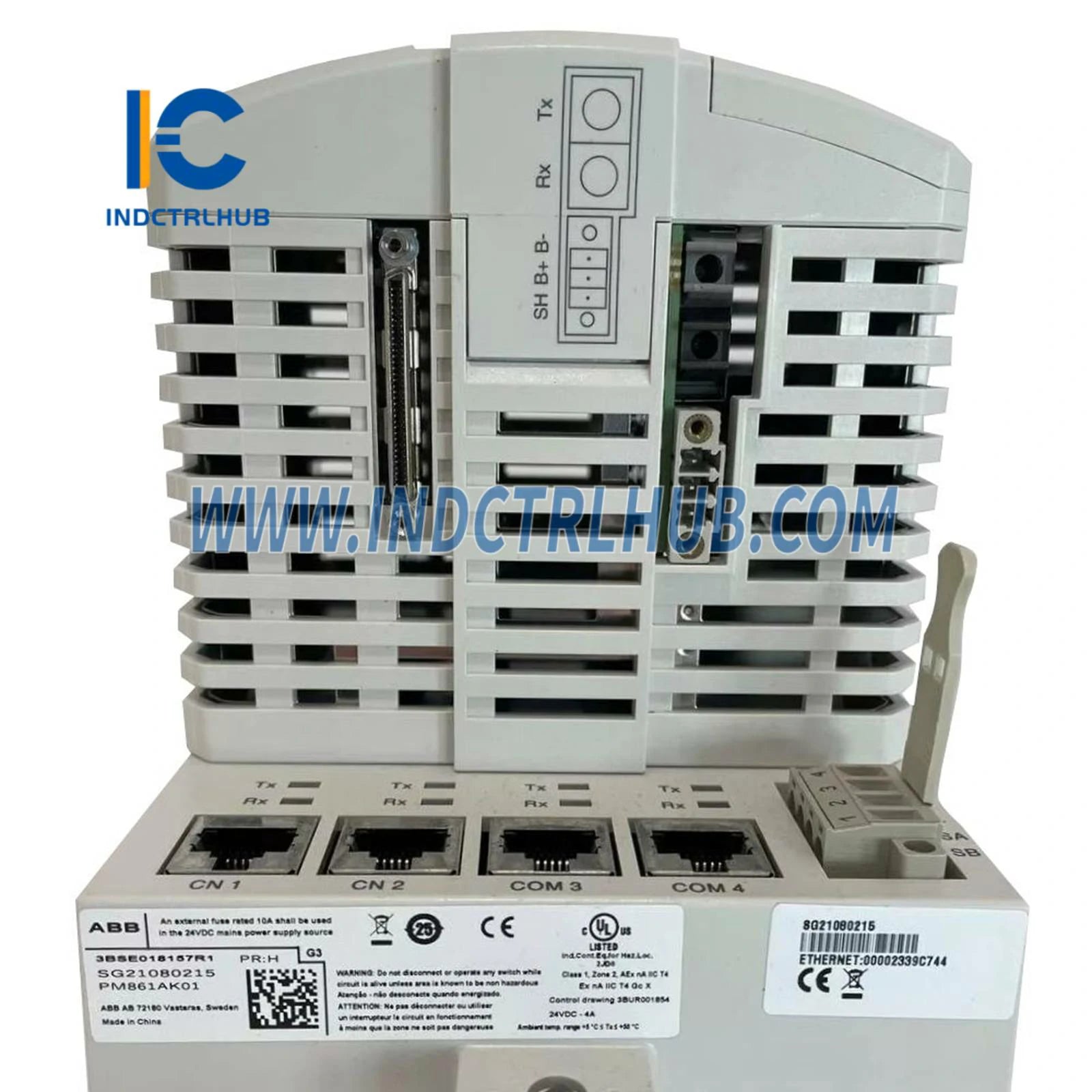

PM861AK01 | ABB AC 800M Processor Unit Kit

PM861AK01 | ABB AC 800M Processor Unit Kit

  • Manufacturer: ABB

  • Product No.: PM861AK01

  • Condition:1000 in stock

  • Product Type: AC 800M Processor Unit Kit

  • Product Origin: Switzerland

  • Payment: T/T, Western Union

  • Weight: 1000g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Details



Parameter Details
Manufacturer ABB
Model/Part Number PM861AK01
Description AC 800M Processor Unit Kit

Product Overview



Parameter Details
Part Number PM861AK01 3BSE018157R1
Product Name PM861A Processor Unit Kit
Application High-performance controller for industrial automation and process control in System 800xA
Compatibility Integrates with ABB System 800xA, supports AC 800M controllers, S800 I/O modules, and fieldbus networks
Function Executes control programs, manages data processing, supports redundancy and high-speed communication

Functional Specifications



Parameter Details
Processor 48 MHz CPU clock
Memory 16 MB
Communication Ports 2 Ethernet ports, 2 serial RJ45 ports
Package Contents PM861A CPU, TP830 Baseplate (115 mm width), TB850 CEX-bus terminator, TB807 ModuleBus terminator, TB852 RCU-Link terminator, Battery for memory backup (4943013-6), 4-position power plug (3BSC840088R4)
Power Supply 24 V DC nominal (18-30 V DC)
Power Consumption 10 W maximum
Operating Temperature Range -20°C to +60°C
Storage Temperature Range -40°C to +85°C
Humidity 5% to 95% (non-condensing)
Dimensions 119 mm x 189 mm x 135 mm
Weight 1.15 kg
Mounting DIN rail or rack mount in control cabinet
Standards Compliance IEC 61131-2, IEC 61508 (SIL 3), CE, UL, CSA
View full details

Product Description

Product Details



Parameter Details
Manufacturer ABB
Model/Part Number PM861AK01
Description AC 800M Processor Unit Kit

Product Overview



Parameter Details
Part Number PM861AK01 3BSE018157R1
Product Name PM861A Processor Unit Kit
Application High-performance controller for industrial automation and process control in System 800xA
Compatibility Integrates with ABB System 800xA, supports AC 800M controllers, S800 I/O modules, and fieldbus networks
Function Executes control programs, manages data processing, supports redundancy and high-speed communication

Functional Specifications



Parameter Details
Processor 48 MHz CPU clock
Memory 16 MB
Communication Ports 2 Ethernet ports, 2 serial RJ45 ports
Package Contents PM861A CPU, TP830 Baseplate (115 mm width), TB850 CEX-bus terminator, TB807 ModuleBus terminator, TB852 RCU-Link terminator, Battery for memory backup (4943013-6), 4-position power plug (3BSC840088R4)
Power Supply 24 V DC nominal (18-30 V DC)
Power Consumption 10 W maximum
Operating Temperature Range -20°C to +60°C
Storage Temperature Range -40°C to +85°C
Humidity 5% to 95% (non-condensing)
Dimensions 119 mm x 189 mm x 135 mm
Weight 1.15 kg
Mounting DIN rail or rack mount in control cabinet
Standards Compliance IEC 61131-2, IEC 61508 (SIL 3), CE, UL, CSA
