Product Description

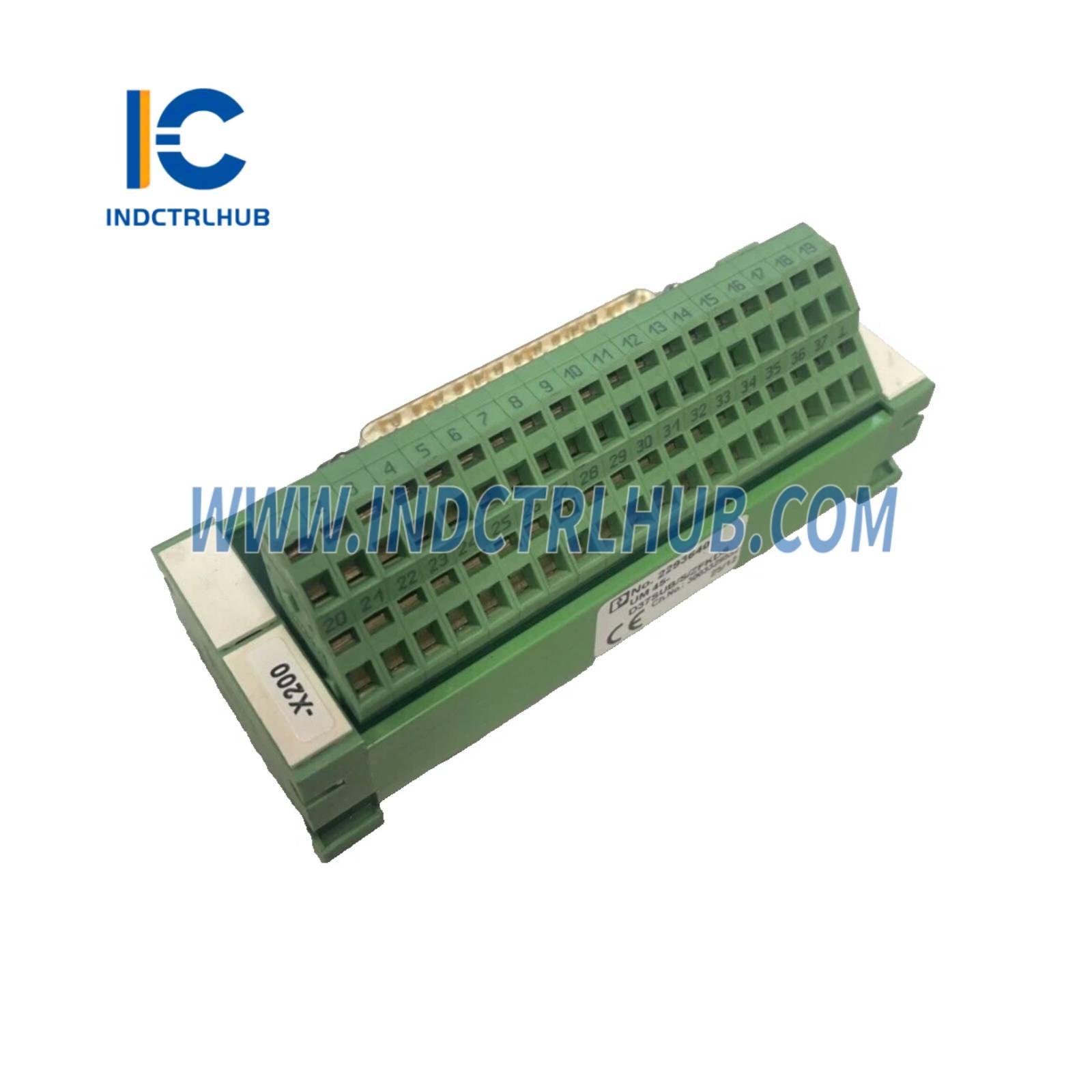

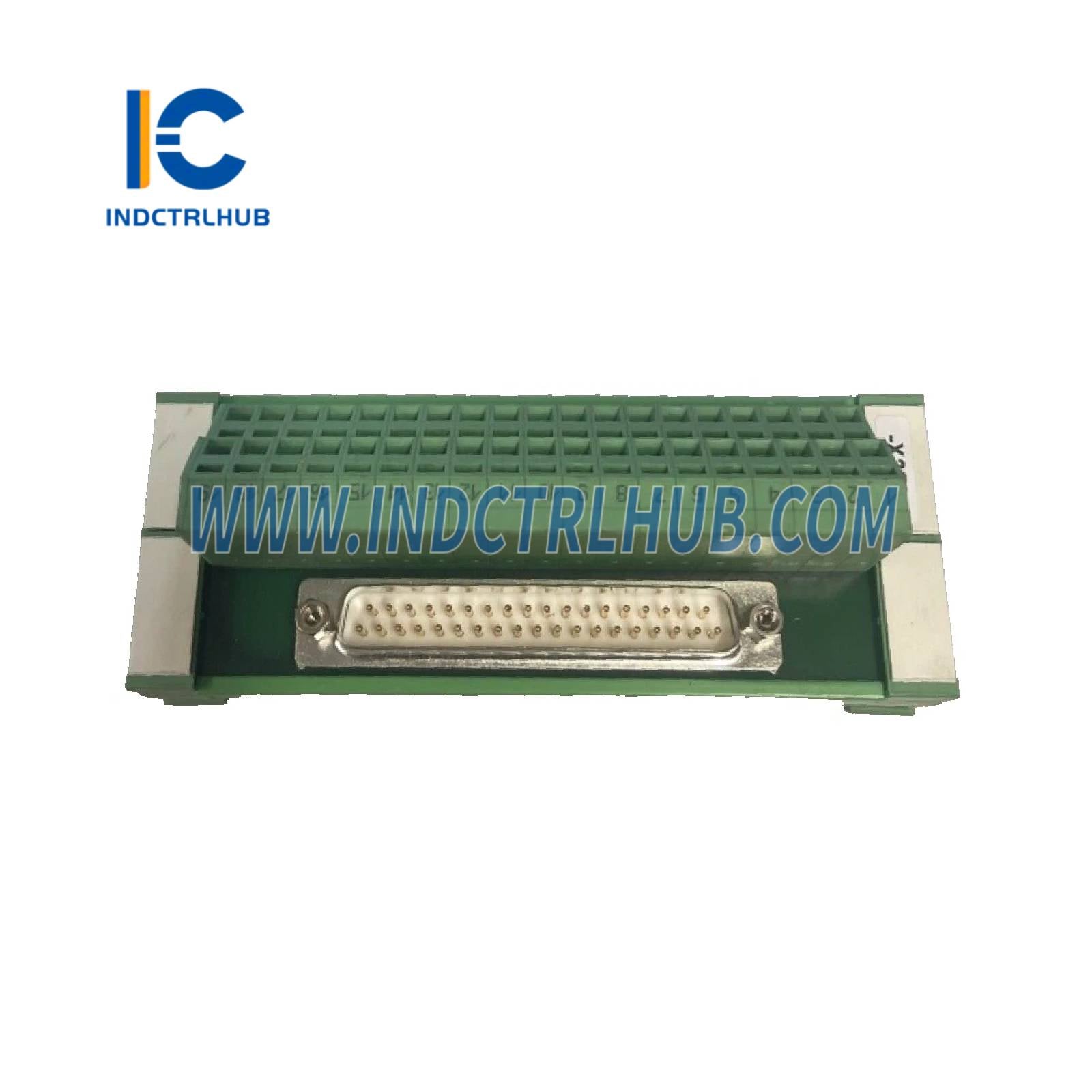

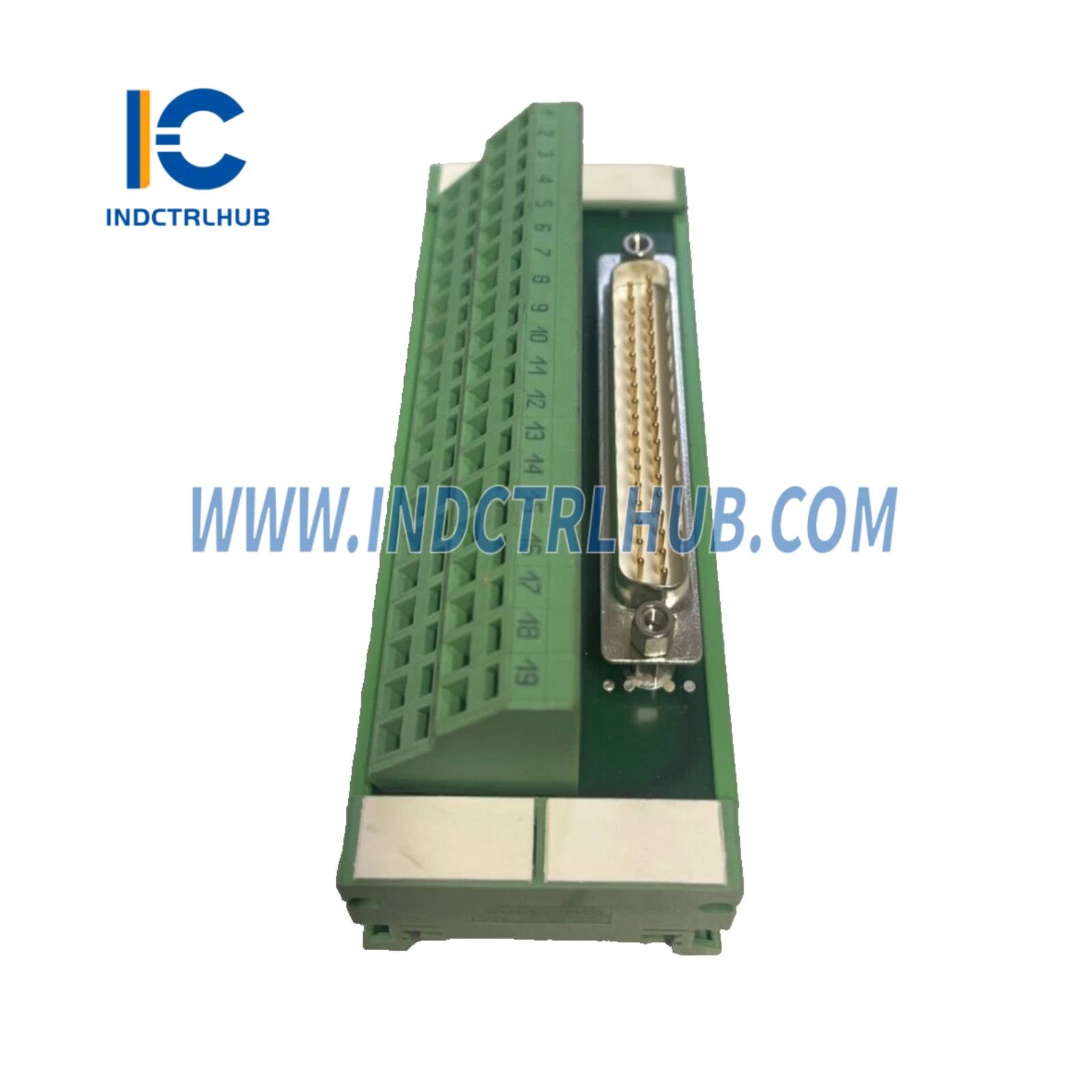

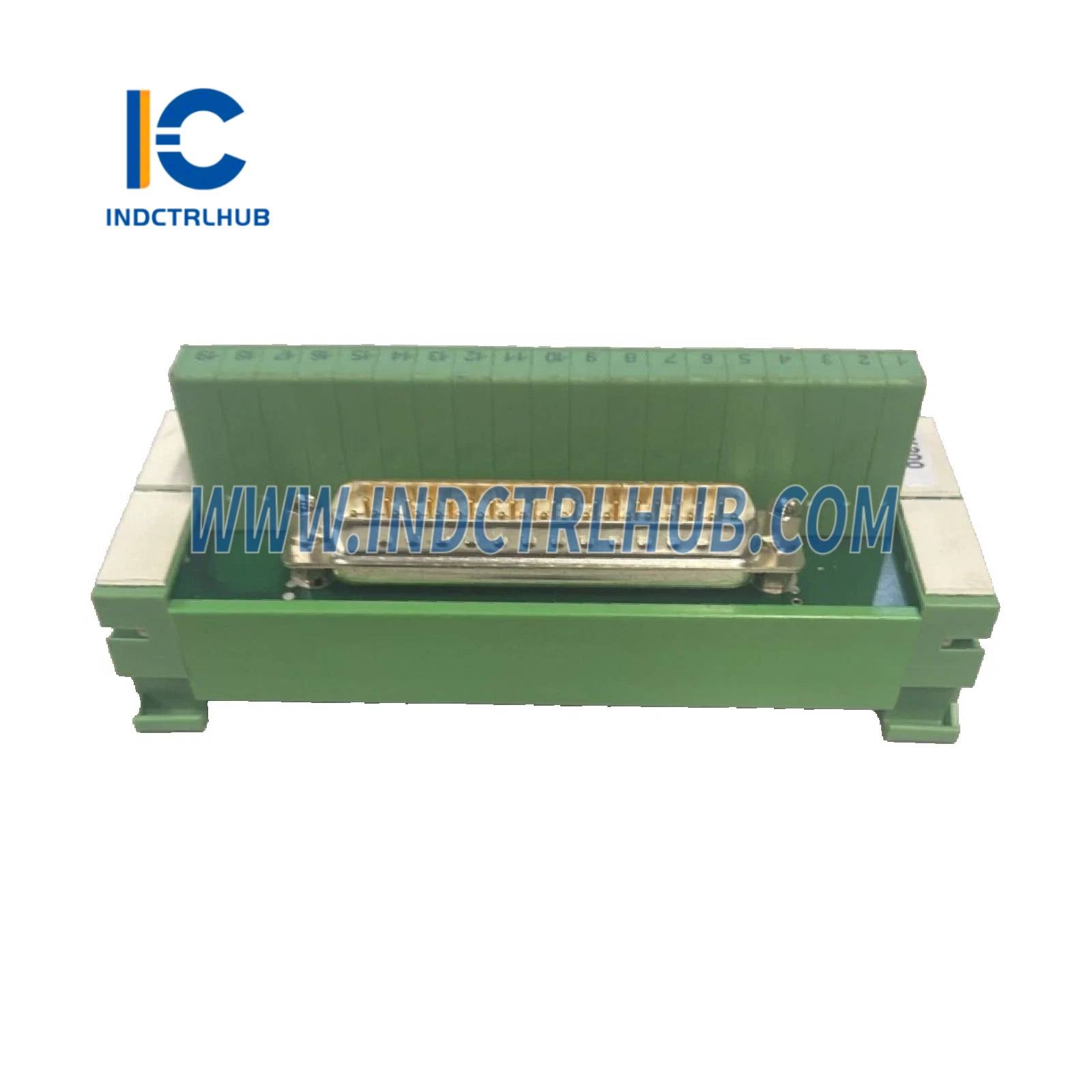

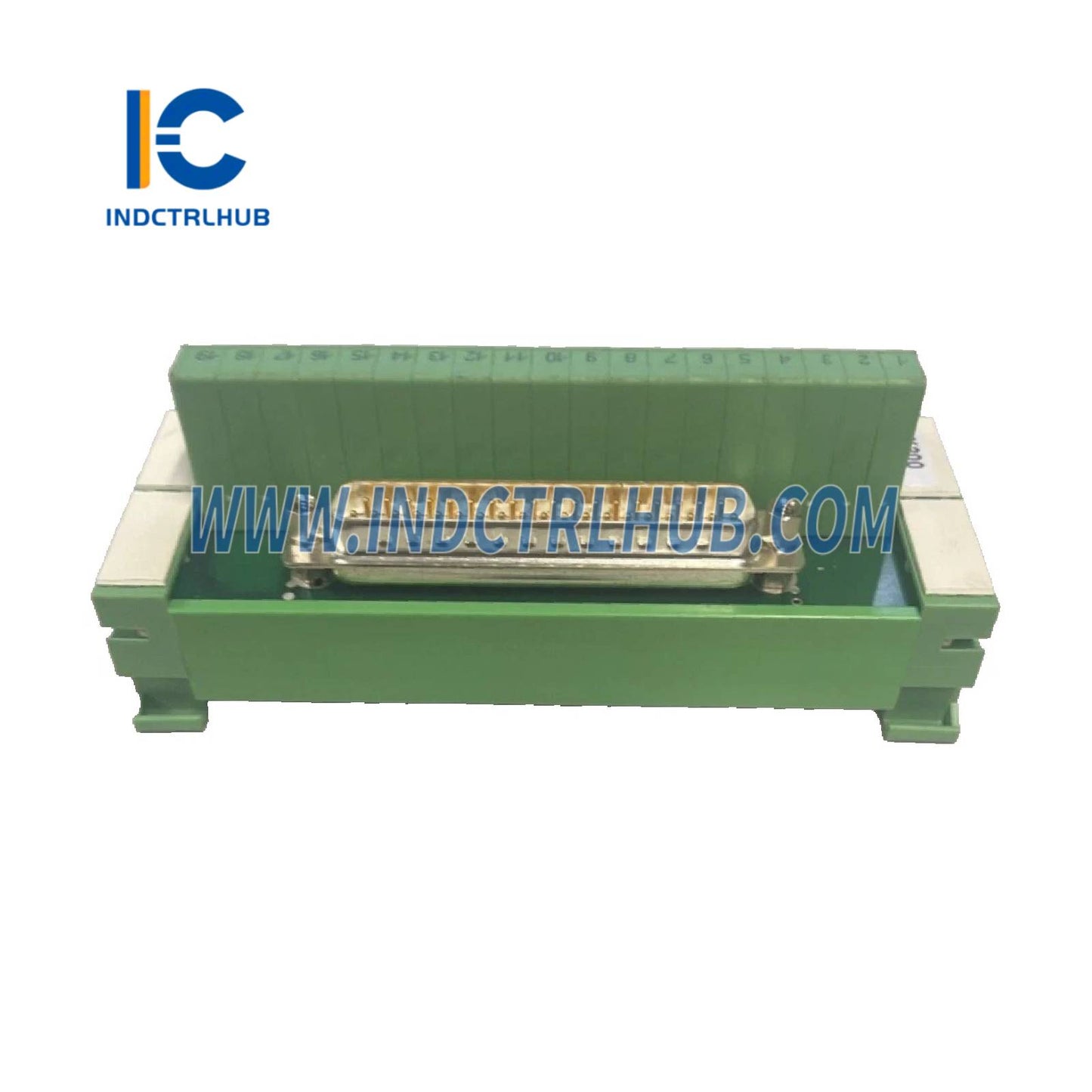

Phoenix Contact UM 45-D37SUB/S Interface Module
Product Overview
- The Phoenix Contact UM 45-D37SUB/S, part number 2962803, is a VARIOFACE Interface Module designed for industrial automation applications. This module facilitates reliable signal transmission between control systems and field devices, featuring a screw connection and a D-subminiature pin strip with 37 positions. It is ideal for use in control cabinets, process control, and manufacturing systems, providing a compact and robust solution for high-density signal interfacing.
Technical Specifications
- The UM 45-D37SUB/S has the following specifications based on documentation from Phoenix Contact and industry sources:
| Specification | Details |
|---|---|
| Model/Part Number | UM 45-D37SUB/S (2962803) |
| Manufacturer | Phoenix Contact |
| Description | VARIOFACE Interface Module |
| Connection Type | Screw connection (field side), D-subminiature pin strip (control side, 37 positions) |
| Rated Voltage | 125 V |
| Rated Current | 2.5 A |
| Conductor Cross-Section | 0.2–2.5 mm² (24–12 AWG) |
| Operating Temperature | -20°C to 50°C (-4°F to 122°F) |
| Dimensions | Width: 121 mm Height: 45 mm Depth: 42 mm |
| Weight | Approx. 130 g |
| Mounting | DIN rail (NS 35/7.5) |
Additional Details
- The UM 45-D37SUB/S includes the following additional information based on documentation from Phoenix Contact, Amazon, and eBay:
- Function: Provides a reliable interface for connecting field devices to control systems via a 37-pin D-sub connector; supports high-density signal transmission for applications requiring multiple I/O connections; ensures secure and stable connections with screw terminals.
- Compatibility: Compatible with standard PLCs, DCS, and other control systems supporting D-sub interfaces; integrates with Phoenix Contact’s VARIOFACE system for modular automation setups; suitable for use with cables conforming to IEC 60807-2 standards.
- Configuration: Features screw connections for field-side wiring and a 37-pin D-subminiature pin strip for control-side connectivity; designed for straightforward installation on NS 35/7.5 DIN rails; no additional configuration or software required.
- Certifications: Complies with RoHS, CE, and other industrial standards; meets environmental and safety requirements for global use (specific approvals available in Phoenix Contact documentation).
