Product Description
Product Details
| Parameter | Details |
|---|---|
| Manufacturer | ABB |

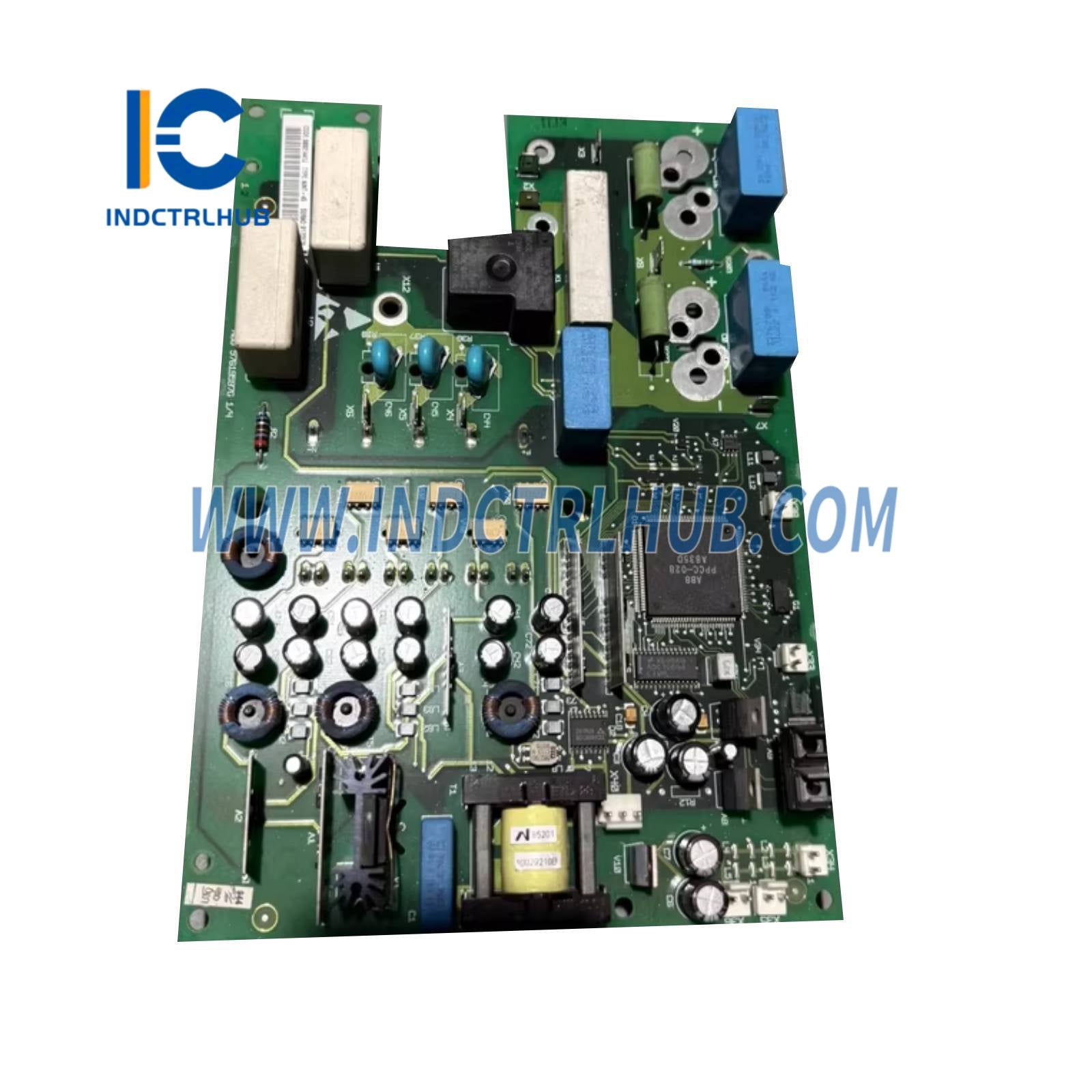

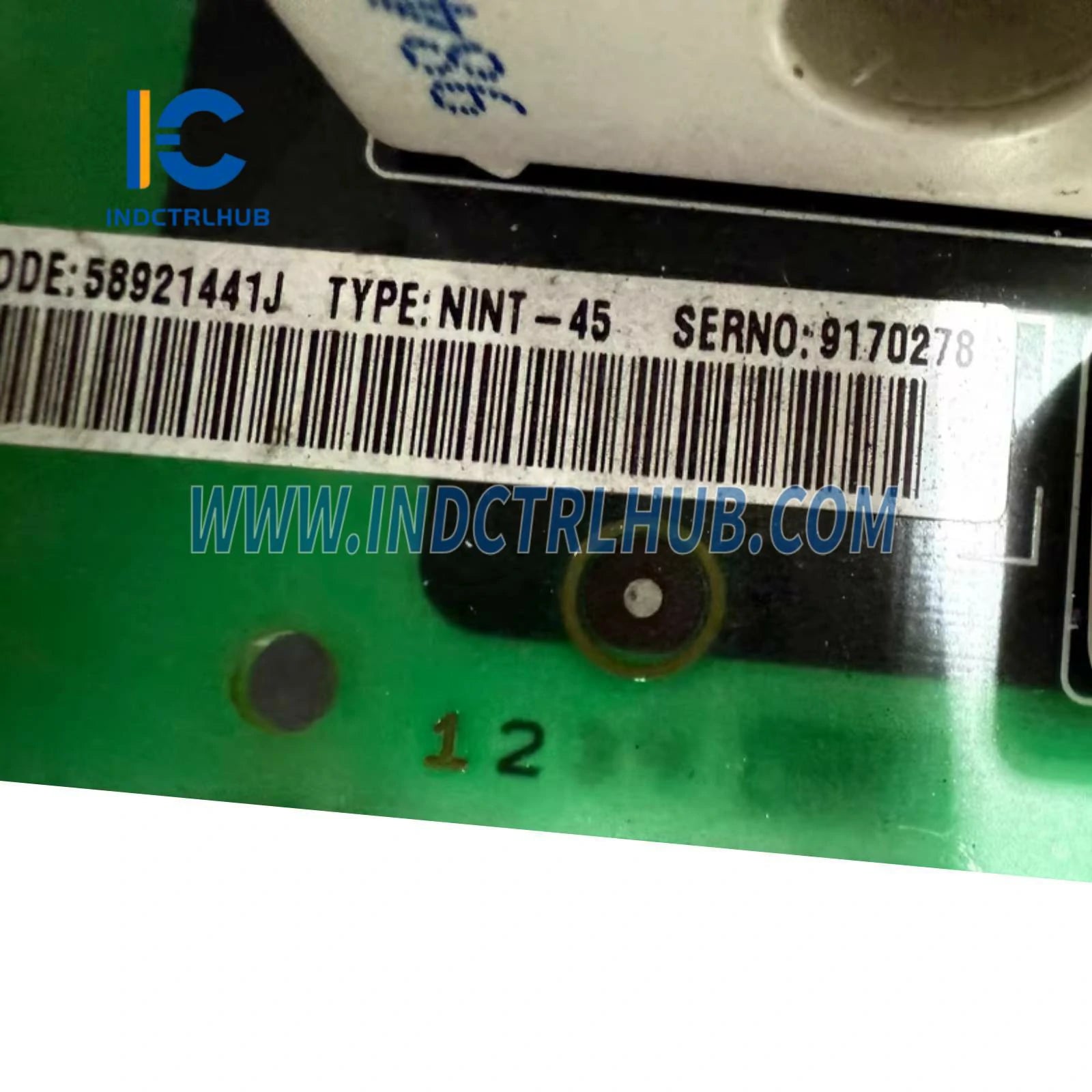

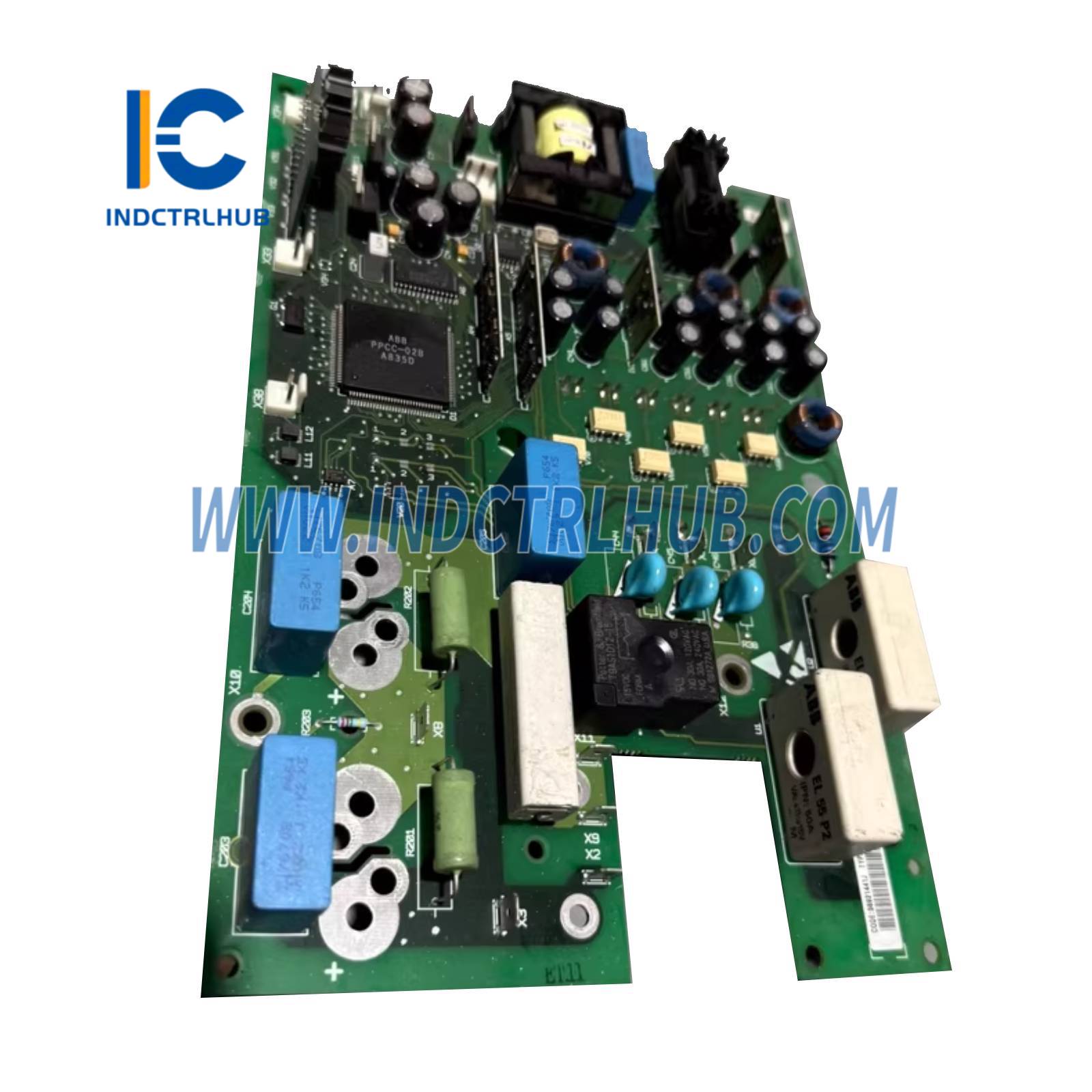

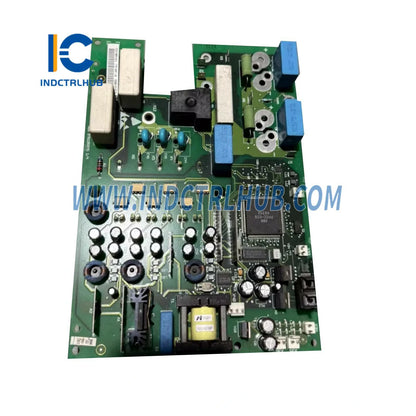

| Model/Part Number | NINT-45 |
| Description | Digital Output Module |
Product Overview
| Parameter | Details |
|---|---|
| Part Number | NINT-45 |
| Product Name | NINT-45 Digital Output Module |
| Application | Digital signal output processing in distributed control systems for industrial process control and automation |
| Compatibility | Integrates with ABB Symphony Plus and Bailey INFI 90 systems; supports actuator and valve control |
| Function | Provides 16-channel digital output processing for 24 V DC signals with high accuracy and isolation |
Functional Specifications
| Parameter | Details |
|---|---|
| Output Channels | 16 isolated channels |
| Output Type | 24 V DC sinking outputs |
| Output Current | 0.5 A per channel maximum |
| Resolution | Digital, configurable for on/off or pulse outputs |
| Isolation | Channel-to-channel and channel-to-bus isolation (500 V) |
| Load Type | Resistive, inductive, capacitive loads |
| Power Supply | 24 V DC nominal (from system backplane) |
| Power Consumption | 8 W maximum |
| Operating Temperature Range | -30°C to +70°C |
| Mounting | DIN rail or rack mount in control cabinet |
| Dimensions | 160 mm x 100 mm x 50 mm (W x H x D) approximate |
| Weight | 0.5 kg |
| Standards Compliance | IEC 61131-2, CE, UL, CSA |
