Product Description
Product Overview

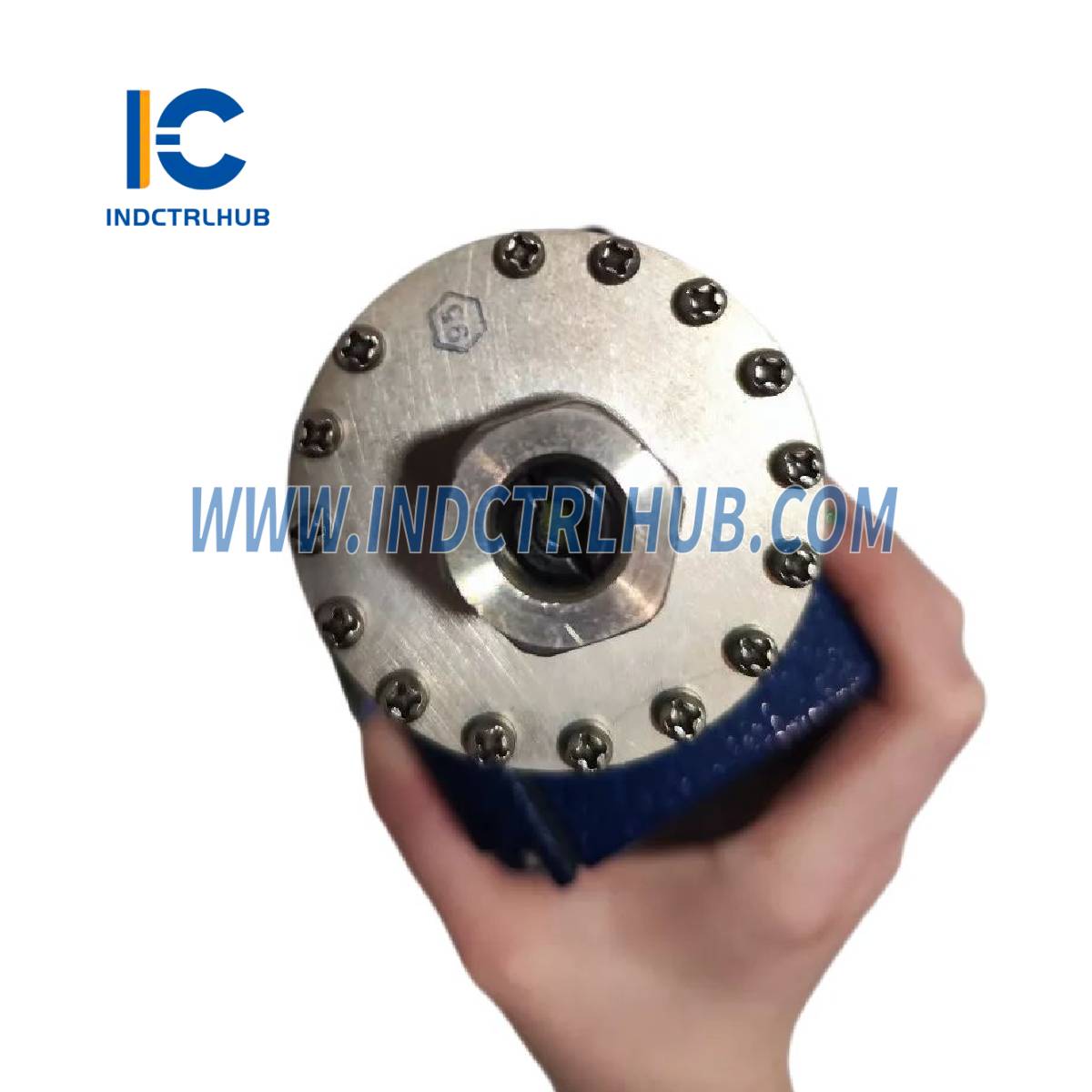

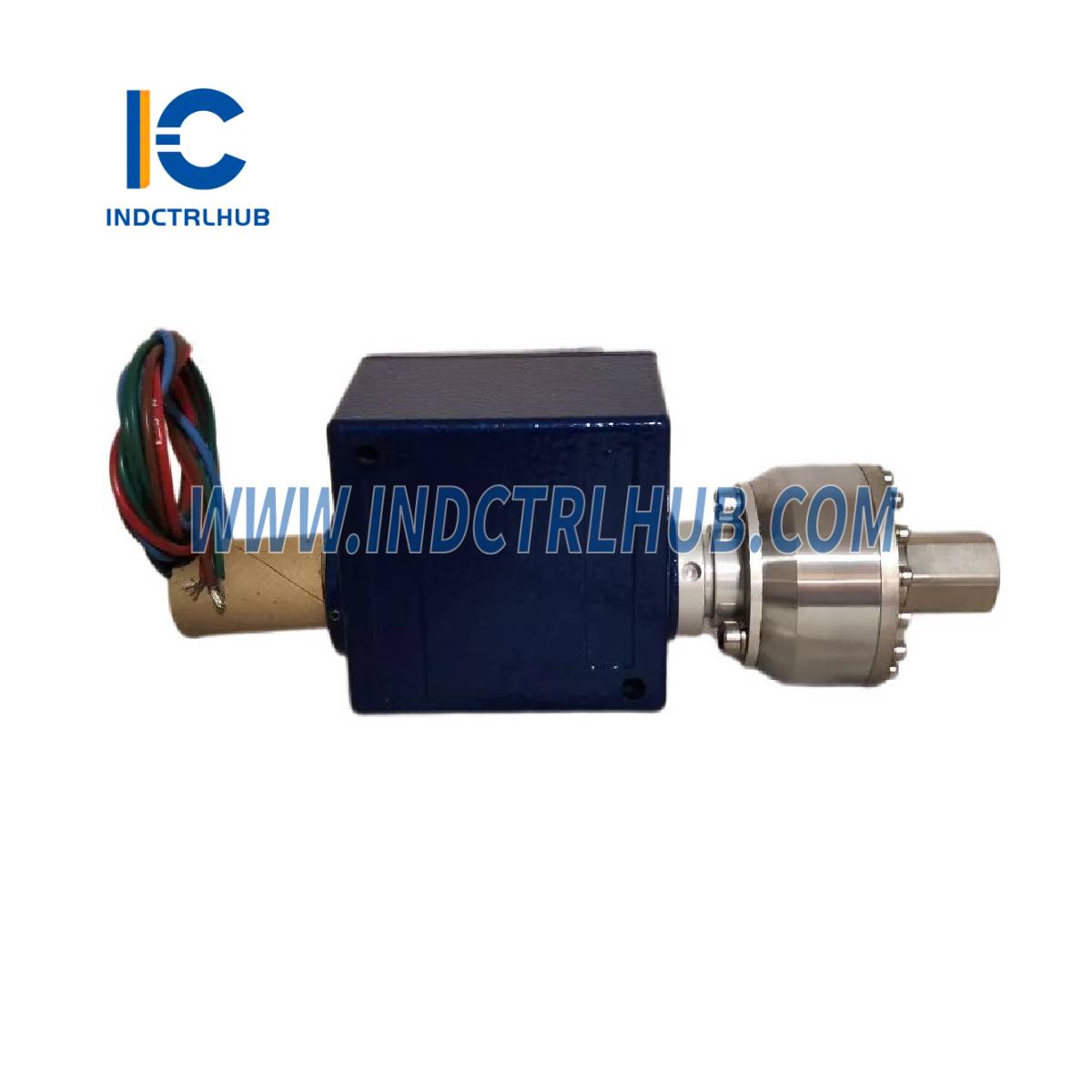

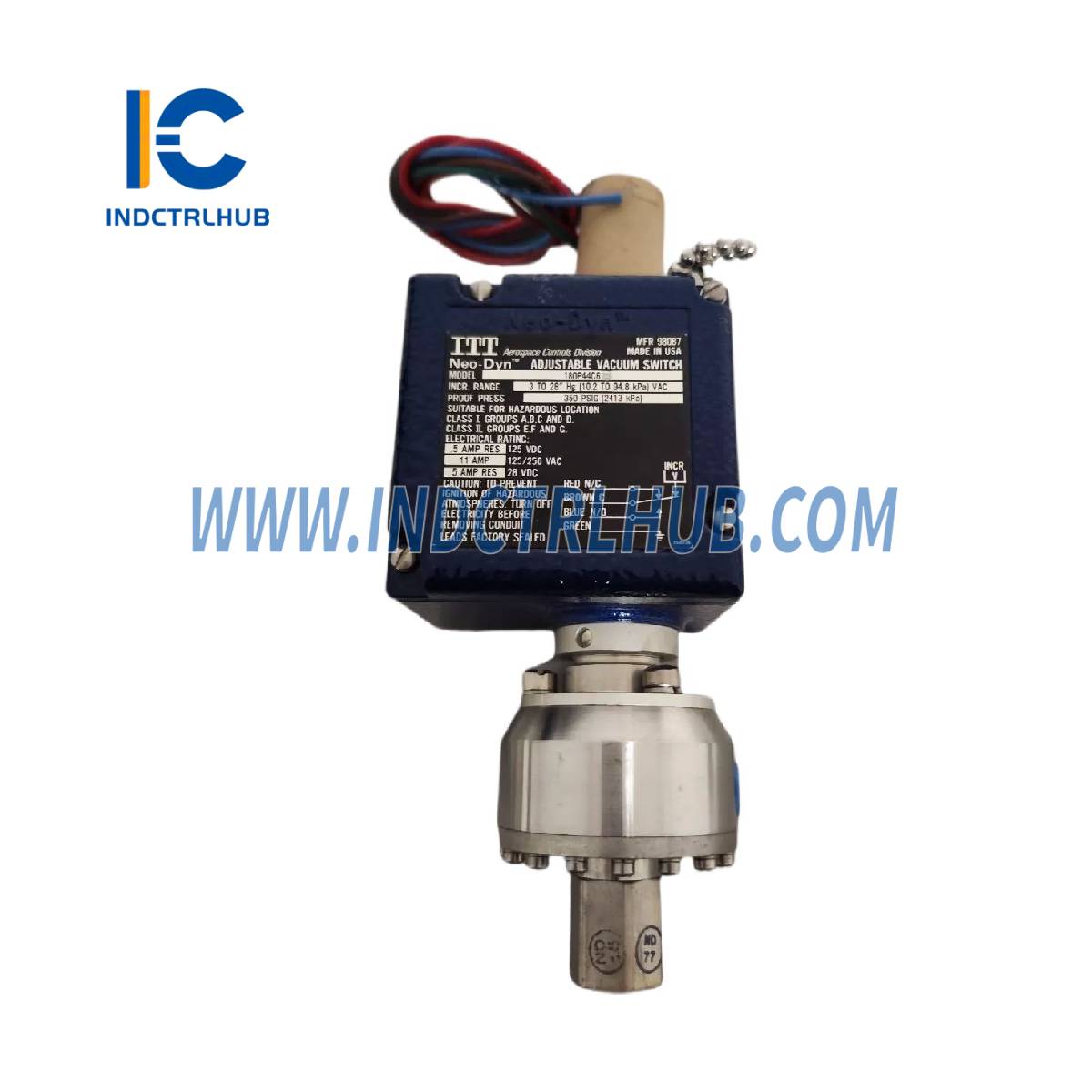

The ITT 180P44C6 is an Adjustable Pressure Switch manufactured by ITT Neo-Dyn, a division of ITT Inc., renowned for its high-quality industrial control components. Part of the 180P series, this switch is designed for monitoring pressure in industrial applications, including turbine control systems, hydraulic processes, and pneumatic systems. It features a compact design with an efficient Nega-Rate® Belleville disc spring mechanism, providing stable setpoints and vibration resistance across a mid-to-high pressure range. The 180P44C6 meets NEMA 4 and 13 standards, offering weatherproof and dust-tight protection, making it suitable for harsh environments in industries such as energy, chemical processing, and power generation. Its tamperproof internal adjustment enhances reliability in critical operations.
Technical Information
| Item | Specifications |
|---|---|
| Manufacturer | ITT (Neo-Dyn) |
| Series | 180P |
| Model/Part Number | 180P44C6 |
| Description | Adjustable Pressure Switch |
| Pressure Range | 15 to 300 psig (adjustable setpoint) |
| Electrical Rating | 11 A at 125/250 Vac; 5 A at 30 Vdc |
| Enclosure | NEMA 4 and 13 (watertight and dust-tight) |
| Process Connection | 1/4 inch NPT female |
| Power Supply | Passive (no external power required) |
| Operating Temperature | -40 °C to +82 °C (-40 °F to +180 °F) |
| Dimensions | 76 mm H x 51 mm W x 51 mm D (3 in x 2 in x 2 in) |
| Weight | 0.57 kg (1.25 lb) |
