Product Description
Product Overview

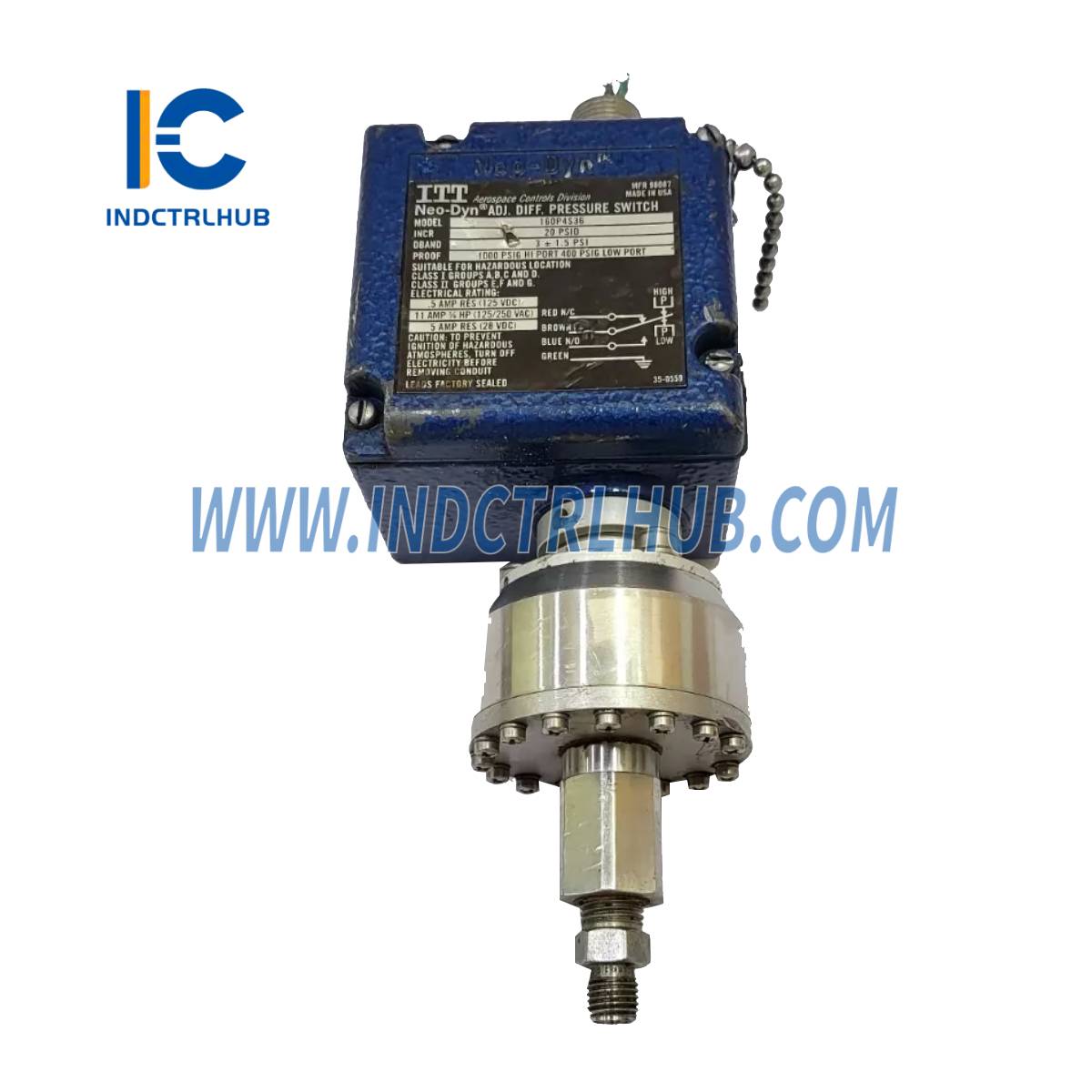

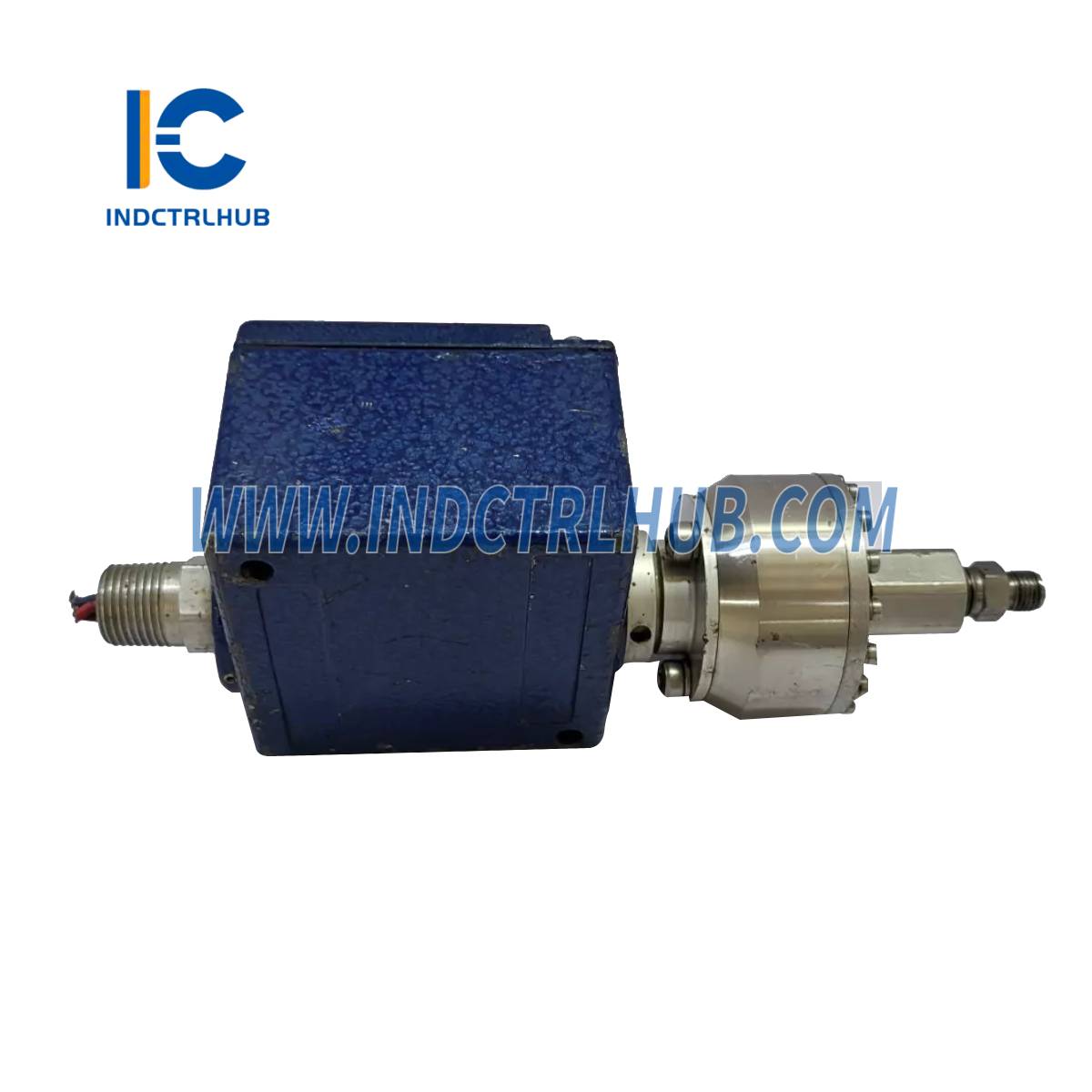

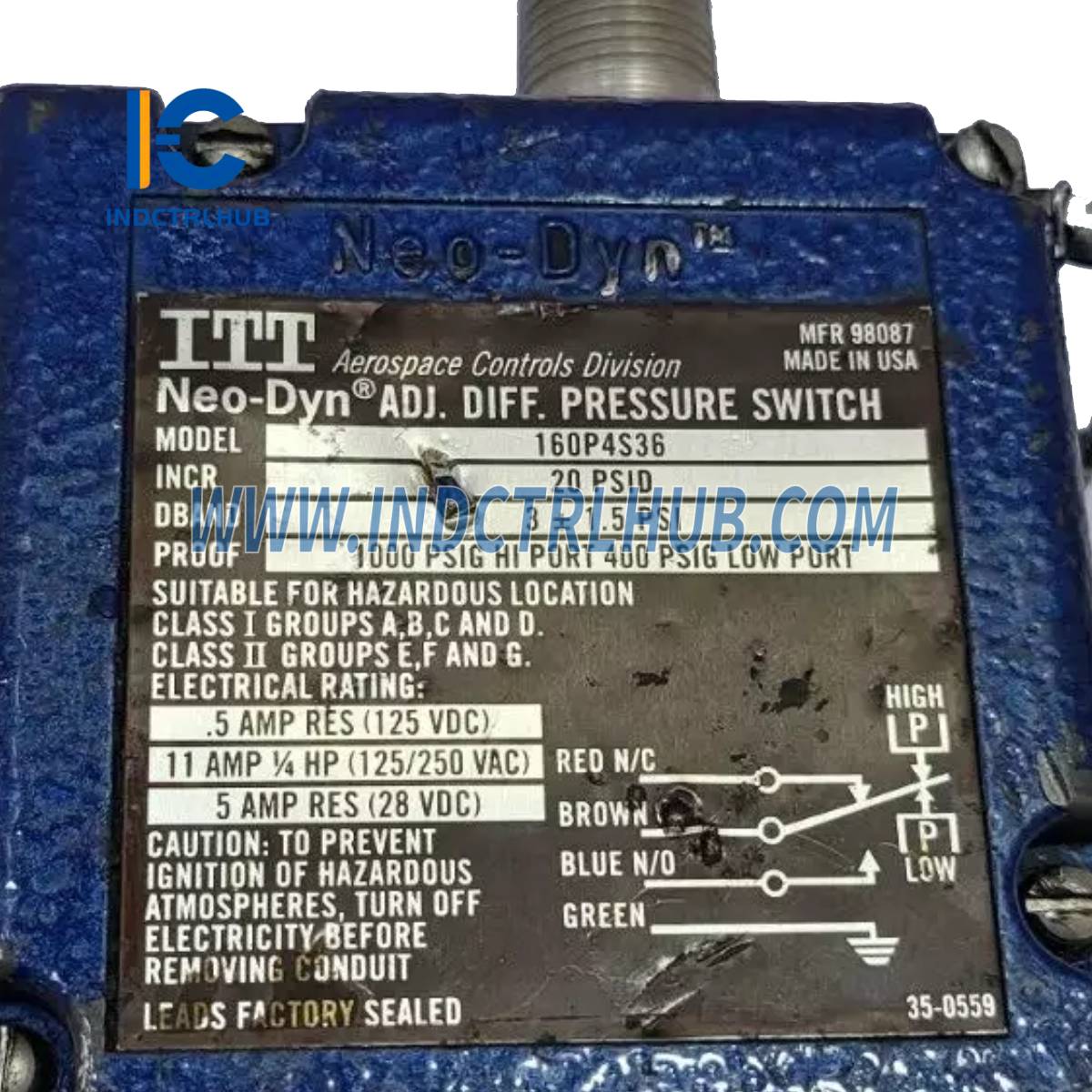

The ITT 160P4S36 is an Adjustable Differential Pressure Switch manufactured by ITT Neo-Dyn, a division of ITT Inc., known for its precision-engineered industrial components. Part of the 160P series, this mid-range switch is designed for monitoring differential pressure in industrial applications, such as turbine control systems, pneumatic processes, and hydraulic systems. It features a weatherproof NEMA 4 and 13 enclosure and utilizes the efficient Nega-Rate® Belleville disc spring mechanism for stable setpoints during system pressure changes. The 160P4S36 is ideal for energy, chemical, and process industries, offering reliable performance and a tamperproof design with internal adjustment, making it suitable for harsh environments requiring precise differential pressure control.
Technical Information
| Item | Specifications |
|---|---|
| Manufacturer | ITT (Neo-Dyn) |
| Series | 160P |
| Model/Part Number | 160P4S36 |
| Description | Adjustable Differential Pressure Switch |
| Differential Pressure Range | 2 to 60 psid (adjustable setpoint) |
| Electrical Rating | 11 A at 125/250 Vac; 5 A at 30 Vdc |
| Enclosure | NEMA 4 and 13 (watertight and dust-tight) |
| Process Connection | 1/4 inch NPT female |
| Power Supply | Passive (no external power required) |
| Operating Temperature | -40 °C to +82 °C (-40 °F to +180 °F) |
| Dimensions | 76 mm H x 51 mm W x 51 mm D (3 in x 2 in x 2 in) |
| Weight | 1.59 kg (3.5 lb) |
