Product Description

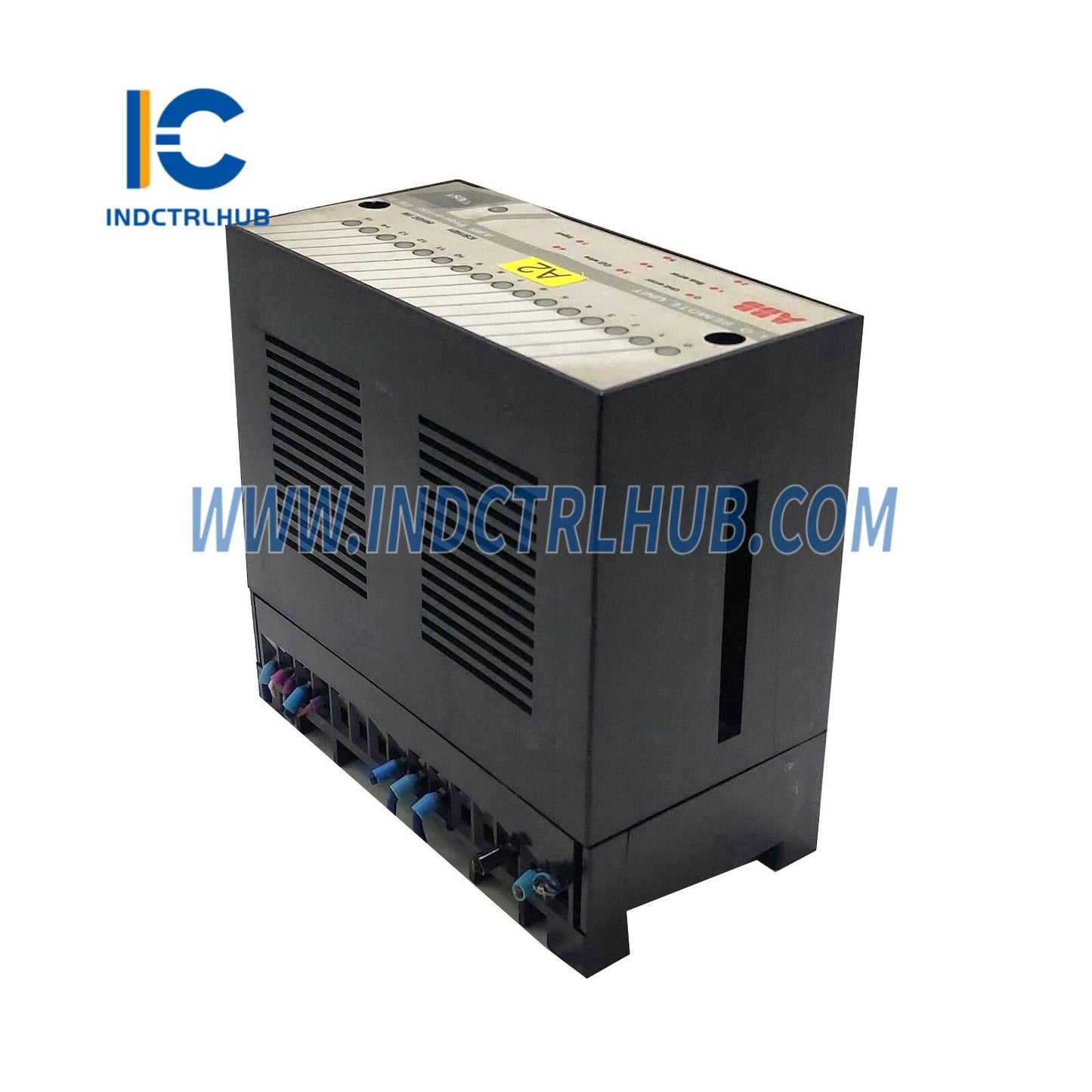

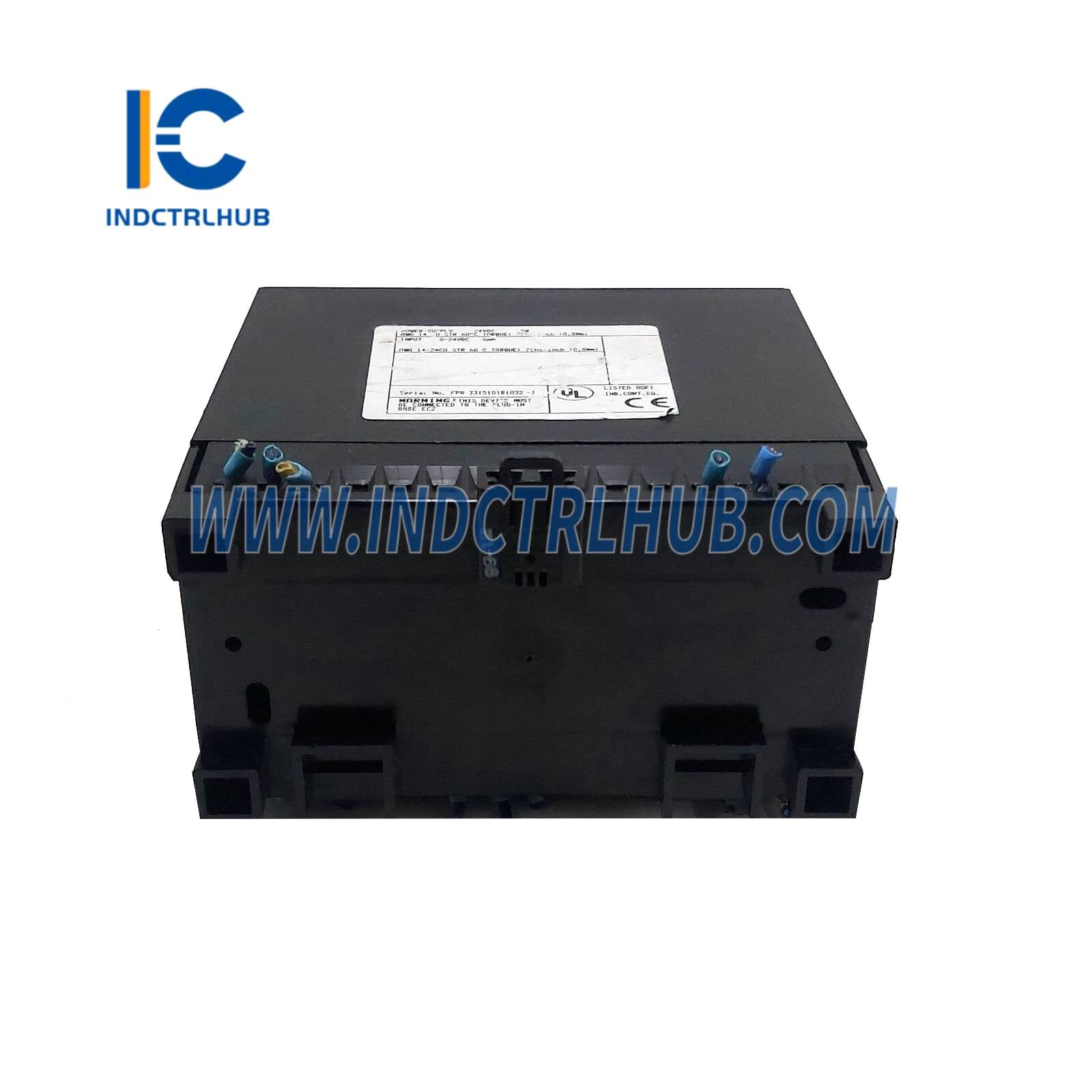

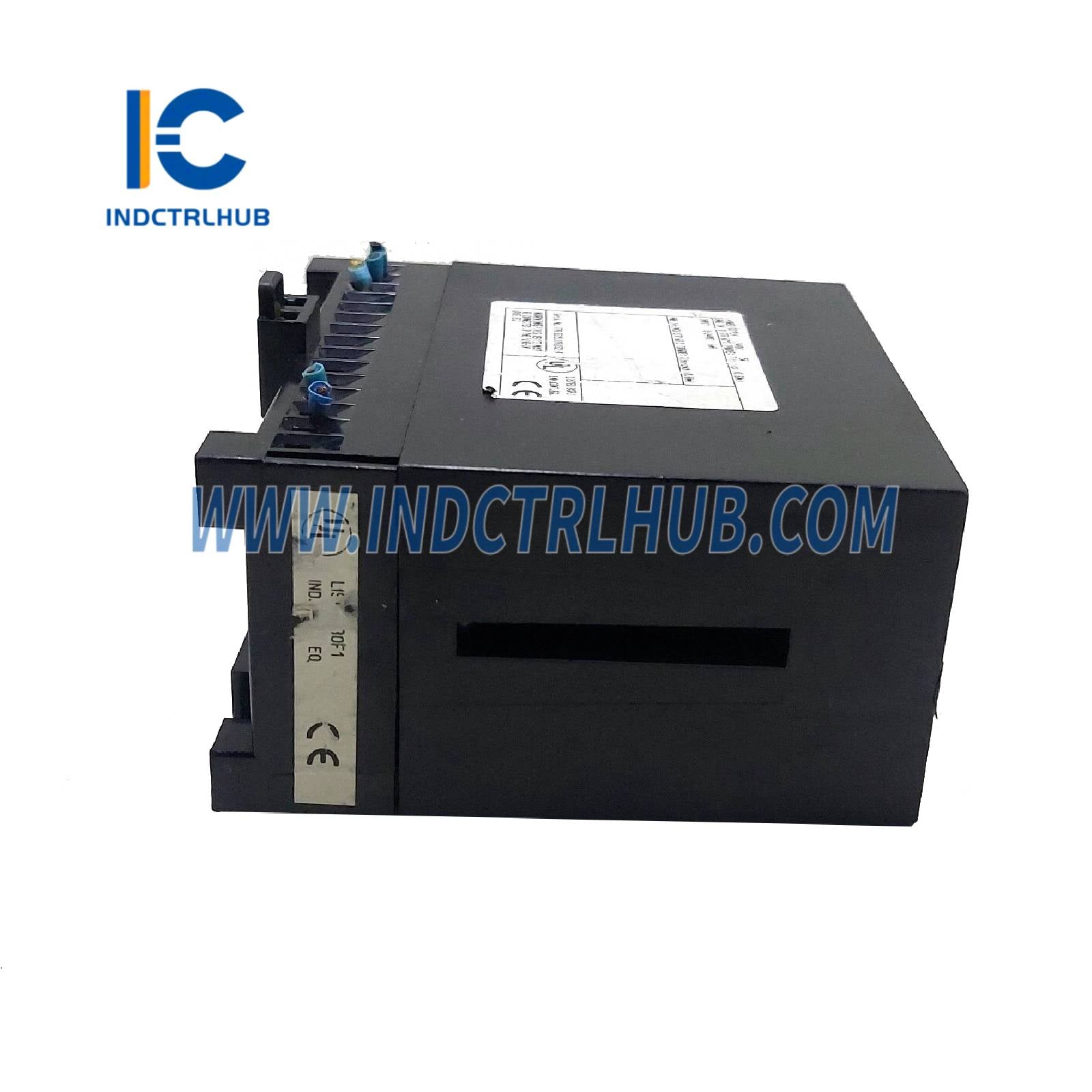

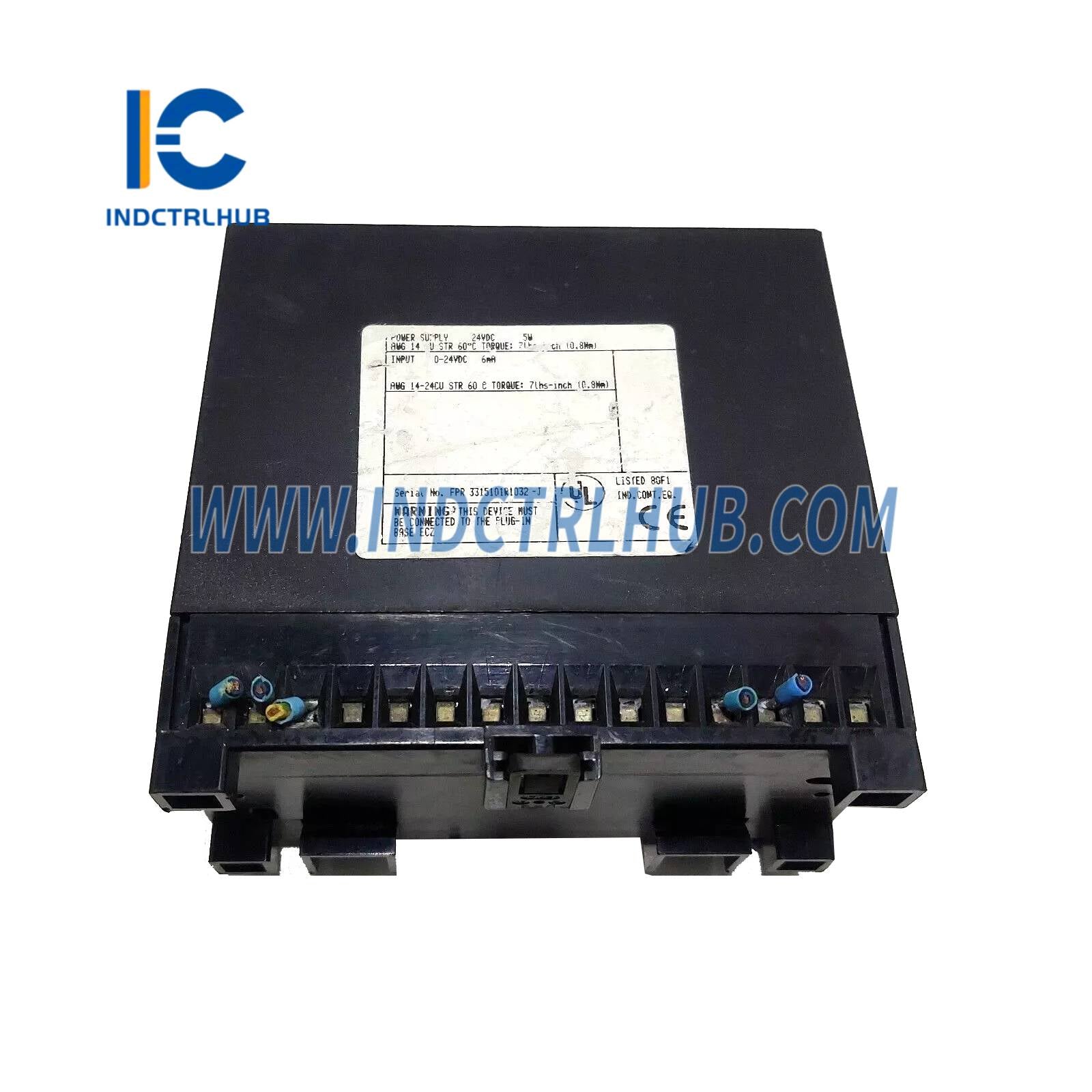

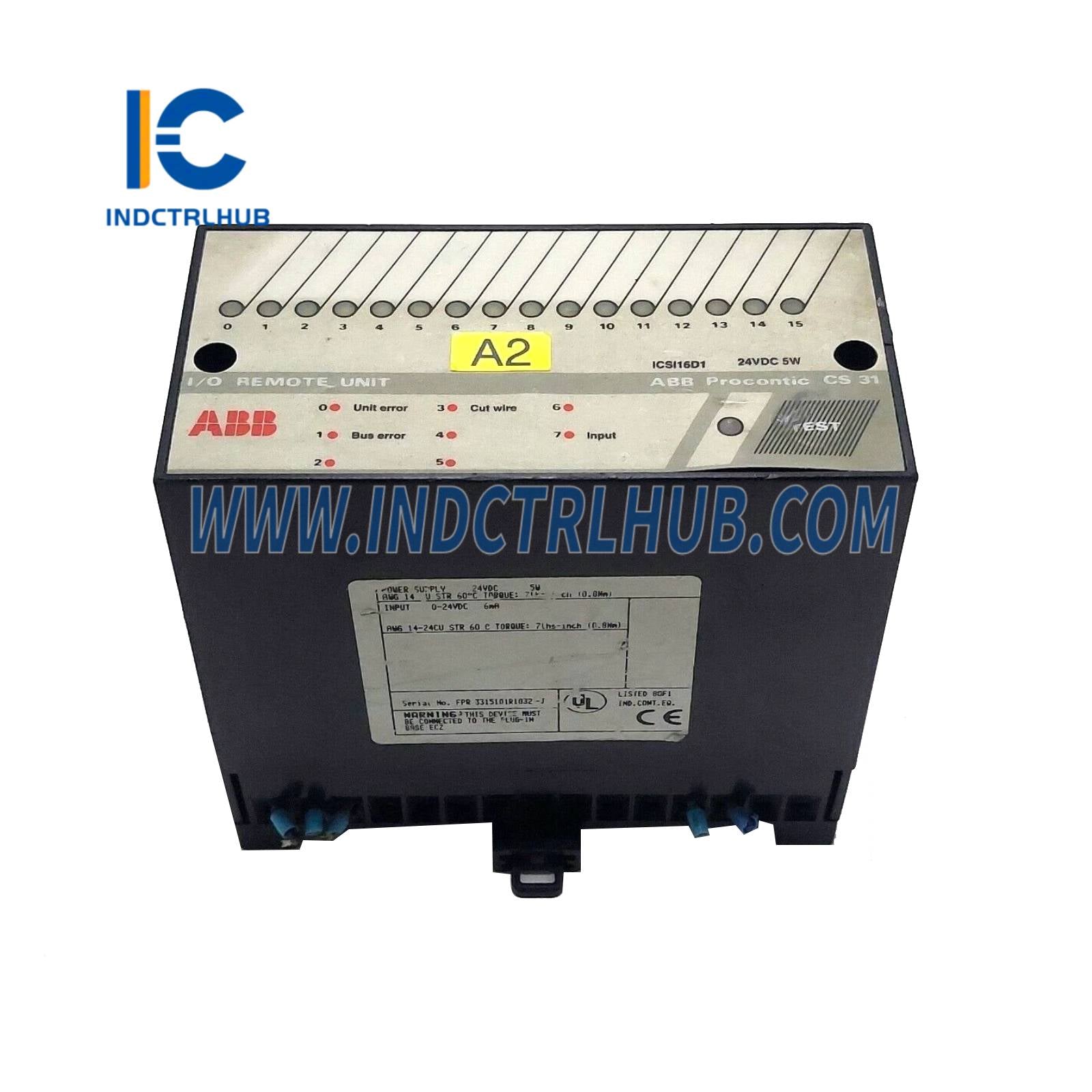

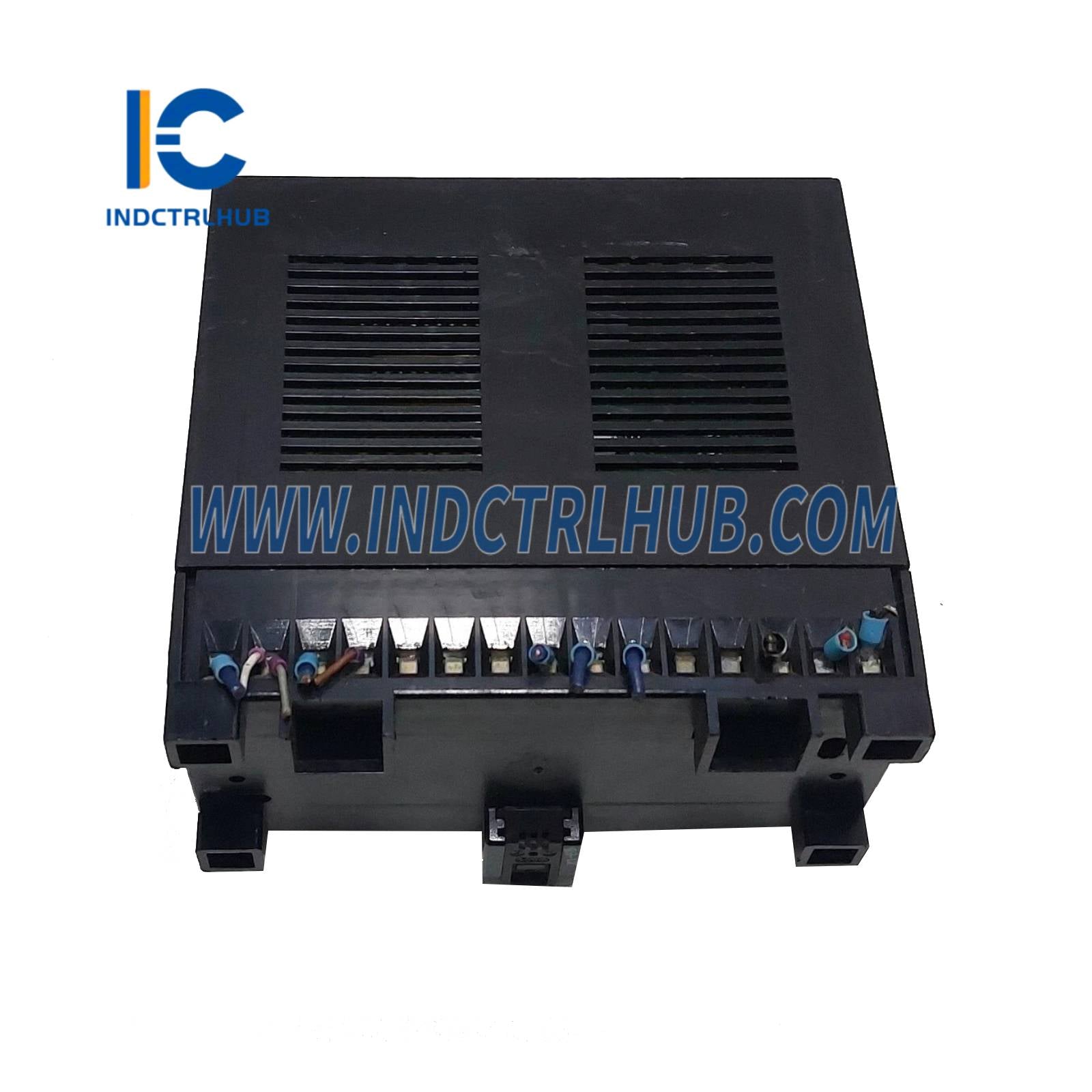

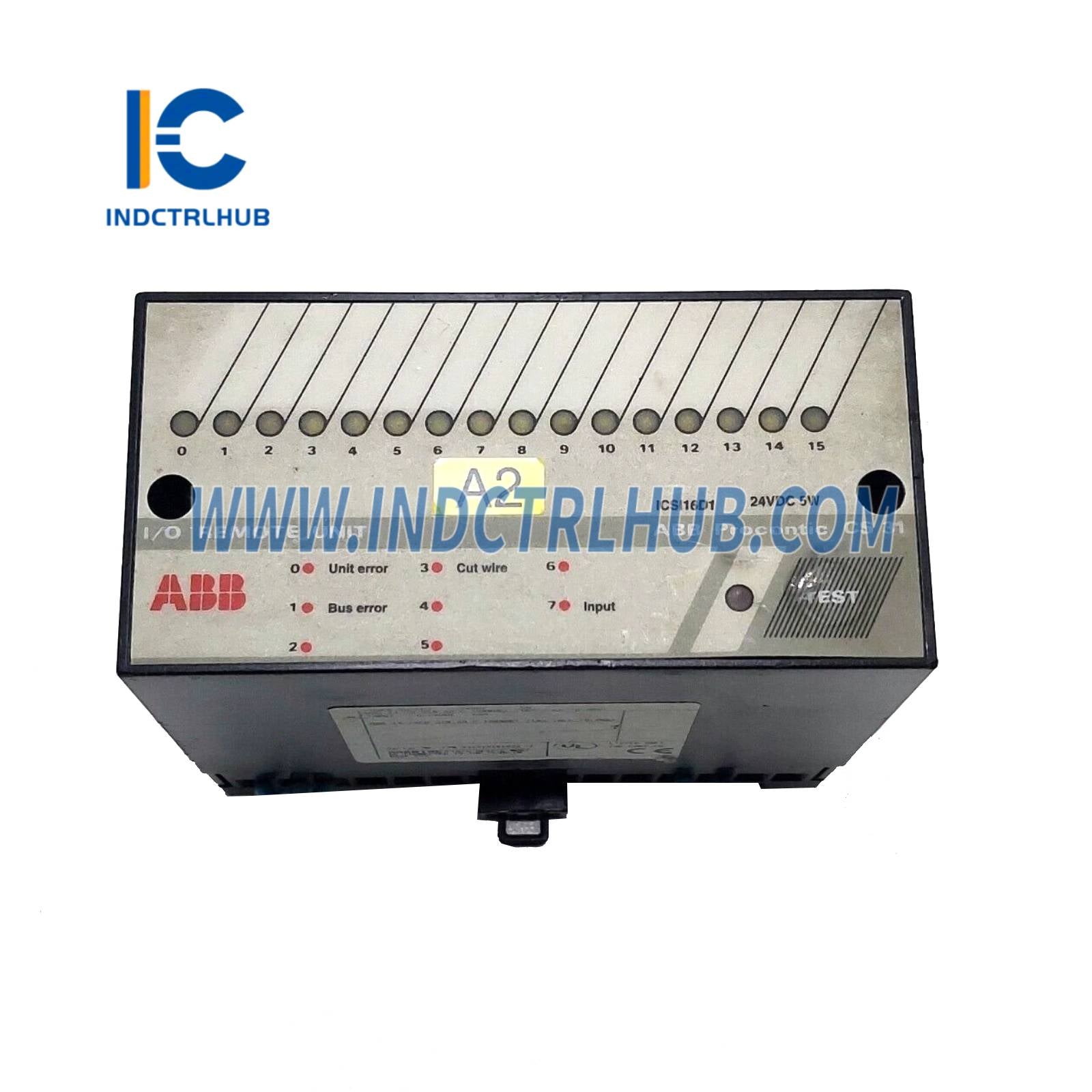

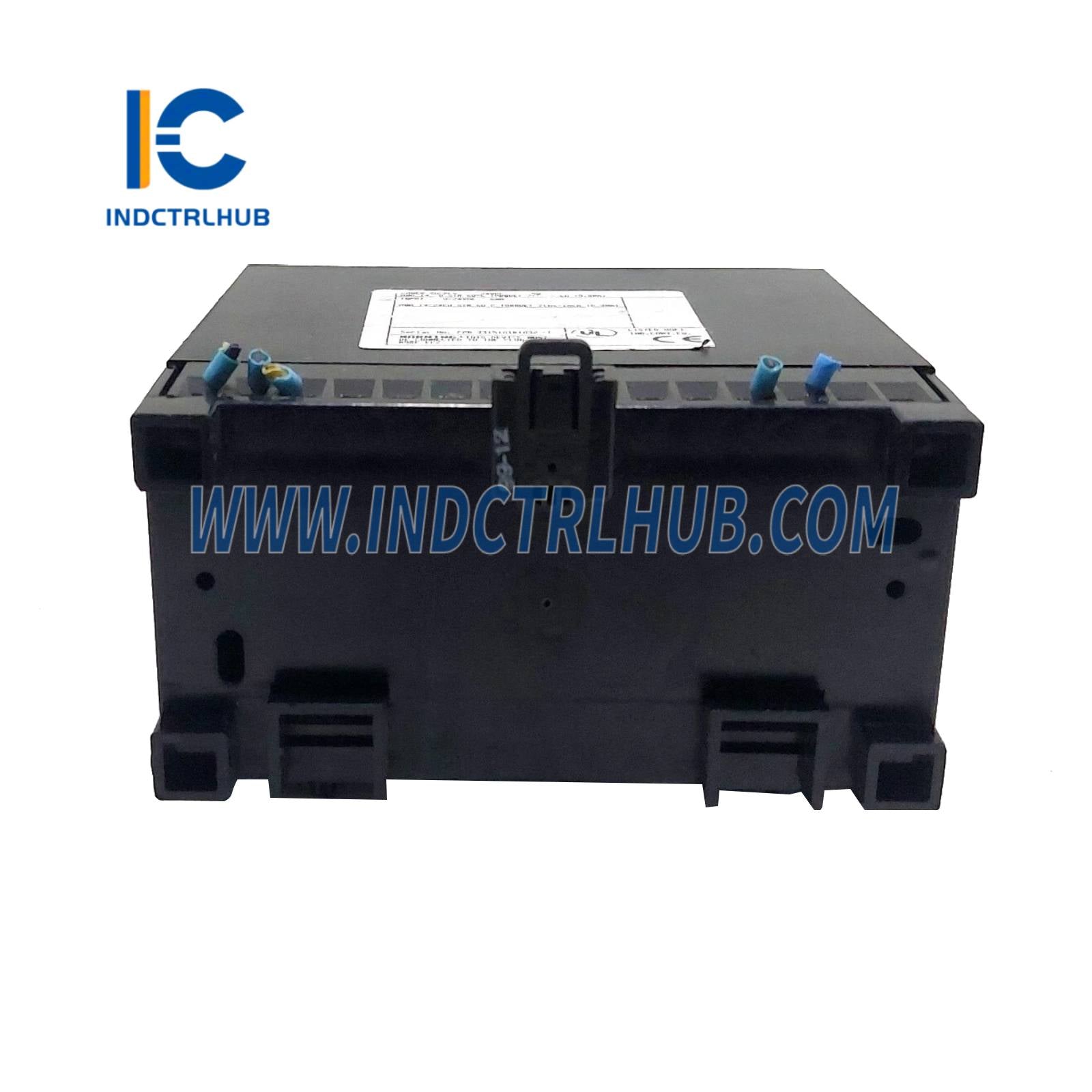

ABB ICSI16D1 Binary Input Module
Product Overview
- The ABB ICSI16D1 is a Binary Input Module designed for use in ABB’s Procontrol P14 distributed control systems (DCS). This module is used to acquire and process binary (digital) signals from field devices, such as switches, relays, or sensors, for monitoring and control within industrial automation systems. It is commonly used in industries like power generation, oil and gas, chemical processing, and manufacturing to monitor discrete states (e.g., on/off, open/closed). The ICSI16D1 is known for its reliability, robust design, and seamless integration with ABB’s Procontrol P14 systems.
Technical Specifications
- The ICSI16D1 has the following specifications based on industry sources and ABB documentation:
| Specification | Details |
|---|---|
| Model/Part Number | ICSI16D1 |
| Manufacturer | ABB |
| Description | Binary Input Module for Procontrol P14 Systems |
| Series | Procontrol P14 |
| Function | Acquires and processes binary signals from field devices |
| Input Signals | Binary: 24 VDC, 48 VDC, or 125 VDC (configuration-dependent) |
| Number of Channels | 16 binary inputs |
| Input Current | Approx. 5–10 mA per channel (depending on input voltage) |
| Input Isolation | Optically isolated inputs (up to 1500 V) |
| Response Time | ≤ 10 ms (typical) |
| Communication Interface | Procontrol P14 bus (proprietary protocol) |
| Diagnostics | Input status monitoring, open circuit detection, module fault reporting |
| Compatibility | ABB Procontrol P14 DCS systems, compatible with Procontrol controllers and I/O modules |
| Power Supply | 24 VDC (via system backplane) |
| Power Consumption | Approx. 3–6 W |
| Environmental Specifications | Operating Temperature: 0°C to +55°C (32°F to +131°F) Storage Temperature: -25°C to +70°C (-13°F to +158°F) Relative Humidity: 5% to 95% non-condensing Vibration: IEC 60068-2-6 compliant Shock: IEC 60068-2-27 compliant |
| Enclosure | IP20 (installed in control cabinet) |
| Dimensions | Approx. 150 mm (H) x 50 mm (W) x 120 mm (D) |
| Weight | Approx. 0.3–0.5 kg |
| Mounting | Plugs into Procontrol P14 system rack |
| Certifications | CE, UL, CSA, complies with IEC 61131 standards |
