Product Description
General Information
|
Manufacturer |
ICS Triplex |
|---|---|
|
Model/Part Number |

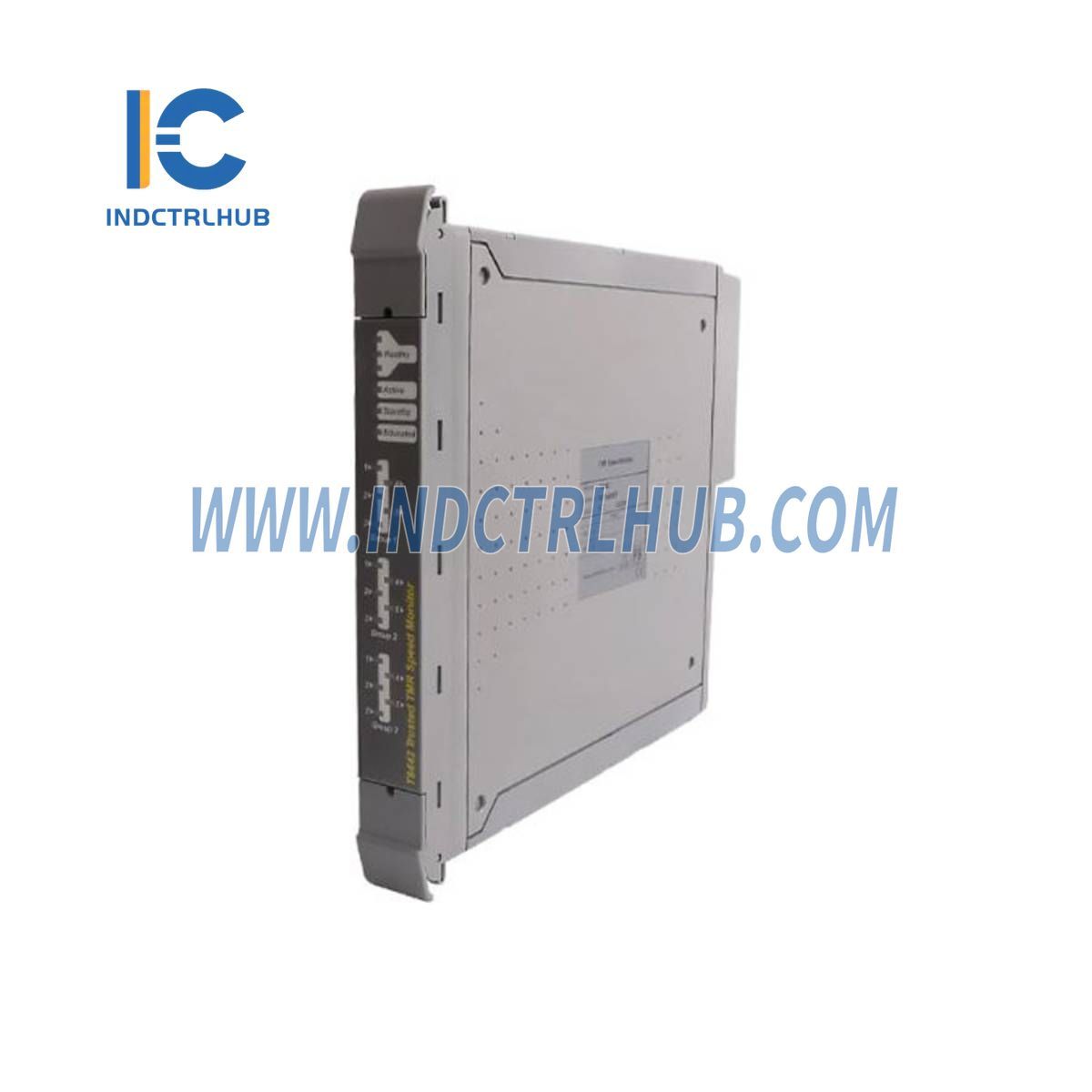

T8451C |
|
Description |
Trusted TMR 24Vdc Digital Output Module |
Electrical Specifications
|
Parameter |
Specification |
|---|---|
|
Number of Outputs |
40 Channels |
|
Independent Power Groups |
5 groups, each with 8 outputs |
|
Field Common Isolation |
±250V DC (sustained), ±2.5kV DC (max) |
|
Output Voltage Field Supply |
0 to 36V DC |
|
Maximum Withstanding Voltage |
-1 to 60V DC |
|
Output Current Rating (Continuous) |
2A |
|
Output Off Resistance (Effective Leakage) |
33kΩ |
|
Power Consumption (1A per Channel) |
24W |
|
Output Turn On/Off Delay |
0.5ms |
|
Self-Test Internal |
Every 2 minutes |
|
Output Short Circuit Protection |
Automatic |
|
Fusing |
Not required |
|
Intrinsic Safety |
External barrier |
|
Circuit Type |
Fault-tolerant, fully triplicated with optional line monitoring |
Mechanical Specifications
|
Parameter |
Specification |
|---|---|
|
Dimensions (HxWxD) |
241mm x 30mm x 300mm (9.5in x 1.2in x 11.8in) |
|
Weight |
1.13kg (2.5lbs) |
Environmental Specifications
|
Parameter |
Specification |
|---|---|
|
Operating Temperature |
-5°C to 60°C (23°F to 140°F) |
|
Operating Humidity |
5% to 95%, non-condensing |
|
Vibration |
10 to 57Hz ±0.075mm, 57 to 150Hz 1.0g |
|
Shock |
15g, ½ sine wave, 11ms |
Electromagnetic Interference (EMI) Compliance (IEC 801)
|
Parameter |
Specification |
|---|---|
|
Electrostatic Discharge (ESD) |
Air discharge to 15kV, Contact discharge to 8kV |
|
Radiated Fields |
10V/m, 27MHz to 500MHz |
|
Transients and Bursts |
2kV, 2.5kHz for t=60 seconds |
