Product Description
General Information
|
Manufacturer |
ICS Triplex |
|---|---|
|
Model/Part Number |
T8310 |
|
Description |

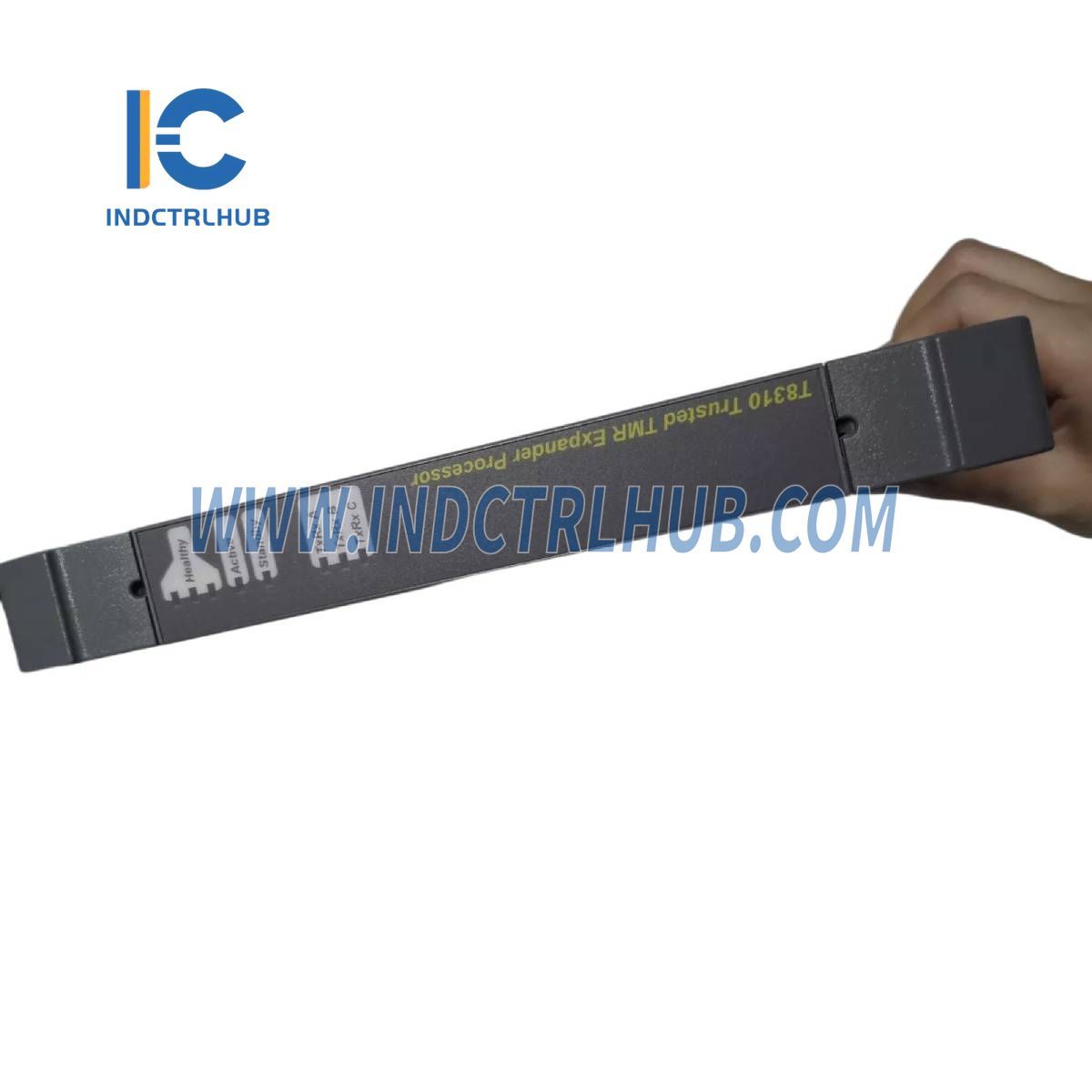

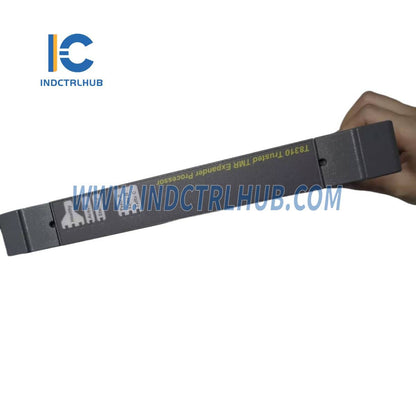

Trusted TMR Expander Processor |
Specifications
|
Parameter |
Specification |
|---|---|
|
Backplane (IMB) Supply |
20 Vdc to 32 Vdc |
|
Field Supply |
N/A |
|
Power Dissipation |
45 W Backplane Supply |
|
Module Location |
T8300 Expander Processor Slot |
|
Isolation |
50 V Basic Insulation, Module to Backplane Supply |
|
Fusing |
Not User Serviceable |
Expander Communications
|
Parameter |
Specification |
|---|---|
|
Max Distance (Using TC-301 Copper Cable) |
30 m |
|
Max Distance (Using T8314 Fibre TX/RX Units) |
10 km |
Environmental Specifications
|
Parameter |
Specification |
|---|---|
|
Operating Temperature |
0 °C to +60 °C (+32 °F to +140 °F) |
|
Storage Temperature |
-25 °C to +70 °C (-13 °F to +158 °F) |
|
Relative Humidity (Operating & Storage) |
10 % – 95 %, non-condensing |
|
Environmental Specifications Reference |
Document 552517 |
Physical Specifications
|
Parameter |
Specification |
|---|---|
|
Height |
266 mm (10.5 in) |
|
Width |
31 mm (1.2 in) |
|
Depth |
303 mm (12.0 in) |
|
Weight |
1.33 kg (2.9 lb) |
