Product Description
General Information
|
Manufacturer |
ICS Triplex |
|---|---|
|
Model/Part Number |
T8122 |
|
Description |

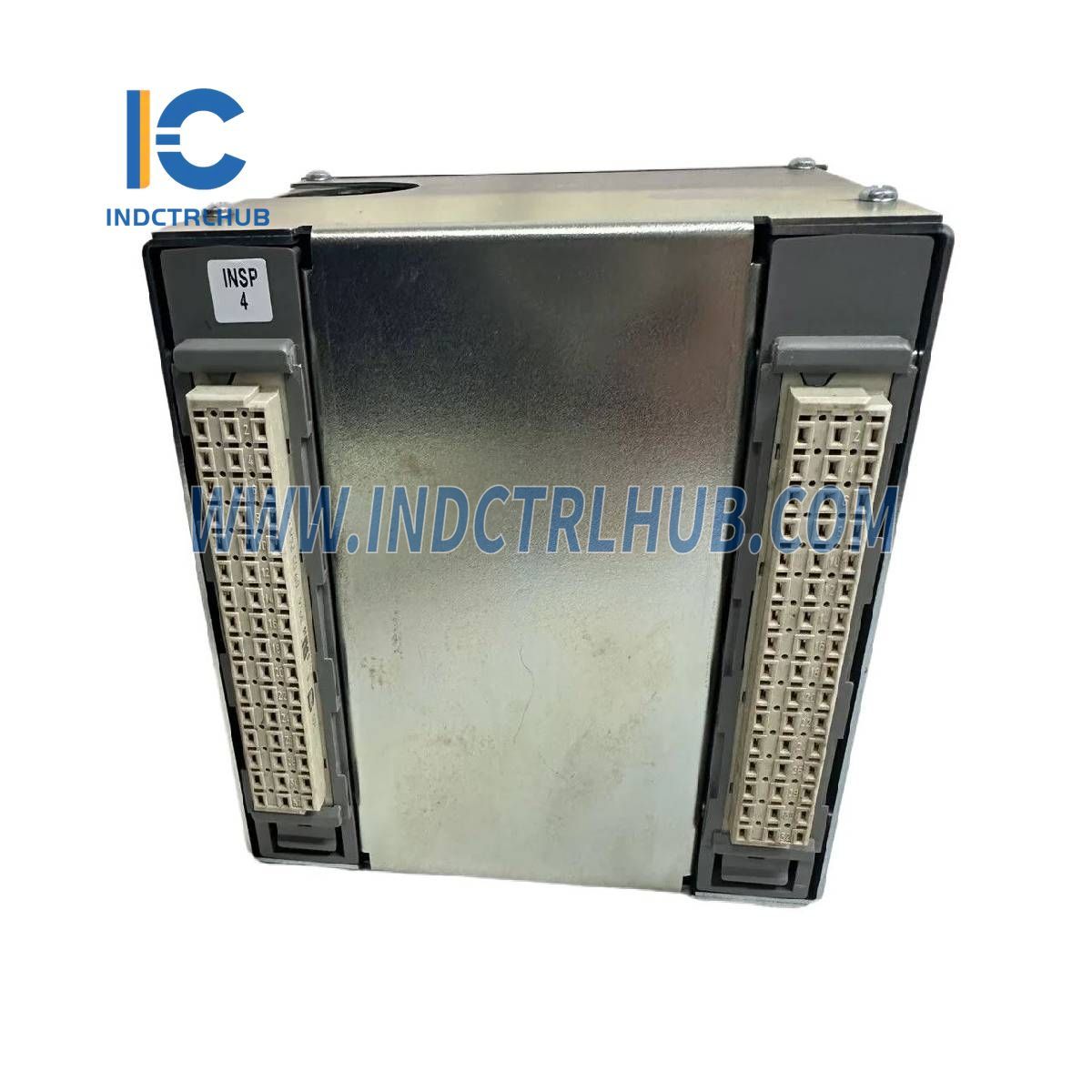

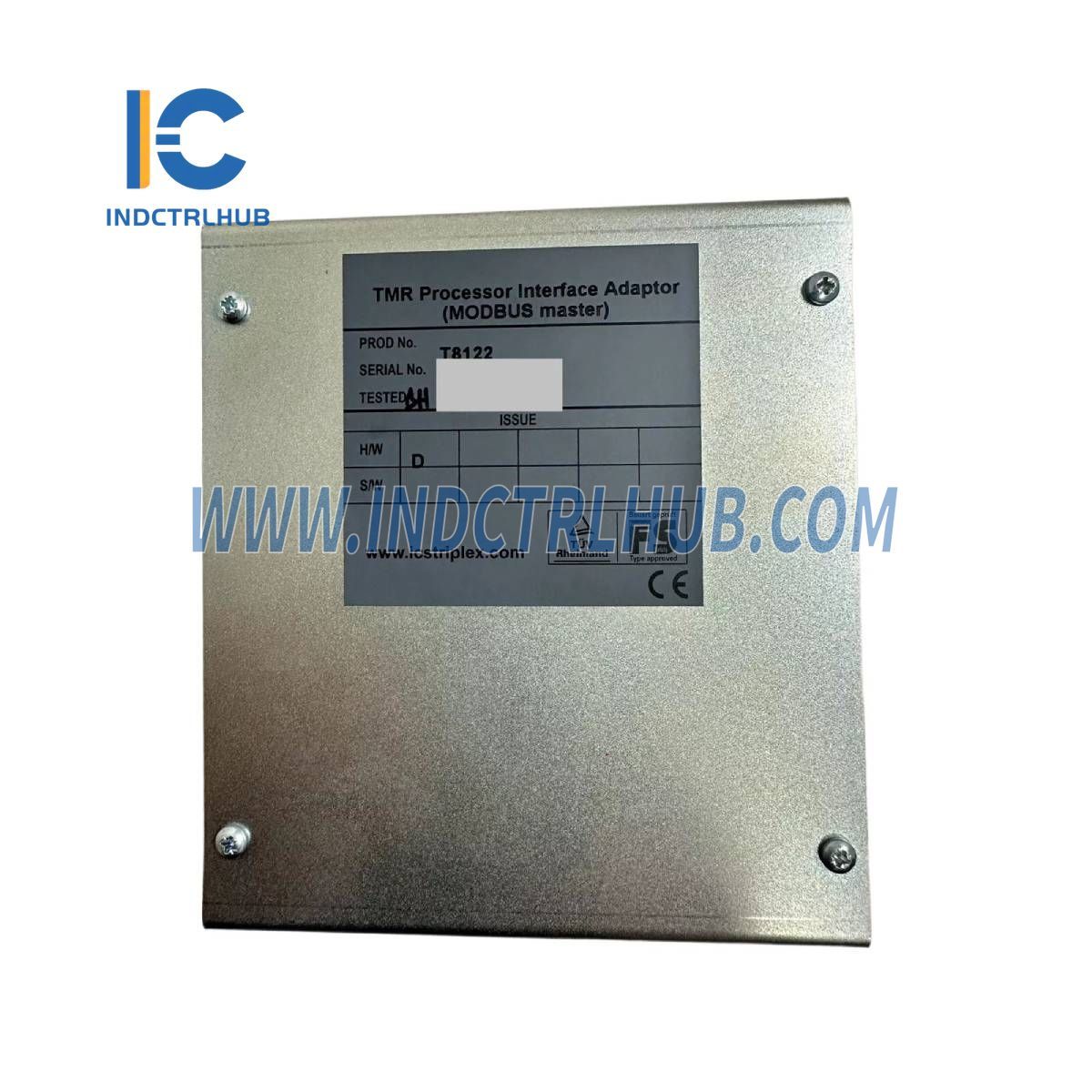

Trusted TMR Processor Interface Adapter |
Specifications
|
Parameter |
Specification |
|---|---|
|
Power Supply |
Powered from Trusted TMR Processor |
|
Power Dissipation |
0.1 W |
|
Isolation |
50 V Reinforced (continuous), 250 V Basic (fault) |
|
Type Testing |
Tested at 2436 Vdc for 60 s |
|
Fusing |
None |
Ports
|
Port |
Specification |
|---|---|
|
Port 1 |
RS422/485 |
|
Ports 2 & 3 |
RS422/485 |
|
IRIG B |
IRIG-B122 and IRIG-B002 on a single connector |
Environmental Specifications
|
Parameter |
Specification |
|---|---|
|
Operating Temperature |
0°C to +60°C (+32°F to +140°F) |
|
Storage Temperature |
-25°C to +70°C (-13°F to +158°F) |
|
Relative Humidity |
10% – 95%, non-condensing |
|
Environmental Standards |
Refer to Trusted 8000 - Series B: International Safety & Environmental Approvals, publication ICSTT-TD003 |
Physical Specifications
|
Dimension |
Value |
|---|---|
|
Height |
138 mm (5.43 in) |
|
Width |
120 mm (4.72 in) |
|
Depth |
108 mm (4.25 in) |
|
Weight |
877 g (1.93 lb) |
