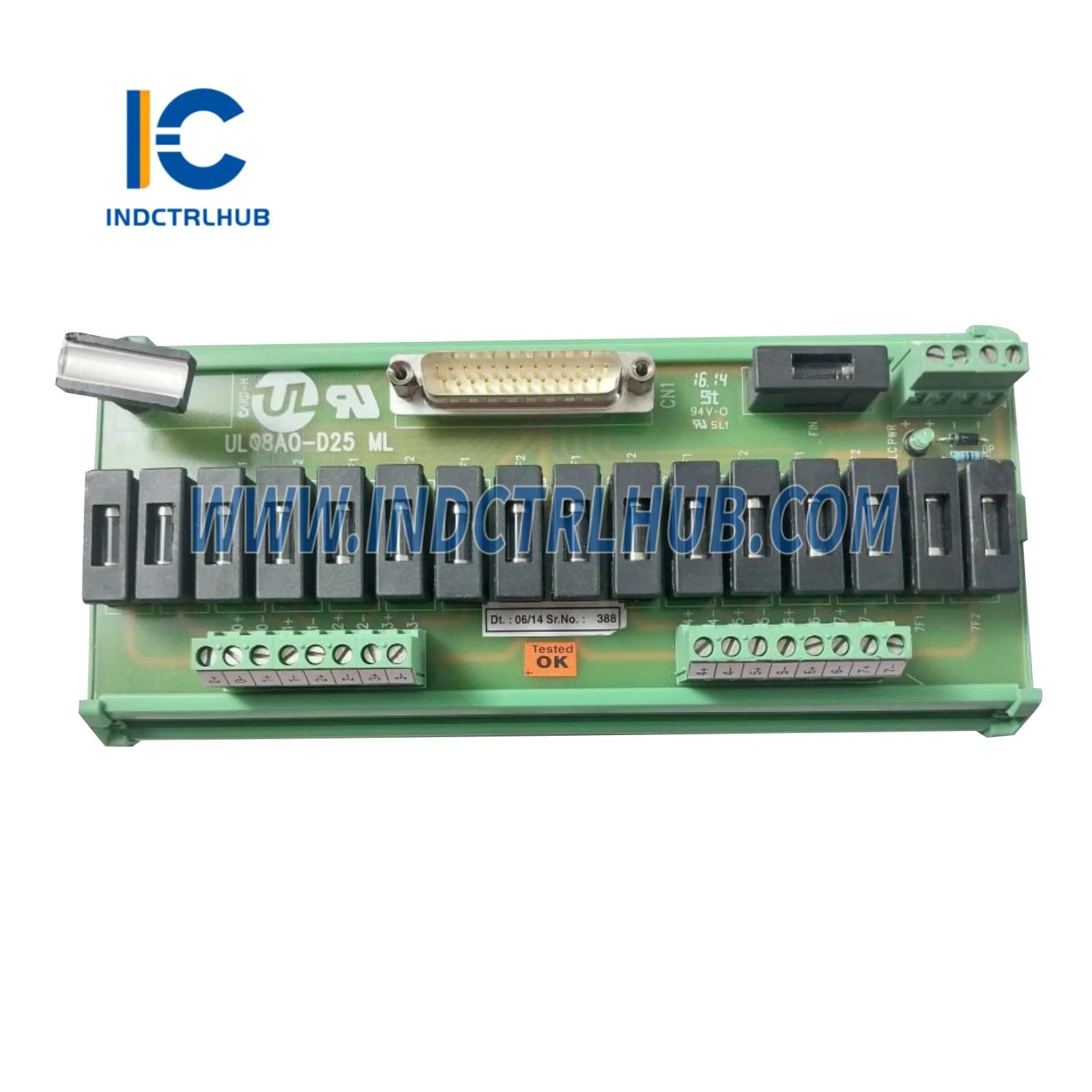

Honeywell UL08AO-D25-ML Analog Output Module

Product Overview

• The Honeywell UL08AO-D25-ML is an Analog Output Module designed for use in Honeywell’s Universal Control Network (UCN) and Experion Process Knowledge System (PKS) platforms, specifically within the Series C or related distributed control systems (DCS). This module provides 8 analog output channels, typically delivering 4-20 mA signals to control field devices such as valves, actuators, or other process equipment. The “UL” prefix indicates UL certification, “D25” likely refers to a 25-pin D-sub connector, and “ML” may denote a specific configuration or multi-loop capability. It is ideal for industrial automation applications in industries like oil and gas, chemical, and manufacturing.

Technical Specifications

• The UL08AO-D25-ML has the following specifications based on standard characteristics for similar Honeywell analog output modules:

Additional Details

• The UL08AO-D25-ML includes the following additional information based on its standard use and documentation for similar modules:
• Function: Delivers precise analog output signals to control field devices, supporting process control and automation with high accuracy.
• Mounting: Installs in UCN or Experion PKS system racks, typically interfacing with Field Termination Assemblies (FTAs) or I/O processors via a 25-pin D-sub connector.
• Compatibility: Compatible with Honeywell’s TDC 3000, Experion PKS, and Series C platforms; integrates with controllers and I/O modules like CC-PAIH51 or MU-PAIH03.
• Configuration: Supports multi-loop control; configurable via Honeywell’s control system software; may include diagnostic features for monitoring output status.
• Certifications: UL-certified; likely meets CE and other industrial standards for safety and performance.
