Product Description
Product Overview
| Field | Details |
|---|---|
| Manufacturer | Honeywell |
| Part Number | TP-ZSBHM2-100 |
| Product Type | Upgrade Kit, History Module (HM) to Single Board History Module (SBHM) with Two Drives |
| Function | Upgrades TDC 3000 History Module to SBHM with dual logical drives |
| System Compatibility | Experion TPS/TDC 3000, integrates with Local Control Network (LCN) |
Functional Specifications
| Feature | Specification |
|---|---|
| Purpose | Replaces K4LCN-4, SPC card, and disk drives with a single LCN-style PCB |
| Processor | Integrated processor for data storage and retrieval |
| SCSI Interface | Integrated SCSI interface for drive connectivity |
| Storage Capacity | 1.8 GB per logical drive (dual logical drives supported) |
| Drive Configuration | Supports dual logical drives: one drive for dual HM, two drives for redundant dual HM |
| Software Requirement | Requires Experion TPS/TDC 3000 software release R500 or higher |
| Diagnostics | Supports system diagnostics and status monitoring |
| Redundancy | Supports redundant dual HM configuration with two drives |
Electrical Specifications
| Parameter | Specification |
|---|---|
| Input Voltage | Powered via LCN chassis (24 VDC nominal) |
| Power Consumption | 10 W typical |
Environmental Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | Operating: 10% to 90% non-condensing; Storage: 5% to 95% non-condensing |
Physical Specifications
| Parameter | Specification |
|---|---|
| Mounting | Plugs into TDC 3000 LCN chassis |

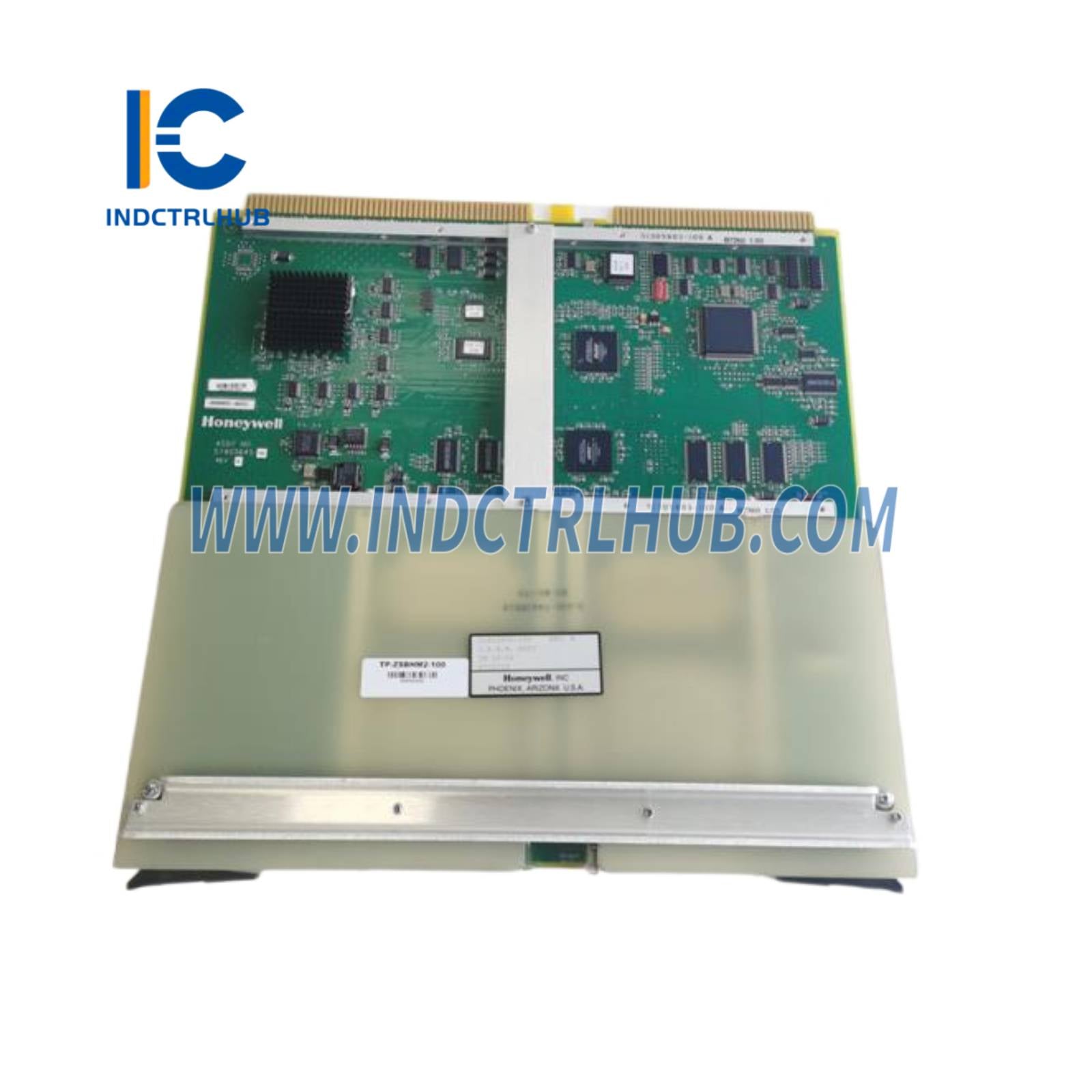

| Design | Single LCN-style printed circuit board |
| Weight | 1.5 kg (approximate) |
| Status Indicators | LEDs for power, drive status, and module activity |
