Product Description
Product Overview
| Category | Details |
|---|---|
| Manufacturer | Honeywell |
| Model/Part Number | TP-DSOEP1-100 |
| Description | Desk Operator Entry Panel designed for Honeywell TDC 3000 Distributed Control Systems, providing an ergonomic operator interface for process control and monitoring |
| Key Features | 100-key QWERTY keyboard, integrated trackball or touchpad, adjustable brightness and volume, rugged design, compatible with TDC 3000 Universal Stations, supports multiple input methods |
Technical Specifications
| Specification | Details |
|---|---|
| Model | TP-DSOEP1-100 |
| Product Type | Operator Entry Panel |
| Series | TDC 3000 |

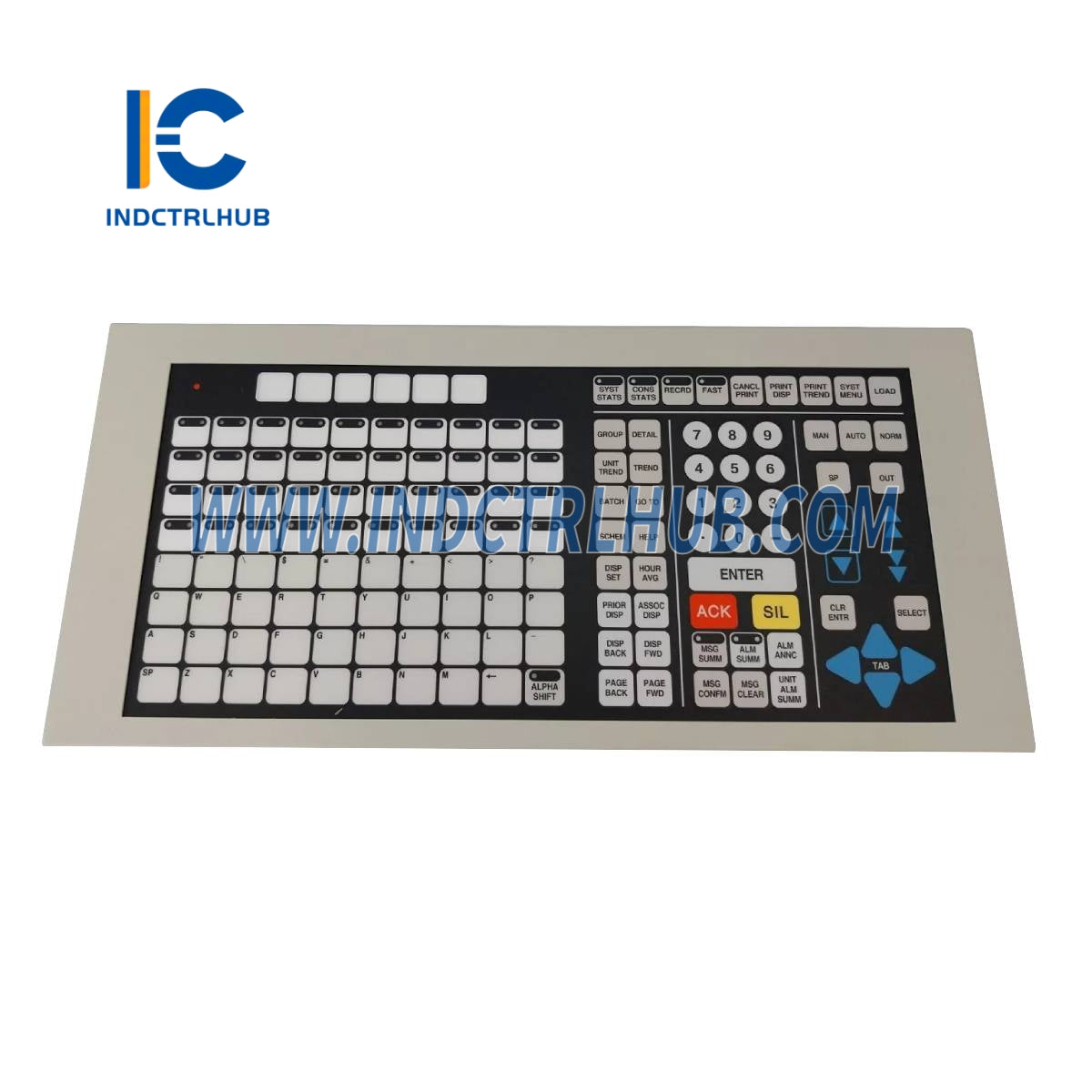

| Key Layout | QWERTY, 100 keys, mechanical with tactile feedback |
| Pointing Device | Trackball or touchpad |
| Interface | Proprietary TDC 3000 connection (serial-based) |
| Power Supply | 12-24 VDC |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Dimensions | Approx. 400 x 200 x 60 mm (15.7 x 7.9 x 2.4 in) |
| Weight | Approx. 2.5 kg (5.5 lbs) |
External Connection Options
| Connection Type | Details |
|---|---|
| Supported Connections | Serial interface to TDC 3000 Universal Station or Operator Console, terminal connectors for power and communication |
Functional Features
| Feature | Details |
|---|---|
| Operator Interface | Enables input of process control commands and navigation of system displays |
| Ergonomics | Designed for prolonged use with tactile keys and intuitive controls |
| Feedback | Provides visual and auditory feedback via display integration and adjustable settings |
| Durability | Rugged construction for industrial control room environments |
Model and Configuration
| Category | Details |
|---|---|
| Base Model | TP-DSOEP1-100 |
| Configuration | Standard desk-mounted operator panel for TDC 3000 systems |
Applications and Benefits
| Category | Details |
|---|---|
| Applications | Process control in oil and gas, chemical, power generation, and refining industries |
| Benefits | Enhanced operator efficiency, reliable input control, seamless TDC 3000 integration, durable for continuous operation |
