Product Description
Product Overview
| Parameter | Details |
|---|---|
| Part Number | TK-PPD011 51309241-175 |

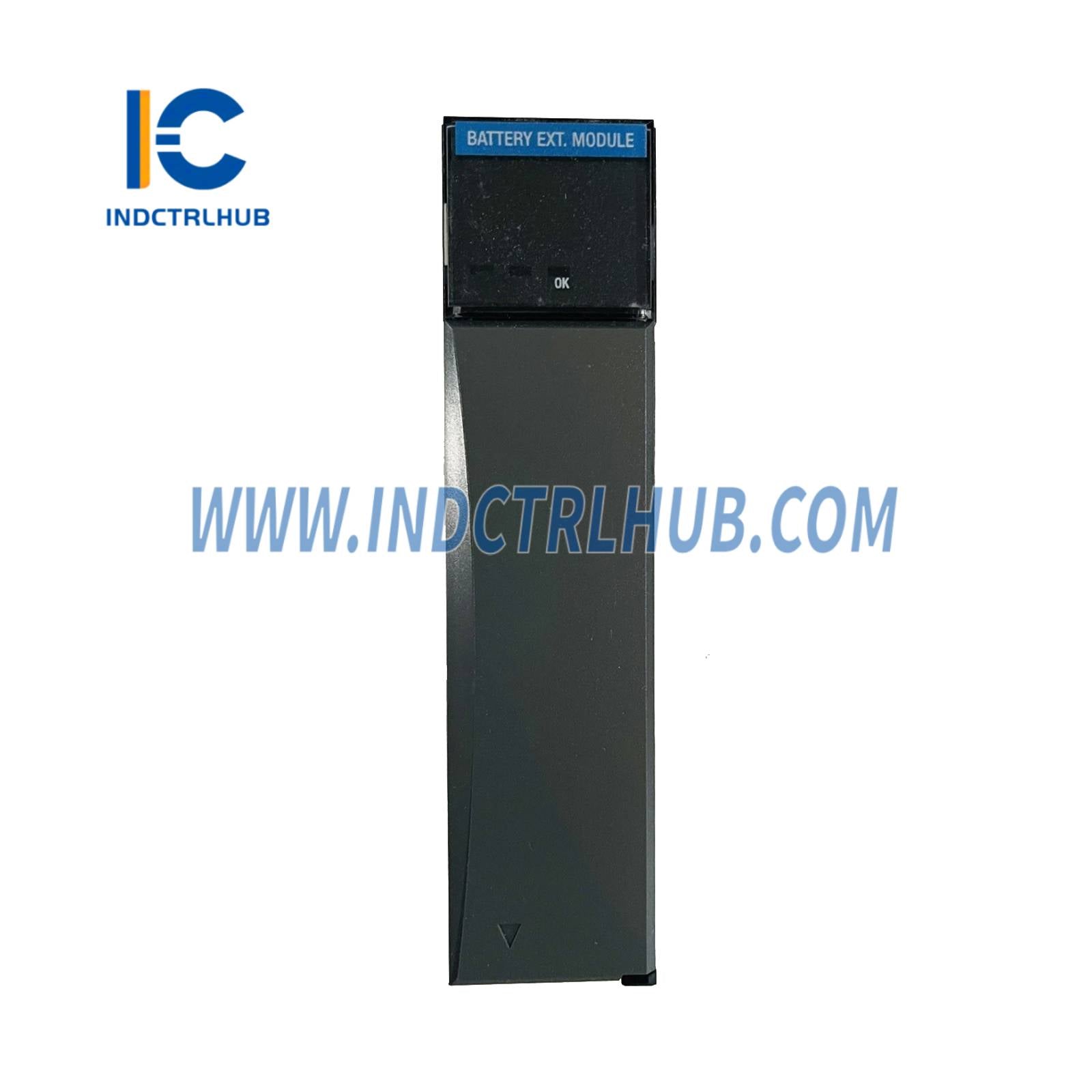

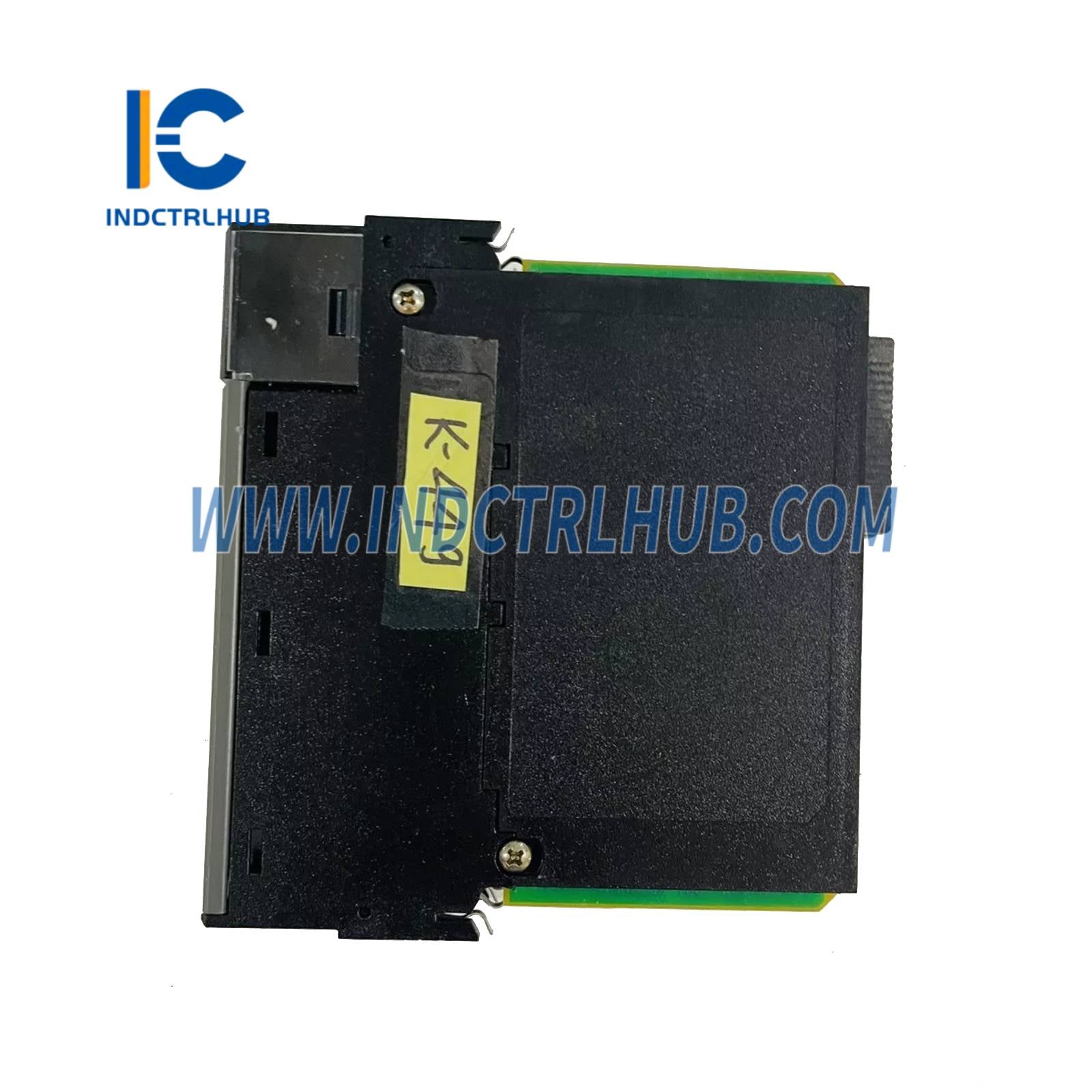

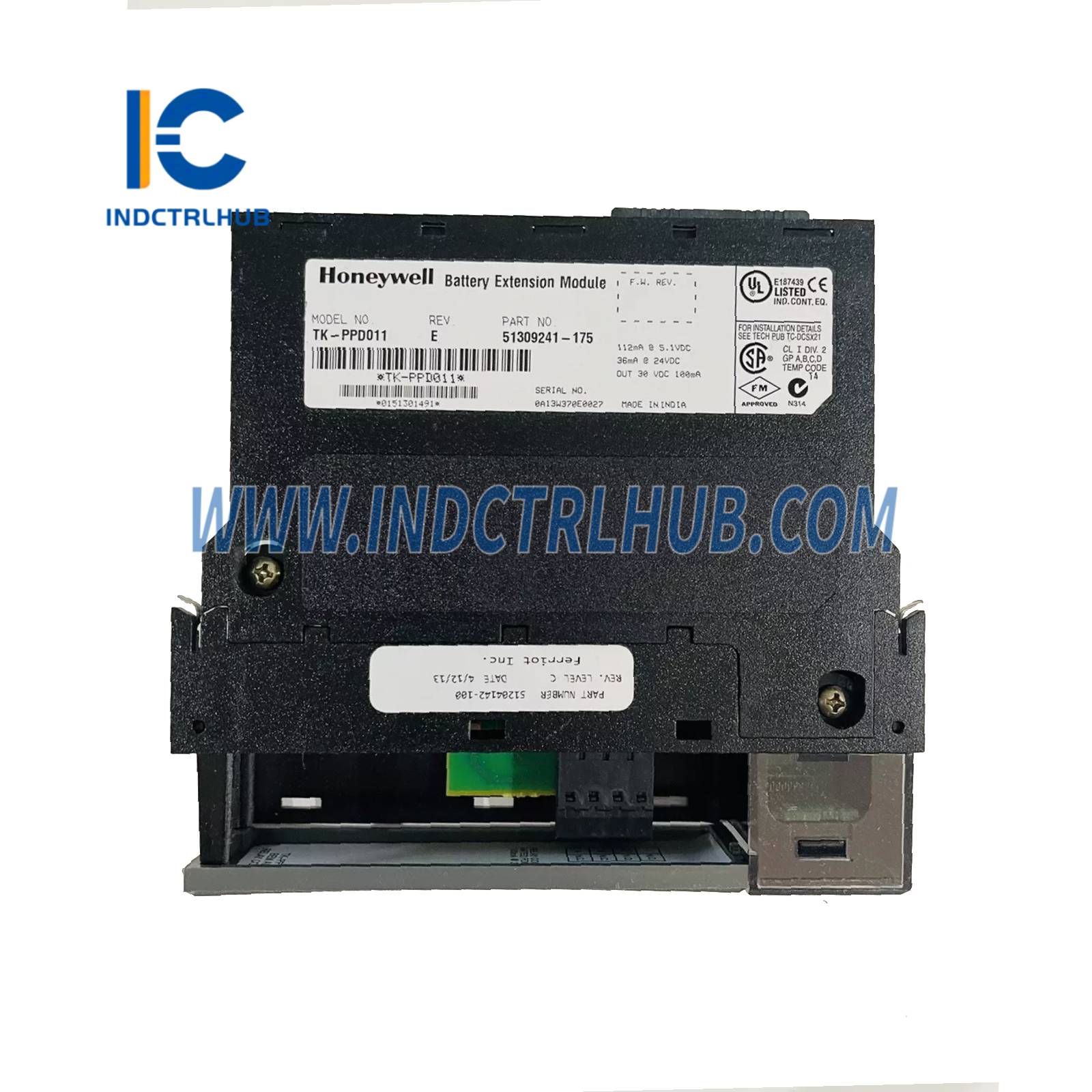

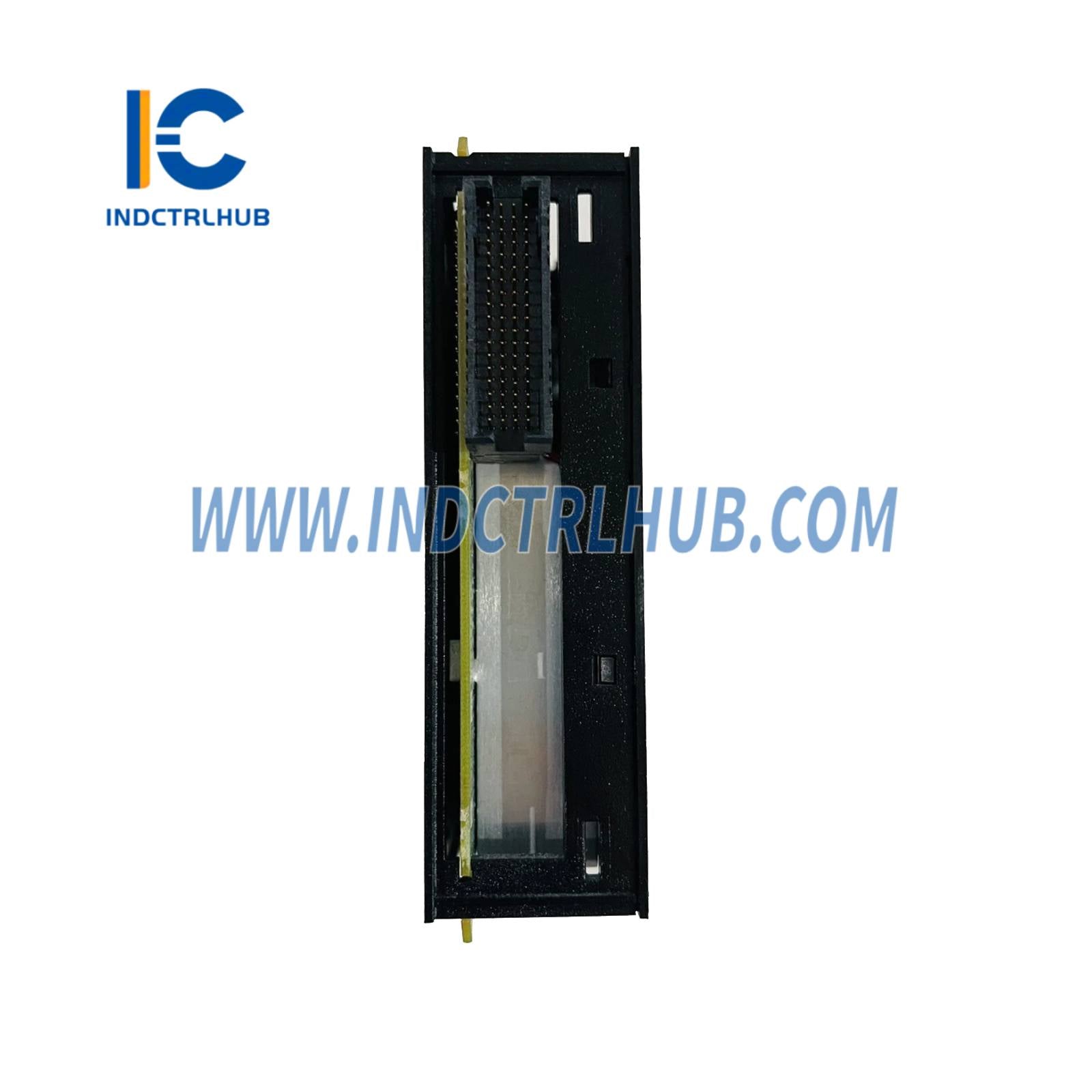

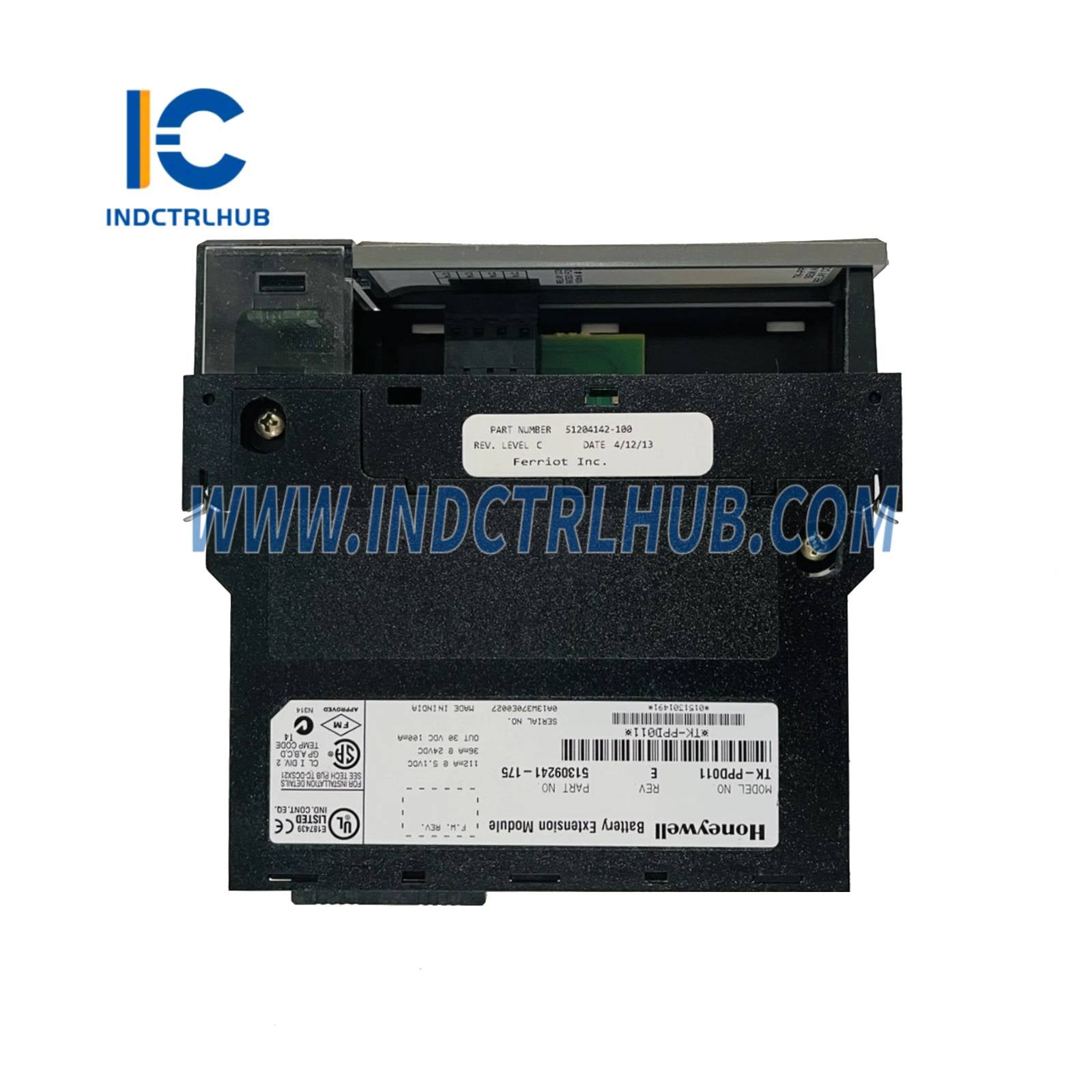

| Product Name | Battery Extension Module |
| Application | Backup power for Honeywell control systems |
| Compatibility | Compatible with Honeywell ControlEdge HC900 and T6500/T6600 thermostats |
| Function | Extends battery life for controllers and thermostats during power outages |
Functional Specifications
| Parameter | Details |
|---|---|
| Input Voltage | 120–240 V AC |
| Output Voltage | 30 V DC |
| Output Current | 100 mA |
| Current Draw | 0.036 A @ 24 V DC, 0.112 A @ 5 V DC |
| Battery Backup | Provides 12 hours of backup power |
| Power Consumption | 2 W typical |
| Connection | Compatible with AC and DC power sources |
| Ambient Temperature Range | -40 to 70°C |
| Mounting | Standard 35mm DIN rail or direct integration with compatible devices |
| Dimensions | 36 mm x 127 mm x 178 mm (L x W x H) |
| Weight | 360 g |
| Standards Compliance | CE, TUV, UL508, CSA |
