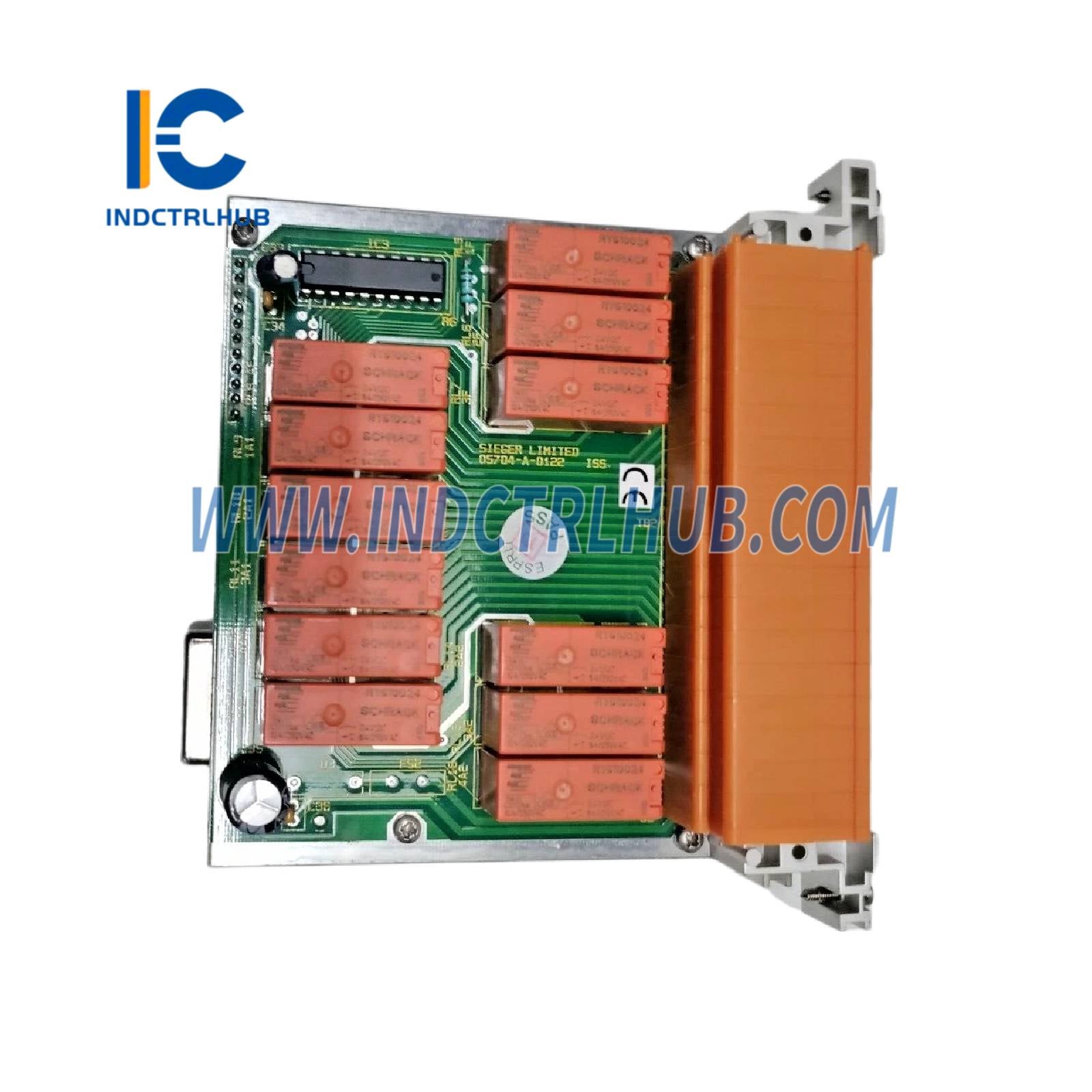

| Relay Outputs |
Up to 16 configurable single-pole changeover (SPCO) relays |
| Relay Contact Rating |
5 A at 250 V AC or 30 V DC |
| Relay Operation |
Selectable: latching/non-latching, energized/de-energized |

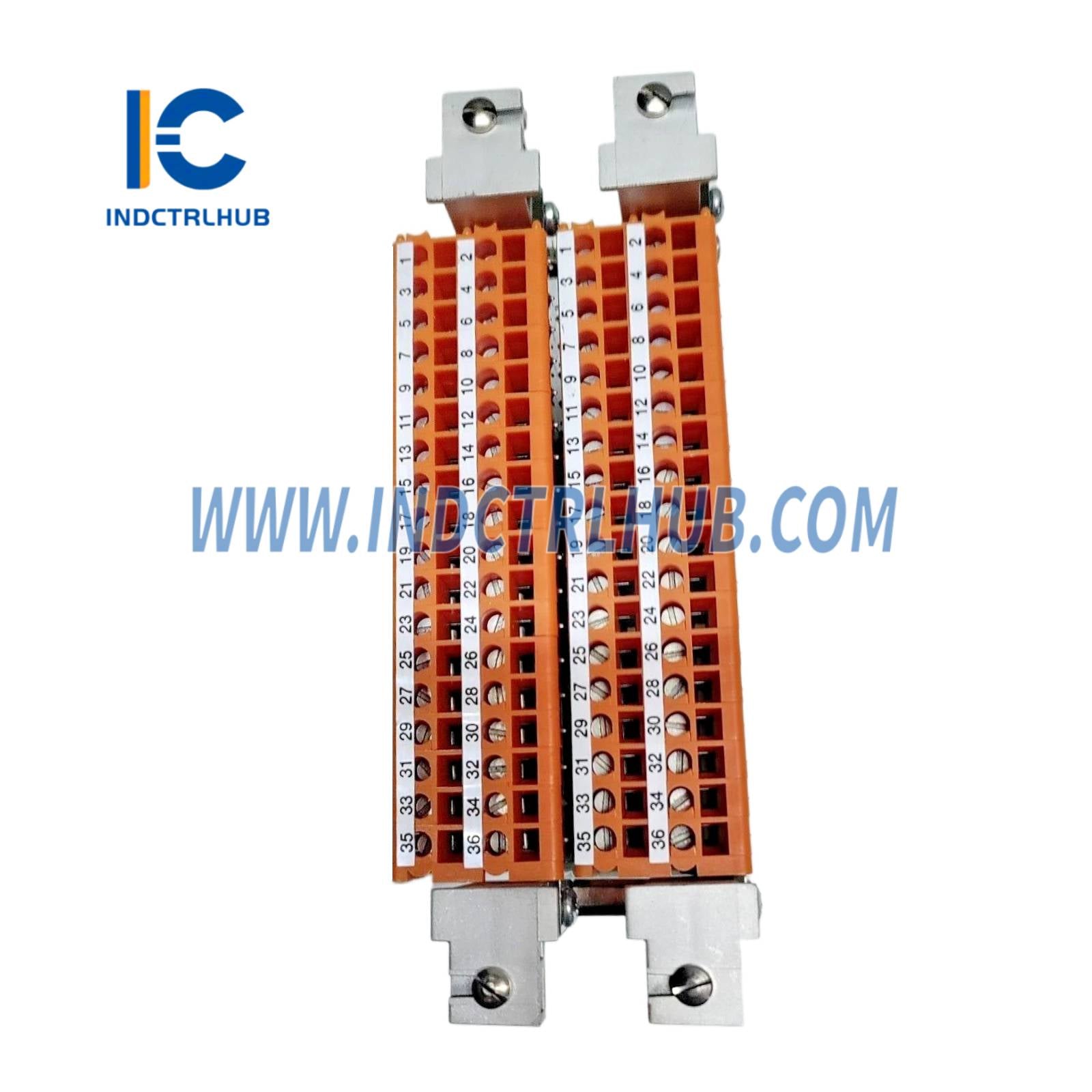

| Field Terminals |
Screw terminals for front and rear access connections |
| Power Supply |
18 to 32 V DC (via System 57 rack) |
| Power Consumption |
1.7 W typical (per interface assembly) |
| Connections |
Supports loop-powered detectors, call points, and voltage-free contact outputs |
| Fault Monitoring |
Supports end-of-line (EOL) resistor for fault detection (typically 22 kΩ for remote inputs) |
| Dimensions |
1-inch wide module, fits in two System 57 rack slots |
| Weight |
160 g |
| Standards Compliance |
CE, EN54-2, UL, CSA |
