Product Description

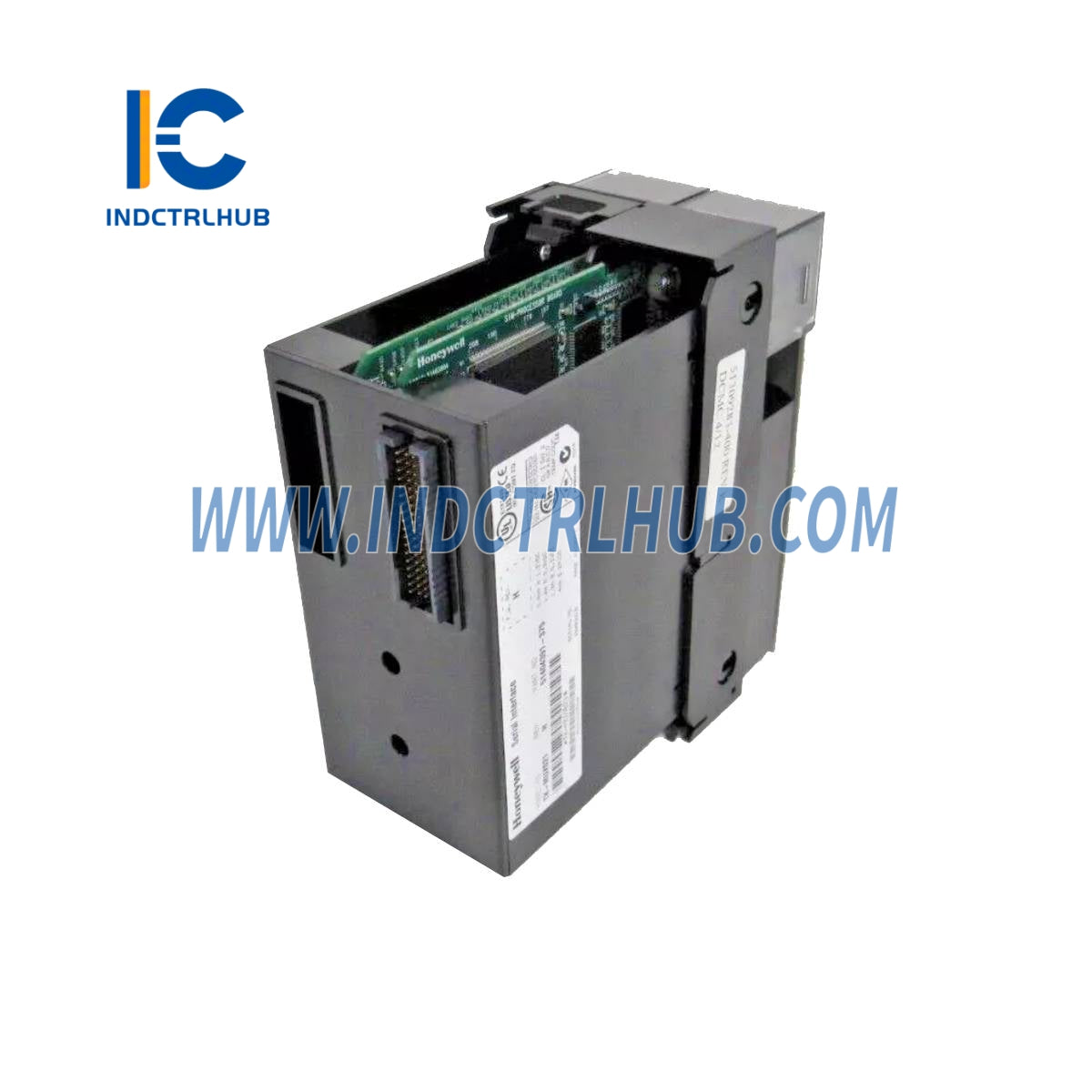

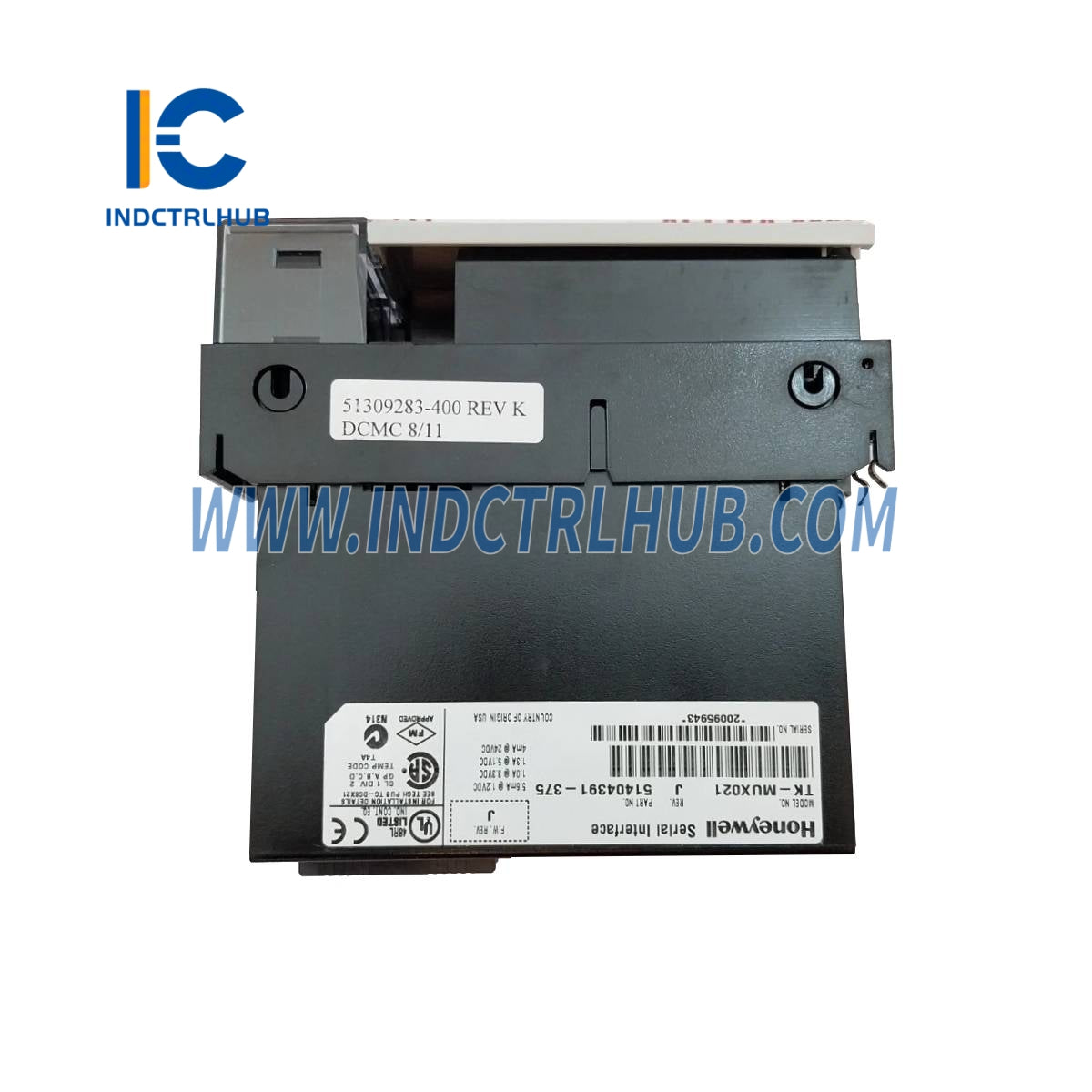

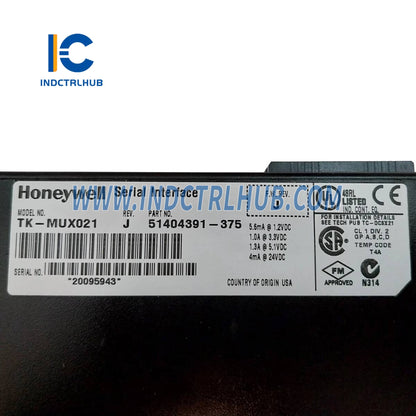

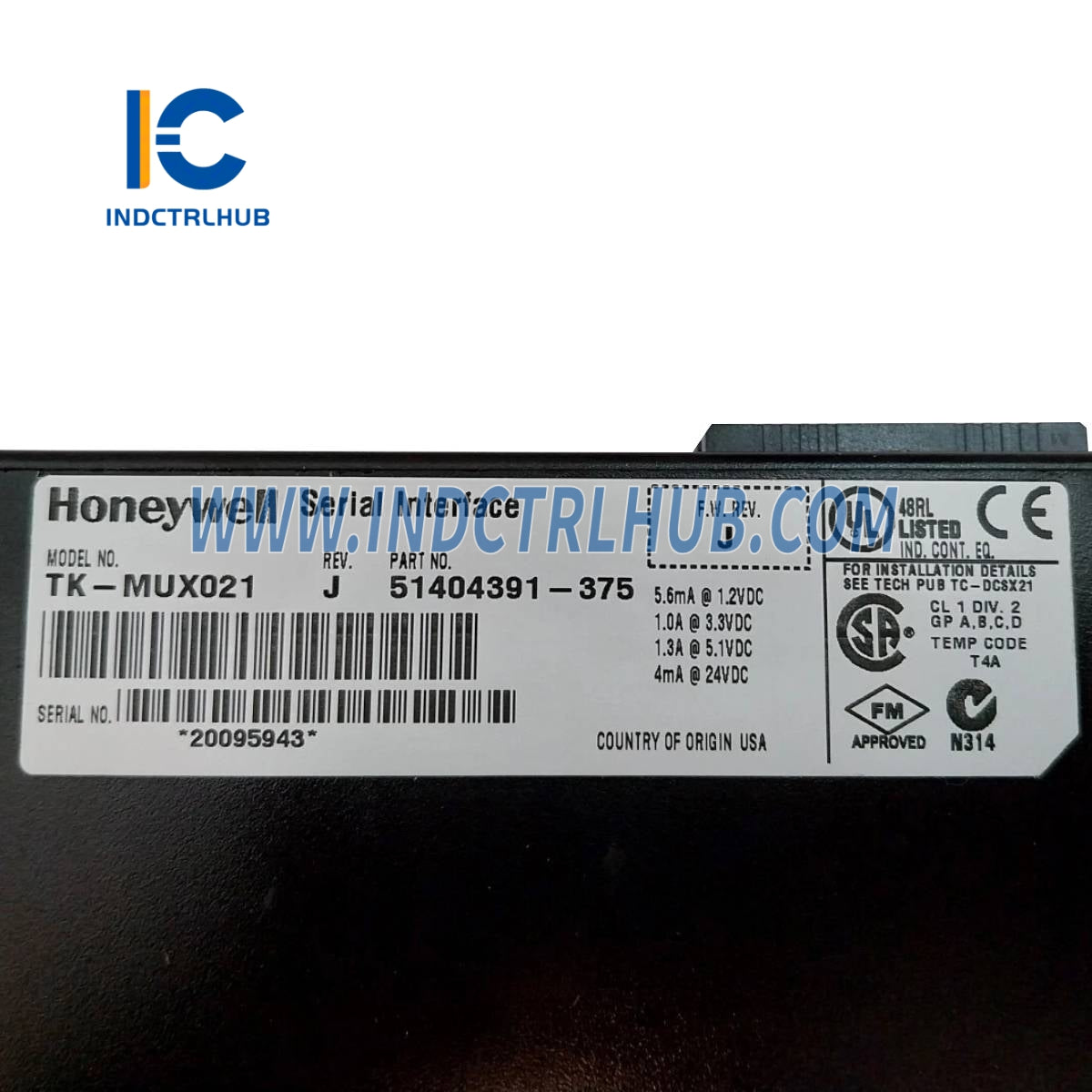

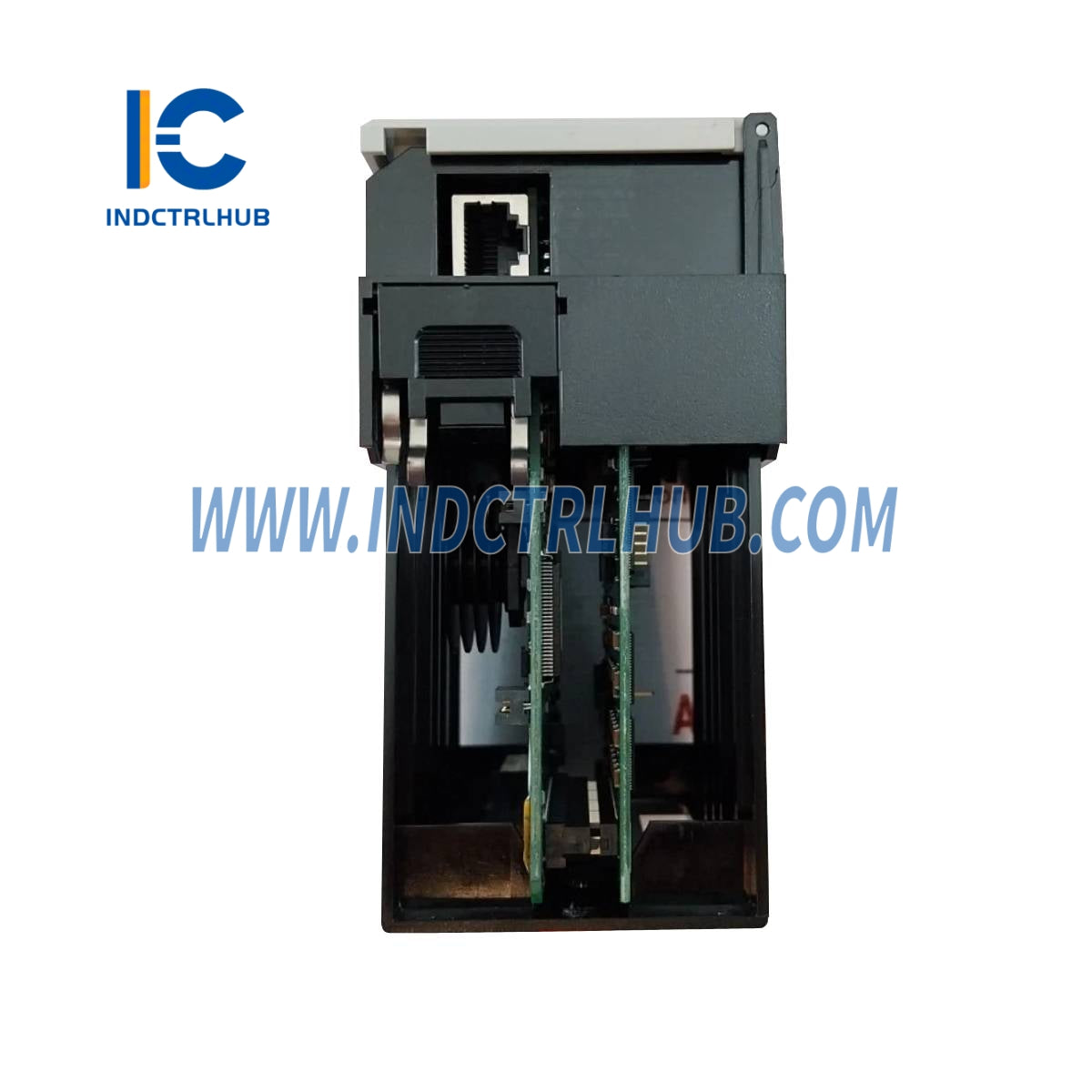

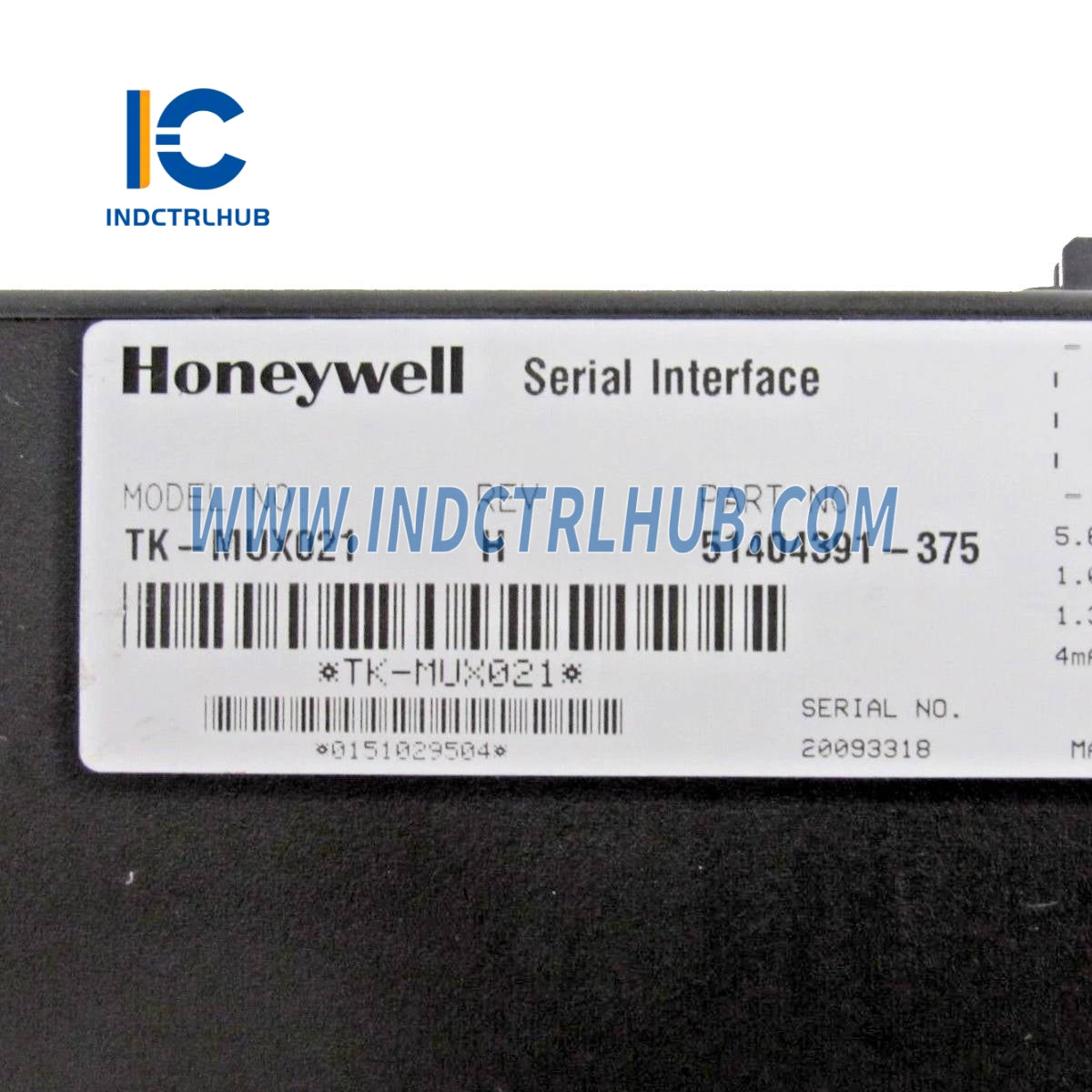

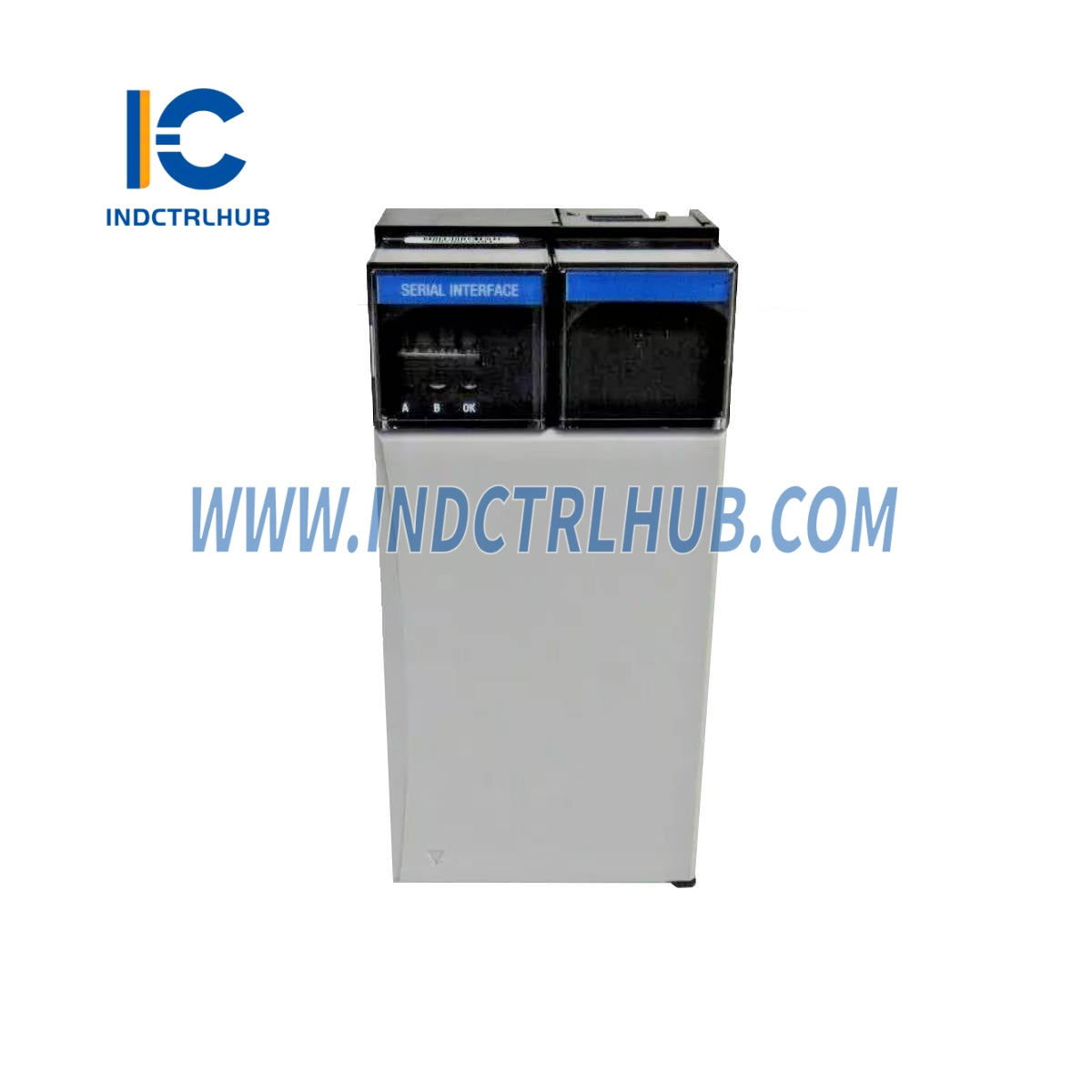

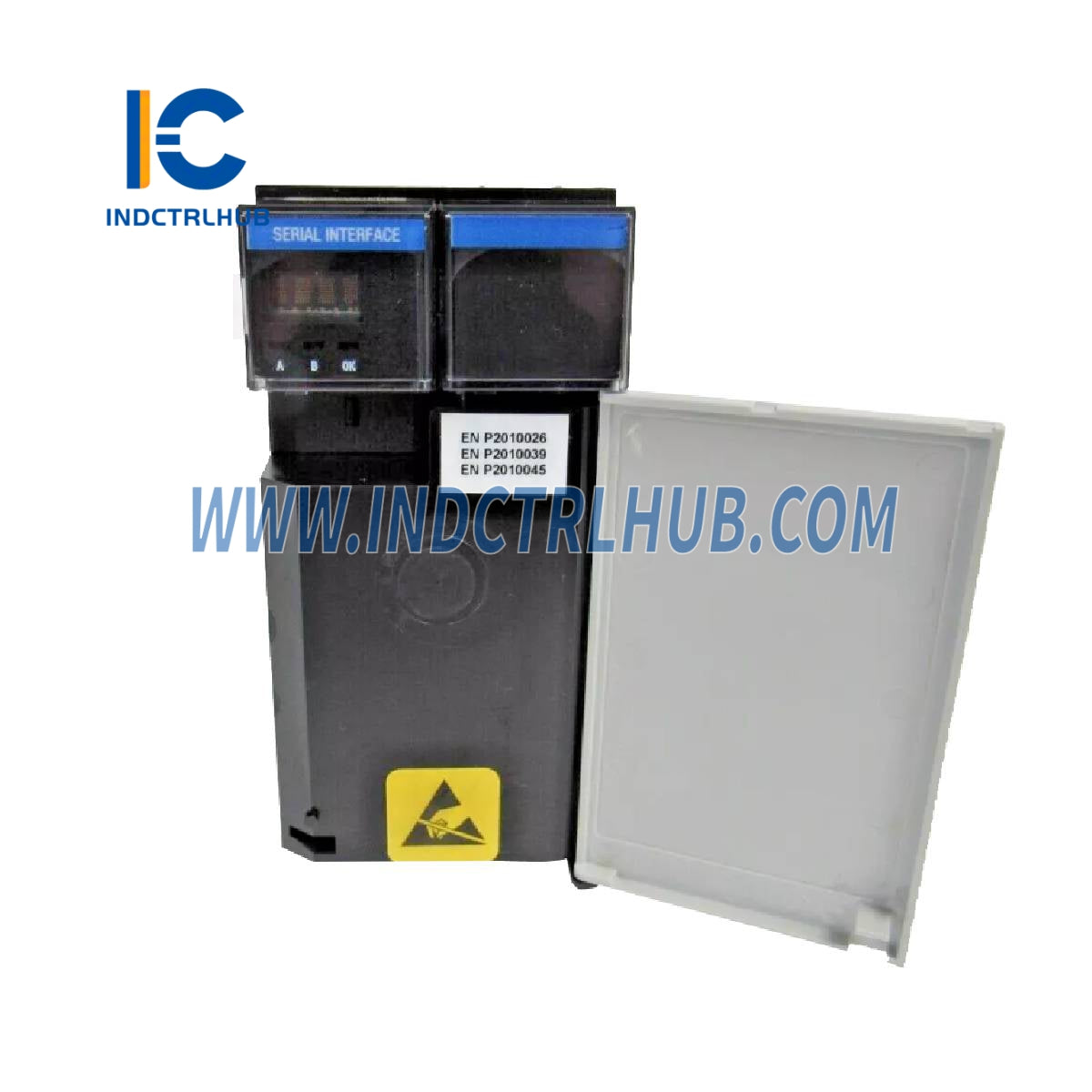

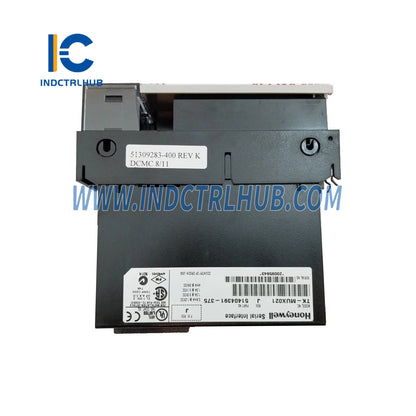

Honeywell TK-MUX021 51404391-375 Serial Interface Module
Product Overview
- The Honeywell TK-MUX021 51404391-375 is a Serial Interface Module designed for the Experion Process Knowledge System (PKS) platform, specifically for integration with the C200 and C300 Controllers. This module facilitates serial communication (RS-232 or RS-485) with field devices, enabling bi-directional data exchange for monitoring and control. It is ideal for industrial automation applications in industries such as oil and gas, chemical, and manufacturing, where seamless integration with serial devices is required.
Technical Specifications
- The TK-MUX021 has the following specifications based on standard characteristics for this model:
| Specification | Details |
|---|---|

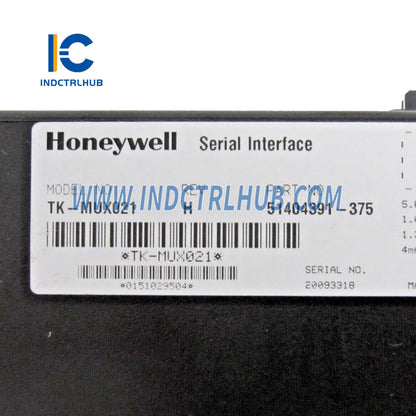

| Model/Part Number | TK-MUX021 51404391-375 |
| Manufacturer | Honeywell |
| Description | Serial Interface Module (RS-232/RS-485) |
| Series | Experion PKS |
| Communication Protocols | RS-232, RS-485 |
| Baud Rate | Up to 115.2 kbps (configurable, e.g., 9600, 19200, 38400) |
| Transmission Distance | RS-232: Up to 15 m; RS-485: Up to 1200 m |
| Power Supply | 24 VDC nominal (via system backplane) |
| Current Consumption | Approx. 4 mA at 24 VDC |
| Operating Temperature | -40°C to +70°C (-40°F to +158°F) |
| Weight | Approx. 0.3 kg |
Additional Details
- The TK-MUX021 includes the following additional information based on its standard use and documentation:
- Function: Enables bi-directional serial communication with field devices, mapping inputs into the I/O database for direct use in calculations and control; supports writing/reading parameters like target values or damping factors.
- Mounting: Mounts in Experion PKS Series C I/O racks, interfacing with controllers like C200 or C300 via the system backplane.
- Compatibility: Compatible with Honeywell’s Experion PKS platform; supports custom programmable modules for specific serial devices.
- Configuration: Configurable via Experion PKS software; supports flexible data formats (e.g., 8 data bits, 1 stop bit, no parity) and selectable baud rates.
- Certifications: Meets CE, UL, and other industrial standards for safe operation in industrial environments.
